My Delta Printer
par robkar
Fichiers imprimables (19)
-

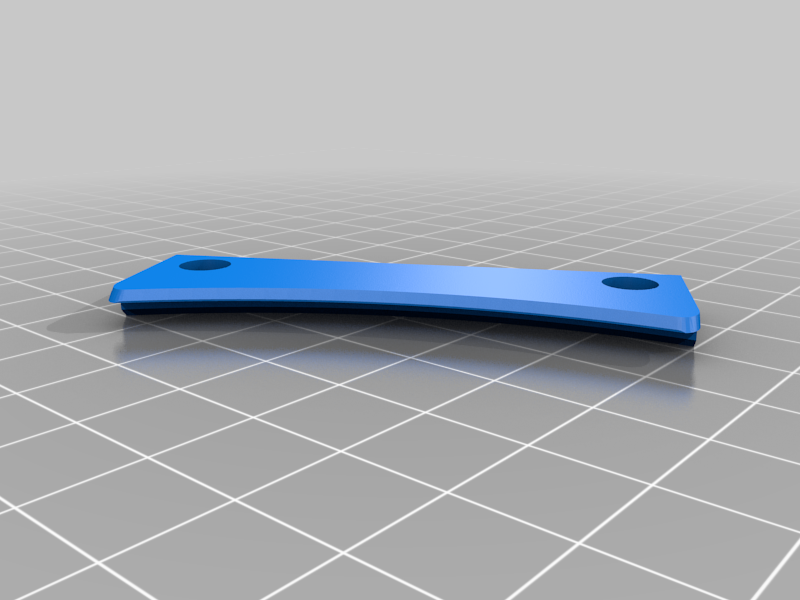

stlBED_MOUNT_ALTERNATIVE_TOP.stl
61 Ko · 18 907 téléchargements
-

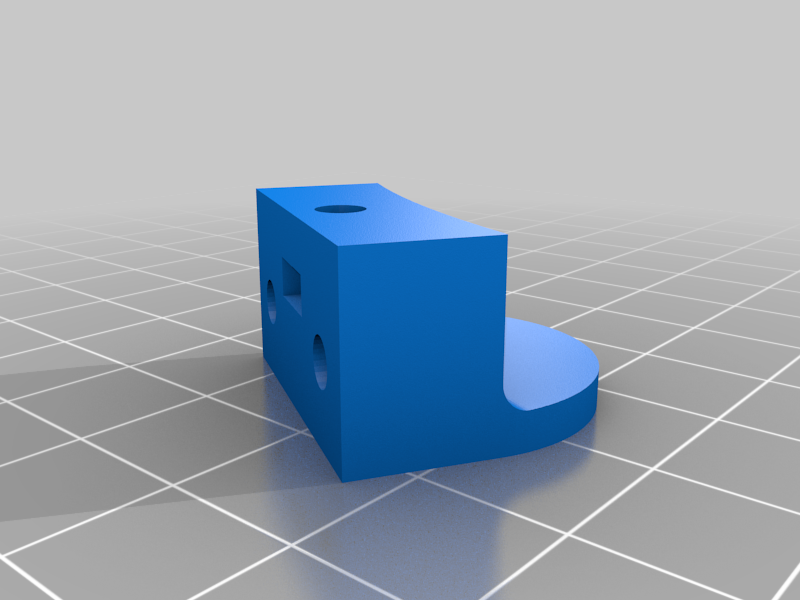

stlBED_MOUNT.stl
85 Ko · 18 879 téléchargements
-

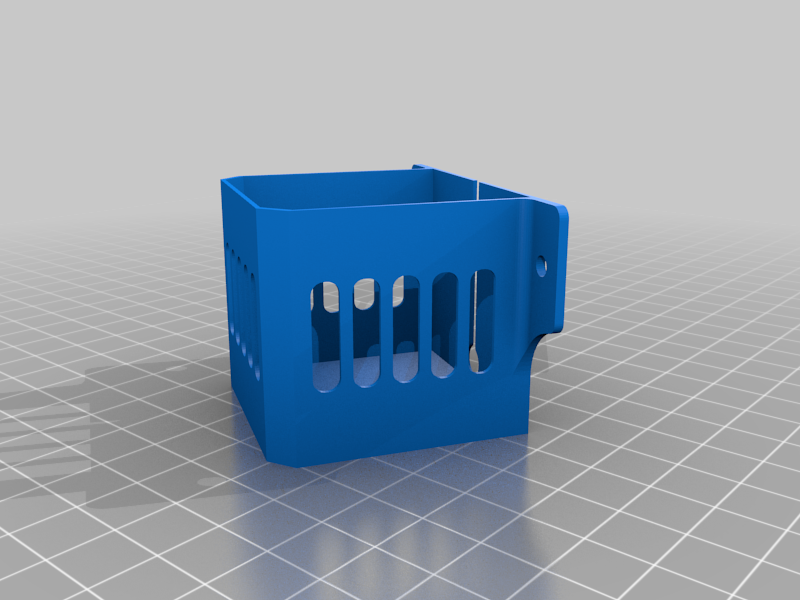

stlEXTRUDER_1.stl
154 Ko · 18 885 téléchargements
-

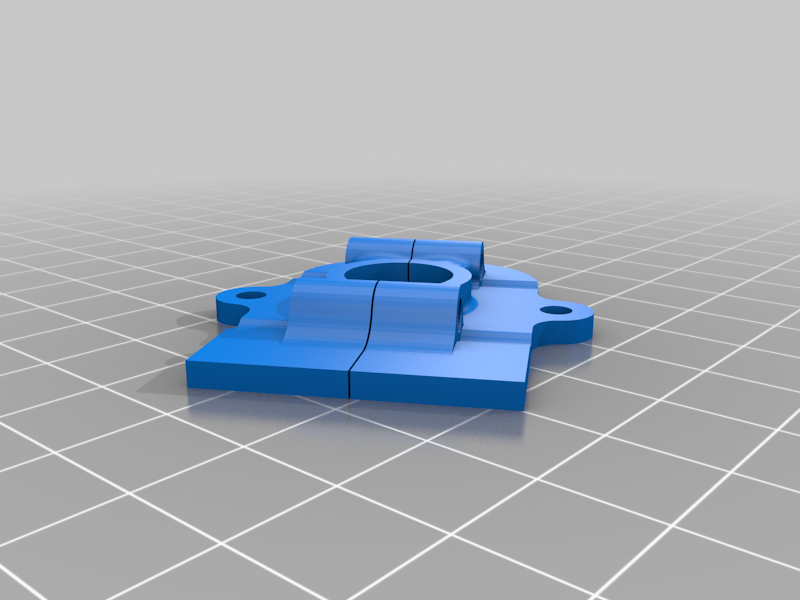

stlEFFECTOR_TOP.stl
476 Ko · 18 980 téléchargements
-

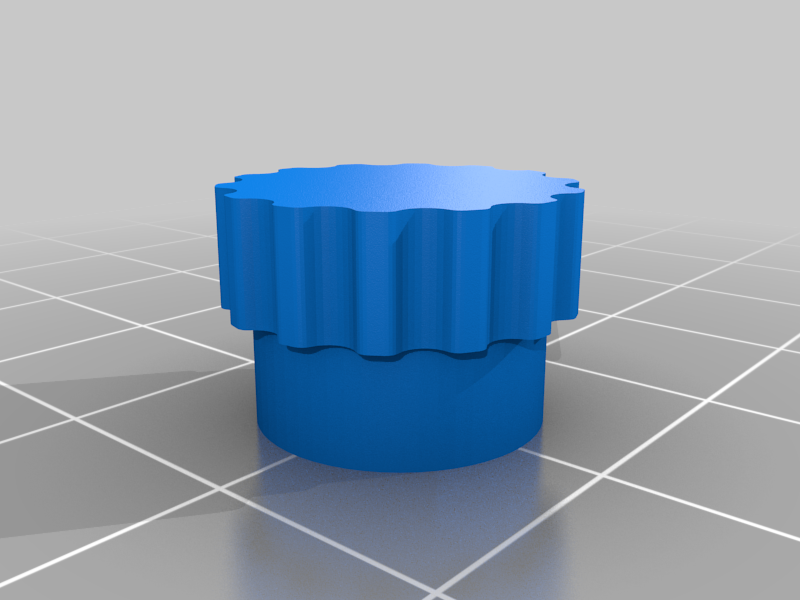

stlEXTRUDER_KNOB.stl
64 Ko · 18 765 téléchargements
-

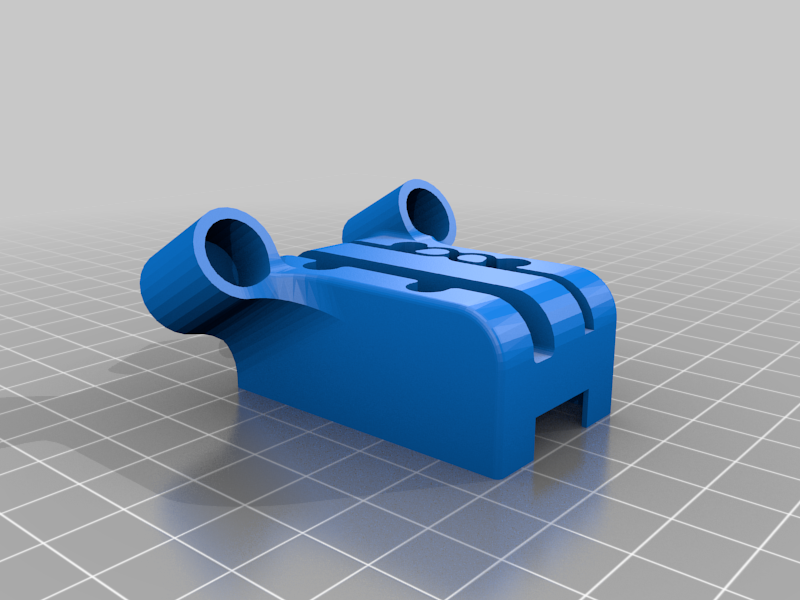

stlARM_CARRIAGE_FIXED_4mmMAGNETS.stl
163 Ko · 18 623 téléchargements
-
stlARM_CARRIAGE_FIXED_3mmMAGNETS.stl
163 Ko · 18 492 téléchargements
-

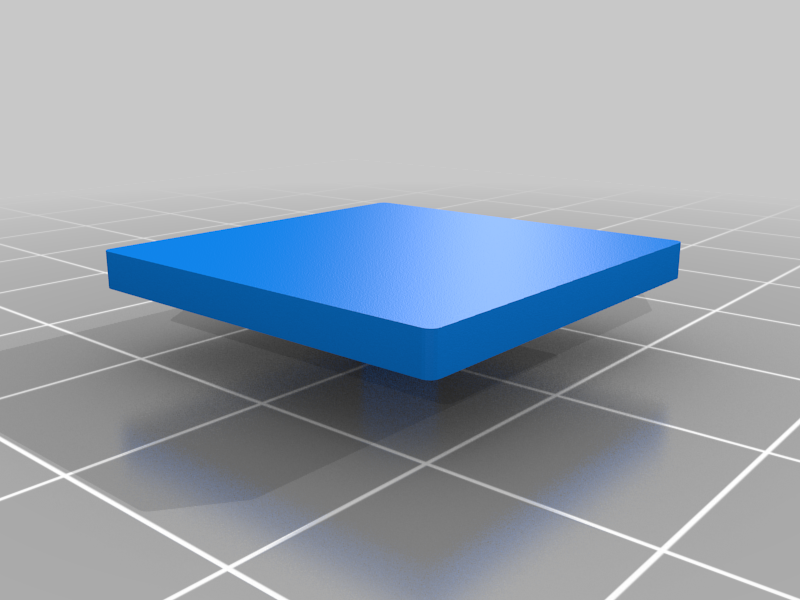

stlEXTRUSION_END_CAP.stl
16 Ko · 18 754 téléchargements
-

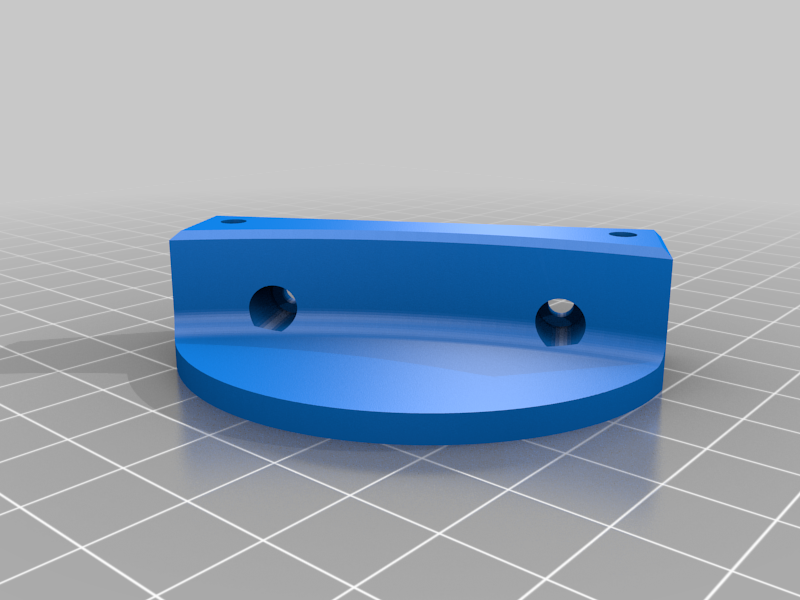

stlBED_MOUNT_ALTERNATIVE.stl
133 Ko · 18 749 téléchargements
-

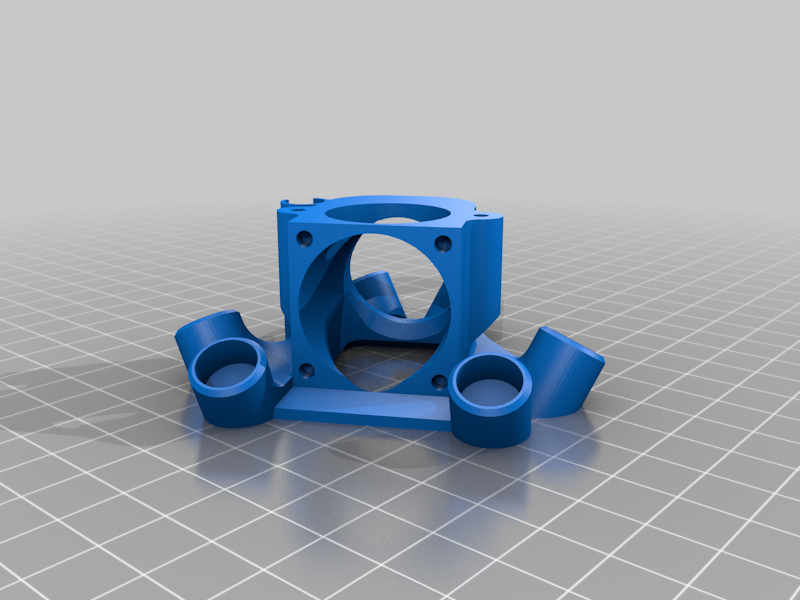

stlEFFECTOR.stl
1.1 Mo · 19 243 téléchargements
-

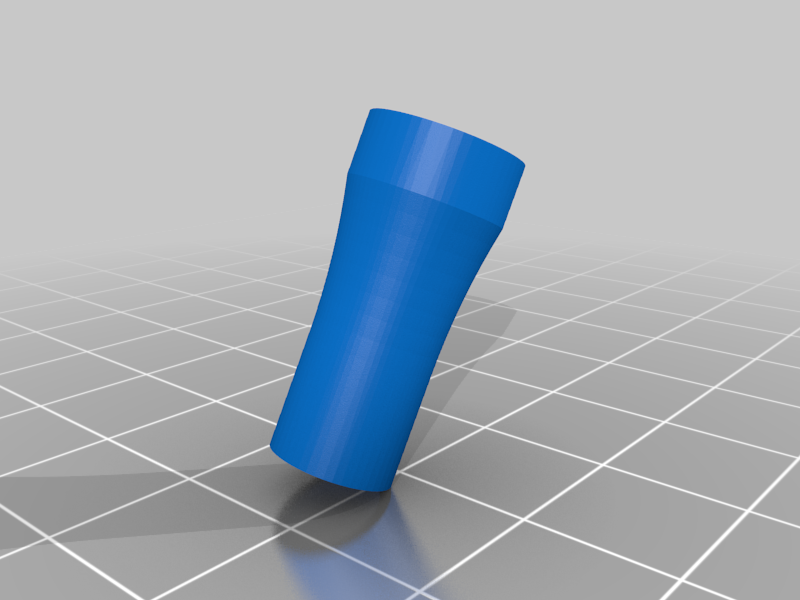

stlROD_END.stl
192 Ko · 18 865 téléchargements
-

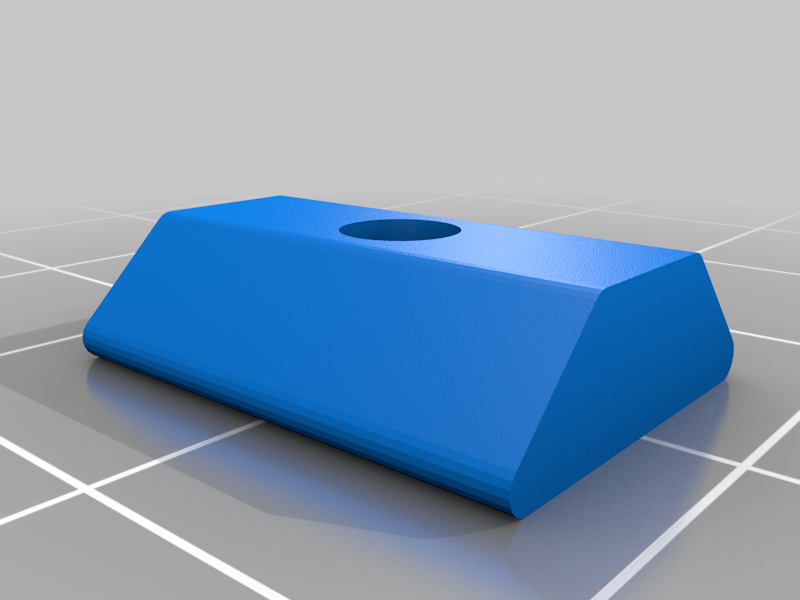

stlT-SLOT_INSERT.stl
38 Ko · 18 749 téléchargements
-

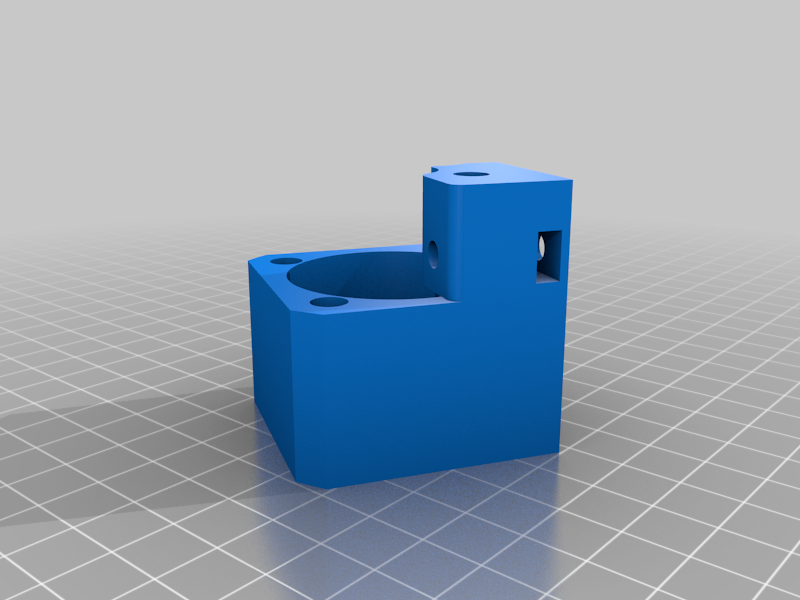

stlEXTRUDER_2.stl
88 Ko · 18 712 téléchargements
-

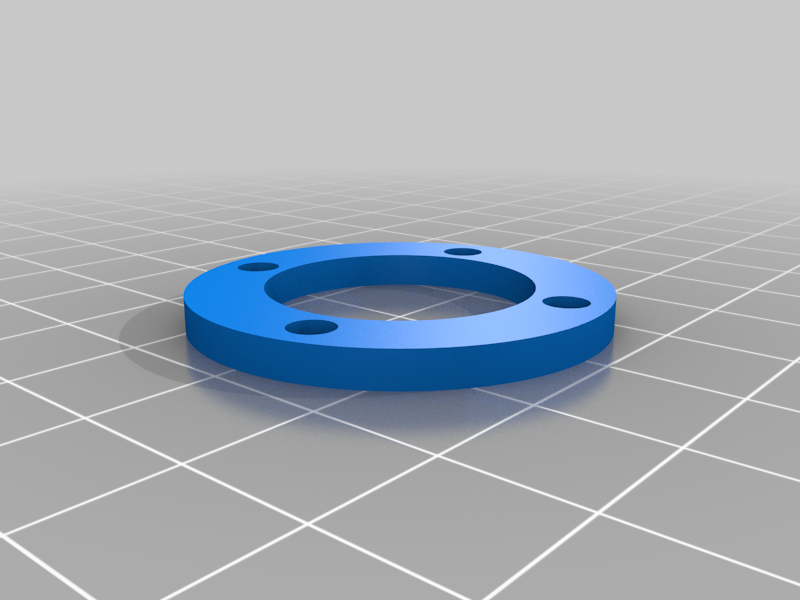

stlEXTRUDER_WASHER.stl
59 Ko · 18 681 téléchargements
-

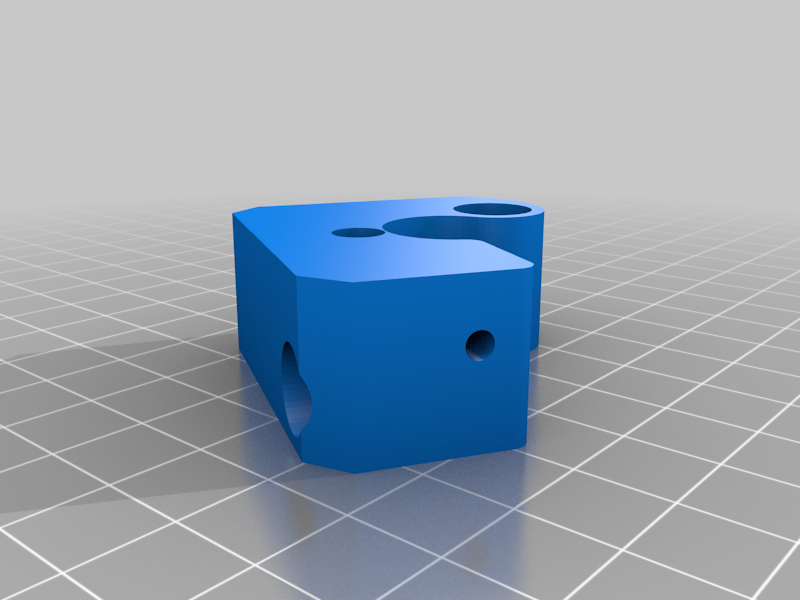

stlEXTRUDER_3.stl
123 Ko · 18 700 téléchargements
-

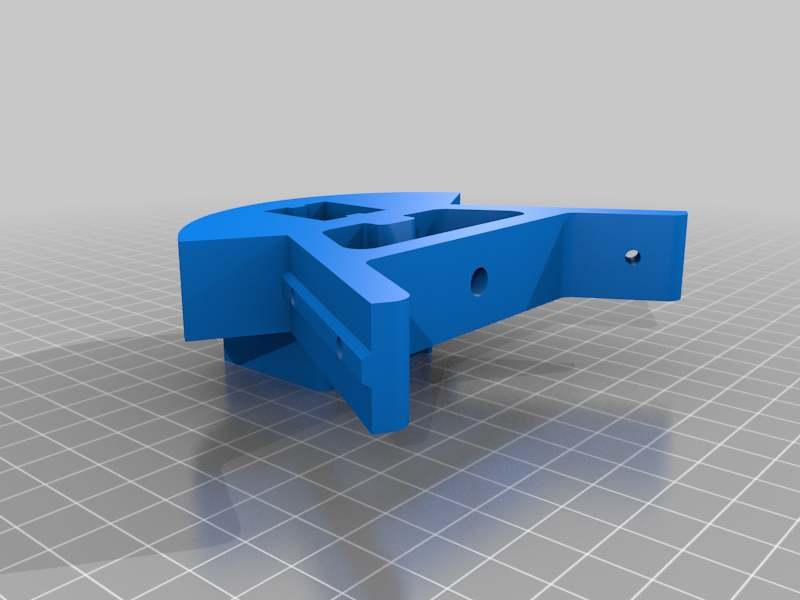

stlUPPER_CORNER.stl
272 Ko · 19 195 téléchargements
-

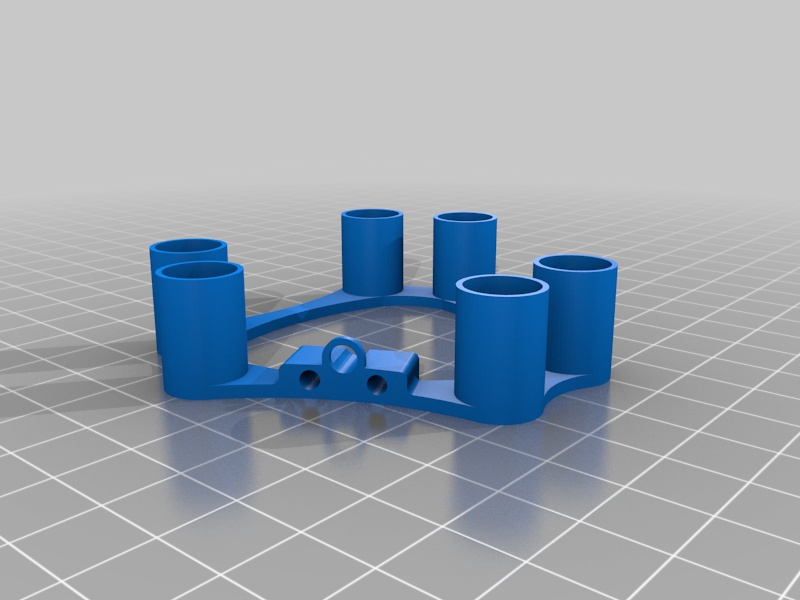

stlZ-PROBE_MOUNT.stl
204 Ko · 18 783 téléchargements
-

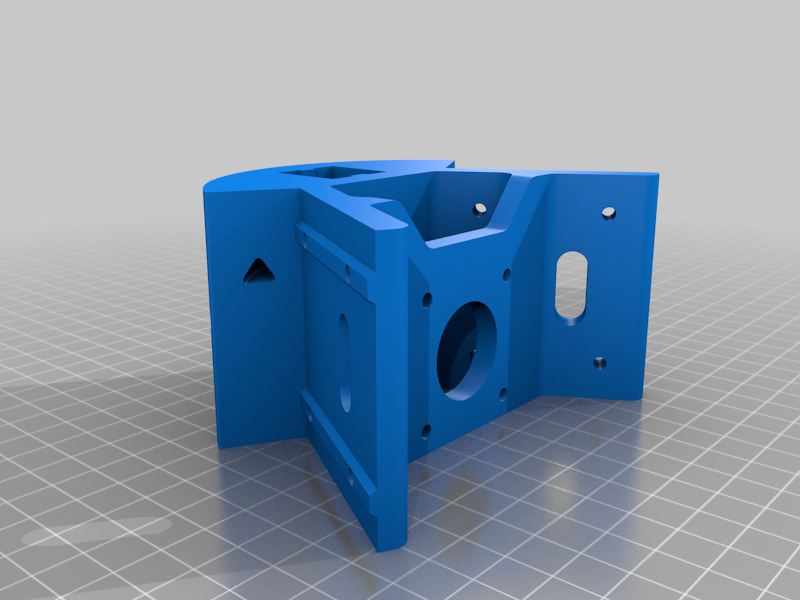

stlLOWER_CORNER.stl
386 Ko · 19 310 téléchargements
-
stlspool_holder.stl
226 Ko · 18 825 téléchargements
Description
This is my delta printer! The design is based on the Kossel Mini (lots of cred!) but everything is redesigned to fit my needs. I wanted it to print fast, look good on my desk and be fairly cheap!
Features (in addition to being a kossel/delta printer with what that brings):
- Very rigid (bottom and top corner pieces have been reinforced withmore supporting material and extra fastening screws + 2020 extrusions are used instead of 1515)
- Magnetic ball joints for minimal backlash and easy handling
- Wires are fed through corner pieces, looks neat
- Extruder is mounted on base extrusions so that the bowden tube can be packed together with effector cables.
- Nema 17 motor with planetary gears is neatly integrated in the extruder design, for performance and looks
- Effector, arm carriages and bed mounts are all designed to maximize the print height (which ends up in something like 275mm)
- Snap on Z-probe (see my other thing: http://www.thingiverse.com/thing:892398)
If someone is seriously interested in making this I'll be happy to help out as much as possible. If you want a list of links with all parts I have bought, just let me know. I sourced most of the non-printed parts from China, and I think the total cost ends up somewhere around 350 USD (depending on your choice of "expensive" parts; extrusions, linear rails, motors).
Overall it now prints great, compared to my Printrbot Simple Metal it is both faster and less noisy!
EDIT 15-10-12:
- Here is an updated effector that uses a 40mm fan to cool both hot end and the printed part: http://www.thingiverse.com/thing:1050490
- If you'd rather use ball joints (will never come apart, but might have some play) I have designed this: http://www.thingiverse.com/thing:1015846
