Many Use Thing

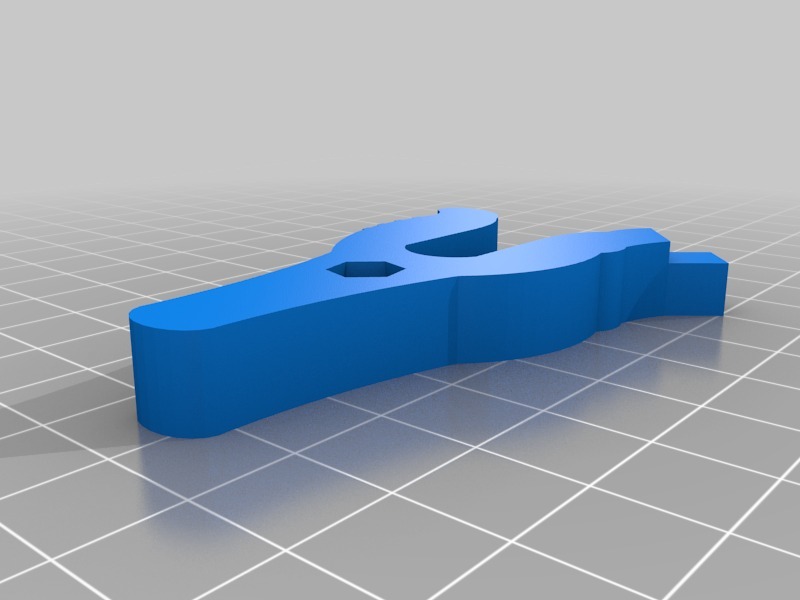

The Many Use Thing is a tool that I designed in Sketchup. It can be used for the following purposes:

• Dremel collet tightening / loosening
• 3/8" Socket Driver
• 1/4" Socket Driver
• 1/4" Socket hold for bits

To use as a Dremel collet tightener, slide the tool over the flat part of the collet and then squeeze the arms with your thumb and forefinger while twisting to tighten or loosen.

The 3/8" and 1/4" drive shafts are for sockets. After printing they will need to be "broken in". Trim up excess plastic and force a socket on and off a few times. After that you can be assured that once a socket is put on it will not fall off.

The hole in the middle is 1/4" so you can use it as a handle for bits.

Photoset:
http://www.flickr.com/photos/23450595@N02/sets/72157626847828041/

Video:
http://youtu.be/c26OSuSRPE4
