Printable Tripod Mount

par Starno

Fichiers imprimables (4)

Description

In response to the remake challenge, http://blog.thingiverse.com/2009/08/26/remake-challenge-iphone-tripod-mount/, a portable media tripod mount. The adapter will fit many different handheld devices, and is reconfigurable to have either the single or double support block on top and bottom.

Smallest clamping size: 1.75in
Largest Clamping size: 3in.
Ideal fit: iphone

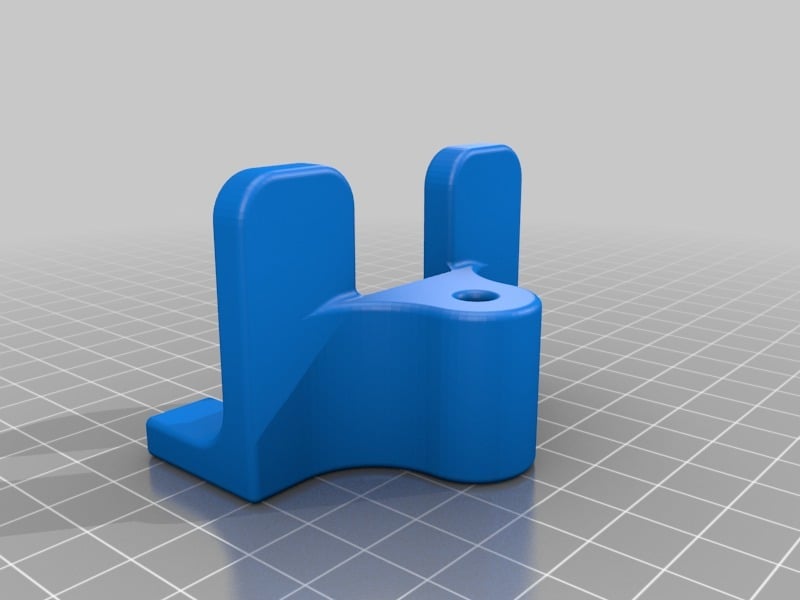

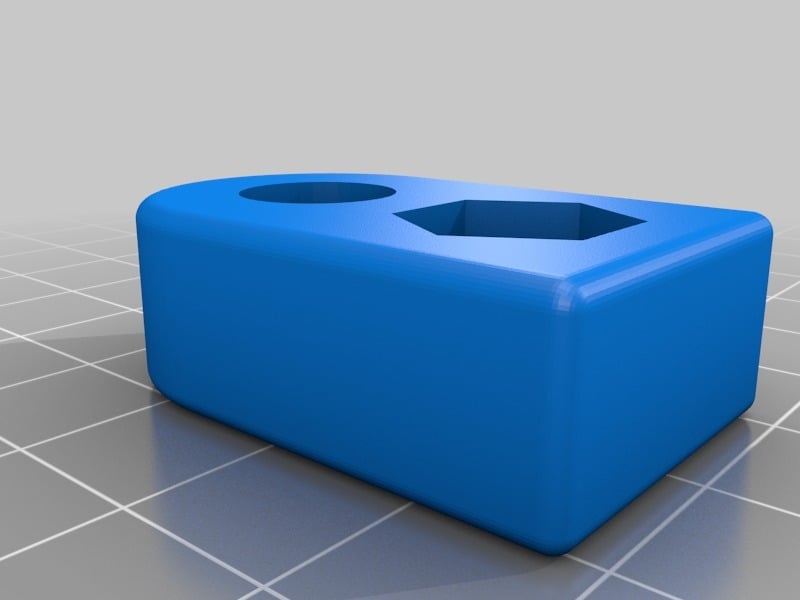

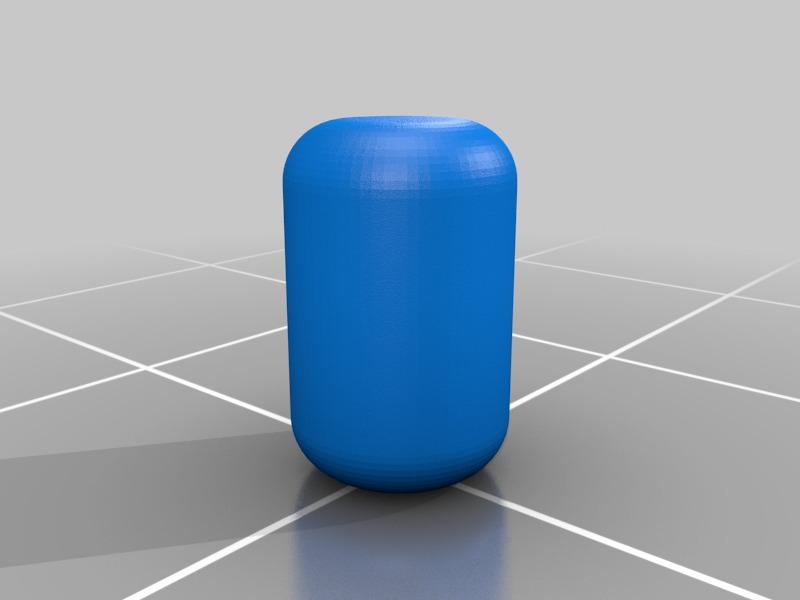

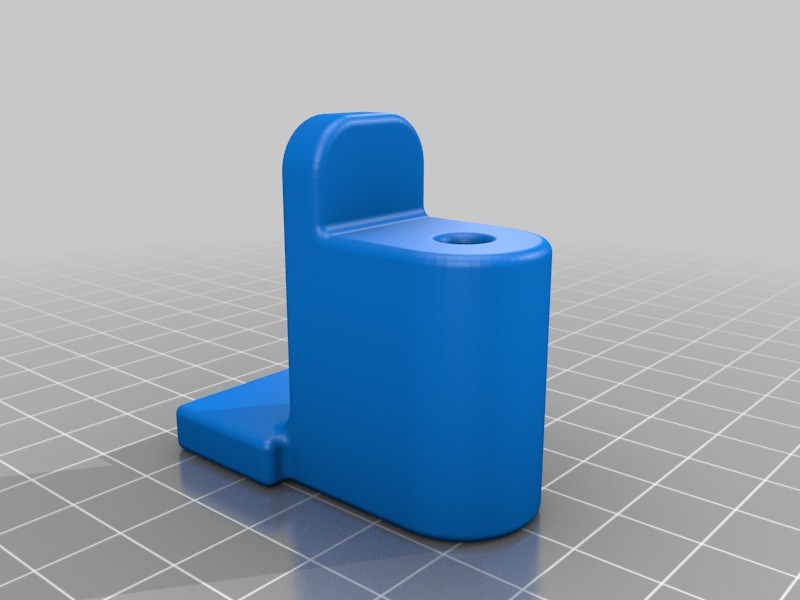

The two clamping arms fit into each other to prevent lateral movement. The female attachment has a press fit for a 1/4-20 nut, acting as the tripod mount. To eliminate the lateral movement between the female and either clamp arm there is a modeled \"peg\" and complementing features; however, there is probably a better solution.

Adding a low durometer material to the clamp fingers would make a nice grip without damaging the phone surface.

Tags

#3D #makerbot #Remake Challenge #tipod #tripod #useful
