Hexapod Robot

von markwtech

Druckbare Dateien (19)

  • stl

    Body_Bottom_Plate.stl

    205 Ko · 16 293 Downloads

    Herunterladen
  • stl

    Tibia_Spacer_Tube.stl

    53 Ko · 16 174 Downloads

    Herunterladen
  • stl

    Tibia_Side_2.stl

    33 Ko · 16 149 Downloads

    Herunterladen
  • stl

    Body_Riser.stl

    70 Ko · 16 170 Downloads

    Herunterladen
  • stl

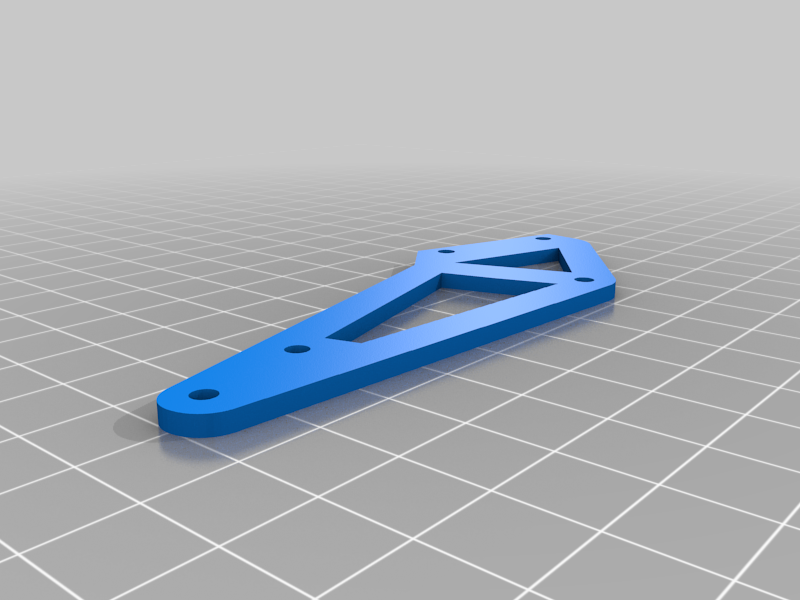

    Tibia_Side_1.stl

    33 Ko · 16 089 Downloads

    Herunterladen
  • stl

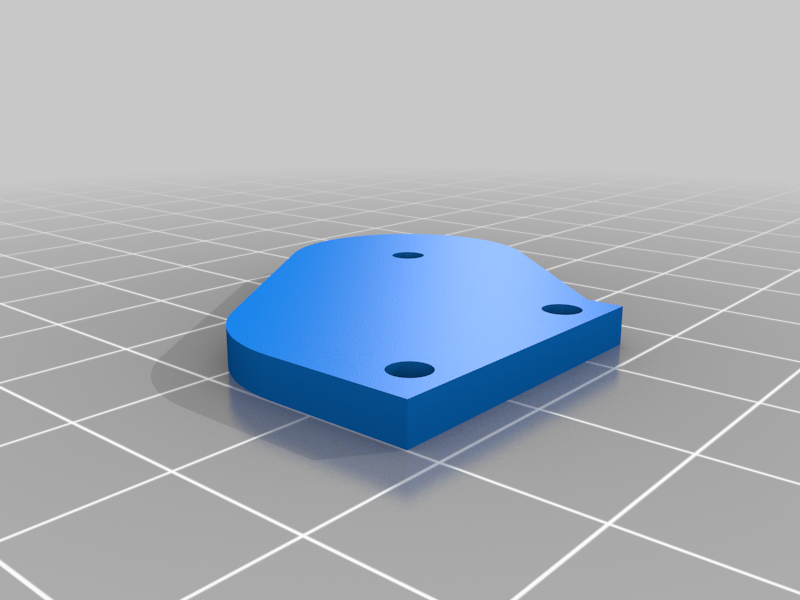

    Tibia_Foot_Plate.stl

    75 Ko · 16 096 Downloads

    Herunterladen
  • stl

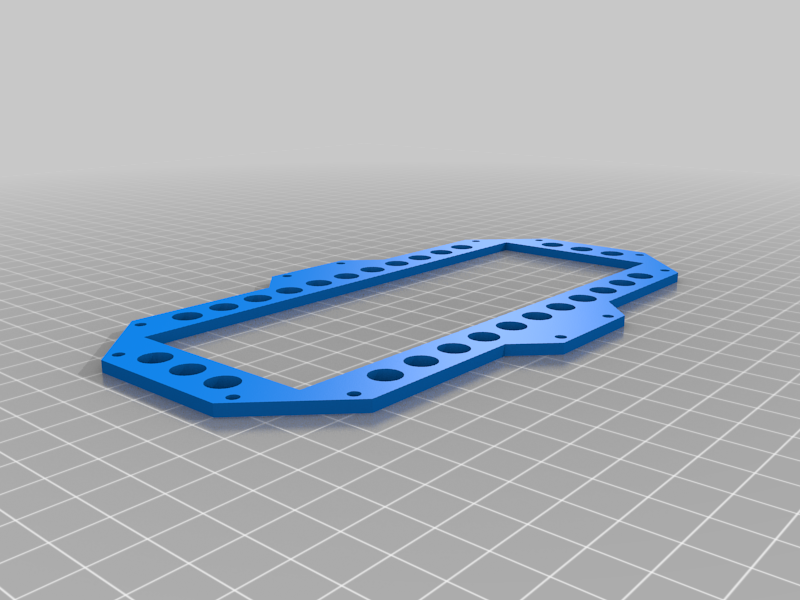

    Body_Top_Plate.stl

    423 Ko · 16 116 Downloads

    Herunterladen
  • stl

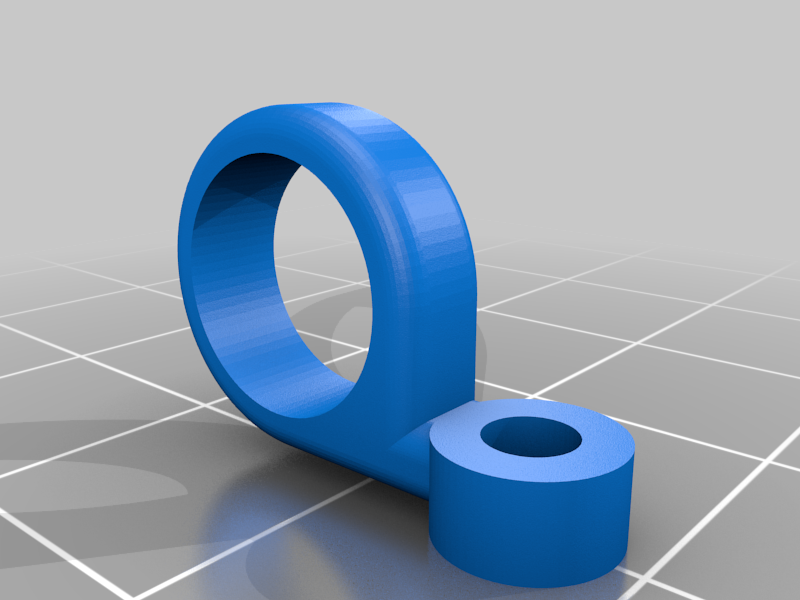

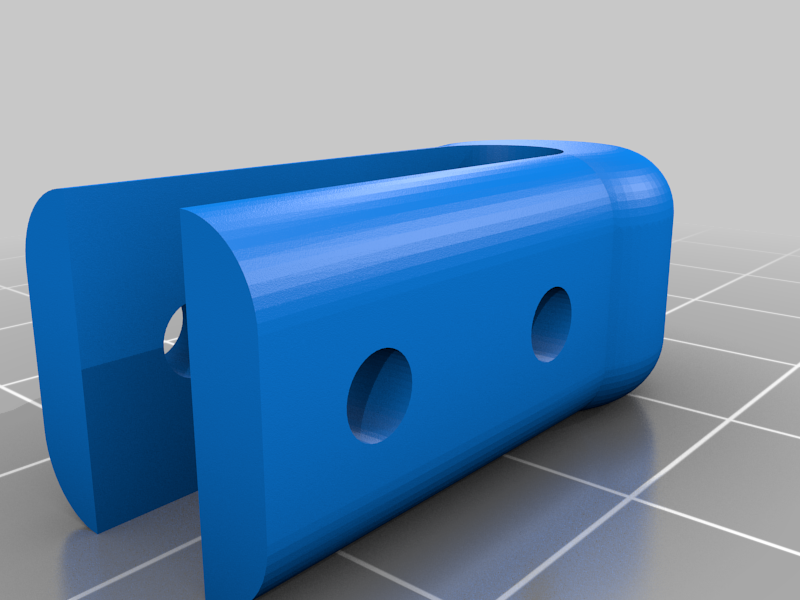

    Wire_Guide.stl

    201 Ko · 16 029 Downloads

    Herunterladen
  • stl

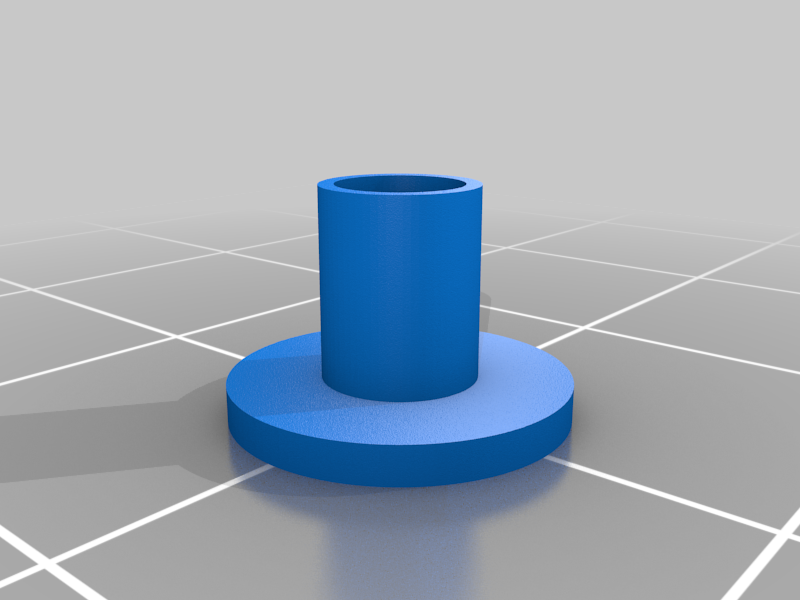

    Servo_Bearing_Center.stl

    57 Ko · 16 098 Downloads

    Herunterladen
  • stl

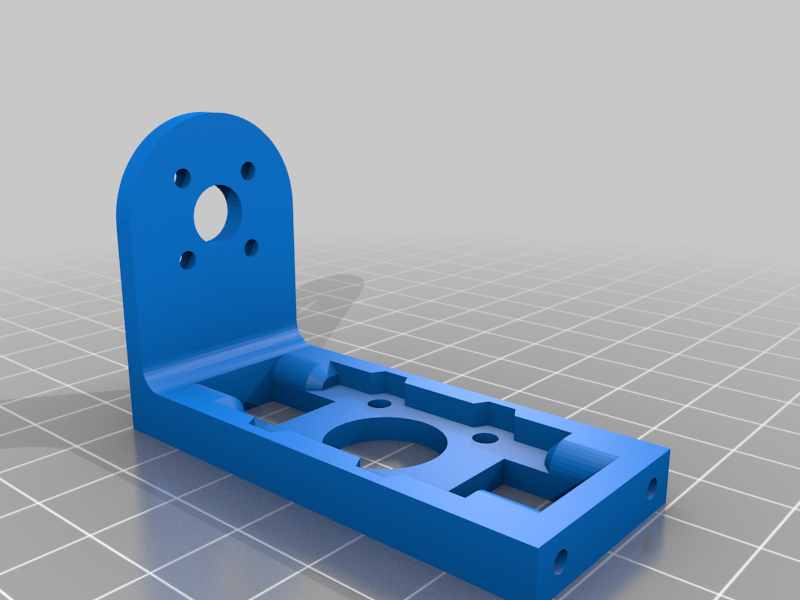

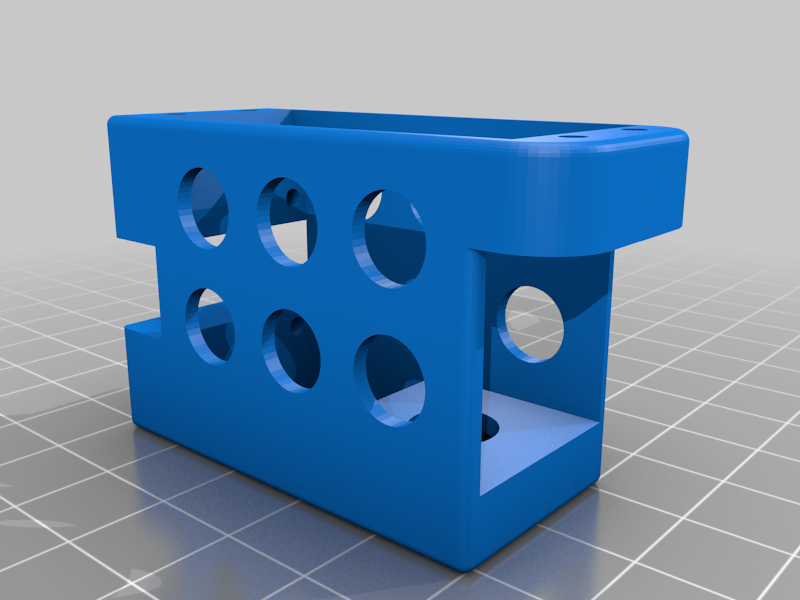

    Servo_Mount.stl

    266 Ko · 16 283 Downloads

    Herunterladen
  • stl

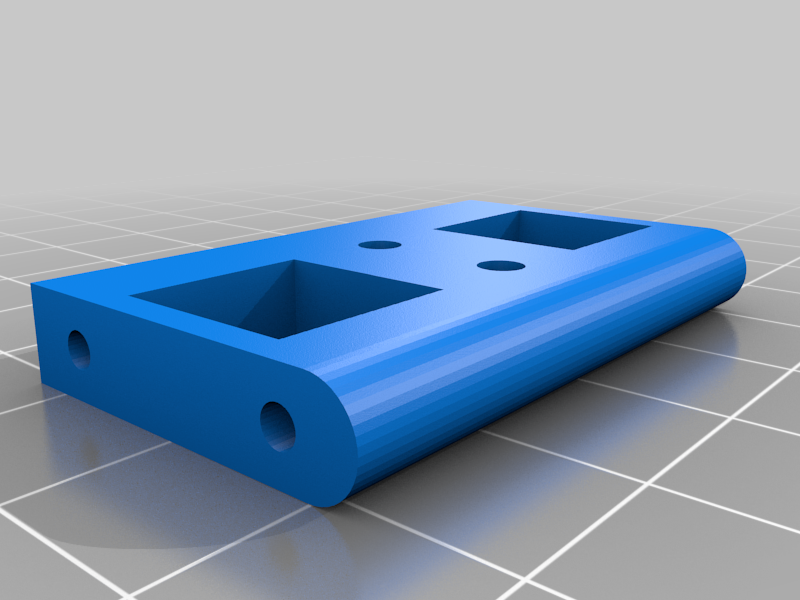

    Tibia_Bracket.stl

    97 Ko · 16 089 Downloads

    Herunterladen
  • stl

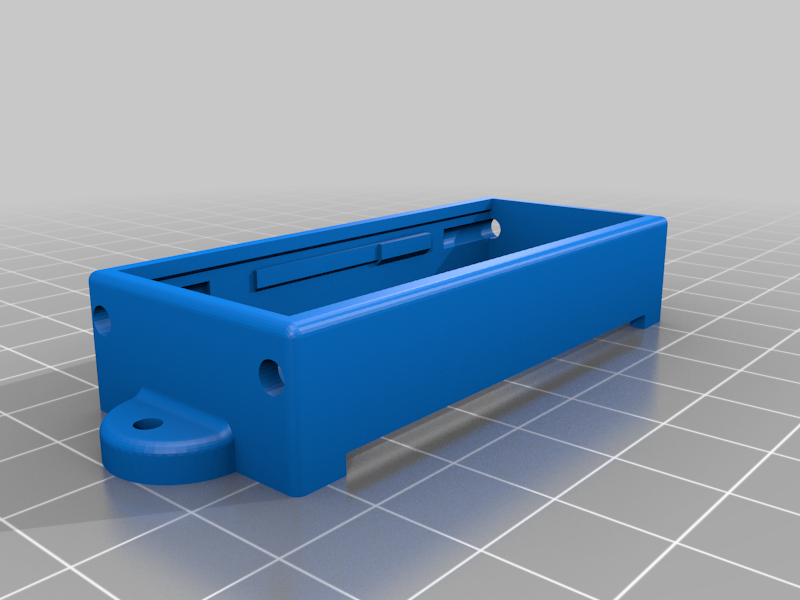

    SBEC_Holder.stl

    146 Ko · 16 007 Downloads

    Herunterladen
  • stl

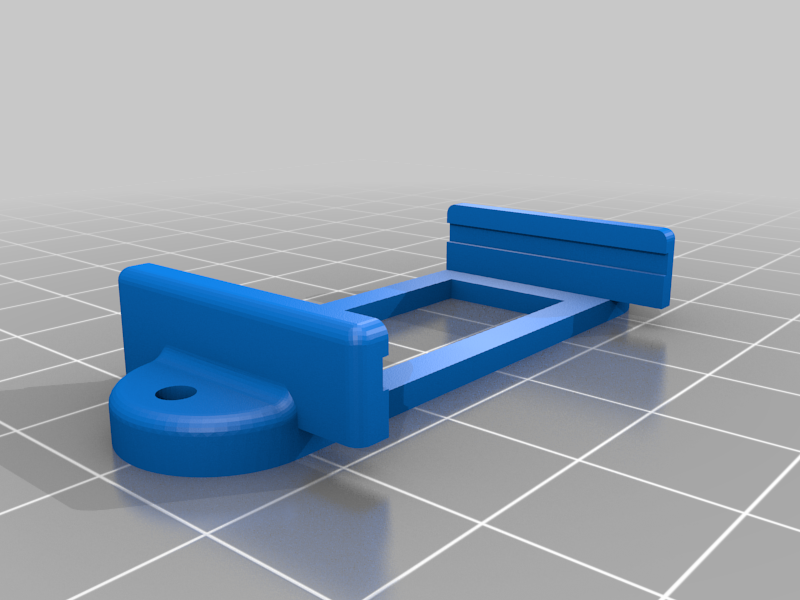

    Receiver_Holder.stl

    111 Ko · 15 972 Downloads

    Herunterladen
  • stl

    Tibia_Bracket_End_Cap.stl

    29 Ko · 16 100 Downloads

    Herunterladen
  • stl

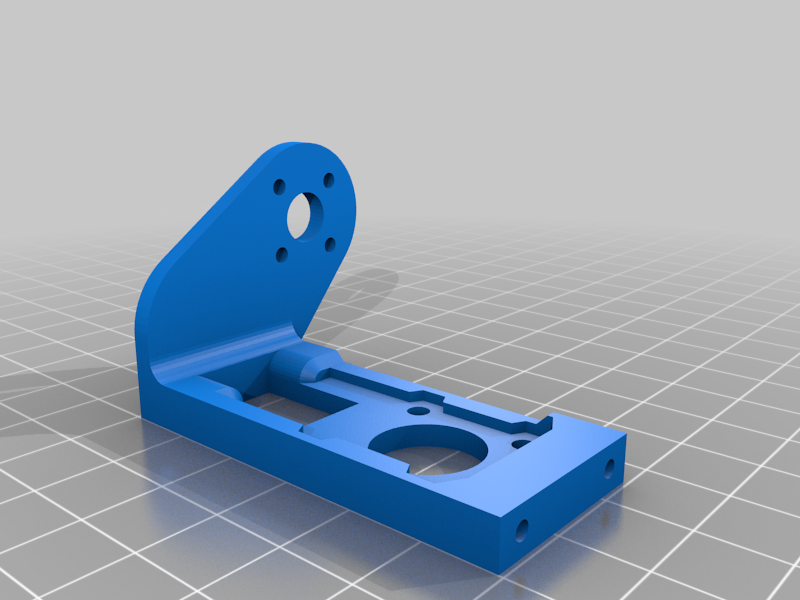

    Femur_Bracket.stl

    107 Ko · 16 075 Downloads

    Herunterladen
  • stl

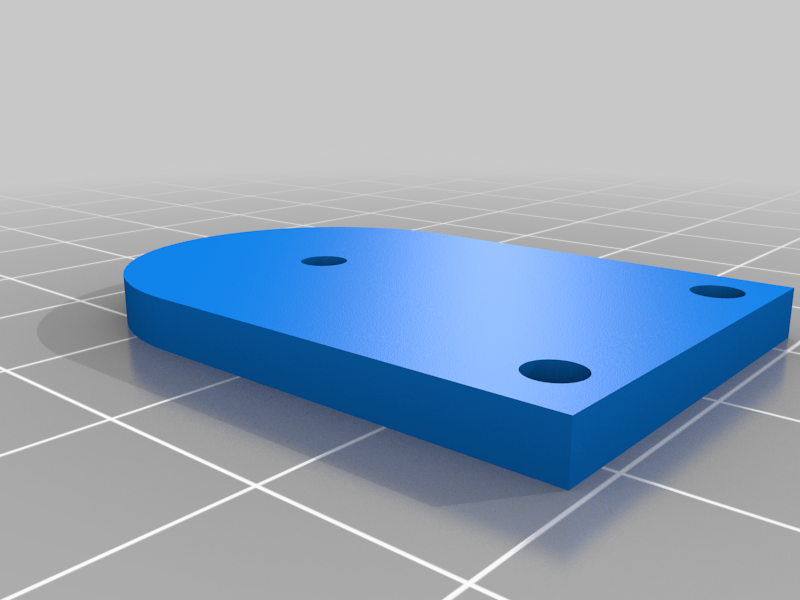

    Femur_Bracket_End_Cap.stl

    30 Ko · 16 034 Downloads

    Herunterladen
  • stl

    Tibia_Foot_Bumper.stl

    212 Ko · 16 018 Downloads

    Herunterladen
  • stl

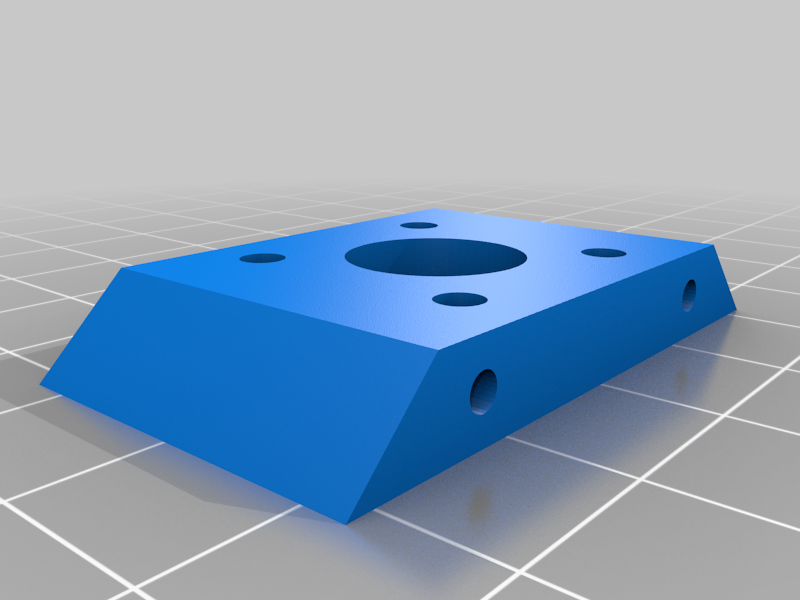

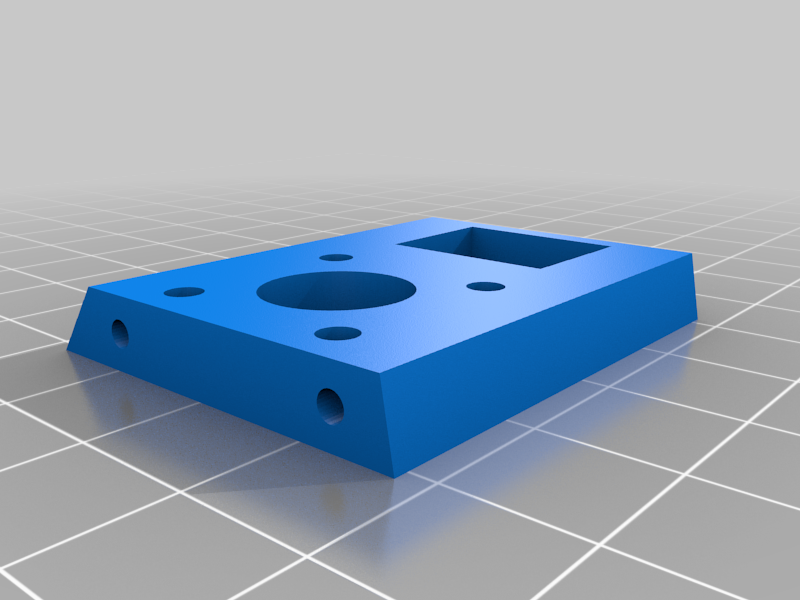

    Tibia_Base_Plate.stl

    84 Ko · 16 060 Downloads

    Herunterladen
  • step

    Hexapod.stp

    11.8 Mo · 4 381 Downloads

    Herunterladen

Beschreibung

This is my hexapod robot inspired by the PhantomX from Trossen Robotics but using cheap 180 degree MG996R clone servos.

The following parts are printed in PLA at 30% infill, no support material is needed:

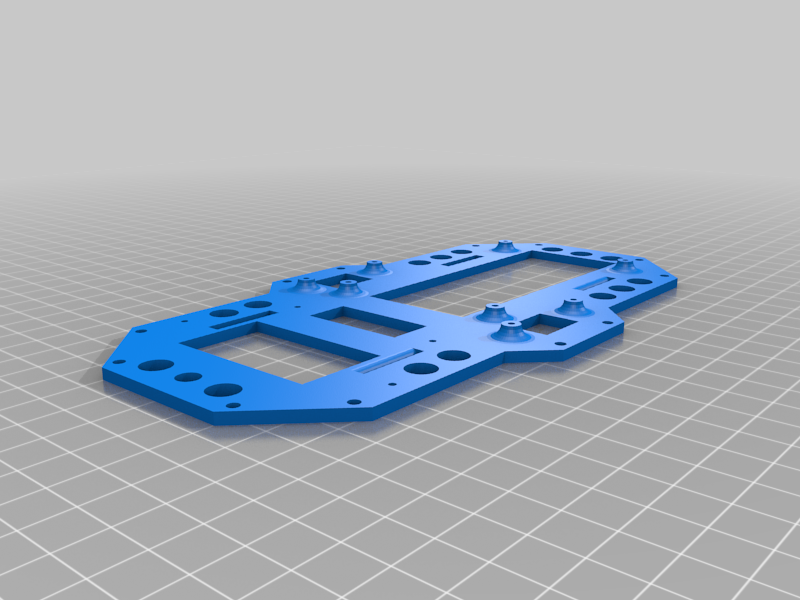

  • 1 Body Bottom Plate
  • 6 Body Risers
  • 1 Body Top Plate
  • 12 Femur Bracket End Caps
  • 12 Femur Brackets
  • 18 Servo Bearing Centers
  • 6 Tibia Base Plates
  • 6 Tibia Bracket End Caps
  • 6 Tibia Brackets
  • 6 Tibia Foot Plates

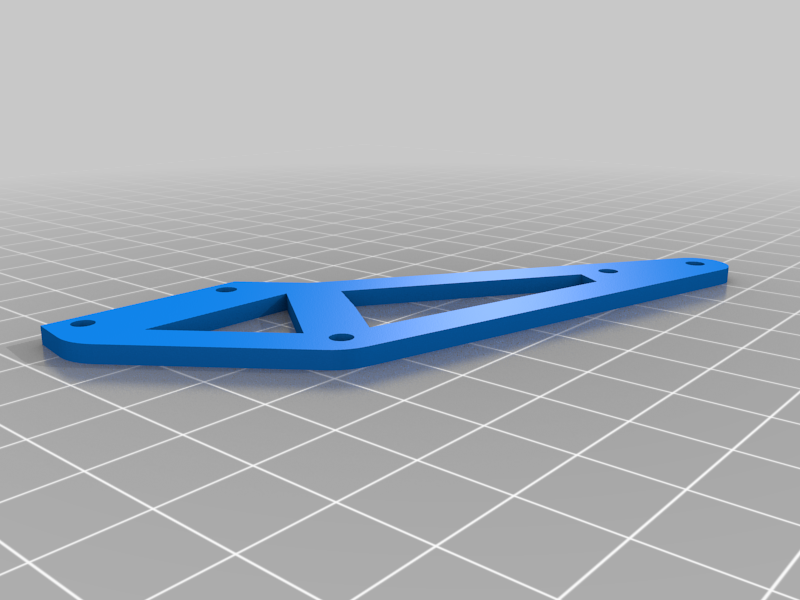

  • 6 Tibia Sides 1
  • 6 Tibia Sides 2 (Note: the tibia sides are identical, they are just printed with opposing sides down)

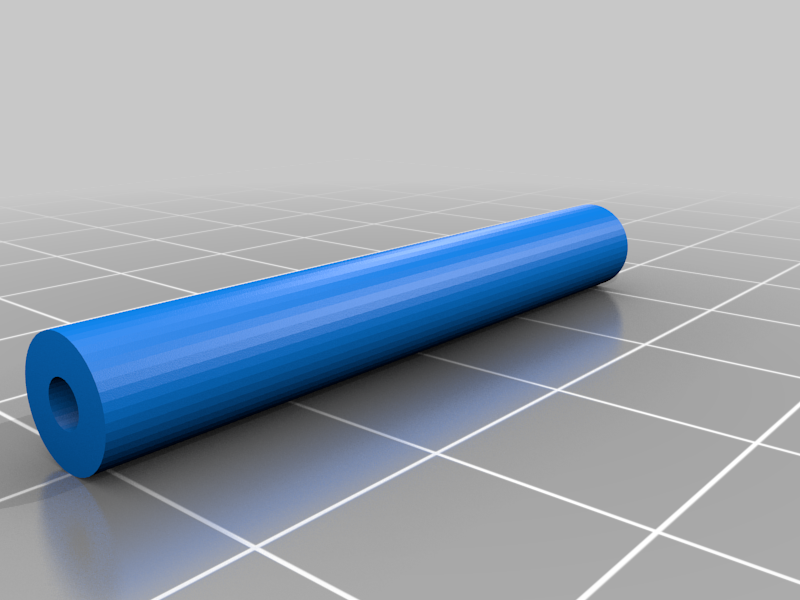

  • 6 Tibia Spacer Tubes

The following parts are printed in PLA at 30% infill with support:

  • 1 Receiver Holder
  • 1 SBEC Holder
  • 18 Servo Mounts
  • 6 Wire Guides

The following parts are printed in TPU at 10% infill, no support needed

  • 6 Tibia Foot Bumpers

The PLA parts were printed a bit on the hot side (210° C) for better layer-to-layer adhesion and part strength. All parts were printed with a 0.4mm nozzle at 0.2mm layer height.

Complete descriptions, assembly details, parts lists, and Arduino code for the robot are available on my project page on Instructables at https://www.instructables.com/Hexapod-Robot/

Demonstration video of the finished robot at: https://www.youtube.com/watch?v=yM-PRk9cH3s
