HyperCube Evolution - TW HEVO Edition
by otaku521
Printable files (58)
-

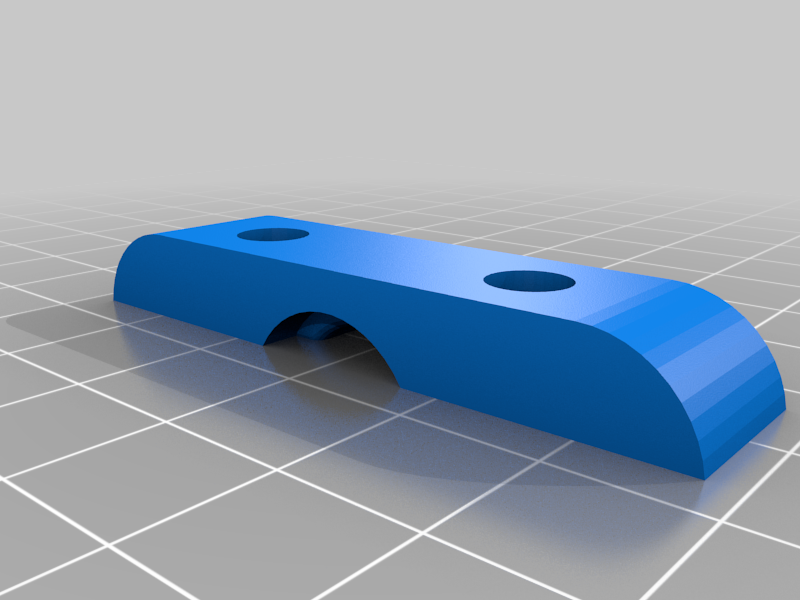

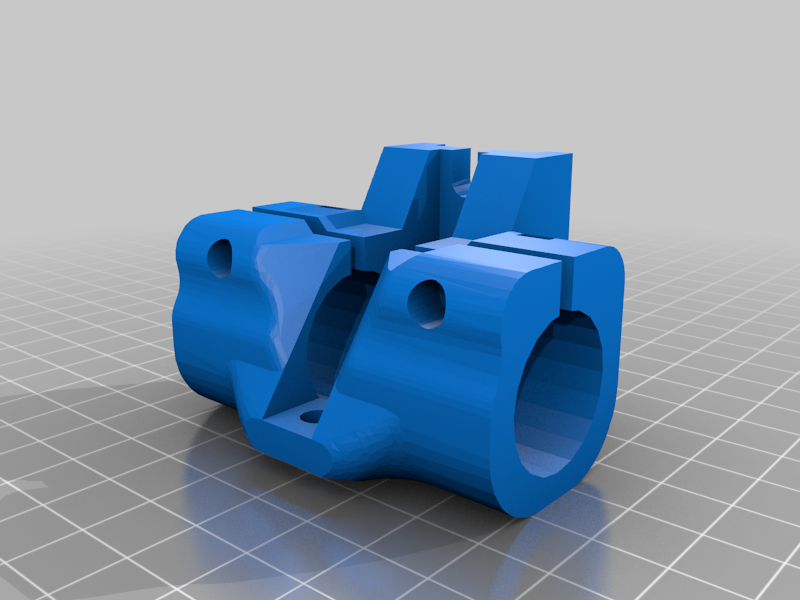

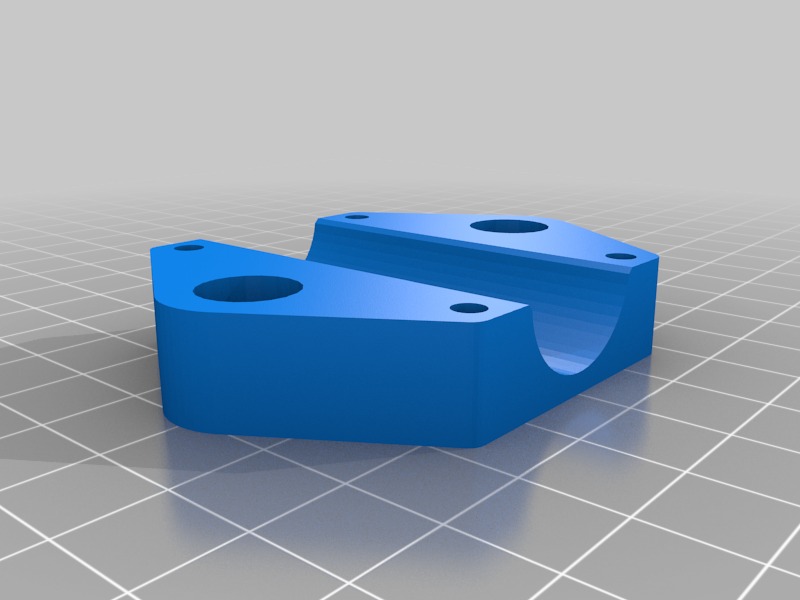

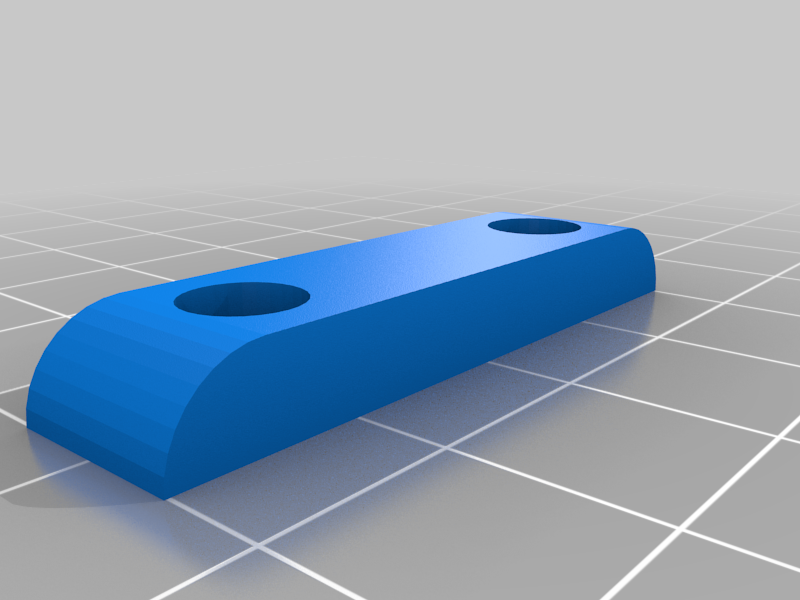

stlXY_Carriage_Clamp_HCEvo_10mm_Bearing_v2.stl
62 Ko · 5 656 downloads
-

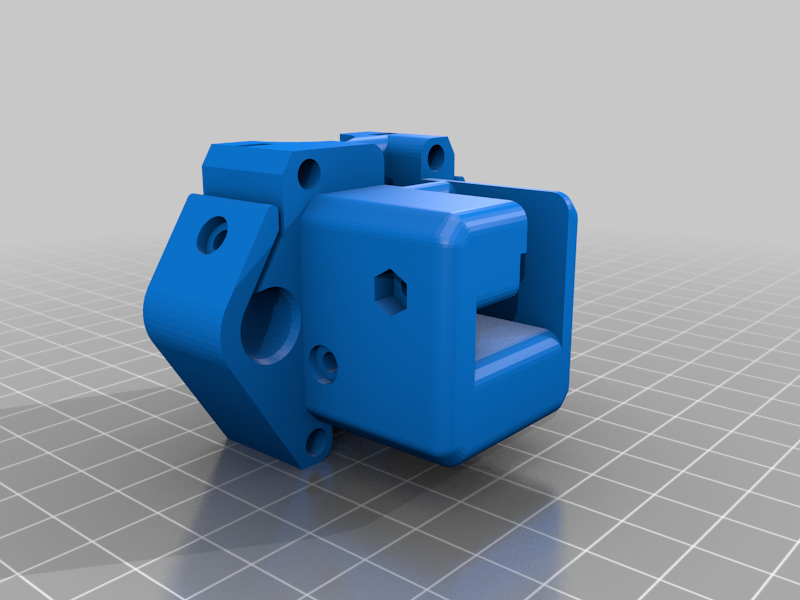

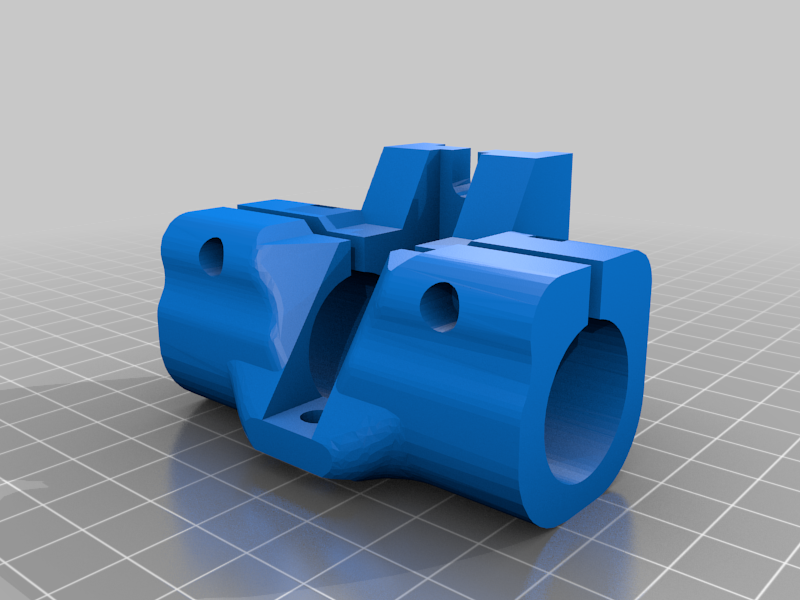

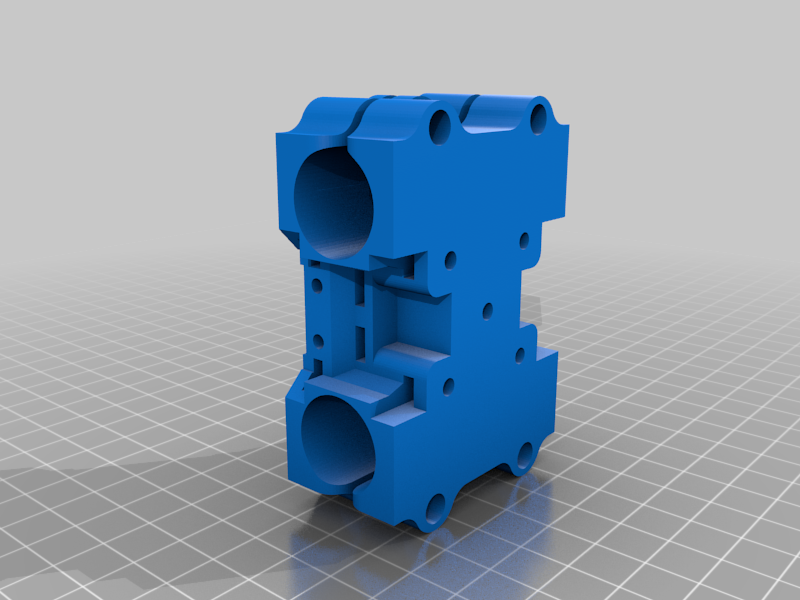

stlXY_Carriage_HCEvo_X10_Y10.stl
1.3 Mo · 5 653 downloads
-

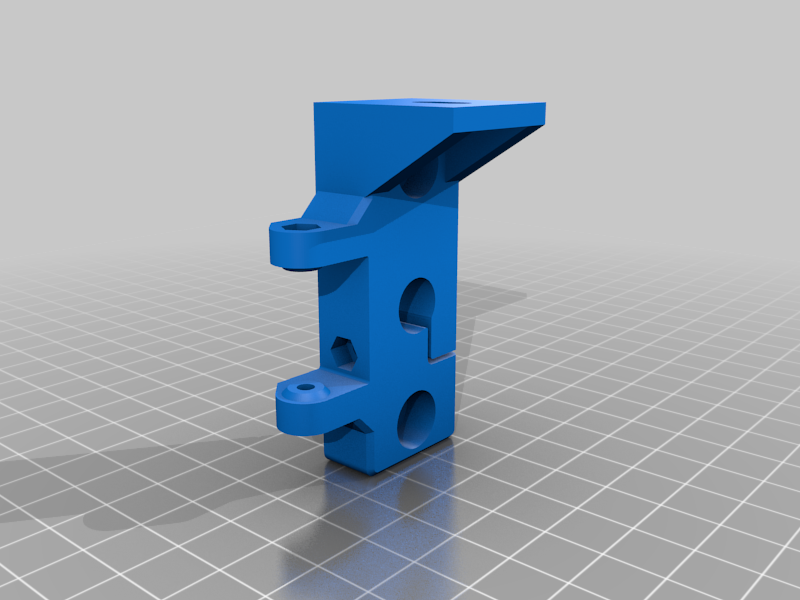

stlZ_Nut_Braket_1.2.1_Ball_screw_1204.stl
161 Ko · 5 632 downloads
-

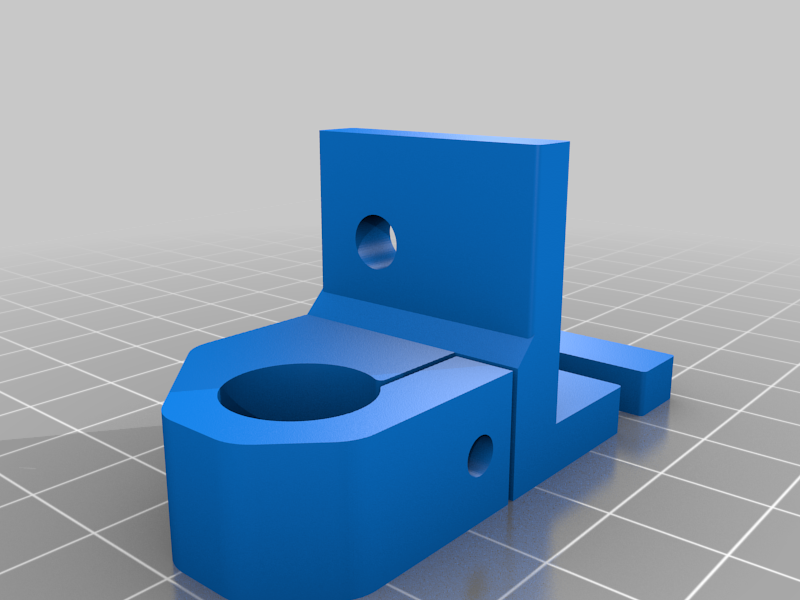

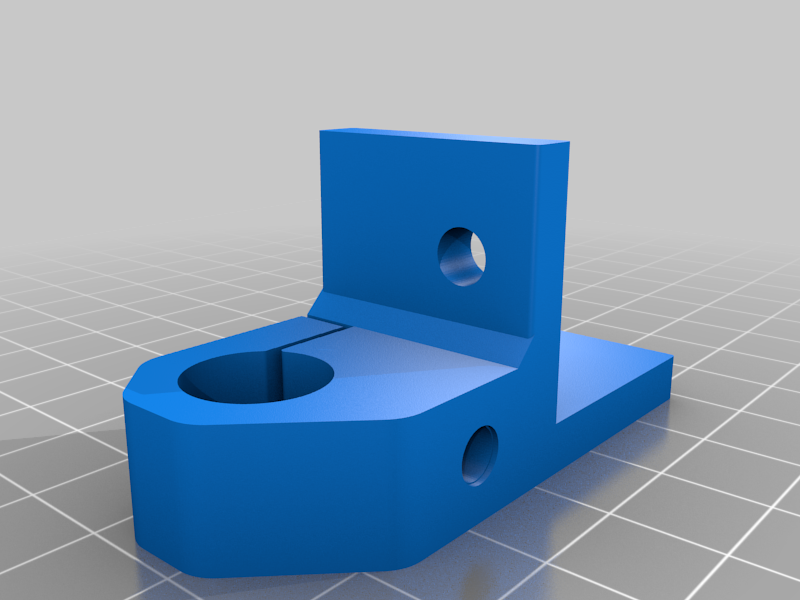

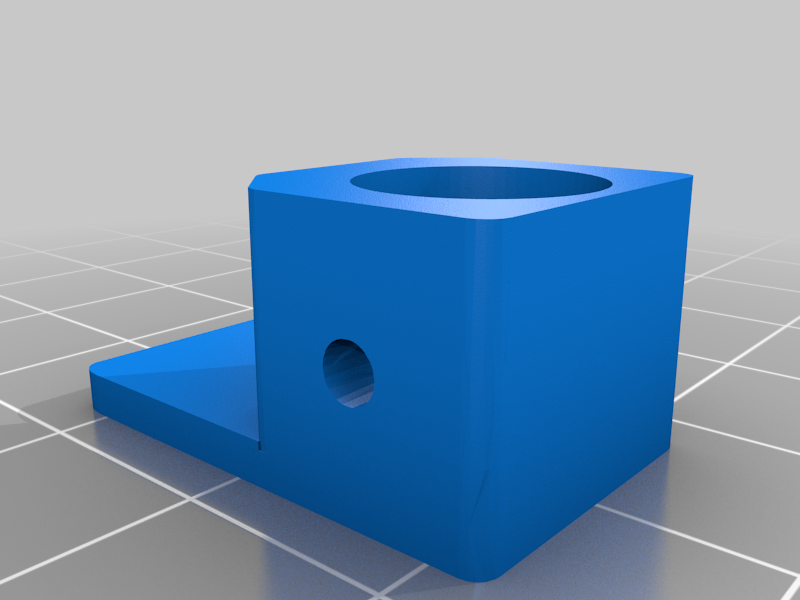

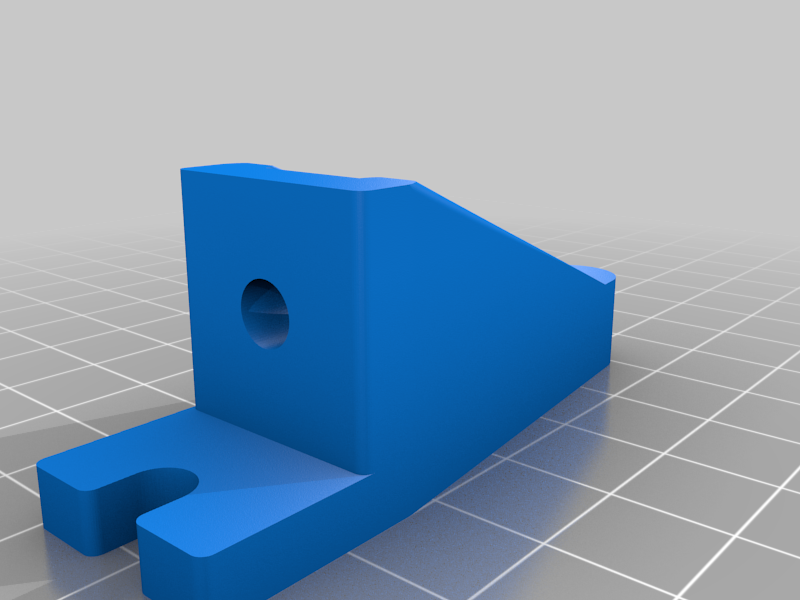

stlHEVO_-_Z_Upper_Rod_Holder_3.stl
115 Ko · 5 641 downloads
-

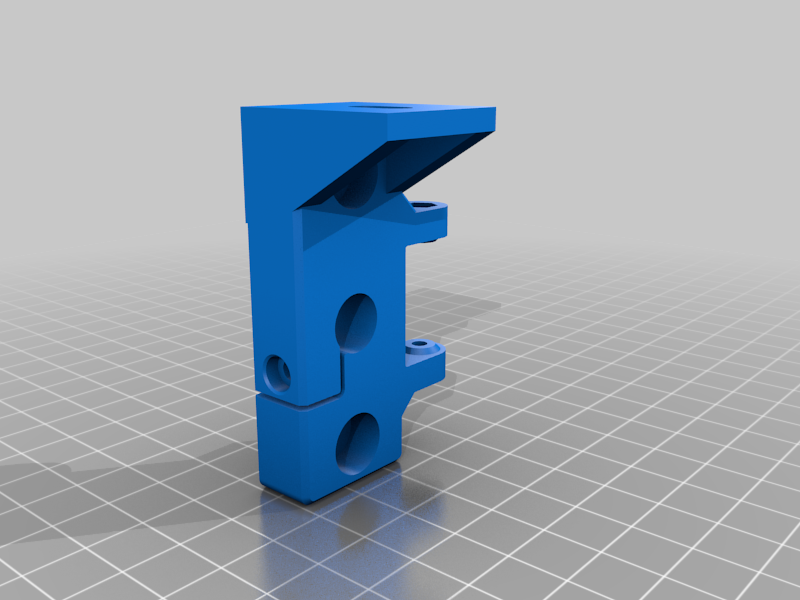

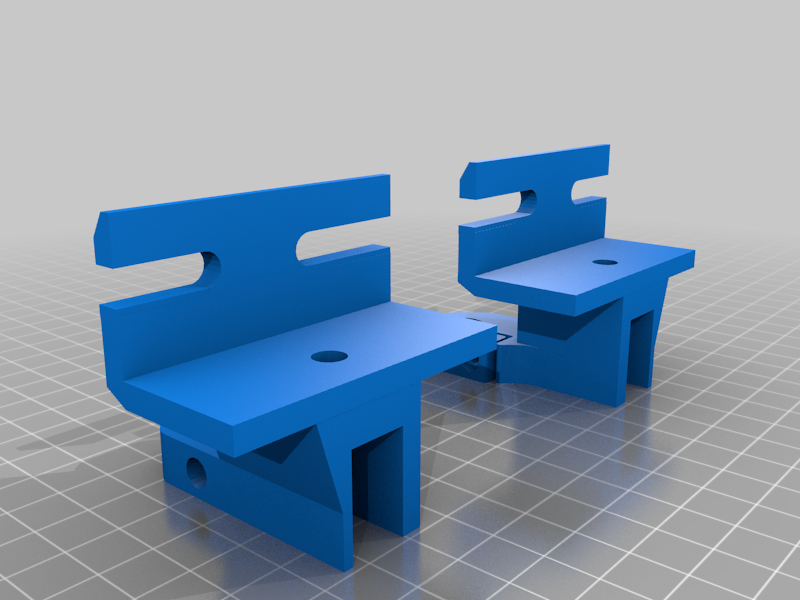

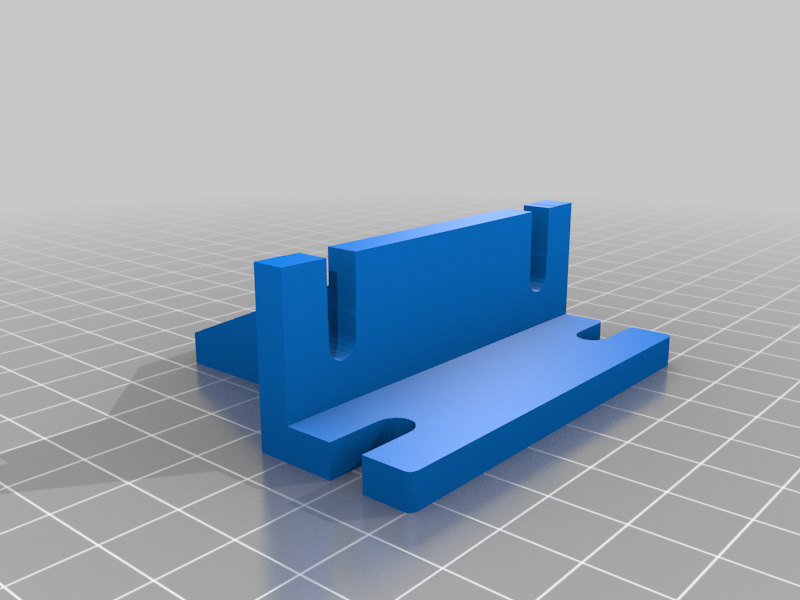

stlZ_Axis_Linear_Rail_Bracket_-_Right_1.0.stl
190 Ko · 5 619 downloads
-
stlZ_Axis_Linear_Rail_Bracket_-_Left_1.0.stl
190 Ko · 5 595 downloads
-

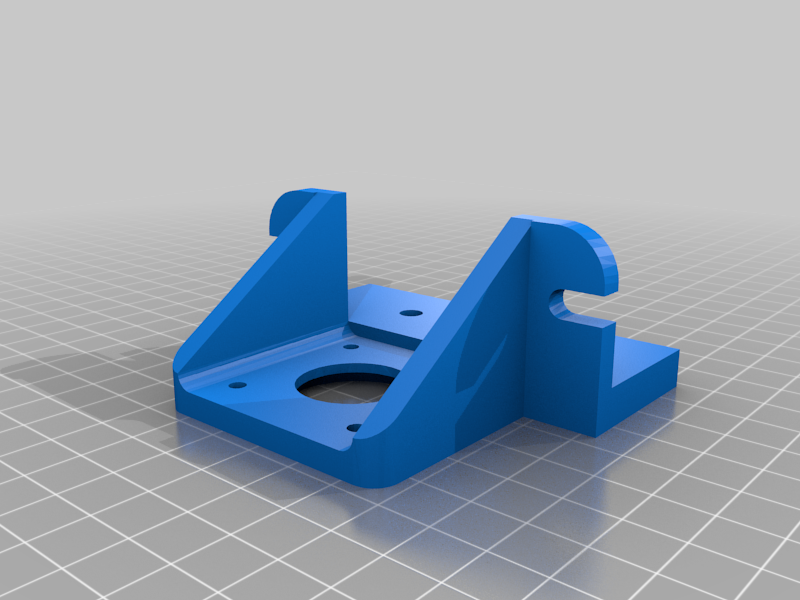

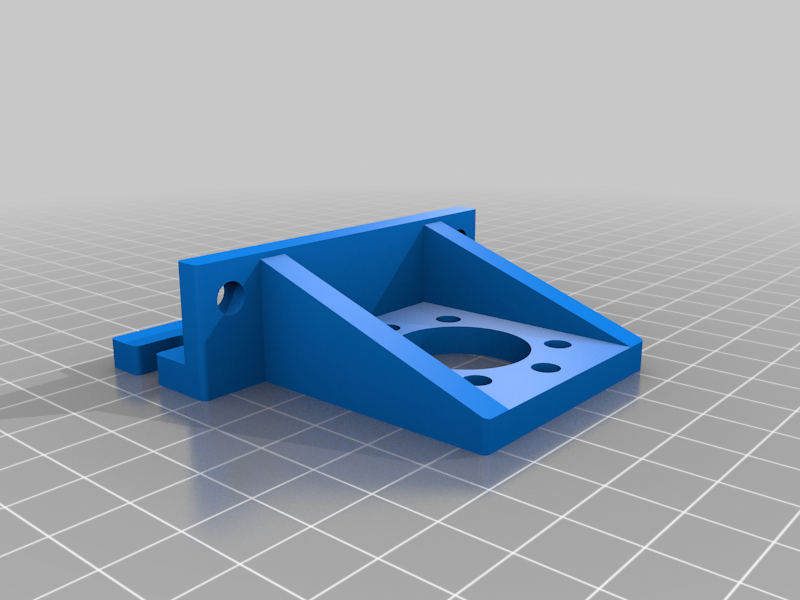

stlZ_STEPPER_MOUNT_v2.stl
87 Ko · 5 623 downloads
-

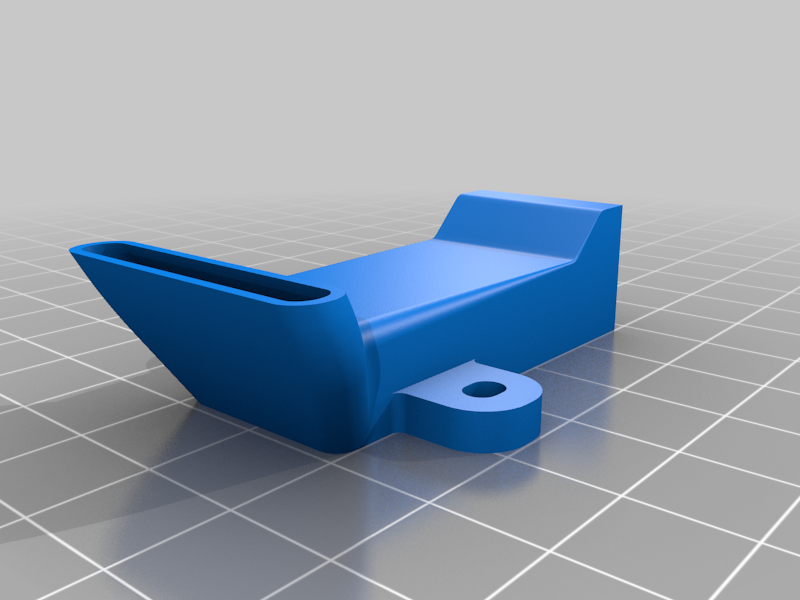

stlHEVO_-_Extruder_-_Direct_Drive_-_E3D_V6_5015_Radial_Fan_Duct_for_v1_v2.stl
45 Ko · 5 583 downloads
-
stlHEVO_-_Extruder_-_Side_loading_5015Fanduct_v2.stl
70 Ko · 5 614 downloads
-

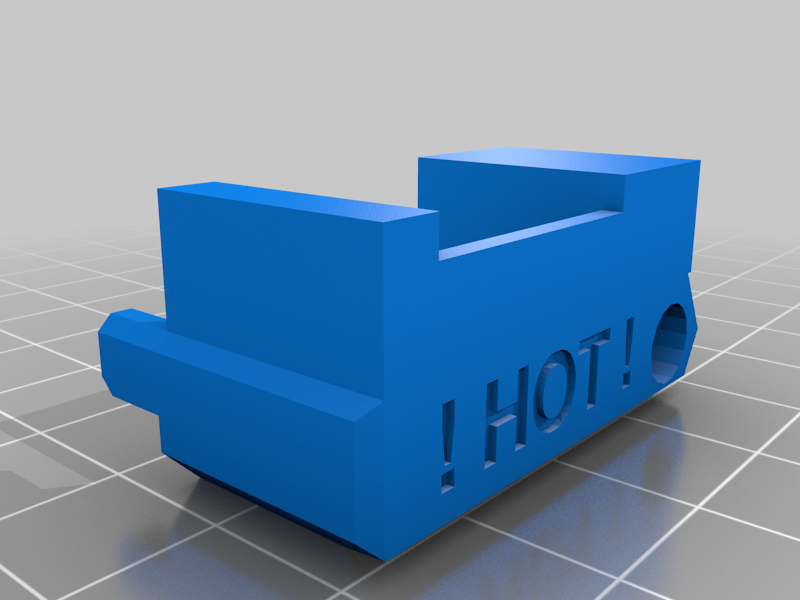

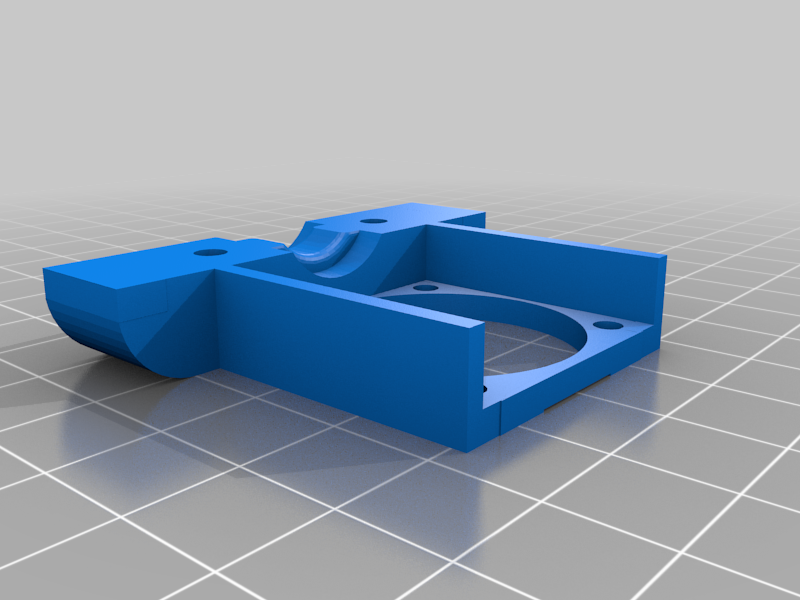

stlHEVO_-_Extruder_-_Bowden_E3D_V6_Retainer_30mm_Fan.stl
127 Ko · 5 606 downloads
-

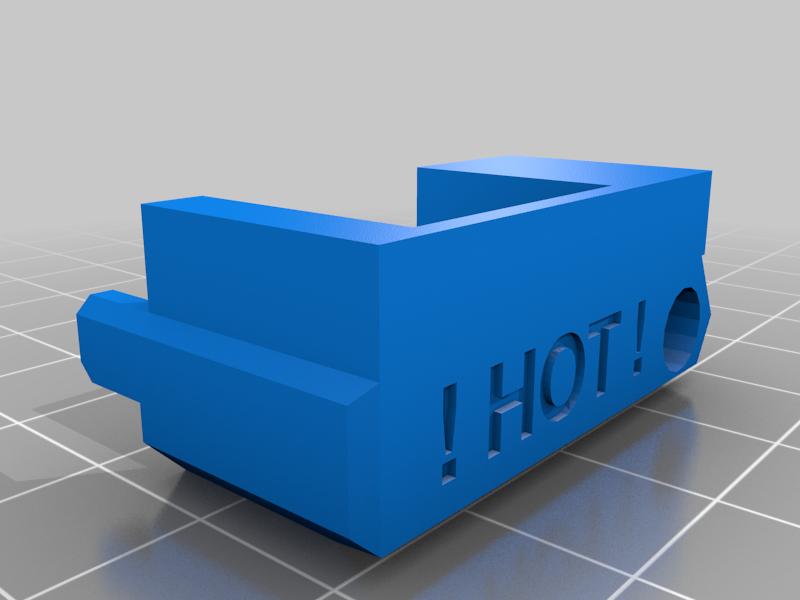

stlHEVO_-_Extruder_-_Bowden_E3D_V6_Retainer_No_Fan.stl
254 Ko · 5 600 downloads
-

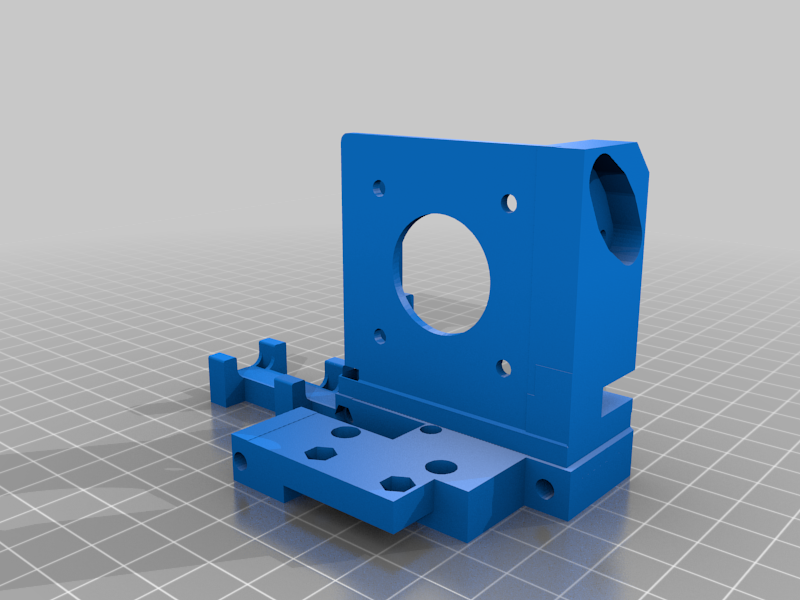

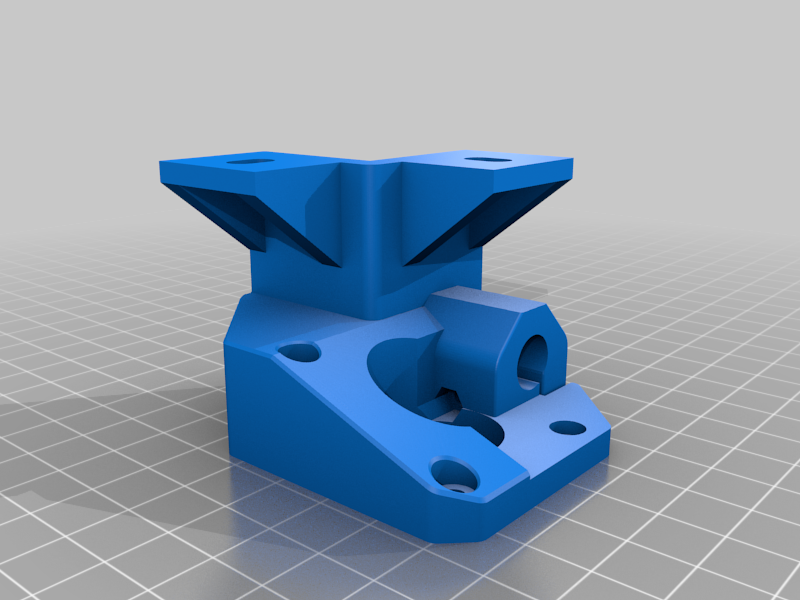

stlHEVO_-_Extruder_-_Direct_Drive_Bondtech.stl
196 Ko · 5 631 downloads
-
stlHEVO_-_Extruder_-_Direct_Drive_Bondtech_Mirror_Aero_v2.stl
185 Ko · 5 629 downloads
-
stlHEVO_-_Extruder_-_Bowden_4010_Radial_Fan_Duct.stl
304 Ko · 5 595 downloads
-
stlHEVO_-_Extruder_-_Direct_Drive_-_E3D_v6_with_5015_Radial_Fan_for_v1v2.stl
361 Ko · 5 620 downloads
-

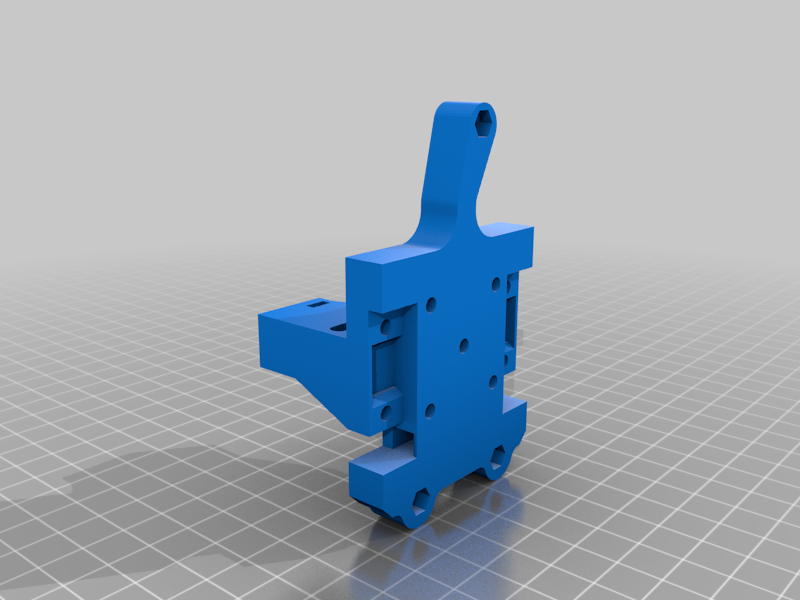

stlHEVO_-_Extruder_-_Direct_Drive_Bondtech_Mirror_Aero_v3_with_BL_Touch.stl
198 Ko · 5 620 downloads
-
stlHEVO_-_Extruder_-_Bowden_v6_Mod_4010_Radial_Fan_V2.stl
239 Ko · 5 607 downloads
-

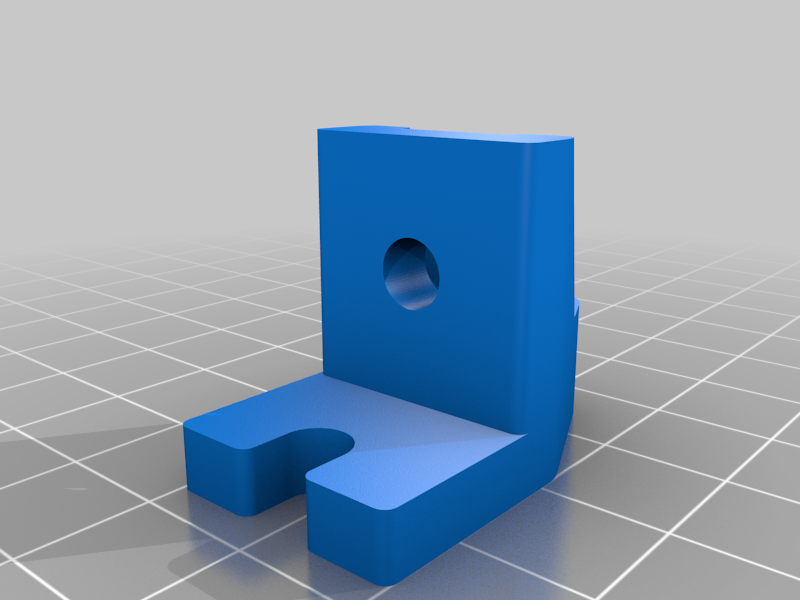

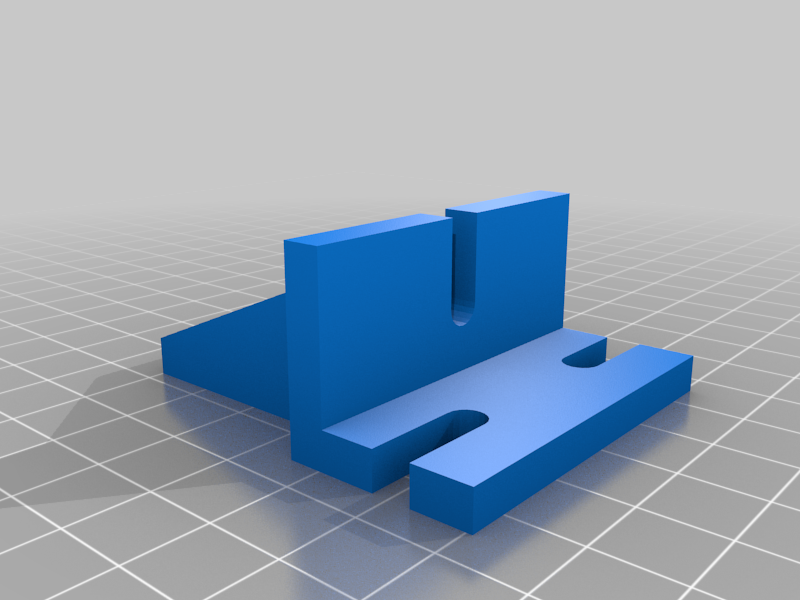

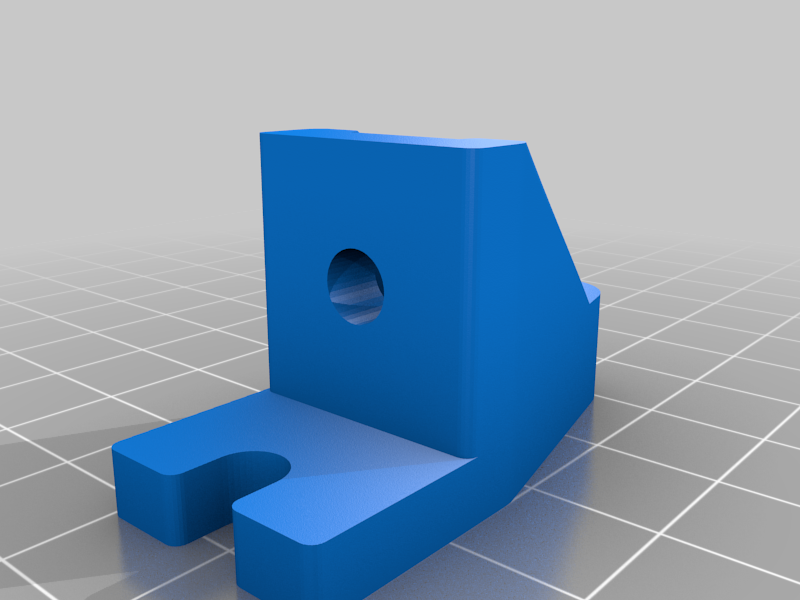

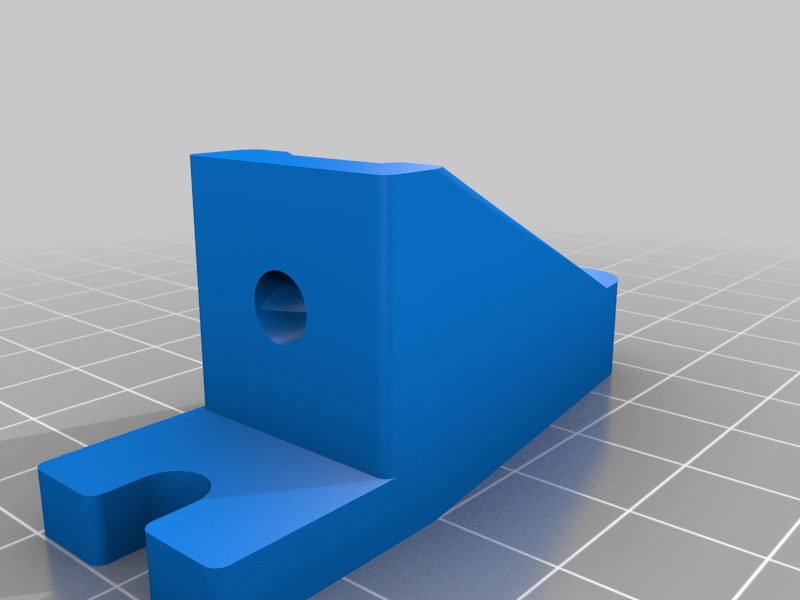

stlBed_Bracket_20_1.0.stl
247 Ko · 5 552 downloads
-

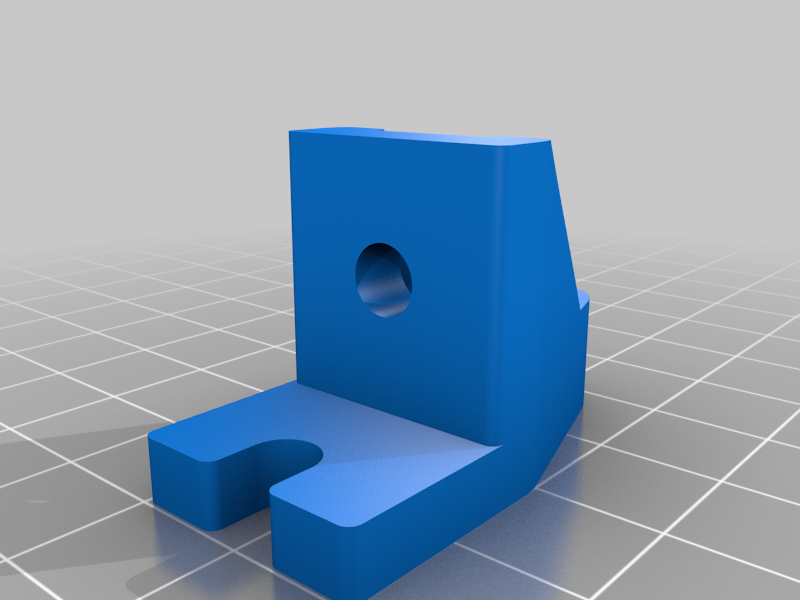

stlBed_Bracket_25_1.0.stl
96 Ko · 5 557 downloads
-
stlBed_Bracket_40_1.0.stl
208 Ko · 5 559 downloads
-
stlBed_Bracket_15_1.0.stl
248 Ko · 5 549 downloads
-

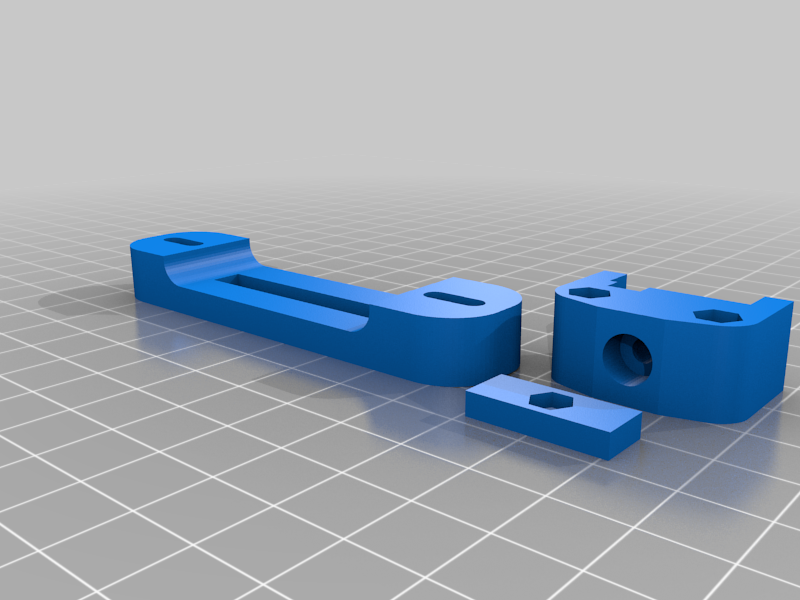

stlBelt_Tensioner_v3.stl
49 Ko · 5 593 downloads
-
stlBed_Bracket_30_1.0.stl
219 Ko · 5 557 downloads
-
stlBed_Bracket_45_1.0.stl
201 Ko · 5 543 downloads
-
stlBelt_Clamp_v3.stl
132 Ko · 5 595 downloads
-
stlHEVO_-_Extruder_-_Bowden_Fan_Duct.stl
1.2 Mo · 5 543 downloads
-

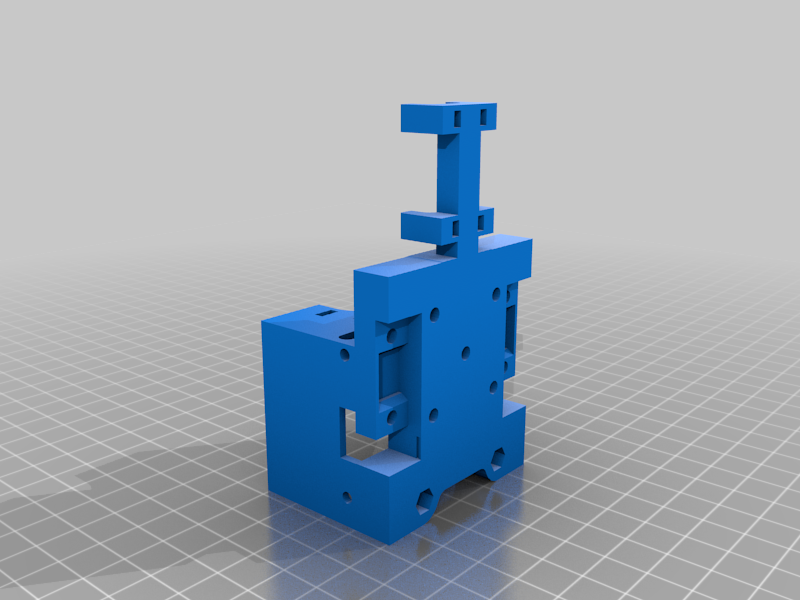

stlHEVO_-_Extruder_-_Bowden_Mount_v3_STD_BL_Touch_for_Side.stl
1.5 Mo · 5 580 downloads
-
stlHEVO_-_Extruder_-_Bowden_Mount_v6_STD_BLTOUCH_in_Rear.stl
1.6 Mo · 5 580 downloads
-
stlX_Carriage_HCEvo_V2.2_LM10.stl
3.2 Mo · 5 629 downloads
-
stlHEVO_-_Nedalive_-_Rear_BL_Touch_Mount.stl
75 Ko · 5 596 downloads
-
stl60mm_Fan_Clip_for_MKS_Gen_L_Bracket_v2.stl
27 Ko · 5 563 downloads
-

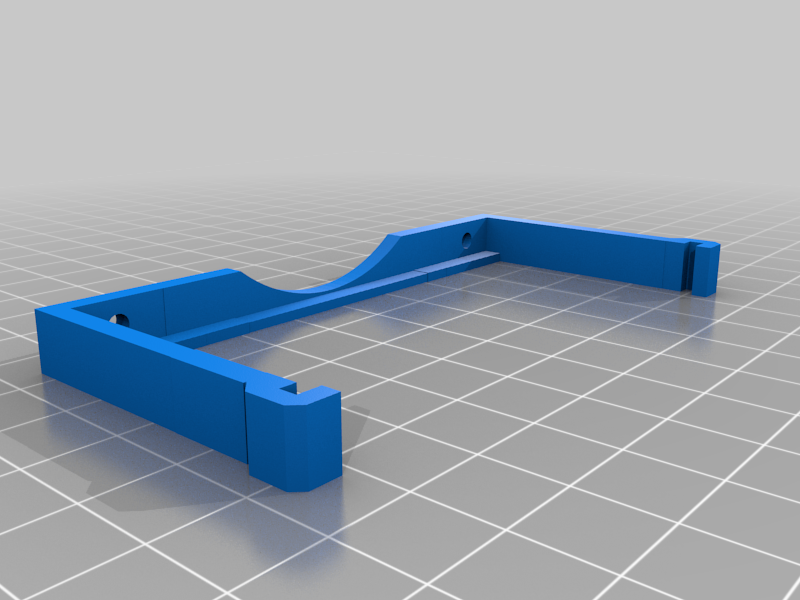

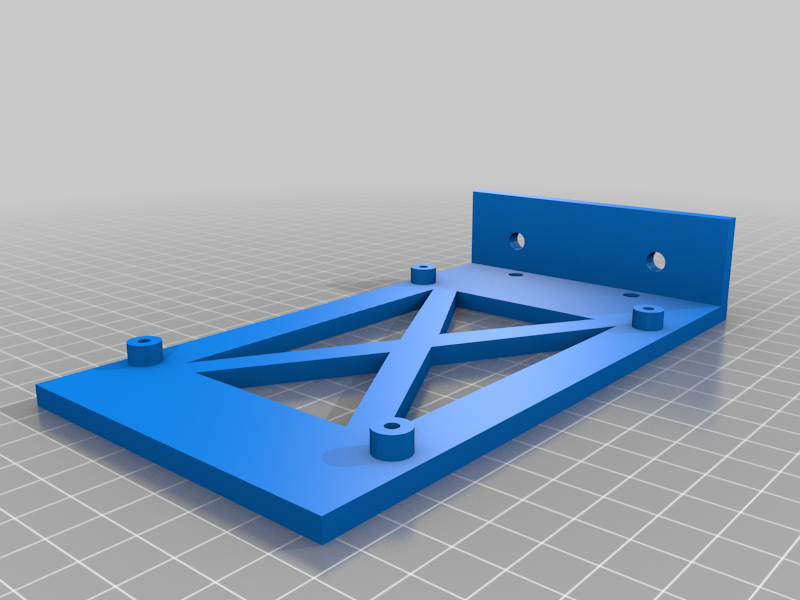

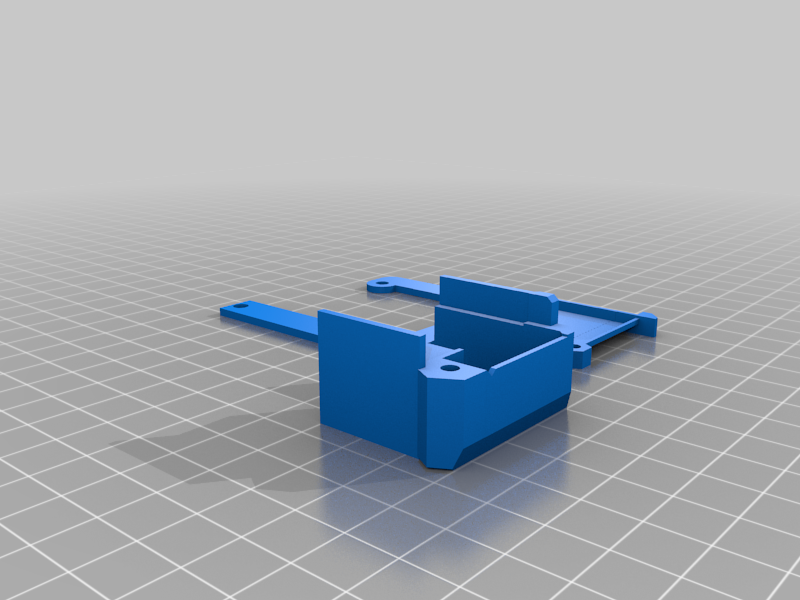

stlHEVO_-_MKS_Gen-L_Bracket_Straight.stl
57 Ko · 5 567 downloads
-
stl3030_IEC_AC_Plug_Snap_On_Cover.stl
67 Ko · 5 569 downloads
-

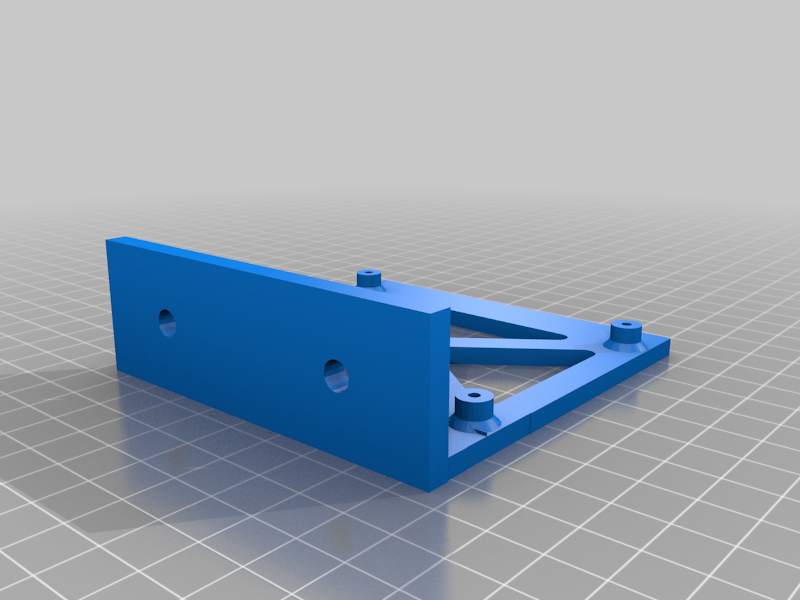

stlHEVO_-_MKS_Mosfet_Single_Bracket.stl
128 Ko · 5 562 downloads
-

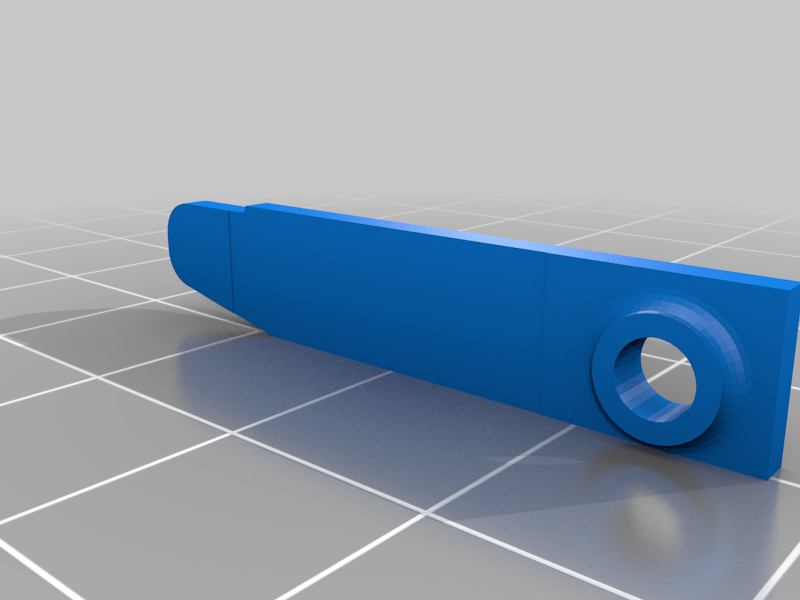

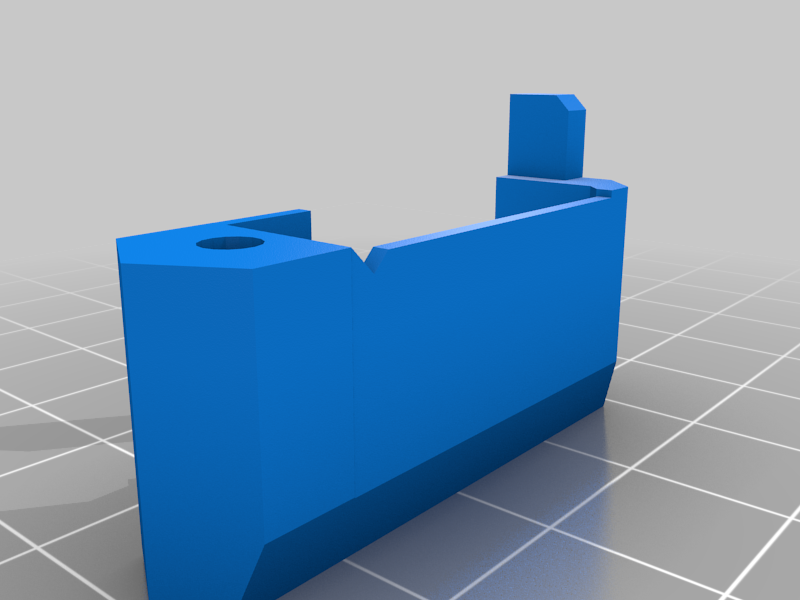

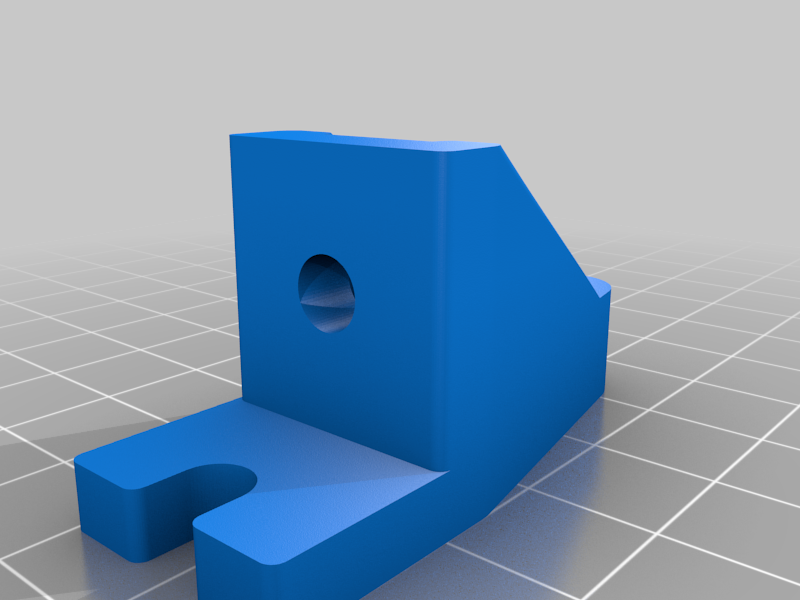

stlHEVO_-_X_Flag_extension.stl
35 Ko · 5 558 downloads
-
stlHEVO_-_10mm_Y_Stop_Flag_v2.stl
48 Ko · 5 565 downloads
-

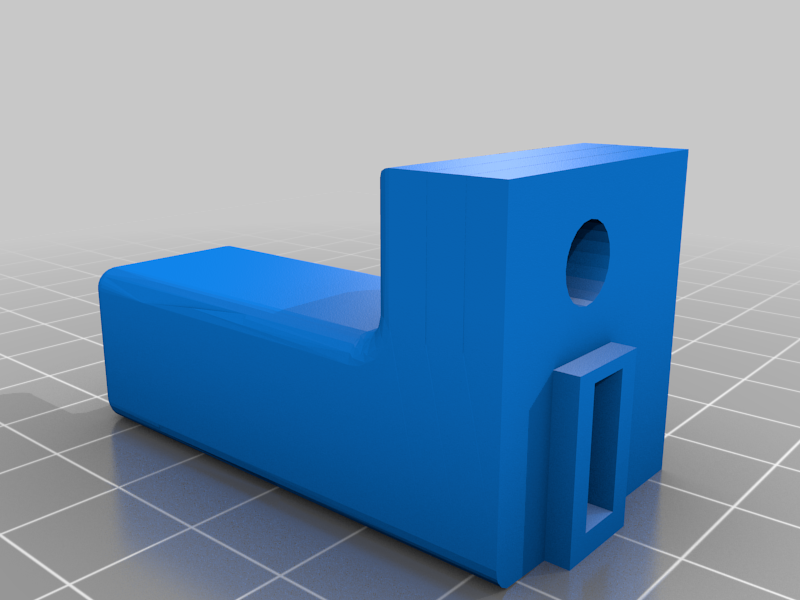

stlHEVO_-_Y_stop_optical_sensor_holder.stl
117 Ko · 5 553 downloads
-
stlHEVO_-_Z_Carriage_-_Ultra_Short_for_IGUS_RJMP.stl
172 Ko · 5 566 downloads
-
stlRight_idler_mount_+corner_bracket.stl
394 Ko · 5 541 downloads
-
stlLeft_stepper_motor_holder+corner_bracket.stl
732 Ko · 5 557 downloads
-
stlRight_stepper_motor_holder+corner_bracket.stl
778 Ko · 5 541 downloads
-
stlLeft_idler_mount_+corner_bracket.stl
478 Ko · 5 544 downloads
-
stlHEVO_-_Z_Carriage_Bearing_LM12UU.stl
2.1 Mo · 5 564 downloads
-

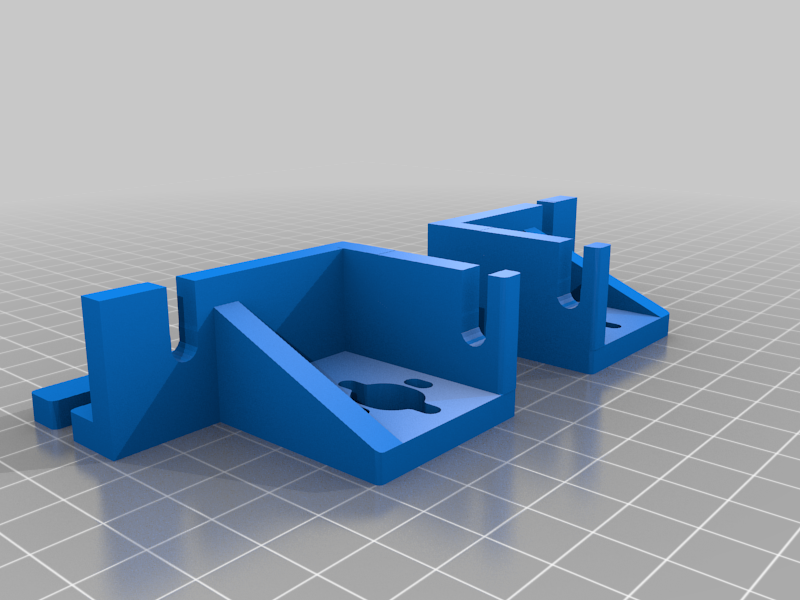

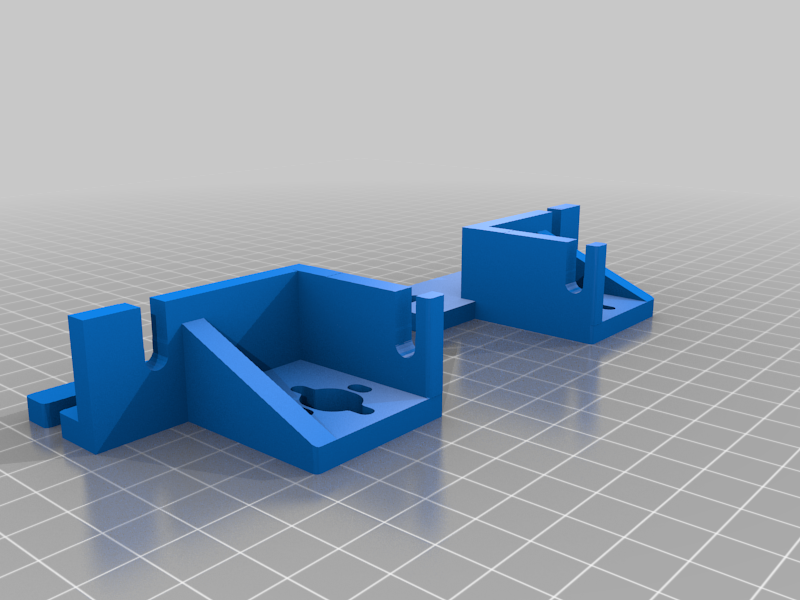

stlHEVO_-_Beefed_up_Motor_Plate_L+R_Corners_v2.stl
130 Ko · 5 526 downloads
-
stlHEVO_-_Beefup_Motor_Plate_v2.stl
55 Ko · 5 529 downloads
-
stlHEVO_-_Extruder_-_Direct_Drive_Bondtech_Mirror_Aero_v3.1_with_BL_Touch.stl
188 Ko · 5 528 downloads
-
stlHEVO_-_Beefed_up_Motor_Plate_L+R_Corners_v3.stl
124 Ko · 5 502 downloads
-

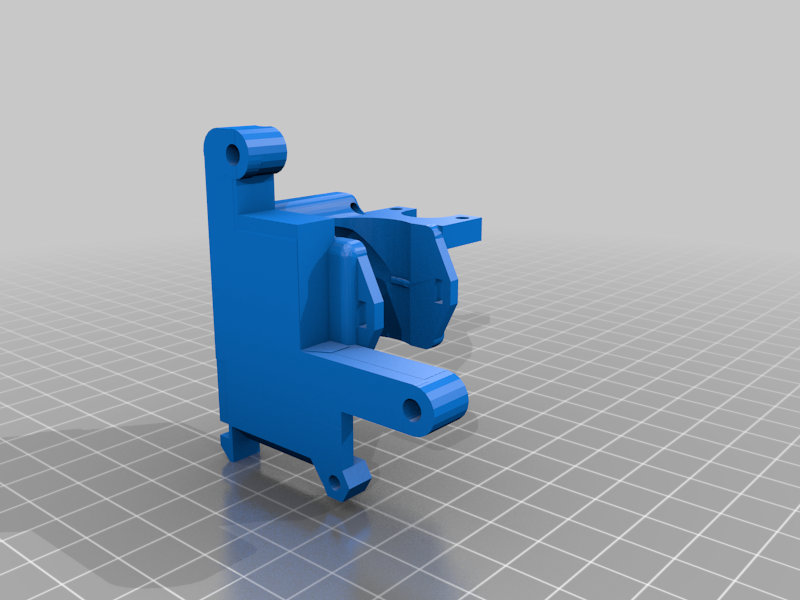

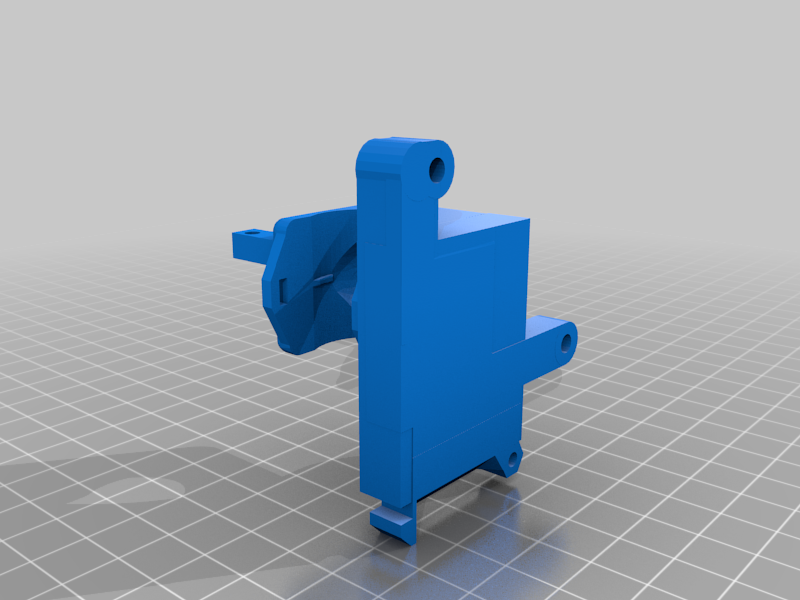

stlHEVO_-_E3D_v6_with_5015_Radial_Fan_WITH_DC42_IR_PROBE_AND_BL_TOUCH_LH.stl
391 Ko · 5 493 downloads
-
stlHEVO_-_E3D_v6_with_5015_Radial_Fan_WITH_DC42_IR_PROBE_AND_BL_TOUCH_RH.stl
365 Ko · 5 494 downloads
-

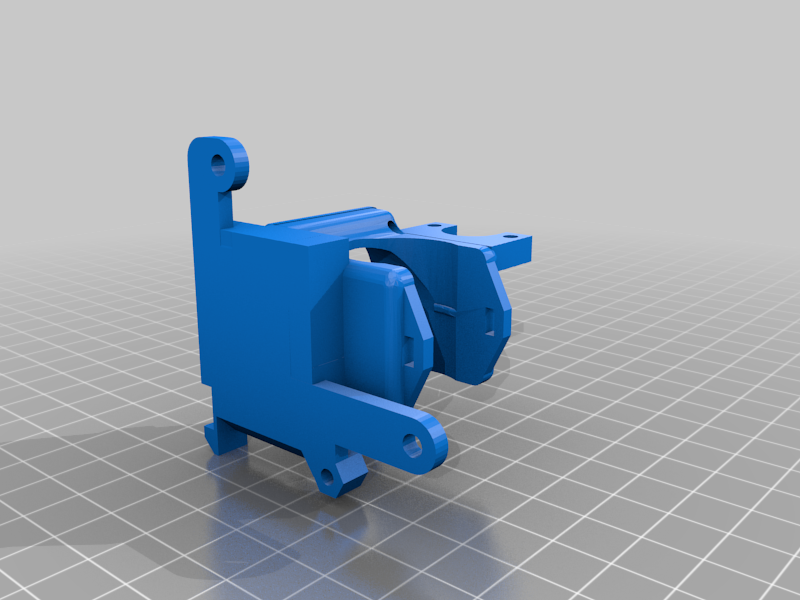

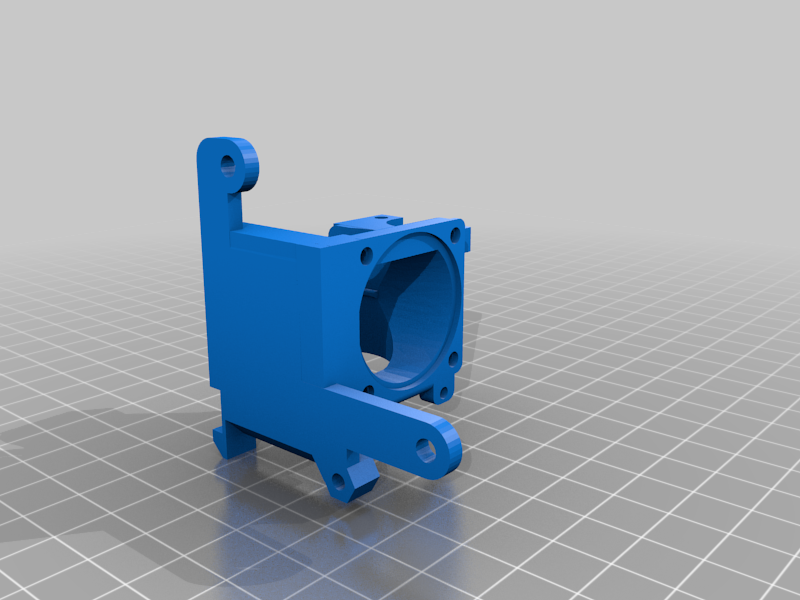

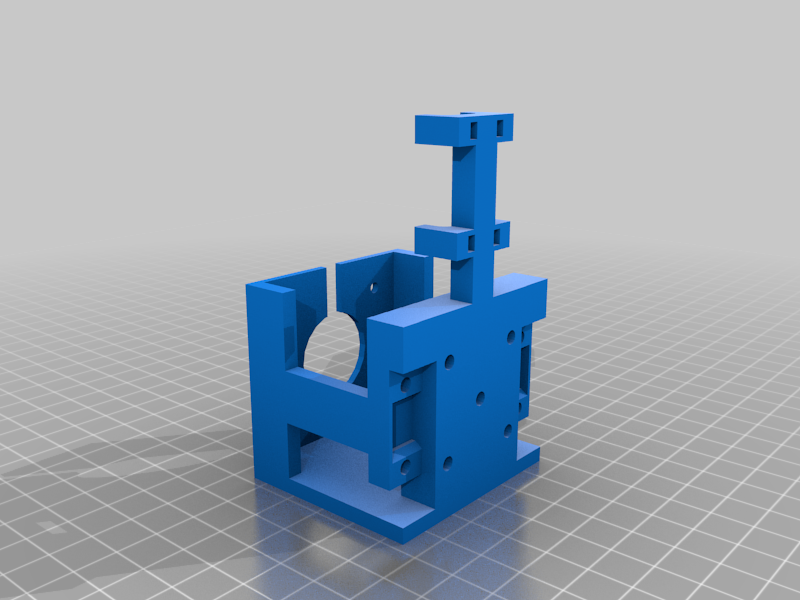

stlHEVO_-_Direct_Drive_-_Generic_Extruder_24mm_Motor.stl
130 Ko · 5 485 downloads
-

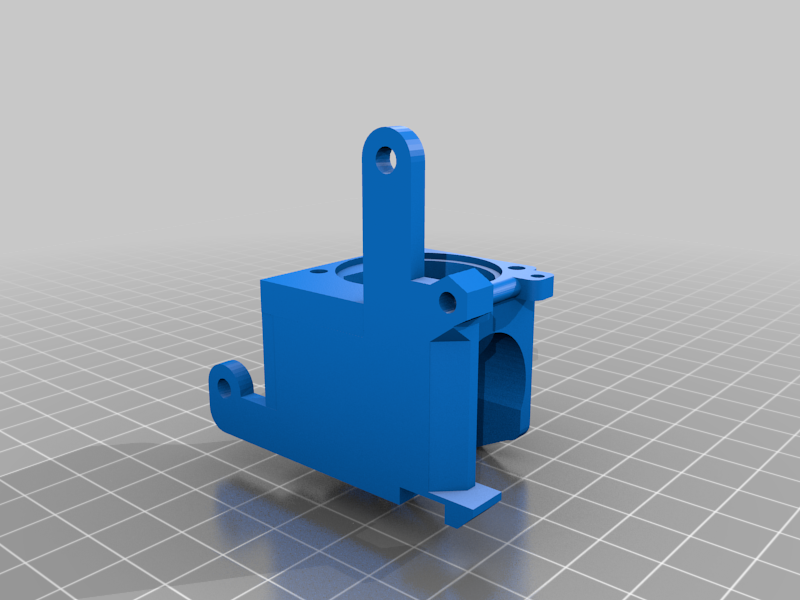

stlHEVO_-_Direct_Drive_-_Generic_Extruder_36mm_Motor.stl
130 Ko · 5 482 downloads
-

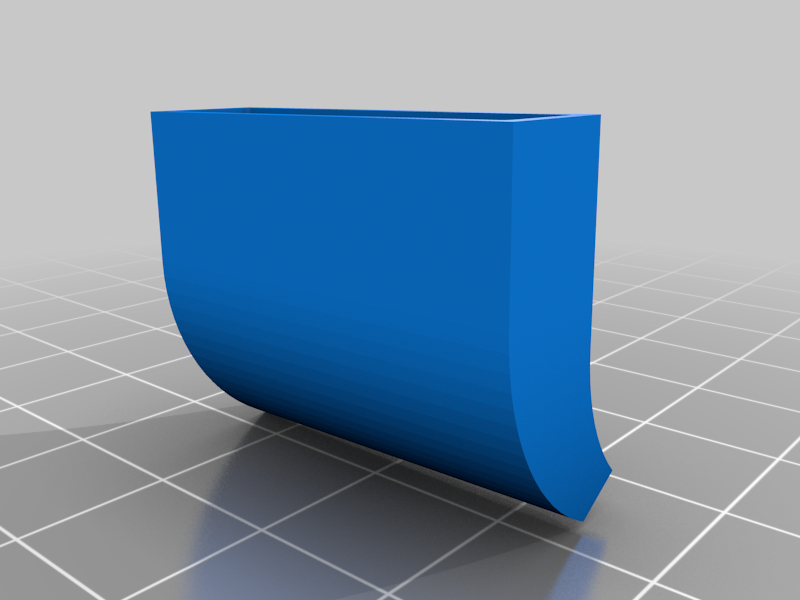

stlHEVO_-_E3D_volcano_FANDUCT_with_5015_Radial_Fan_WITH_DC42_IR_PROBE_AND_BL_TOUCH.stl
34 Ko · 5 473 downloads
-
stlHEVO_-_E3D_volcano_with_5015_Radial_Fan_WITH_BL_TOUCH_LH.stl
247 Ko · 5 472 downloads
-
stlHEVO_-_E3D_volcano_with_5015_Radial_Fan_WITH_BL_TOUCH_RH.stl
234 Ko · 5 471 downloads
-

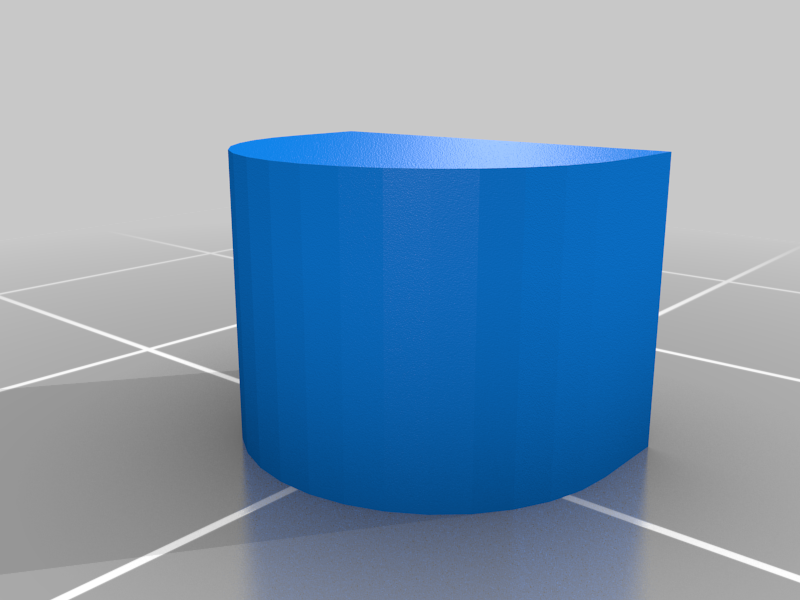

stlHEVO_-_E3D_volcano_FANDUCT_with_5015_Radial_Fan_WITH_BL_TOUCH_v2.stl
35 Ko · 5 465 downloads
-
stlHEVO_-_Beefup_Motor_Plate_v3_Mini.stl
36 Ko · 5 457 downloads
-
stlHEVO_-_Z_Carriage_Bearing_LM12LUU.stl
204 Ko · 5 475 downloads
-

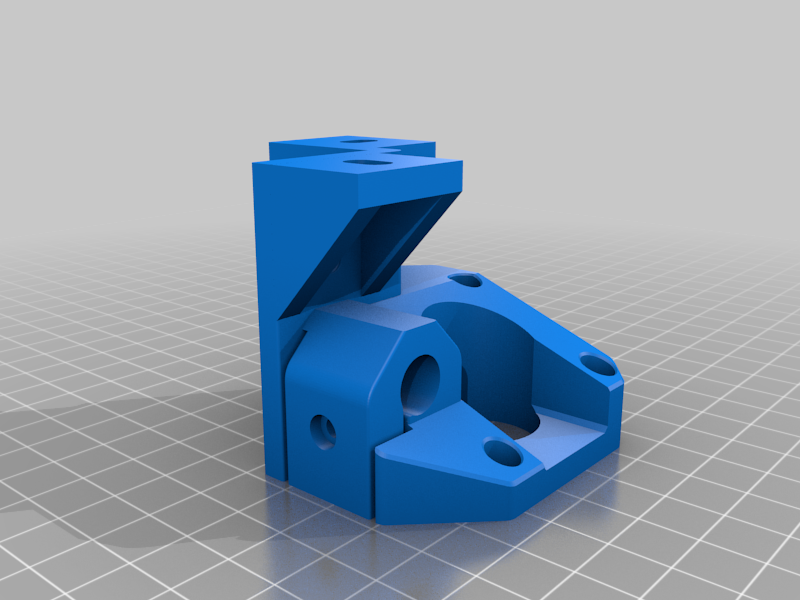

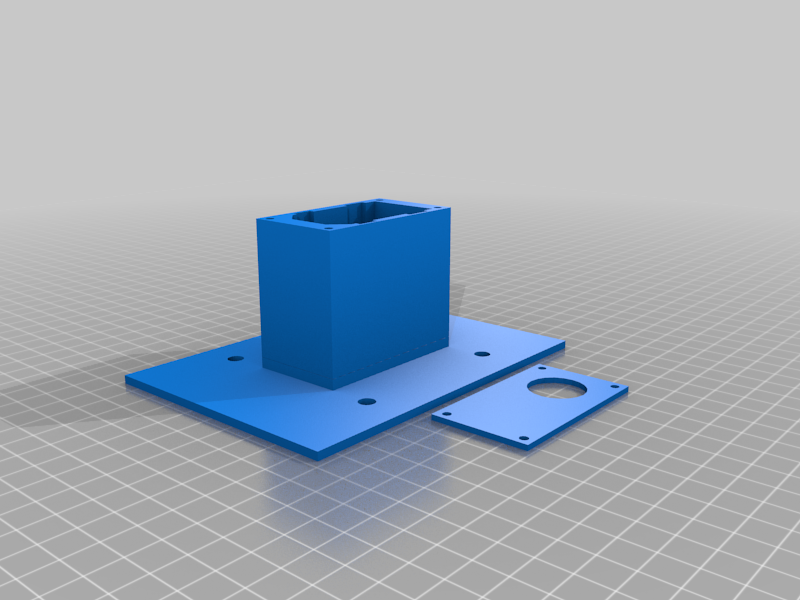

stlHEVO_-_Z_Motor_Mount_-_v3.1_Mini.stl
83 Ko · 5 464 downloads
Description
This is the built that I used for my 2 builds of HEVO which are remixed from many sources.
It has everything from boards, gantries, brackets and everything for your conveniences.
it has mounts for both Direct and Bowden as well! (Mounts based on Nedalive X standard carriage)
X&Y Gantries: 10mm Rods - Using IGUS RJMP
10mm Rod: Carbon Solid Rods for X / Steel on Y
Z Gantry: 12mm Rods - Using IGUS RJMP (Also version with LM12UU)
12mm Rod: Steel

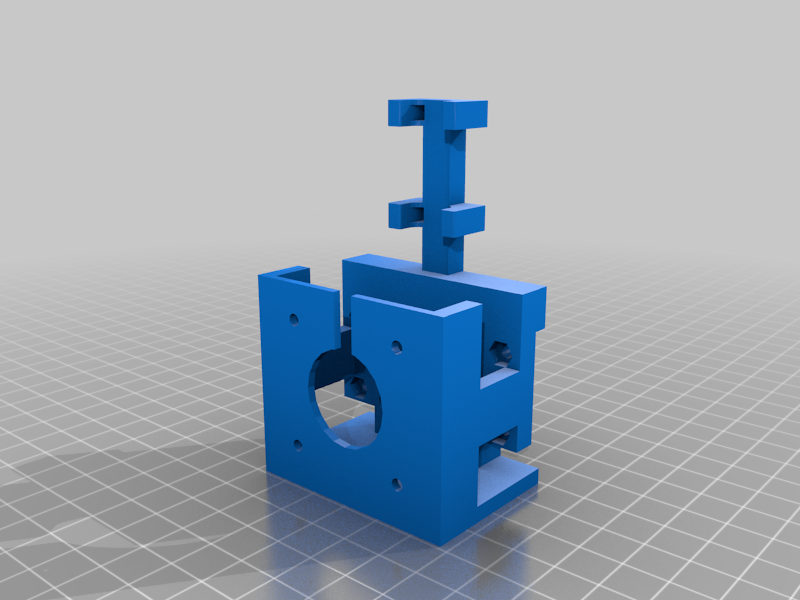

Direct Drive - it is currently designed for Bondtech - Just mirror it for Titan v6/Aero
BL Touch is available for v3 Direct Drive Mount or via Nedalive's rear BLtouch Mount
For Bowden - there is Nedalive's bowden mount - I used rear mount when I was on Bowden
There is a version of the bed Motor T8 brackets that can be used for DuetWifi Auto Bed Leveling for either 3 or 4 Lead Screws!
Wanted to thank Tech2C, Scott3D, Nedalive, Tunnelvision and many others to make this possible!
(If you see something that I can add the remix by, please tell me.. I forgot as there are so many of you that inspired and helped me! Thank you!)
Next version - beginning to study MGN Rails
Update: 2018/5/4 - updated HEVO - Extruder - Direct Drive (Bondtech) (Mirror Aero) v3.1 with BL Touch - Cleaned it up a lil and strength the part
Update: 2018/5/9 - updated HEVO - Beefed up Motor Plate (L+R Corners) v3 - it should work with regular bed setup with brackets
Update: 2018/5/10 - updated:

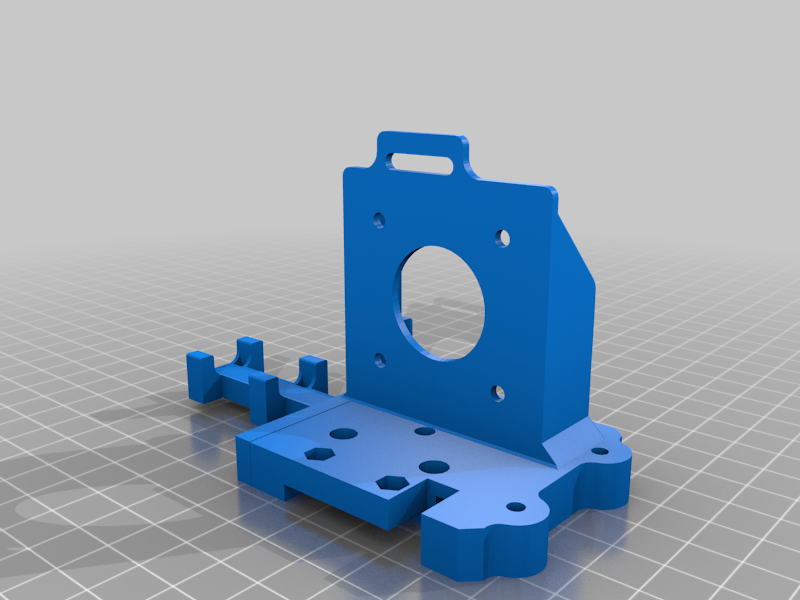

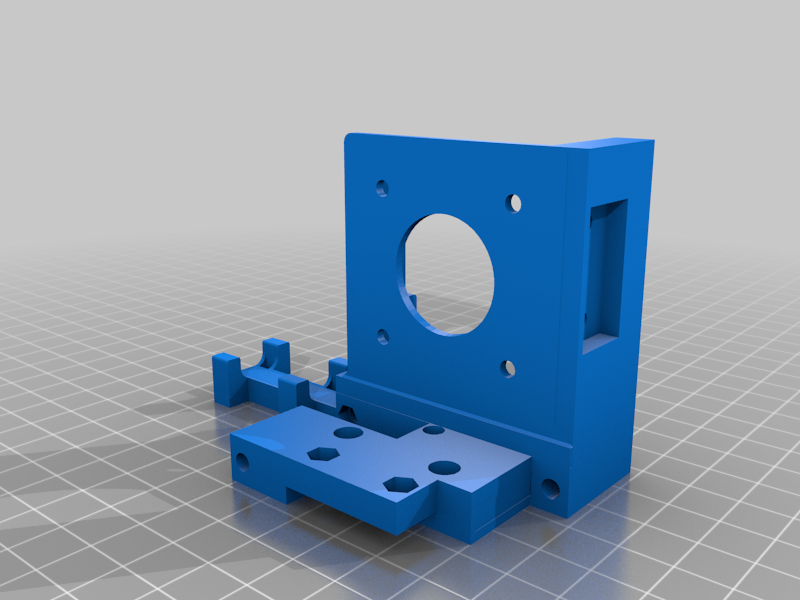

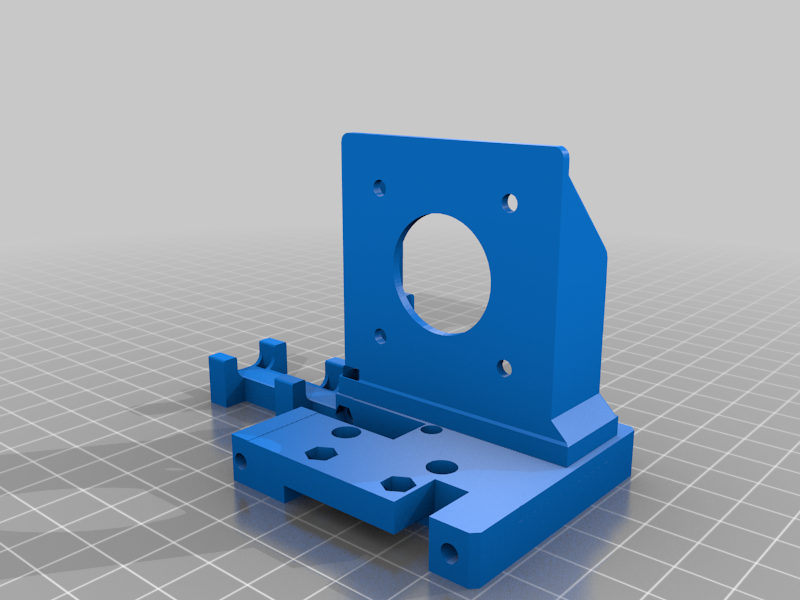

1) HEVO - Direct Drive - Generic Extruder - this direct drive should fit most 35mm and under motors (prefer 22mm pancake+10mm heat sink) - This should work for Titan+V6 / Titan Aero / Bondtech+V6
2) HEVO - E3D v6 with 5015 Radial Fan WITH BL TOUCH - updated V6 hot end with 5015 Radial Fan with BL Touch (add 2mm spacer on top of the mount and BL Touch - approx 8mm clearance)
(Left Hand and Right-Hand version - updated)
a) Made 2 version: 24mm Motor (Pancake) and 36mm Motor (can use Pancake+Heatsink)
Update 2018/5/11 - Updated the Fan mount and fan duct to be used with Volcano Hot End
Update: 2018/5/12 - Updated Fan duct for volcano short 5015 fan
Update: 2018/5/16 - Updated HEVO - Beefup Motor Plate v3 Mini for smaller builds (200mm)

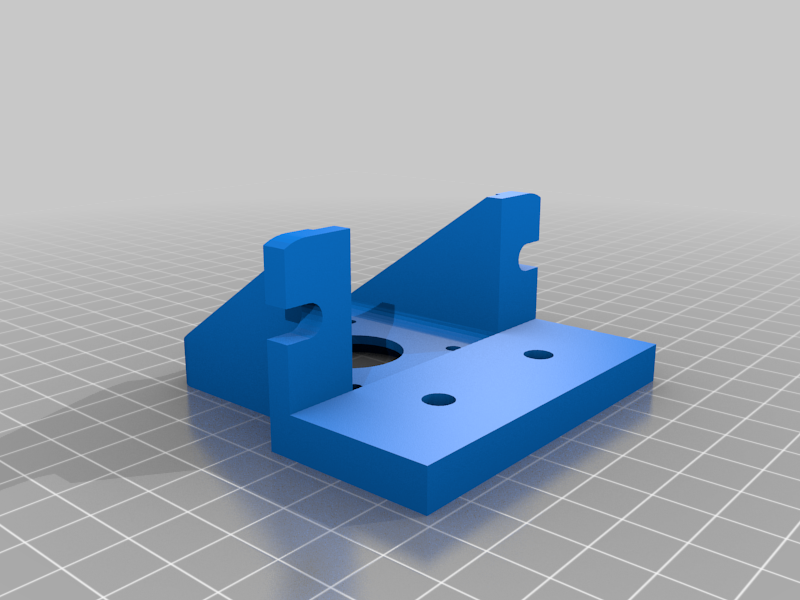

Update 2018/5/20 - Updated the HEVO - Z Motor Mount - v3.1 Mini - for smaller builds (200mm) - can be used for all sizes
