Half Bridge Load Sensor mount

por minko

Archivos imprimibles (1)

  • stl

    Load_Cell_Mount_v9.stl

    73 Ko · 971 descargas

    Descargar

Descripción

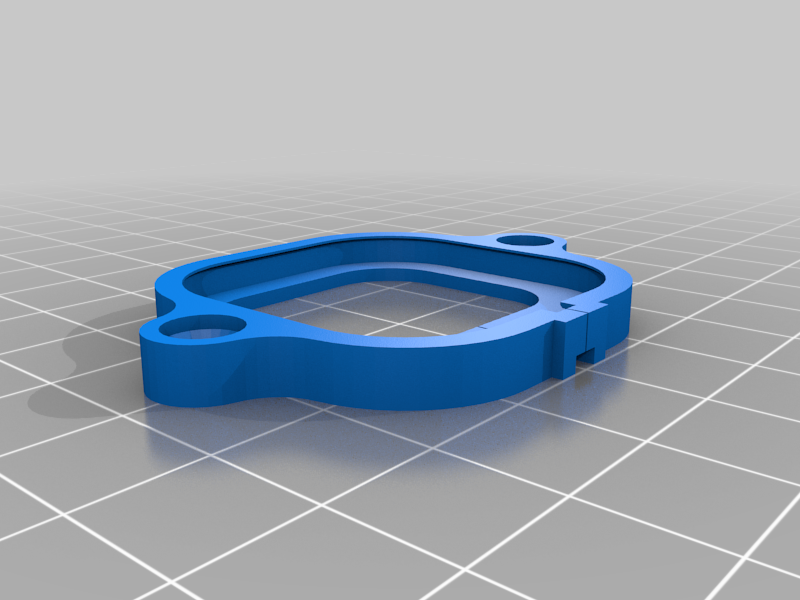

My version of a mount for a load cell. This is a single piece mount that holds the load cell using a little flange inside the housing, so that the load cell does not fall out.

Printing:

  • Layer height: 0.25mm
  • Extrusion width: 0.48mm
  • Walls: 4
  • Top/bottom layers: 3
  • Infill: 40%

A small screw (with a cap diameter less than 6.2mm) is used to attach it.

To adjust the fit you can scale the model slightly.

Assembly: https://youtu.be/HNgFiMNhTBk
