Drawing Machine V2
di vertexENG
File stampabili (8)
-

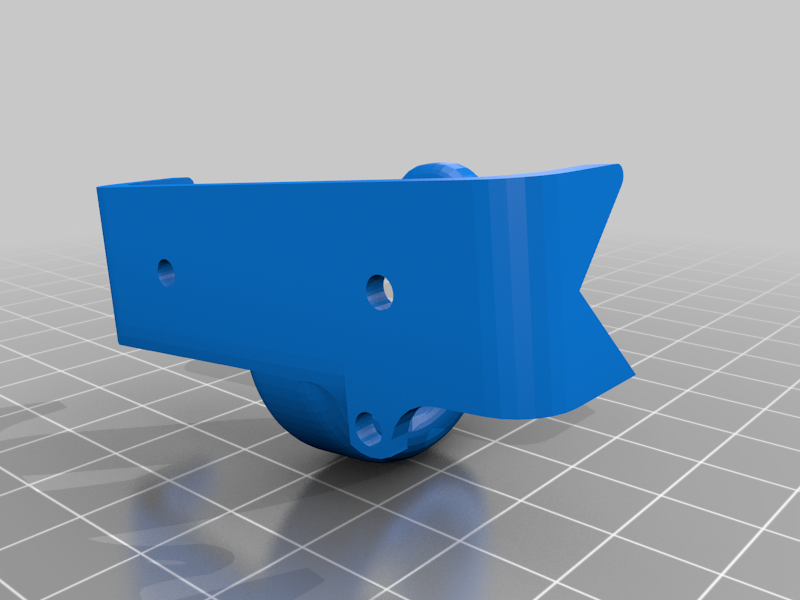

stlPen_Holder.stl
178 Ko · 6 691 download
-

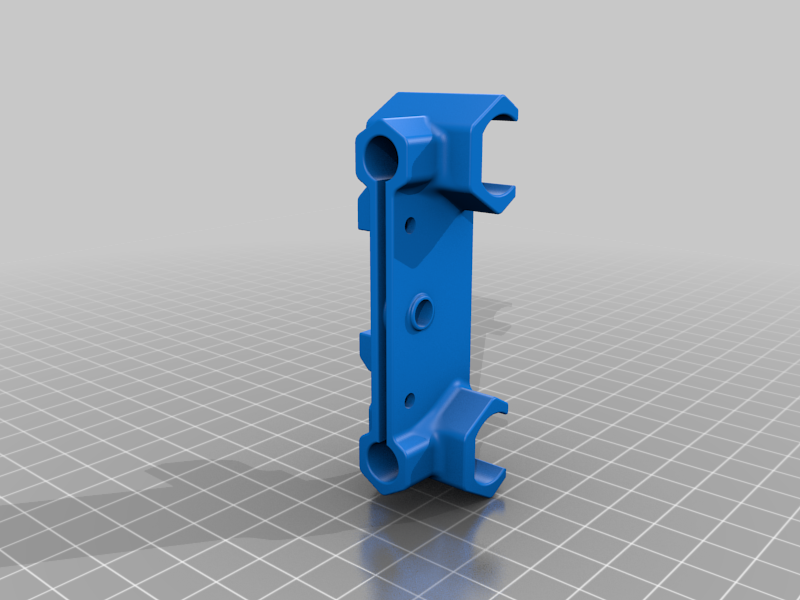

stlZ_Carrage.stl
1 Mo · 6 699 download
-

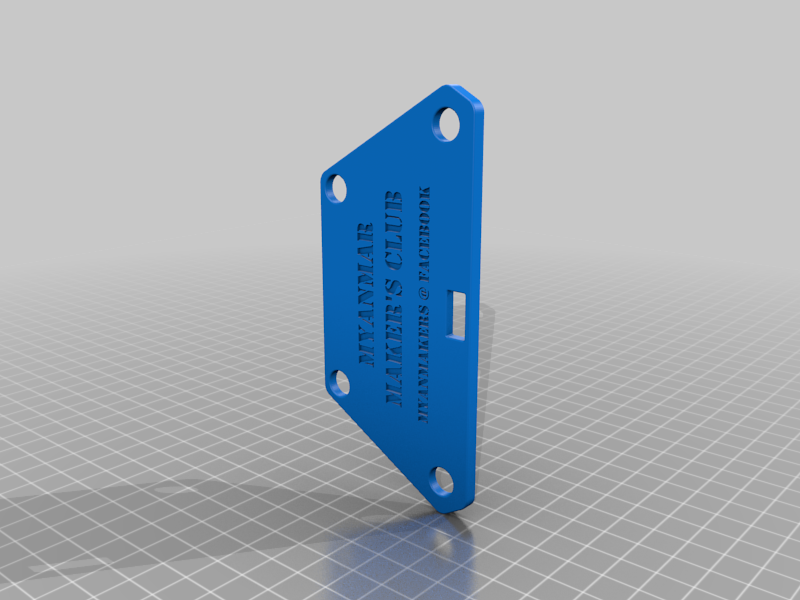

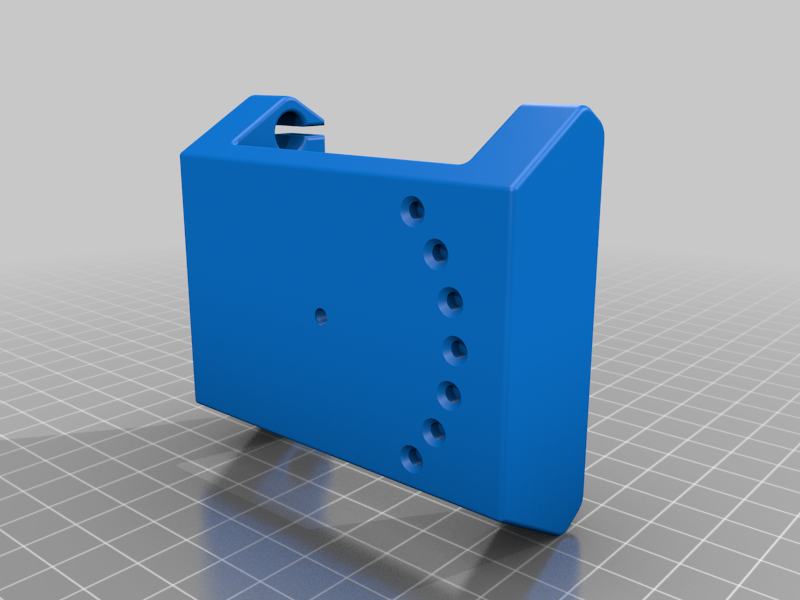

stlY_Motor_Mount_Cover.stl
2.1 Mo · 6 641 download
-

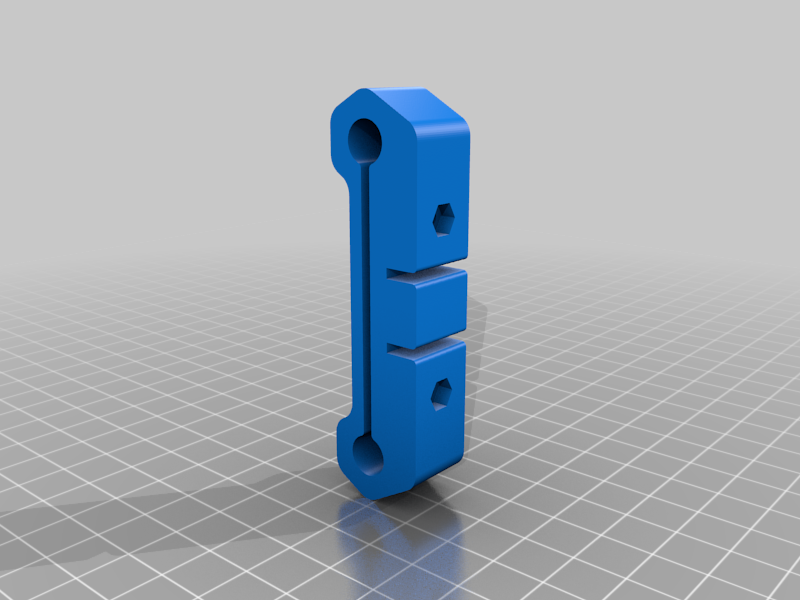

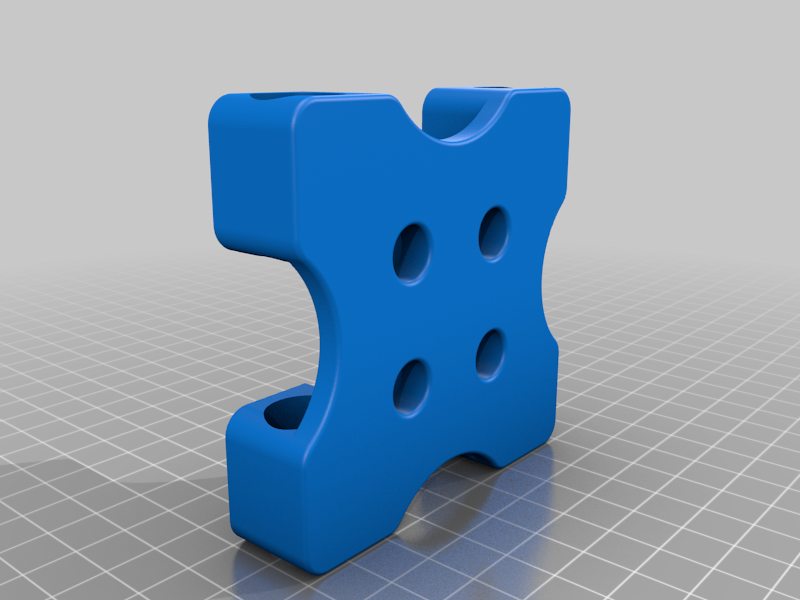

stlX_Fixed.stl
150 Ko · 6 655 download
-

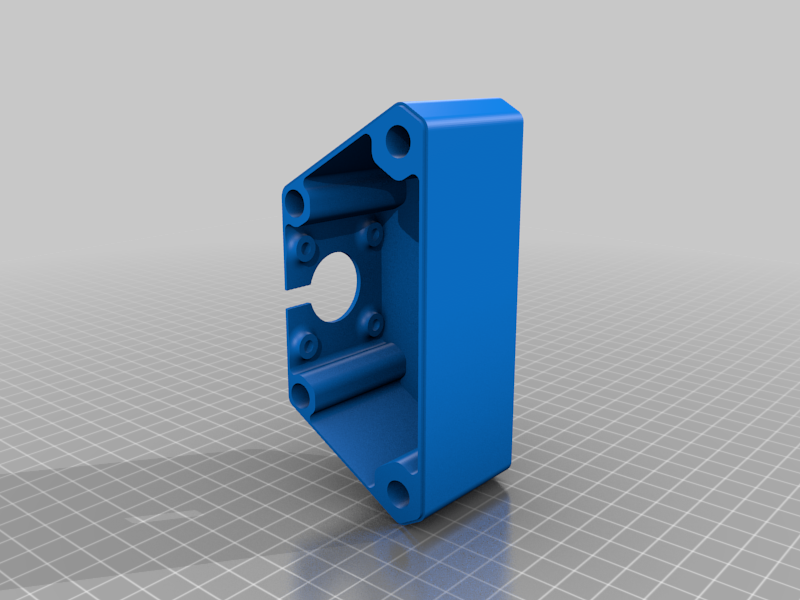

stlY_Motor_Mount.stl
2.1 Mo · 6 657 download
-

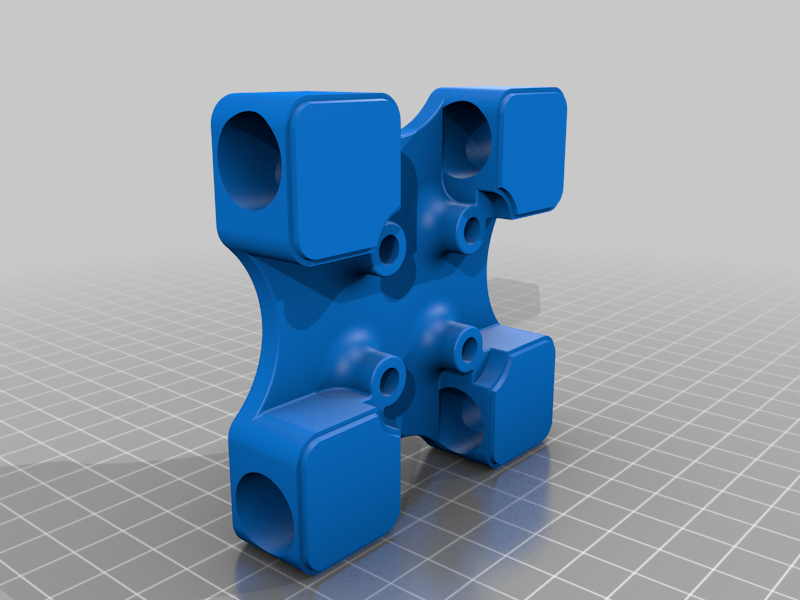

stlX_Carrage_Top.stl
2.5 Mo · 6 676 download
-
stlX_Carrage_Bottom.stl
2.2 Mo · 6 681 download
-
stlX_Idler.stl
12.2 Mo · 6 682 download
Descrizione
Update Oct 13 2017
BOM List included
STL file names changed to match with BOM list.
GRBL CPU Map changed back to original state. Now you can plug X and Y Motors accordingly.
Remix of 4XiDraw. Include STL files, IGS file, Inventor 2017 project files as well as GRBL 1.1f with Servo Support.
For this Modified GRBL 1.1f CNC Control Firmware to work, you need to connect two stepper motors to X axis and Z axis on CNC Shield. Because my Arduino pin for Y direction is burned so I make it work on Z axis. Connect Servo Sense wire (Yellow) to Z- pin, Red to +5V pin and Black or Brown to GND pin on CNC Shield. I use Laser Web 4 to generate and send GCode to the machine. You need to change GCode Setting in this software. Go to Setting -> GCode -> and fill in "M3S55" for Tool On and "M3S0" for Tool Off. To connect to Auduino, make sure you select your Baudrate to 115200 under Comms Tab.
