Multi-control panel
di terbucn
File stampabili (17)
-

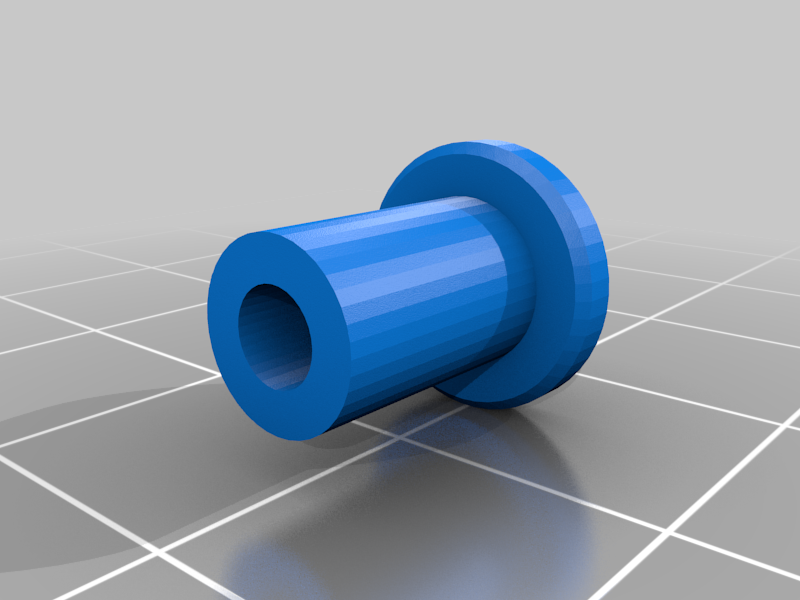

stlGear_lever_holder.stl
203 Ko · 970 download
-

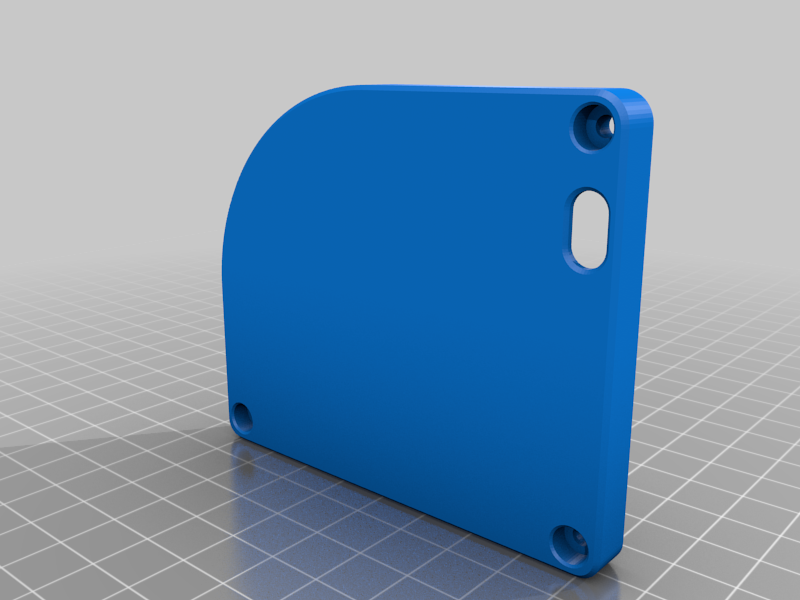

stlEnd_cover.stl
615 Ko · 972 download
-

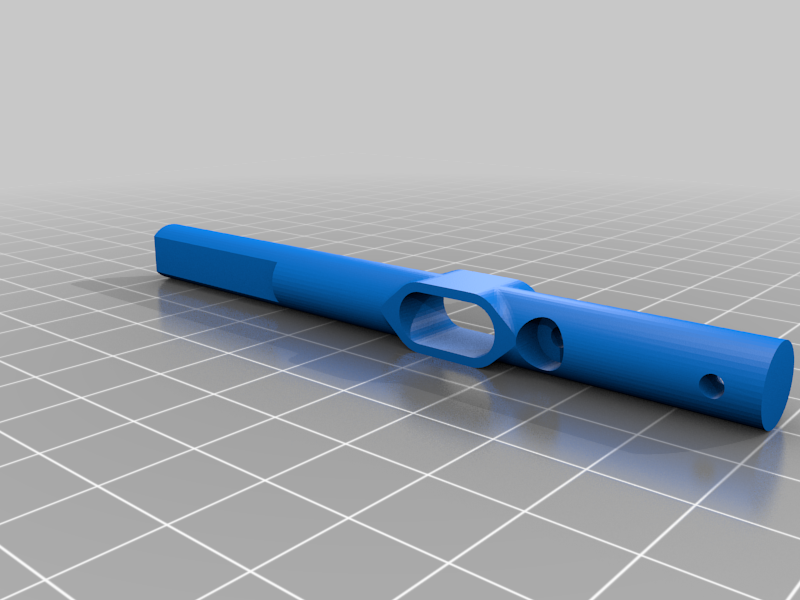

stlGear_arm.stl
764 Ko · 967 download
-

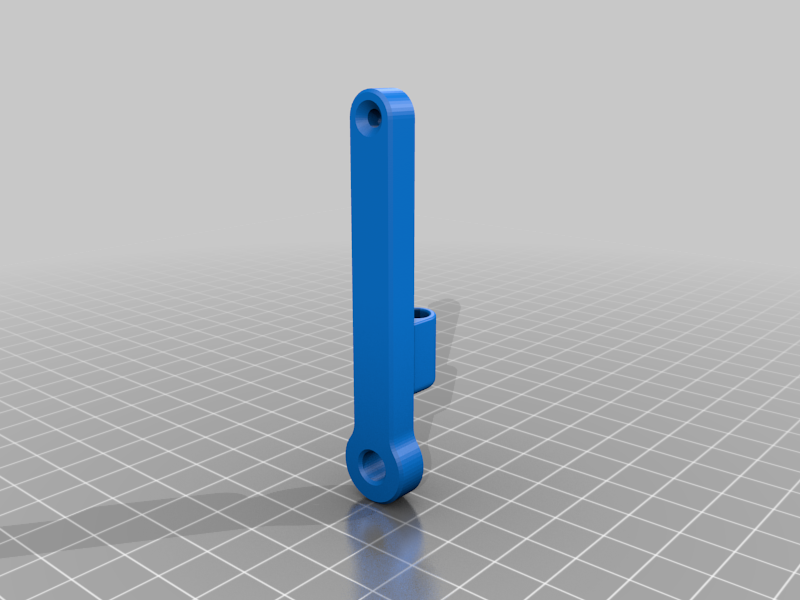

stlControl_arm.stl
1.1 Mo · 966 download
-

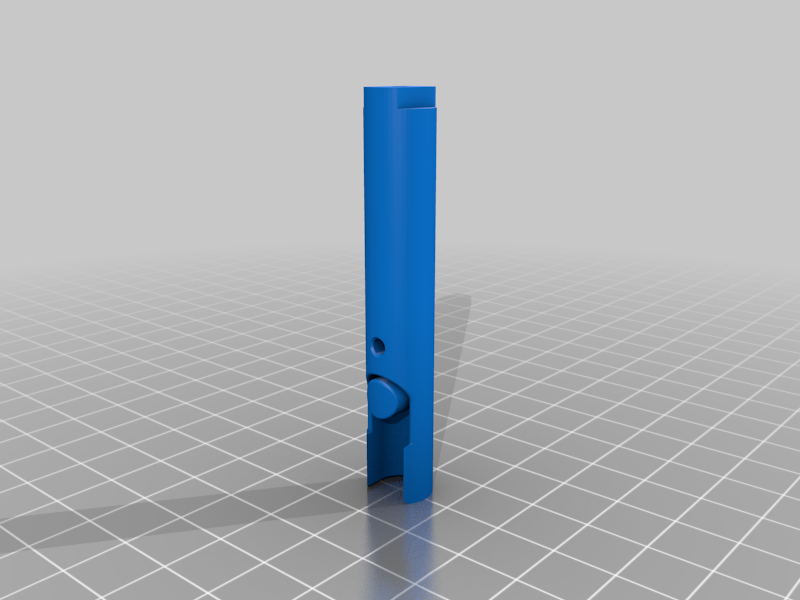

stlPark_brake_arm.stl
1.1 Mo · 969 download
-

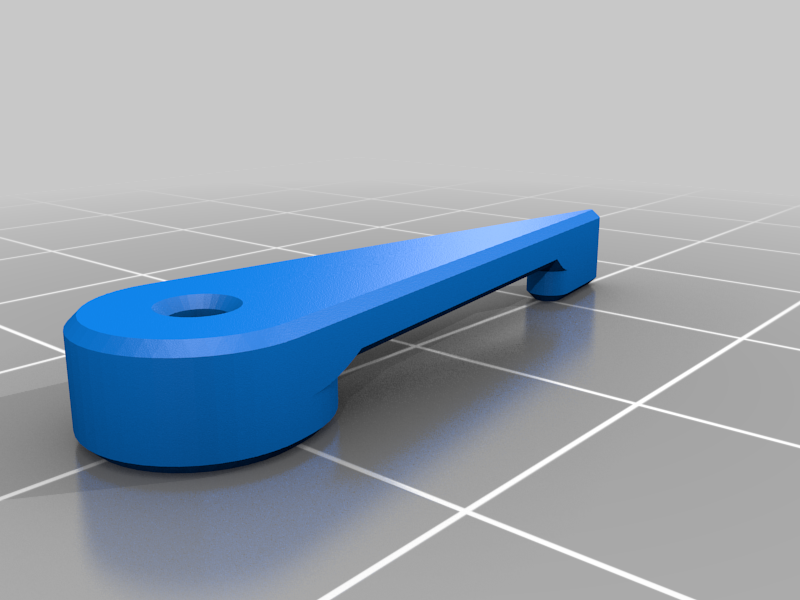

stlNeedle.stl
292 Ko · 964 download
-

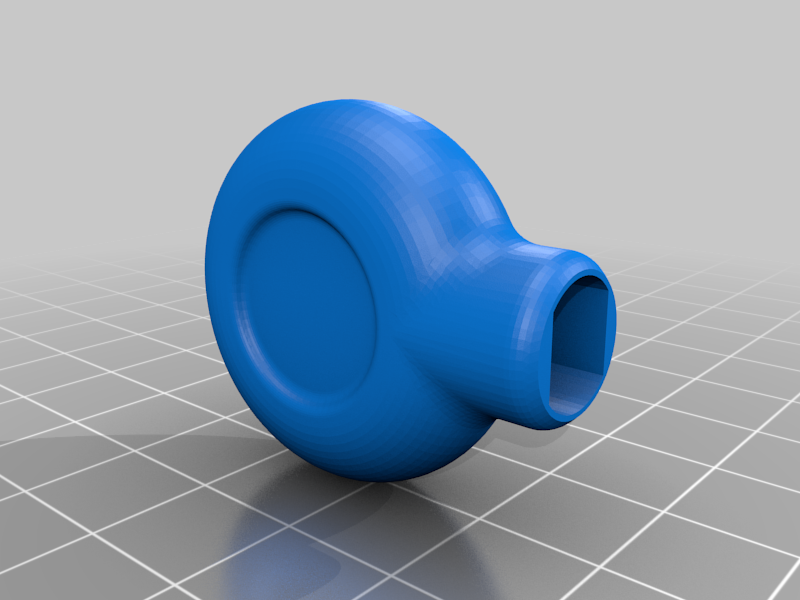

stlGear_handle.stl
2.6 Mo · 975 download
-

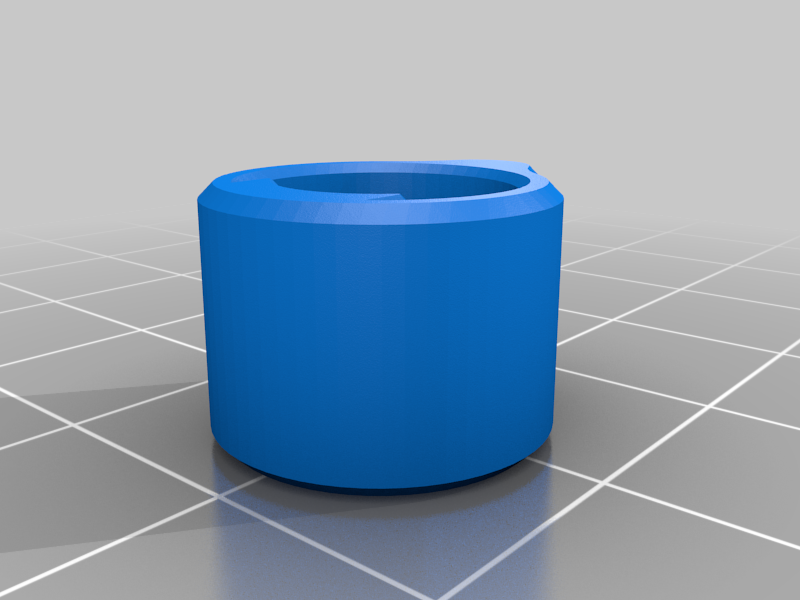

stlPark_brake_switch.stl
337 Ko · 966 download
-

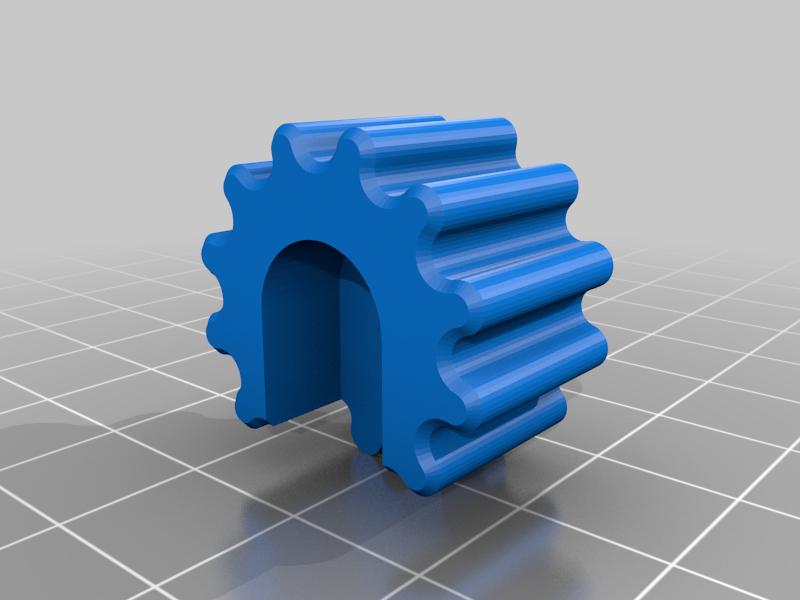

stlRPM_handle.stl
919 Ko · 972 download
-

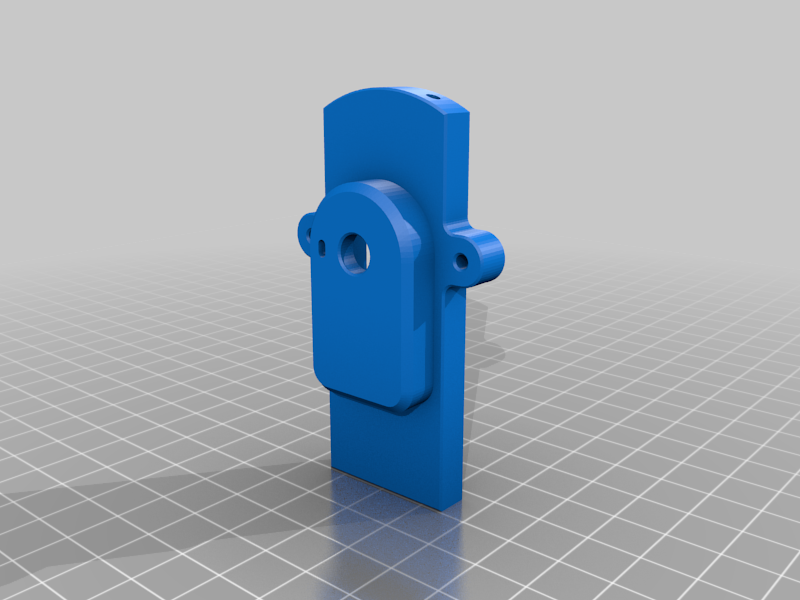

stlRPM_holder.stl
930 Ko · 966 download
-

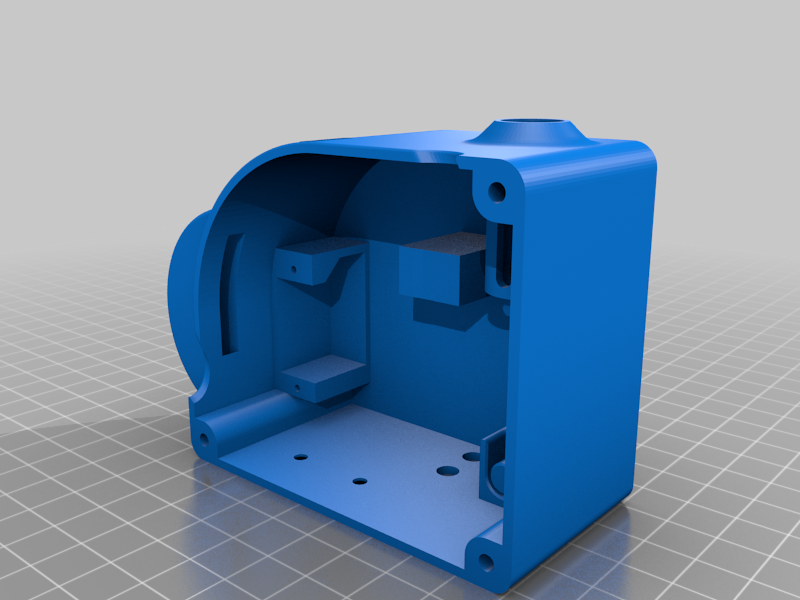

stlHousing_LH.stl
4.7 Mo · 987 download
-

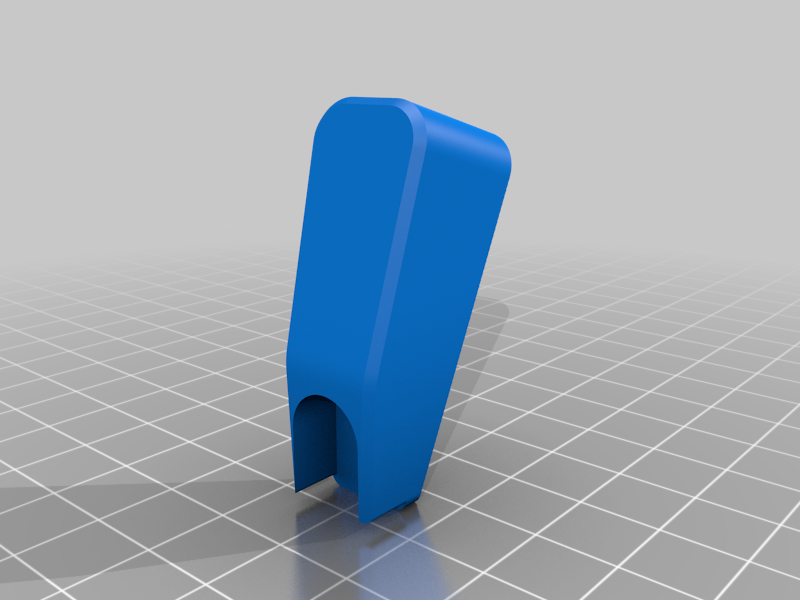

stlSpoiler_handle.stl
274 Ko · 966 download
-

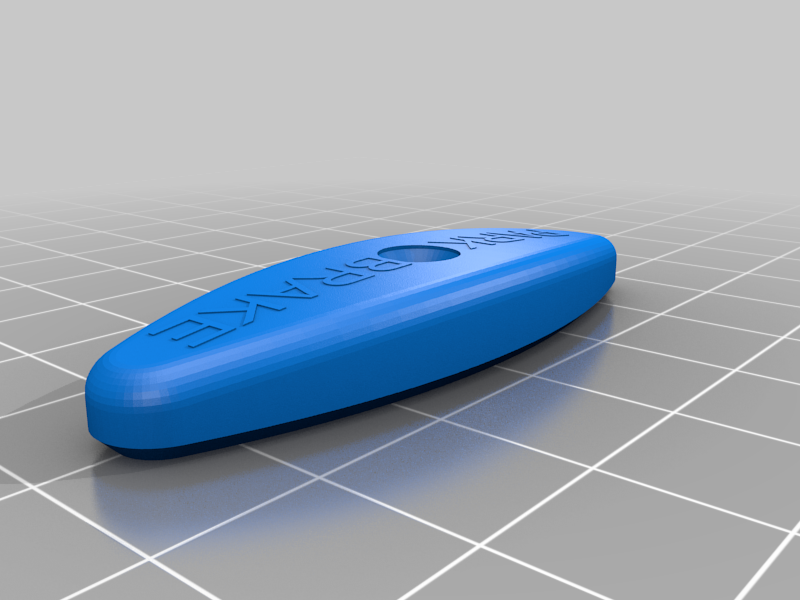

stlPark_brake_handle.stl
1.1 Mo · 975 download
-

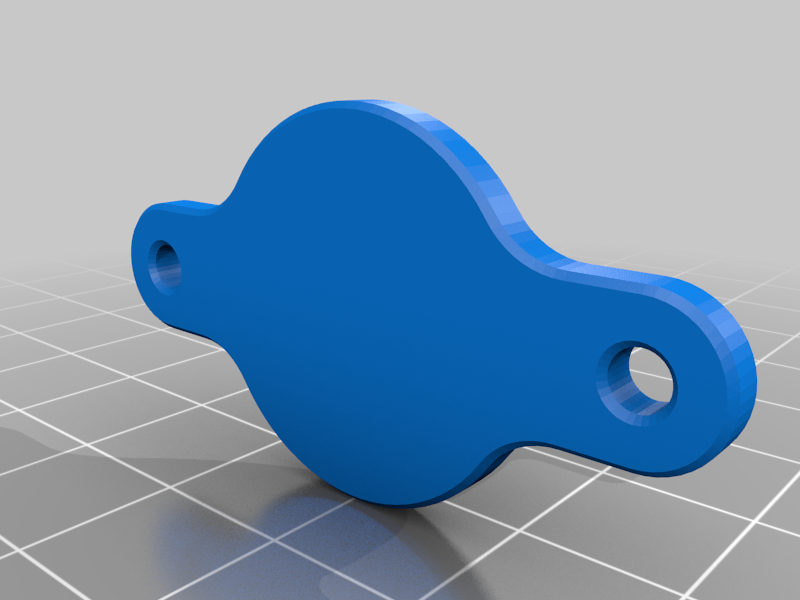

stlTrim_bearing_holder.stl
536 Ko · 964 download
-

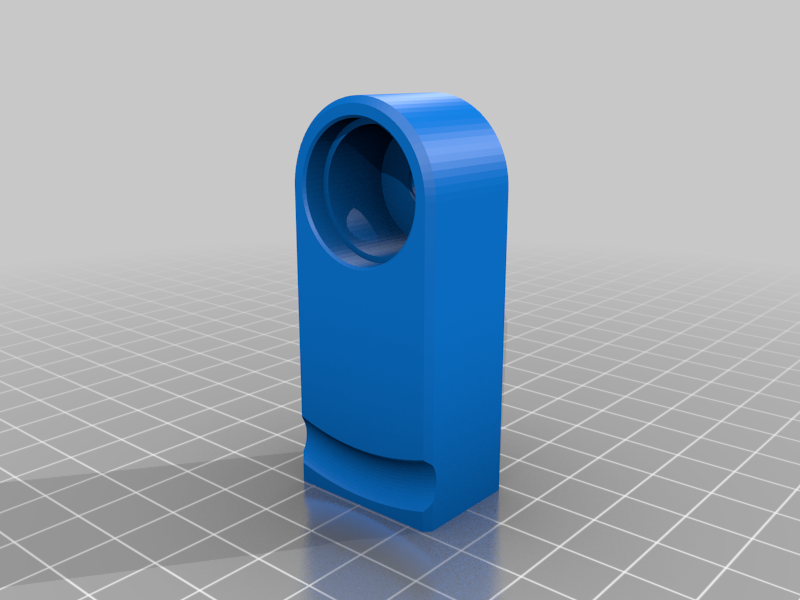

stlTrim_holder.stl
709 Ko · 964 download
-

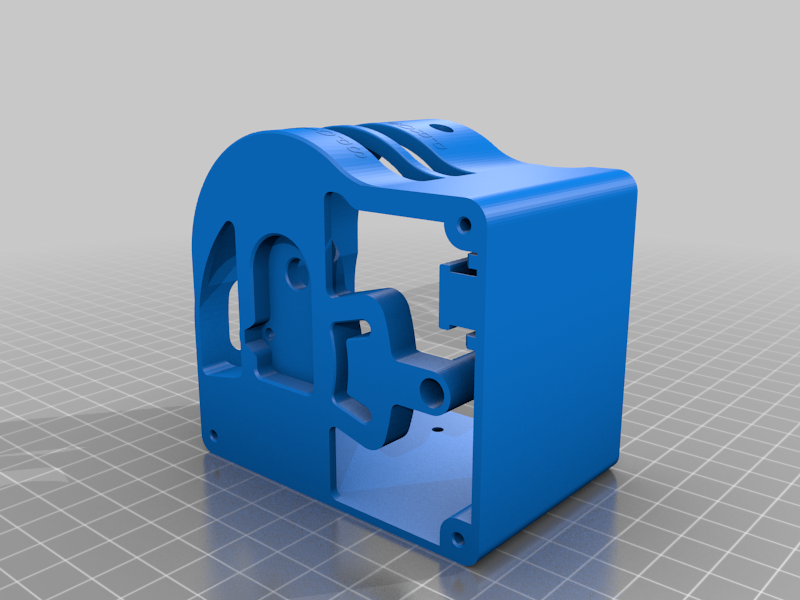

stlHousing_MID.stl
7.9 Mo · 979 download
-

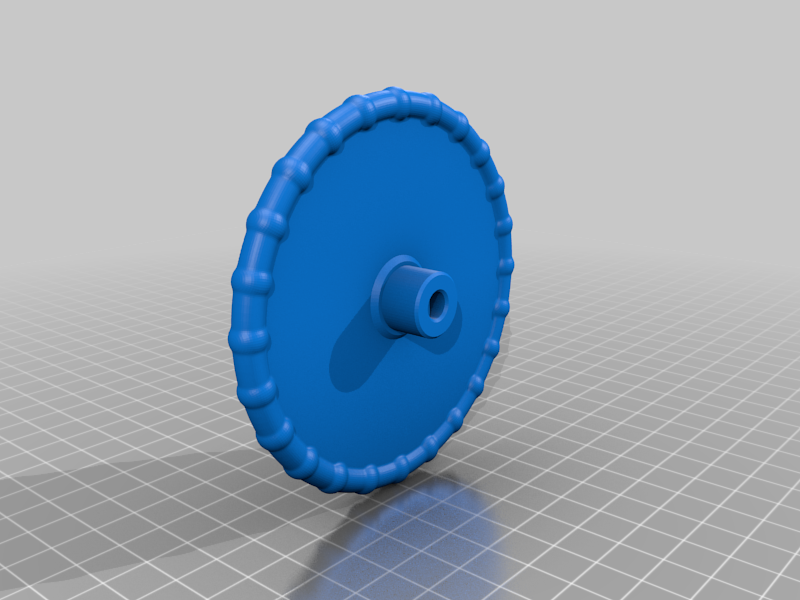

stlTrim_wheel.stl
12.5 Mo · 984 download
Descrizione
As I have most of the time limited space on my desk, I have created compact multi-control panel for flight simulator.
Currently it consists of following components:
- Parking brake
- Elevator trim wheel
- Elevator trim indicator
- Propeller RPM lever
- Spoilers lever
- Landing Gear lever
It is based on Arduino Pro Micro and MobiFlight software, although you can also produce Arduino program yourself, or in case of X-plane, use something like SimVim.
Hardware that you will need:
- 5x M3x10 screw
- 6x M3x16 screw
- 1x M3x20 screw
- 1x M3 nut
- 11x M3x10 countersunk screw
- 2x 0,6x8x25 spring
- 2x 0,5x4x10 spring
- 2x Limit switch
- 1x Rotary encoder
- 1x SG90 Servo
- 2x 10K Potentiometer
- 1x Bearing 15x21x4
- 1x Bearing 5x16x5
- 1x Arduino Pro Micro
This is currently V1 of control panel. Sometime in the future, I'm planning to add the throttle with reverse and flaps lever.
If you like this project and would like to see more like this in the future, please consider leaving a tip.
