Open Cable Chain
di Claghorn
File stampabili (14)
-

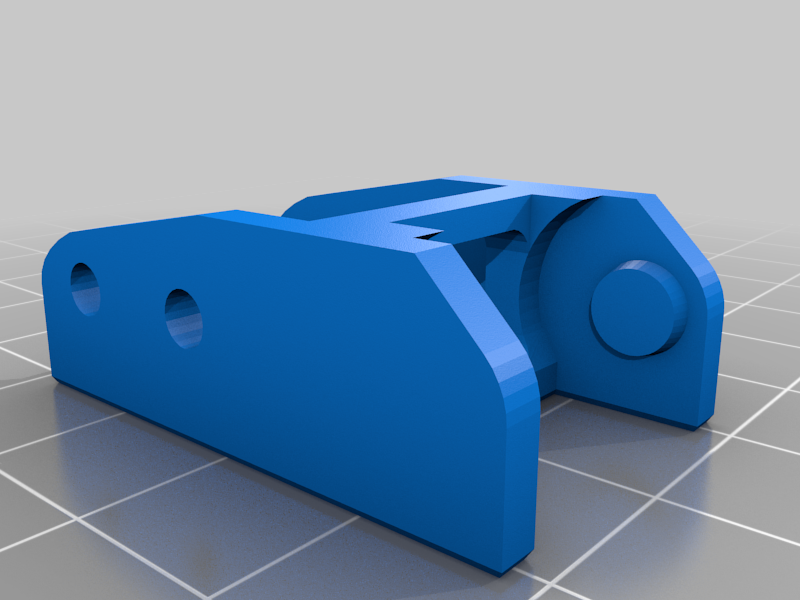

stlend1_fixed.stl
81 Ko · 39 907 download
-

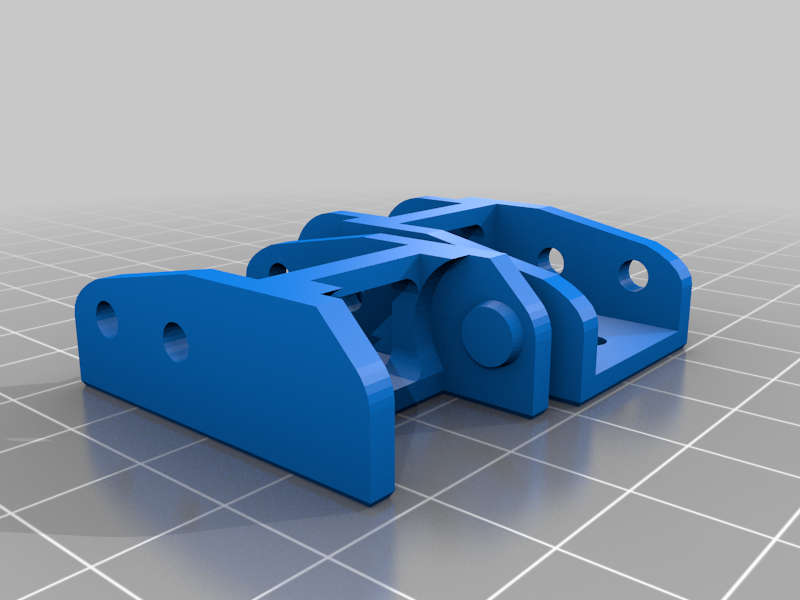

stlCableChainEnds_fixed.stl
139 Ko · 40 092 download
-

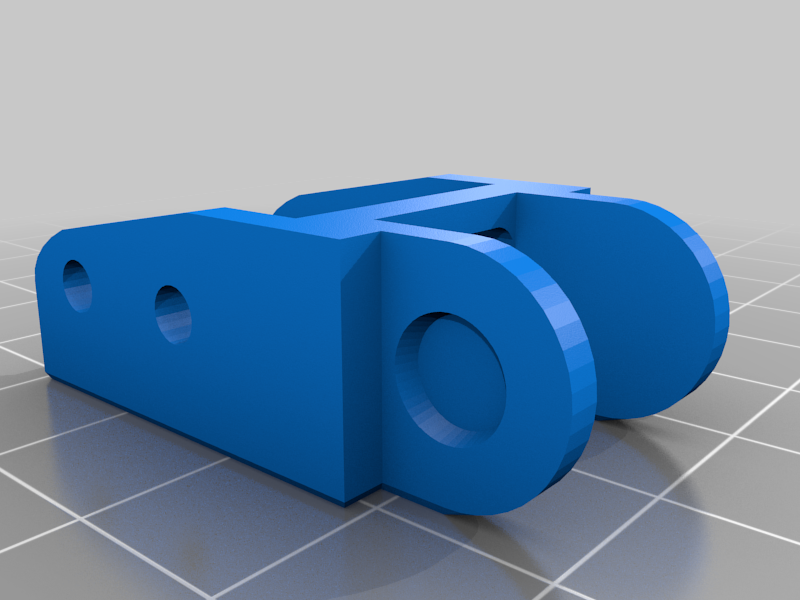

stlend2_fixed.stl
74 Ko · 39 854 download
-

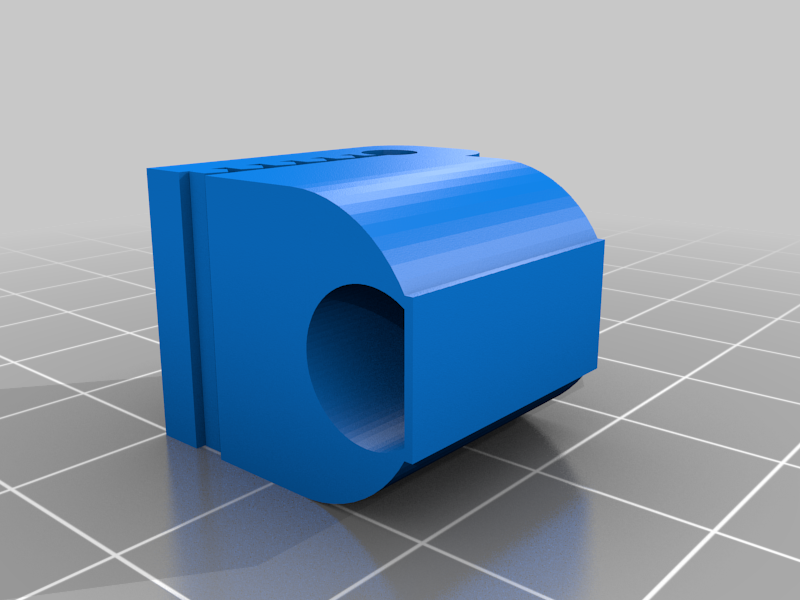

stlbarclip.stl
65 Ko · 39 550 download
-

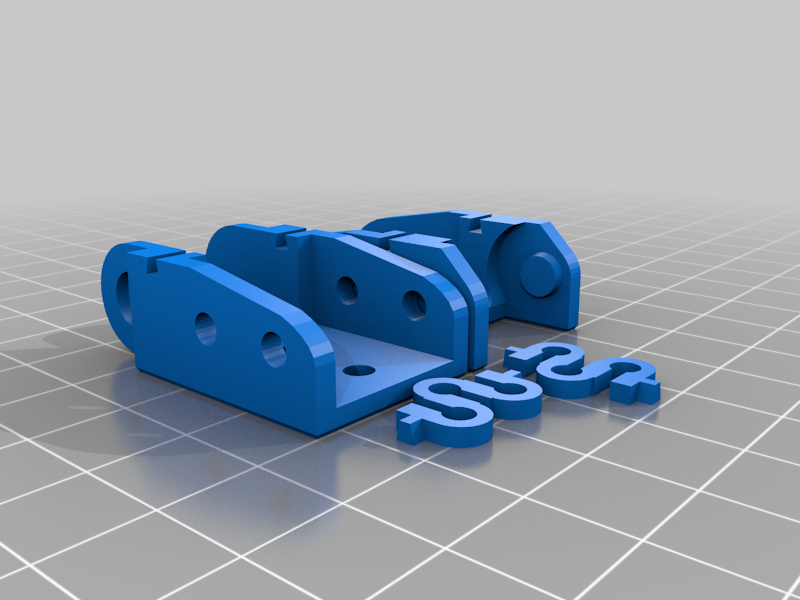

stlend_two.stl
287 Ko · 40 295 download
-

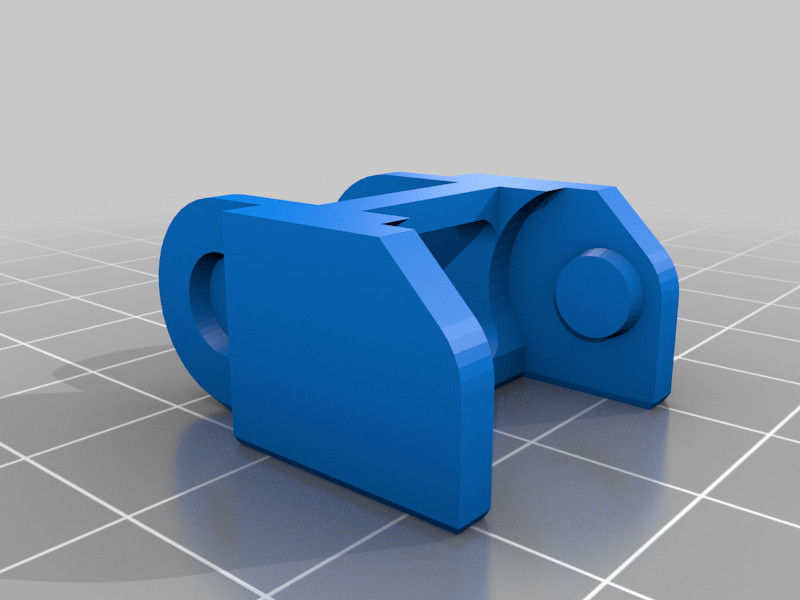

stlCableChain.stl
322 Ko · 40 691 download
-

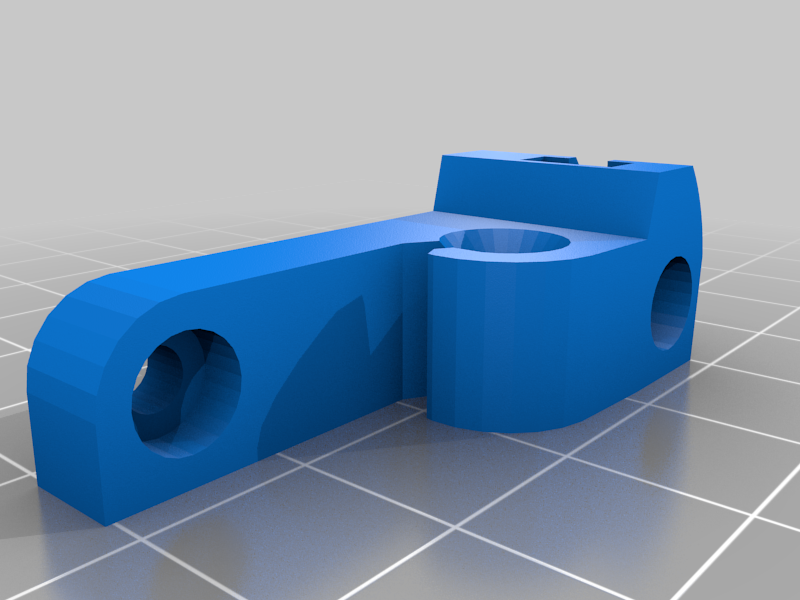

stlmk5_extruder_filament_guide_fixed.stl
49 Ko · 39 372 download
-

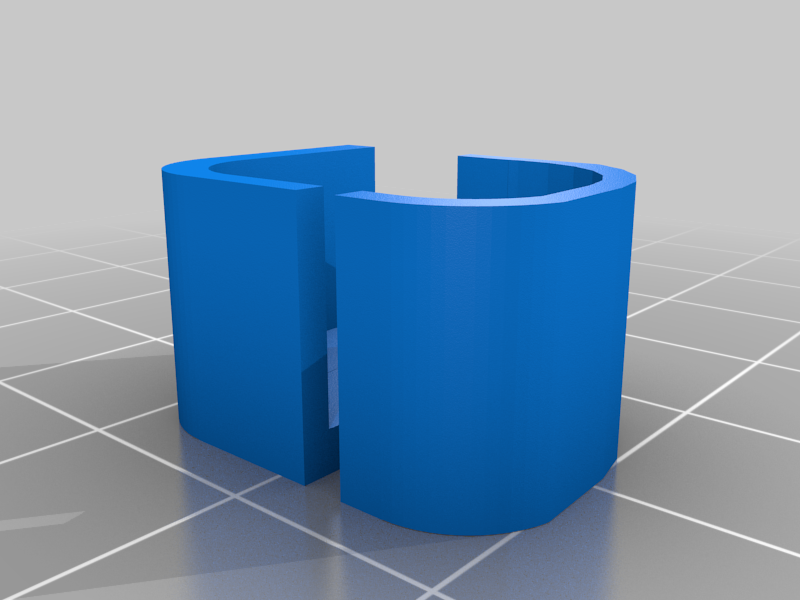

stlfilament-cap.stl
176 Ko · 39 376 download
-

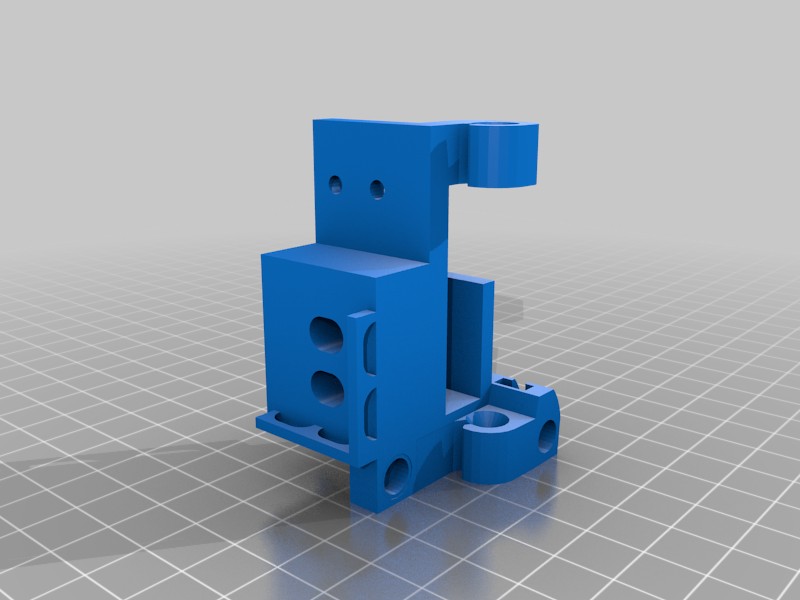

stlextruder-chain-mount.stl
189 Ko · 39 461 download
-

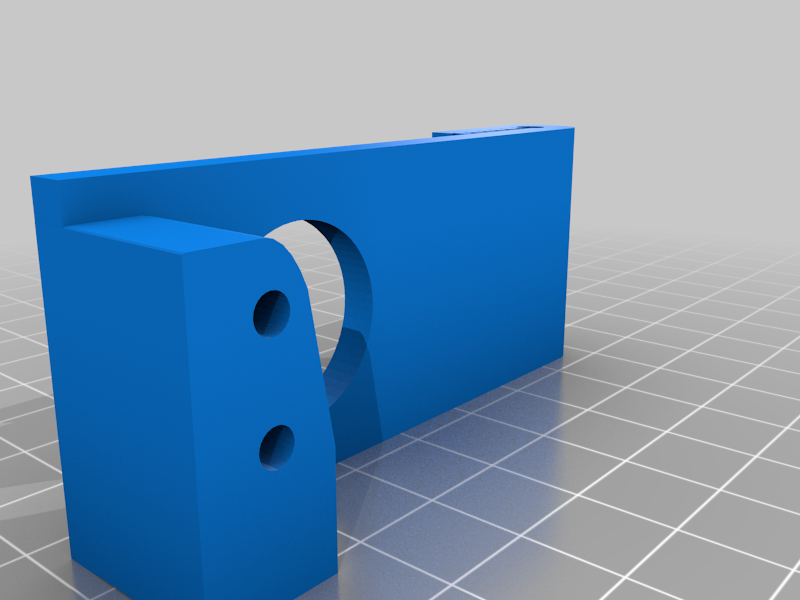

stltop-chain-mount.stl
68 Ko · 39 465 download
-

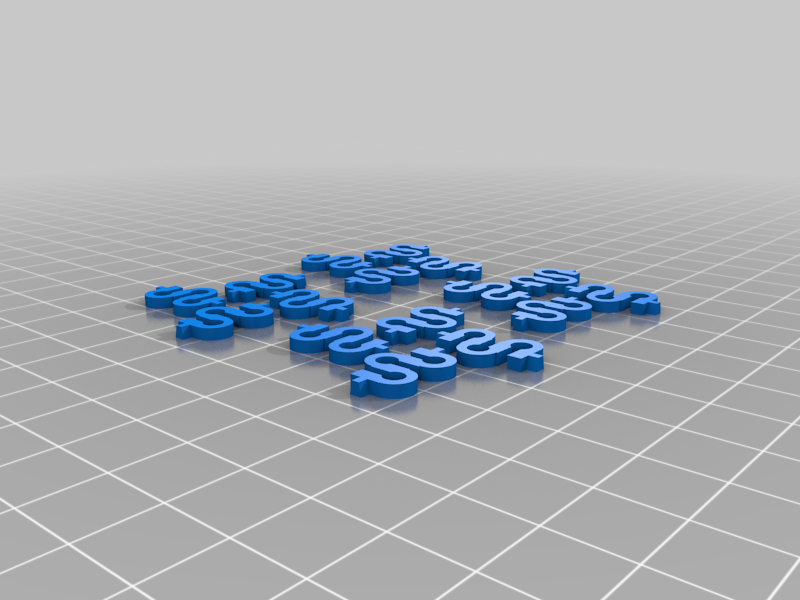

stlspring_sixteen.stl
872 Ko · 40 747 download
-

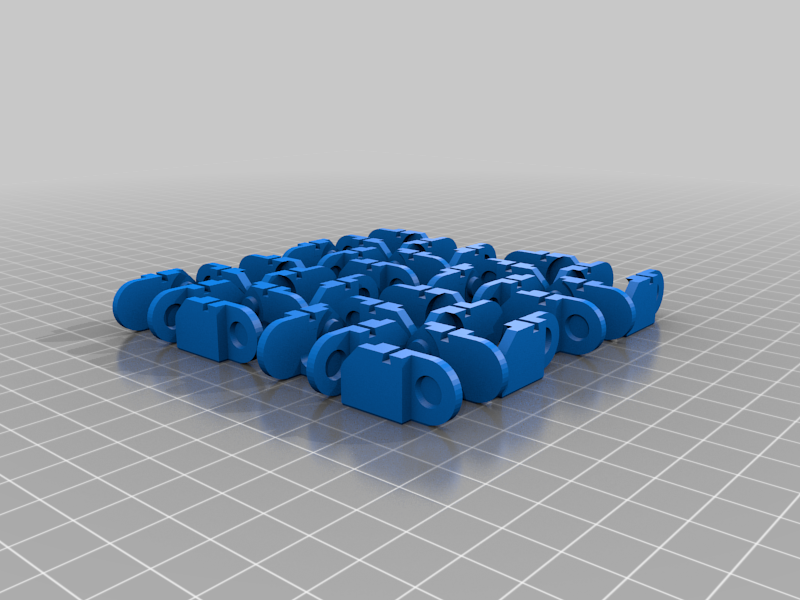

stlnobar_sixteen.stl
1003 Ko · 41 227 download
-

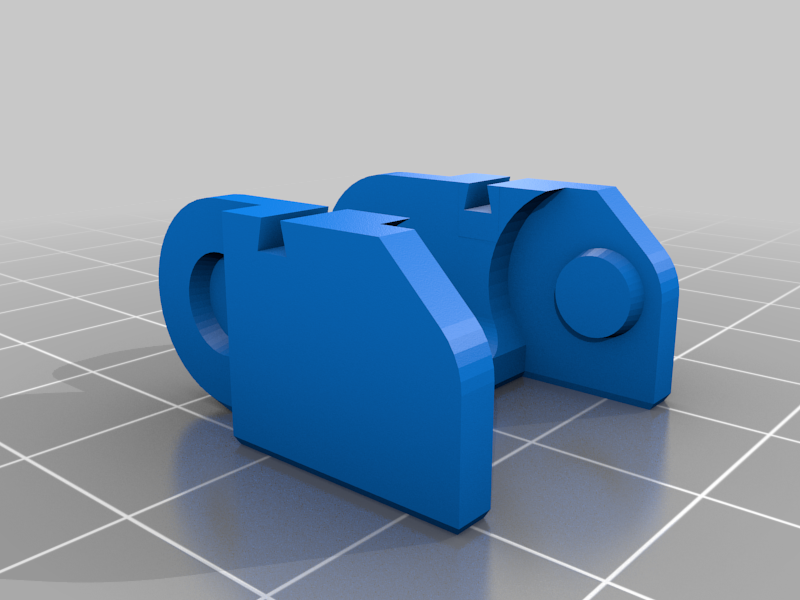

stlnobar_one.stl
224 Ko · 40 927 download
-

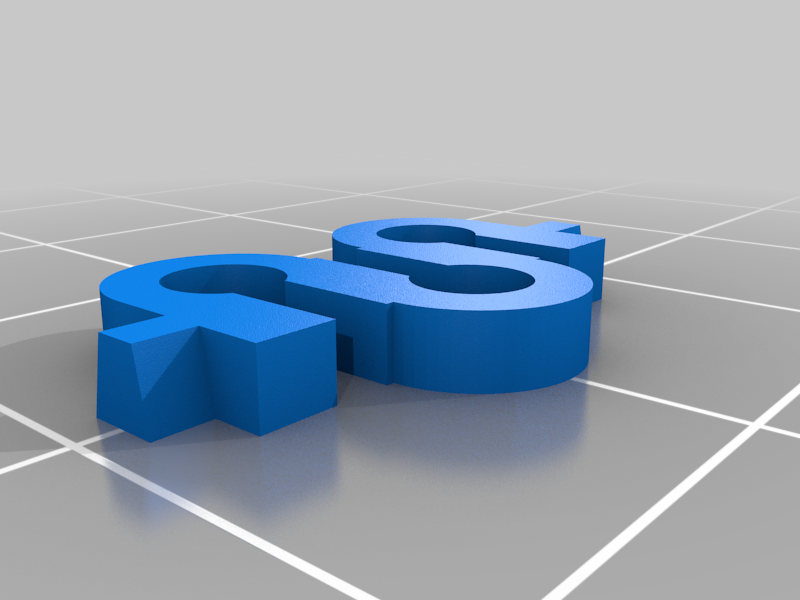

stlspring_one.stl
172 Ko · 40 259 download
Descrizione
A remix of http://www.thingiverse.com/thing:11978 to remove the top bar in the links and instead provide springy clips which can be easily removed and replaced to keep the cables in the chain, while still allowing them to be replaced without having to thread everything through from the end.
The files named CableChain*.stl are included here, but came from thing 11978 (though the fixed version here had to be run through the netfabb repair service).
See a dry run of a chain attached to my solidoodle at http://youtu.be/j9XkiM4_Mn4
I've also included a couple of Solidoodle specific parts for mounting the cable chain ends on the extruder and the back of the case and included a part extracted from http://www.thingiverse.com/thing:111213
The original version of this thing used bits of 1.75mm filament instead of springy clips, but it was too easy to break the filament. The springs work much better.
The long drawn out description and history of this thing can be found at http://tomhorsley.com/hardware/solidoodle/solidoodle-chain.html
