TeaBot automatic Tea Maker / Tea Timer REmixed

di dustinbrun

File stampabili (8)

  • stl

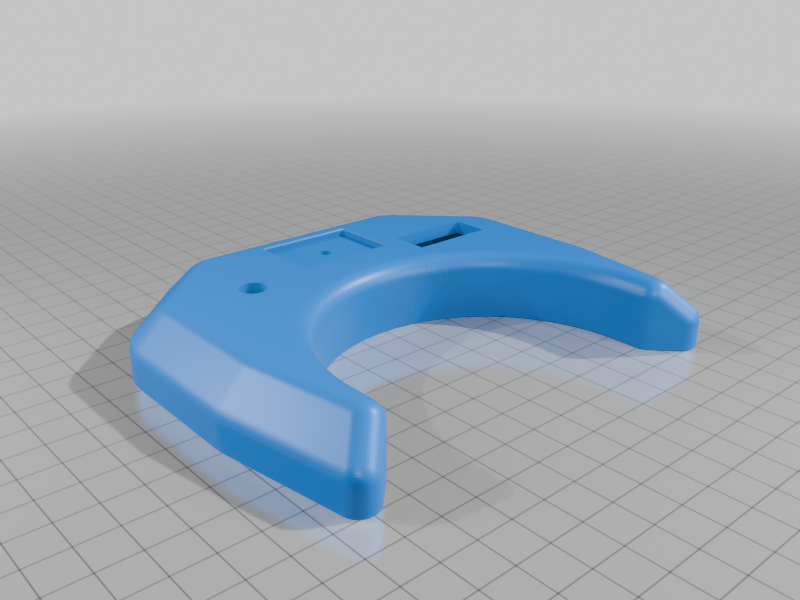

    TeaBot_Base_with_cutouts-Base001.stl

    534 Ko · 17 download

    Scarica
  • stl

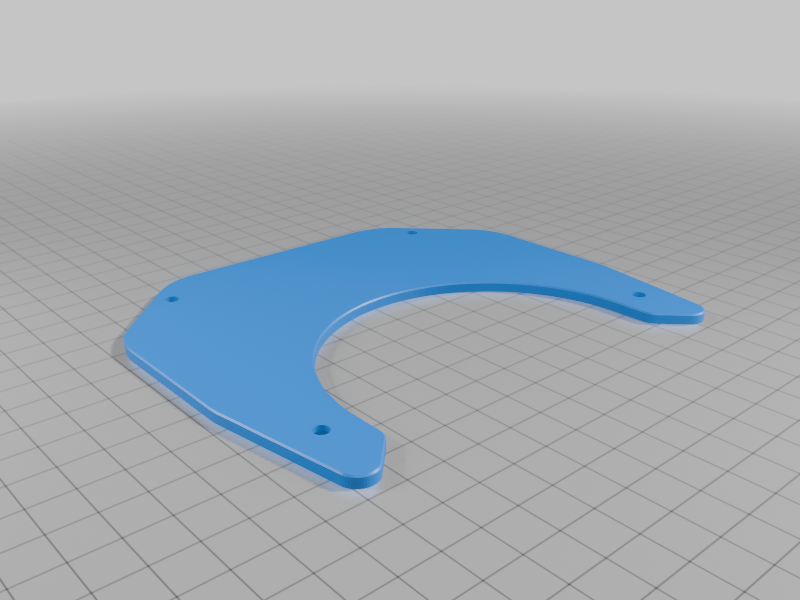

    TeaBot_Base_with_cutouts-Deckel001.stl

    281 Ko · 14 download

    Scarica
  • stl

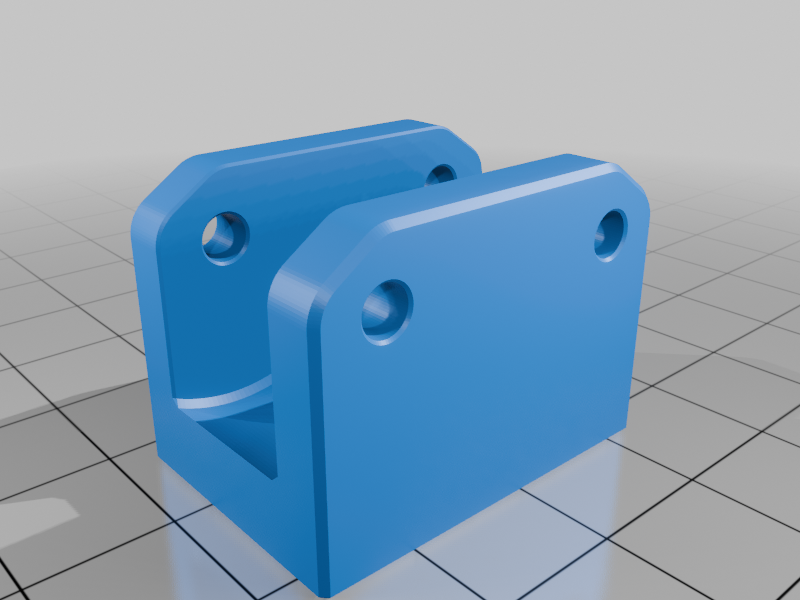

    TeaBot_Bottom_Part.stl

    1.4 Mo · 15 download

    Scarica
  • stl

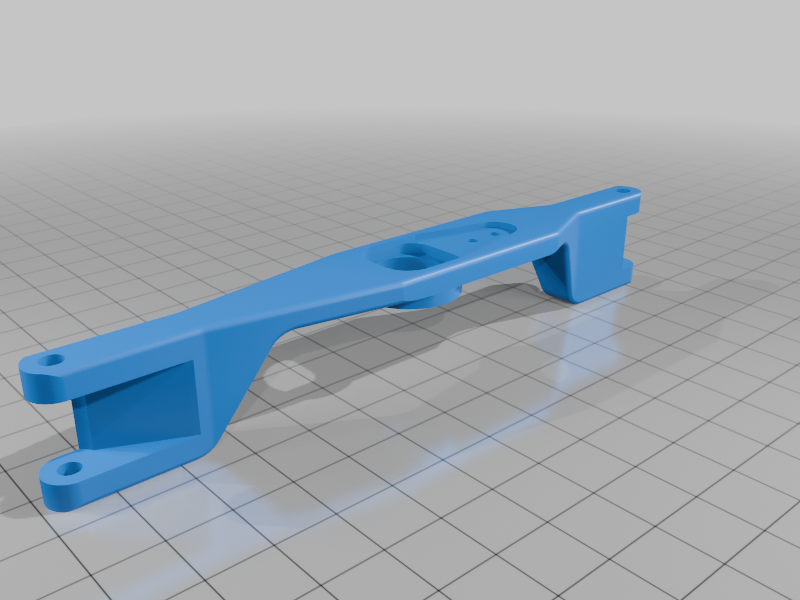

    TeaBot_kinematic_arm_high.stl

    3.6 Mo · 15 download

    Scarica
  • stl

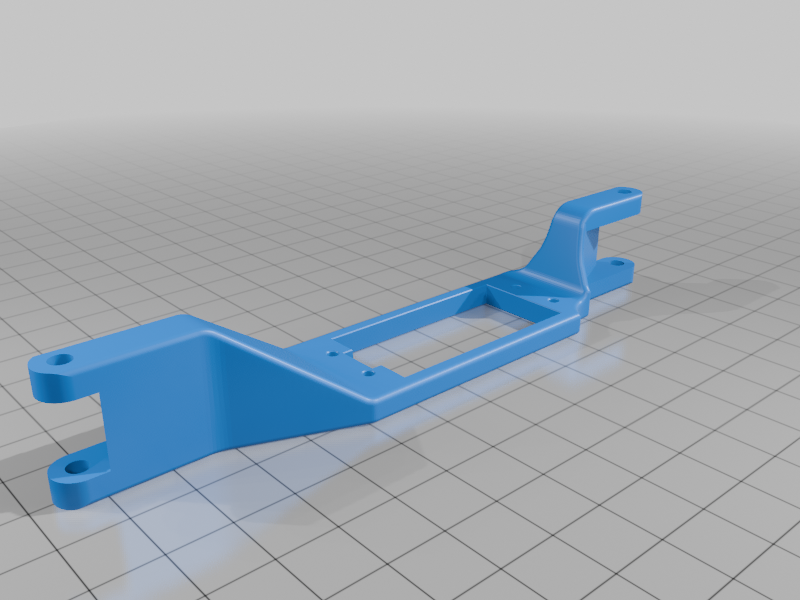

    TeaBot_kinematic_arm_low.stl

    4.1 Mo · 15 download

    Scarica
  • stl

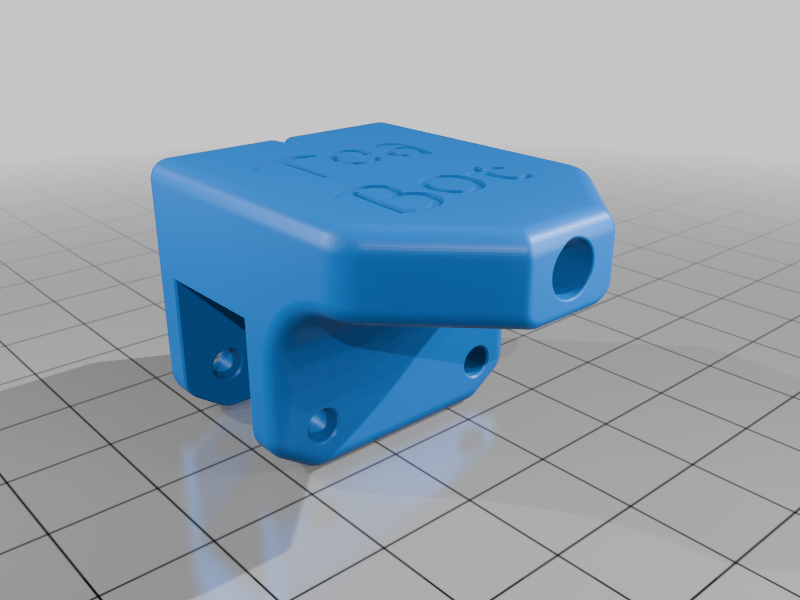

    TeaBot_Top.stl

    5.7 Mo · 15 download

    Scarica
  • stl

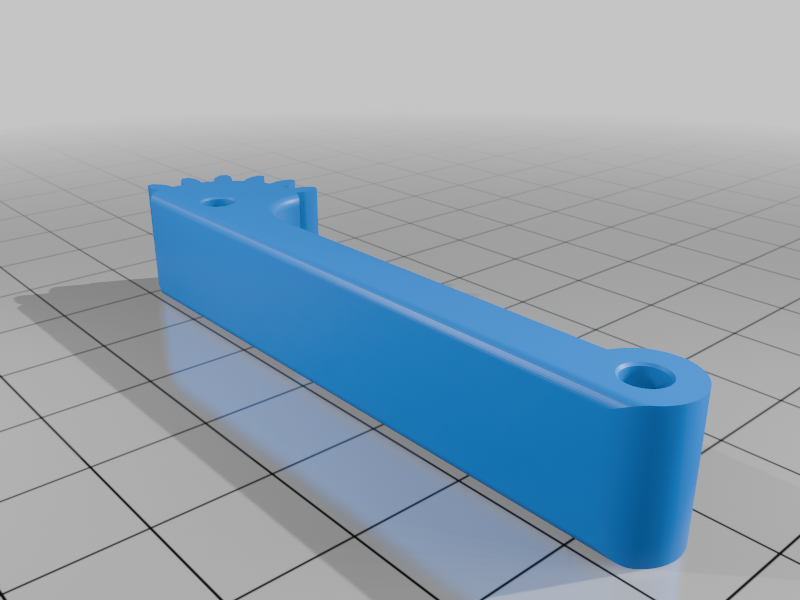

    TeaBot_Arm_LH.stl

    1.4 Mo · 15 download

    Scarica
  • stl

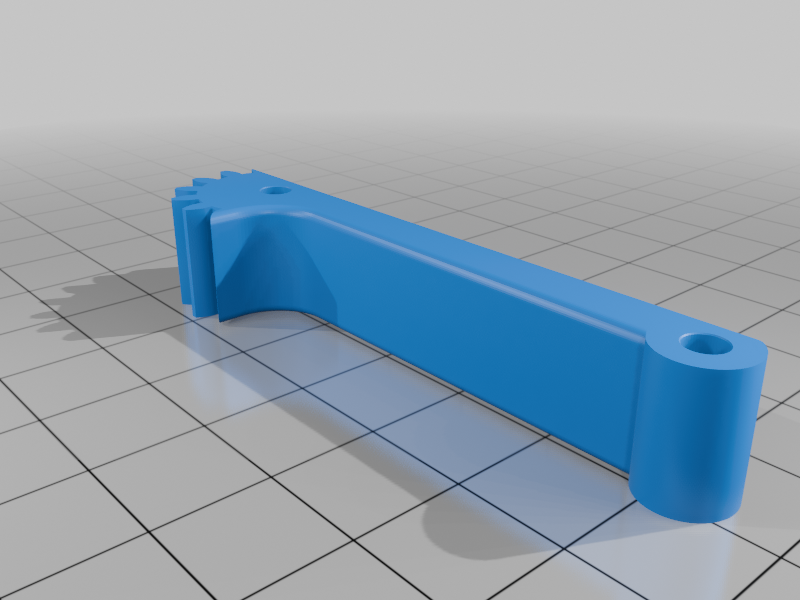

    TeaBot_Arm_RH.stl

    1.3 Mo · 15 download

    Scarica

Descrizione

The design uses the 3D model created by SnakeP (licensed under Creative Commons - Attribution, see link below). I adapted the TeaBot_Base to be able to fit the electronics inside it. This eliminates the need for a separate electronics enclosure. The parts TeaBot_Arm_LH and TeaBot_Arm_RH need to be printed two times each.

I removed the battery from the device, it is powered directly from the USB Type-C connector.

All other Project resources (Schematic, Arduino Code) can be found on Github: https://github.com/dustinbrun/TeaBot

Tag

#arduino #Arduino Nano #kitchen #robot #tea #Tea Robot #tea timer
