Up mini cooling system
di 3DO2
File stampabili (7)
-

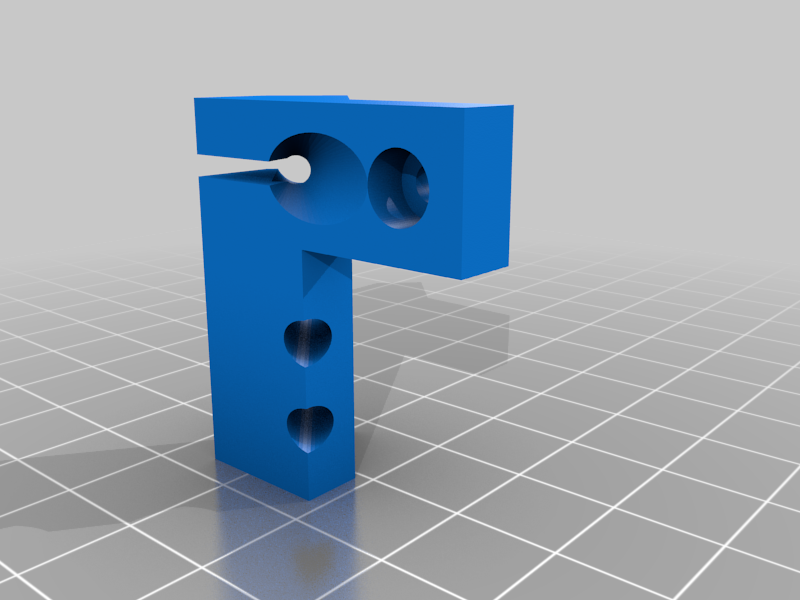

stlUP_Mini_-_clip_extra_airhose_holder.STL
80 Ko · 668 download
-

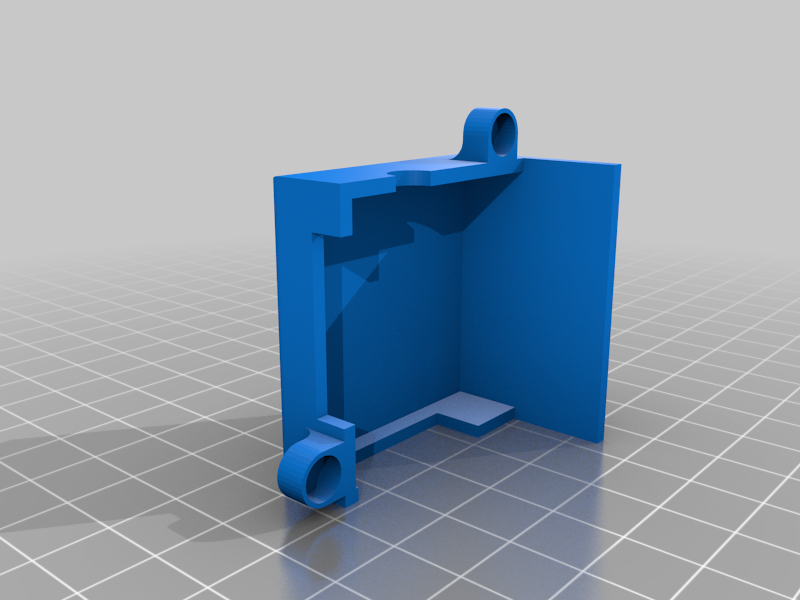

stlUp_mini_extruder_head_pcb_board_cover_V0_1.STL
40 Ko · 657 download
-

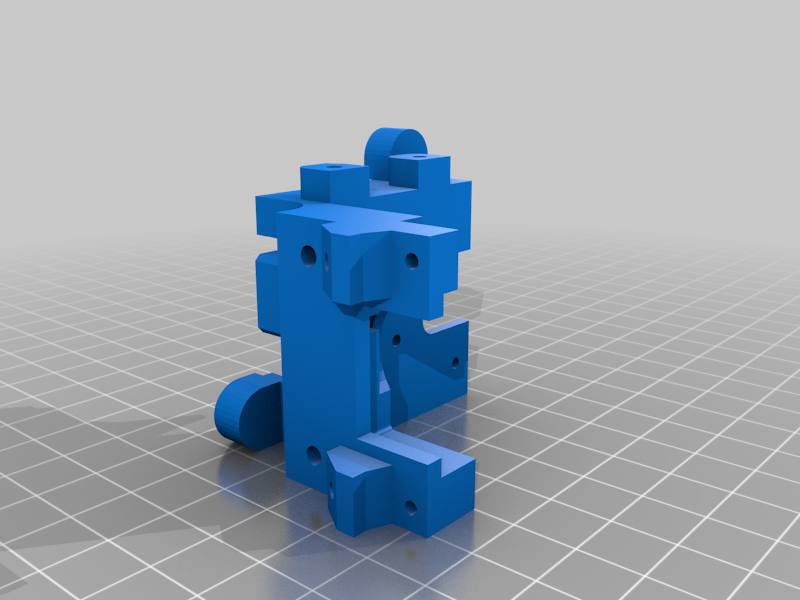

stlmain_pcb_holder_with_extra_airflow_V1_9.STL
271 Ko · 665 download
-

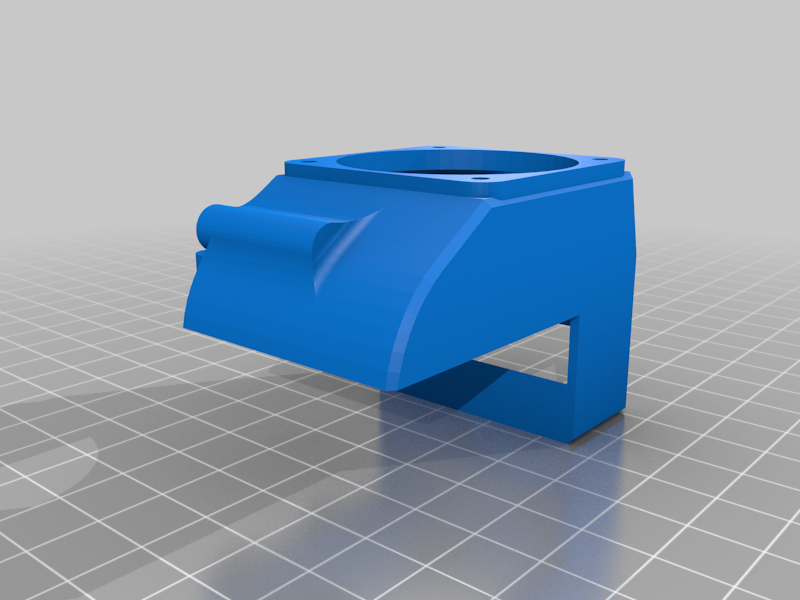

stlUP_mini_extra_side_vent_and_cooling_system_V1_1.STL
351 Ko · 672 download
-
stlUp_mini_extruder_head_pcb_board_cover_V0_1_GOOD.STL
38 Ko · 596 download
-
stlmain_pcb_holder_no_compressor_inlet_GOOD.STL
151 Ko · 597 download
-

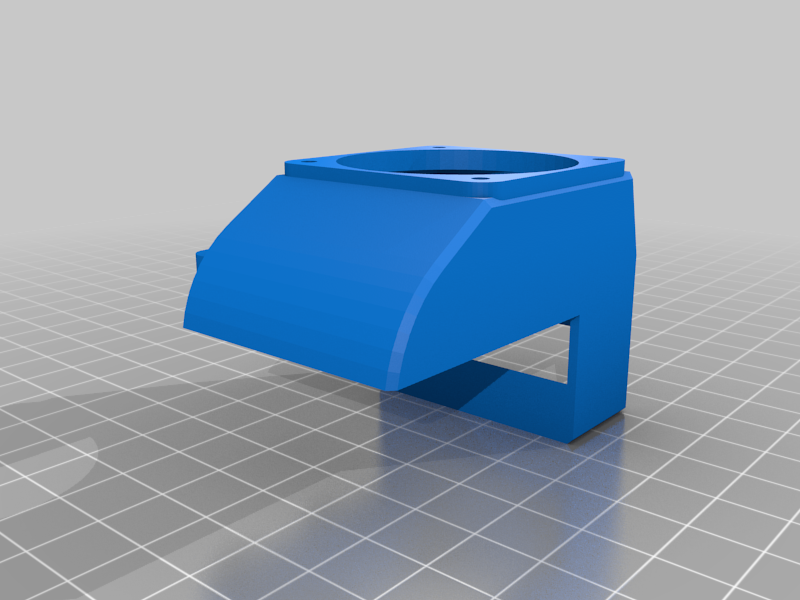

stlUP_mini_extra_side_vent_casing_V1_2_GOOD.STL
161 Ko · 599 download
Descrizione
This whole new extruder head design can prevent the ticking noise during PLA printing and also can prevent the overheating of the feeder motor at long term ABS prints. I designed two extra inlets as well where the secondary filament and bearing cooling is possible by compressed air.
The mod kind of effective(PLA) and also badass
(I also use a temp mod for the printer.)
Tested with ICE Black PLA and Faberdashery transparent blue PLA
A high rpm vent is advisable, to the side of the cooling case
(!!! the long term PLA prints still risky but much more better than without the mod.!!!)
extra parts that is need.
-2.5 EH CONNECTOR 3-Pin JST plug ( Male, Female, Crimps )
- 12V DC 40mm 20mm 2 Wire High rpm fan
-6 X 3 mm magnets (4 pieces) for the PCB board cover.
