Jet Engine, 3-Spool
door konchan77
Printbare bestanden (33)
-

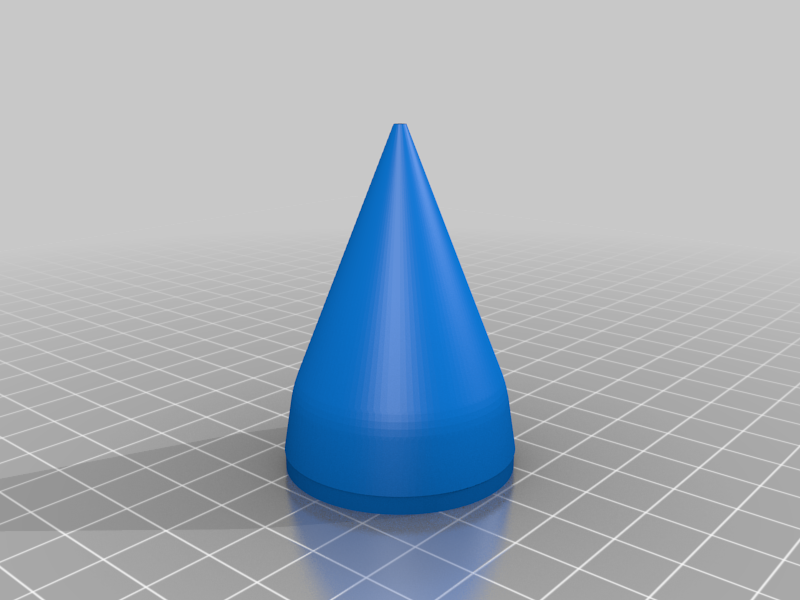

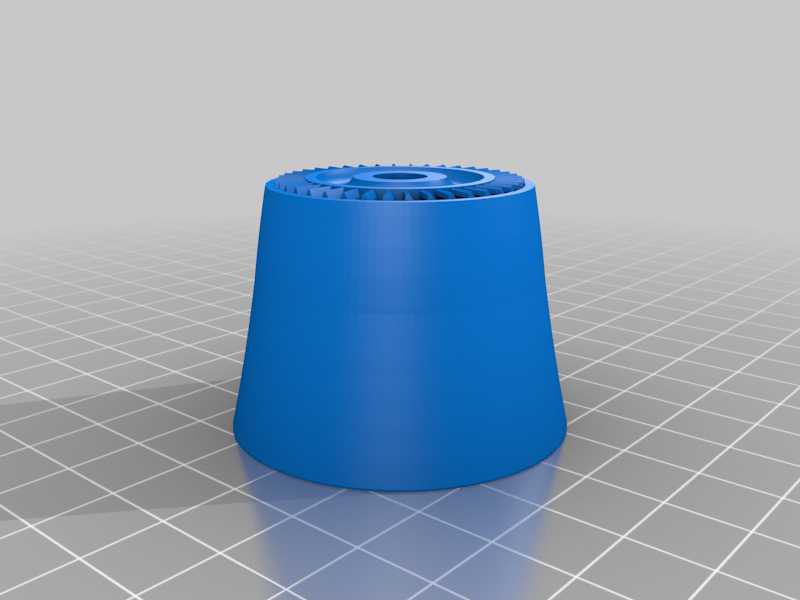

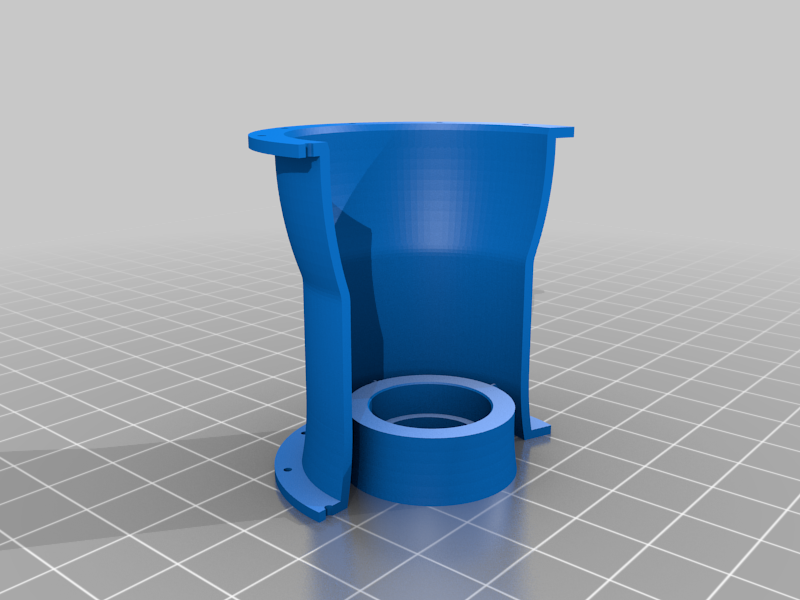

stlExhaust-Cone101ws.stl
248 Ko · 7 243 downloads
-

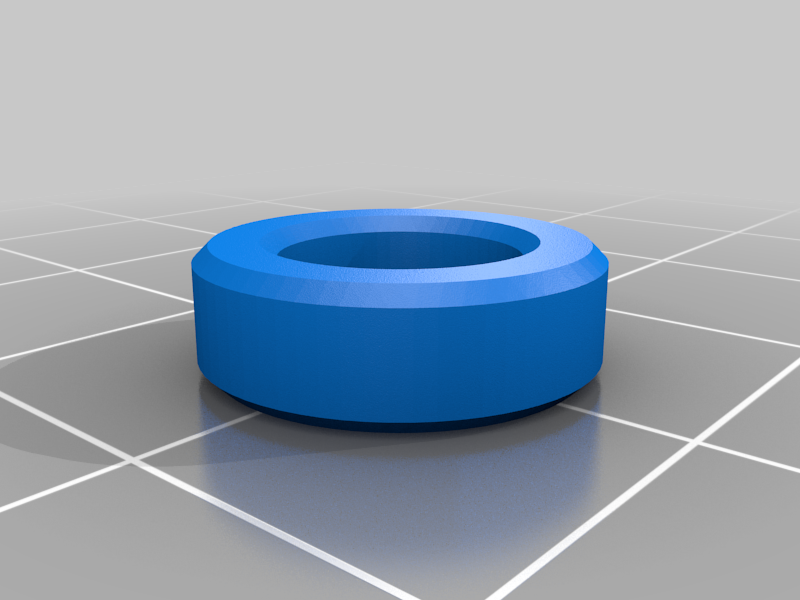

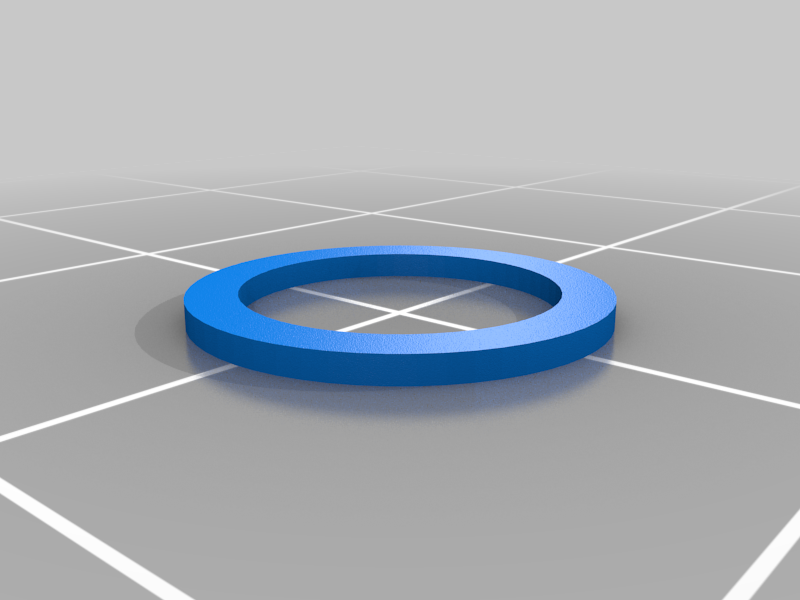

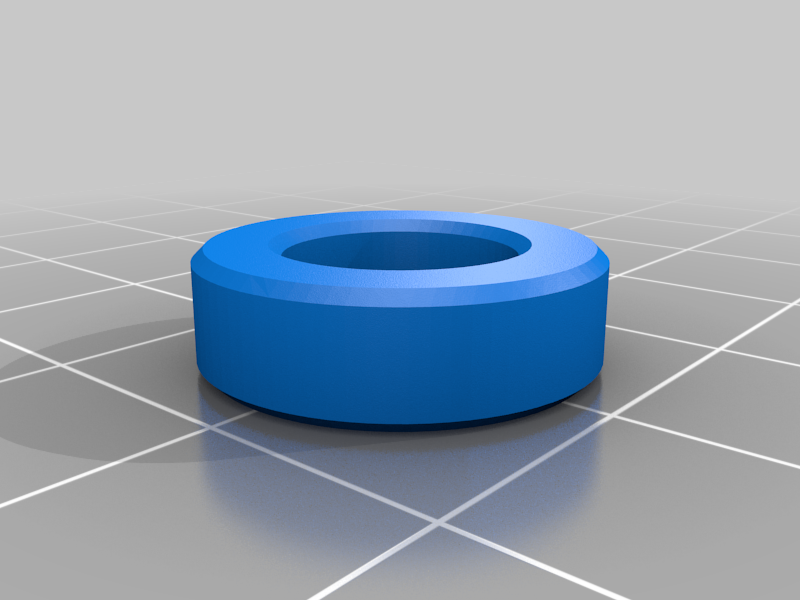

stlDummy-BRG-10mm01.stl
57 Ko · 7 208 downloads
-

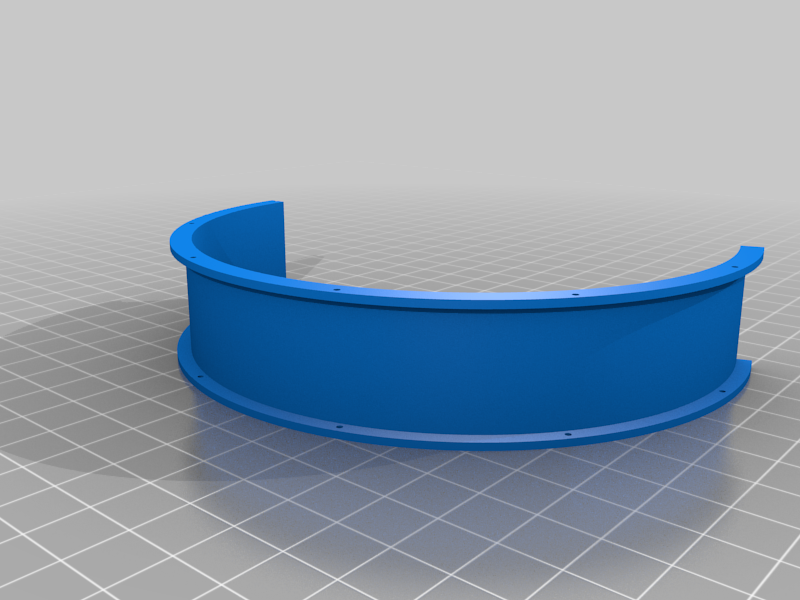

stlFan-Duct302.stl
144 Ko · 7 226 downloads
-
stlHPC-Case101.stl
749 Ko · 7 214 downloads
-
stlHPC-Case101a.stl
34 Ko · 7 194 downloads
-

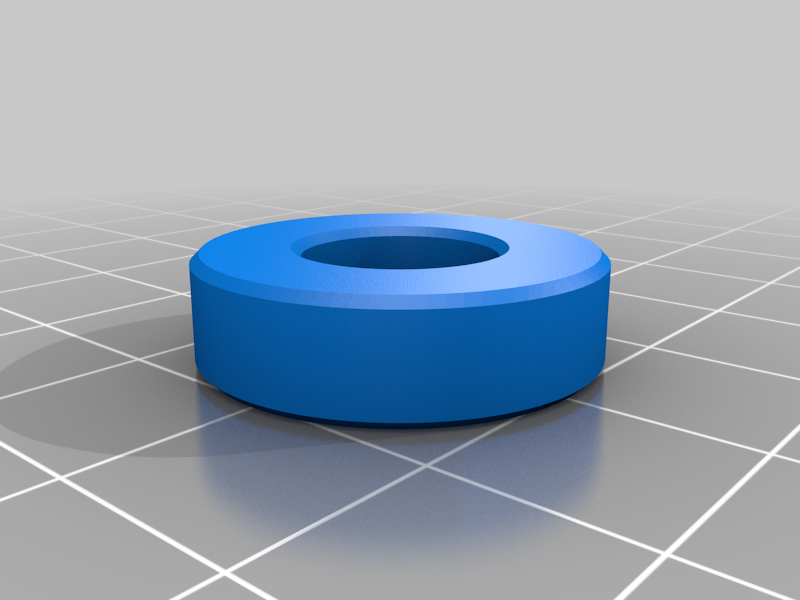

stlDummy-BRG-9mm01.stl
52 Ko · 7 199 downloads
-

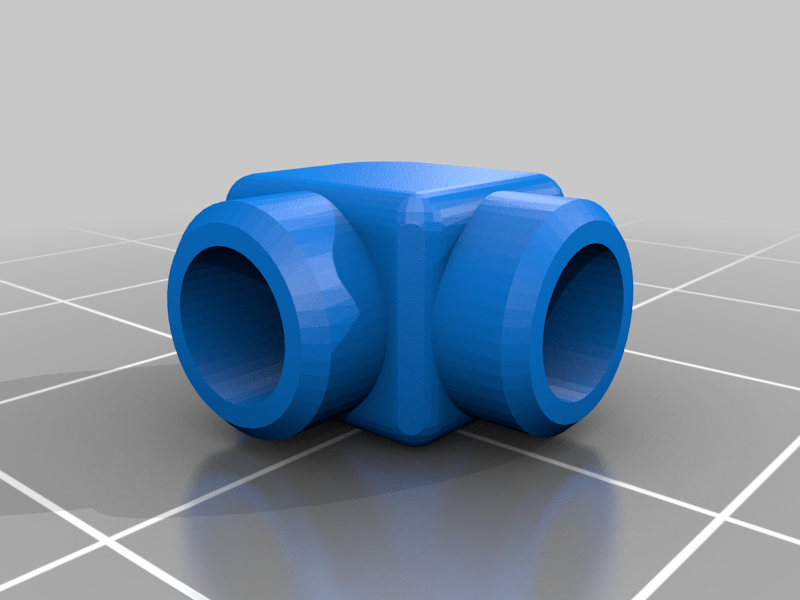

stlGB-Angle-Box01.stl
98 Ko · 7 198 downloads
-

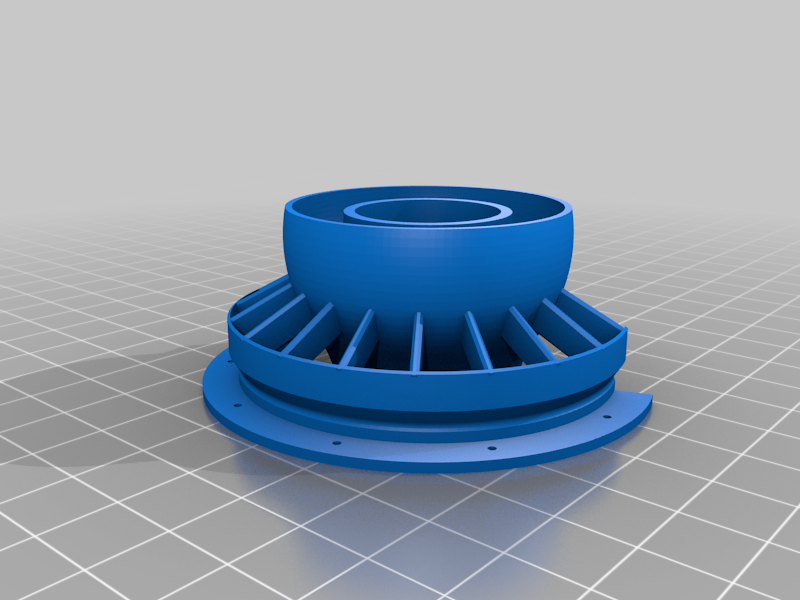

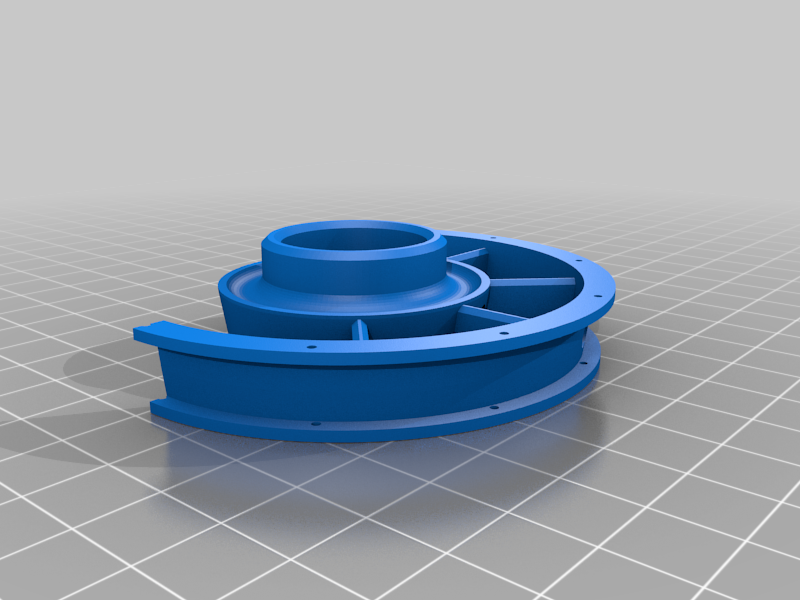

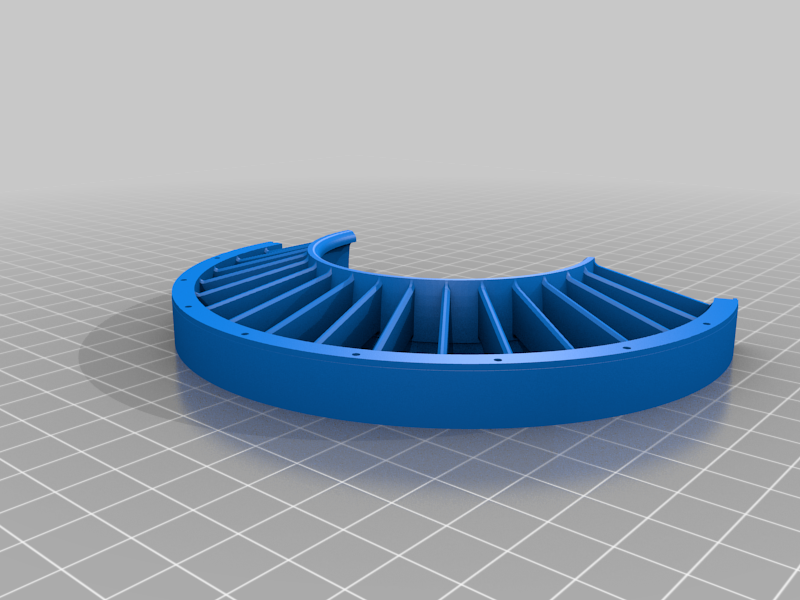

stlExhaust-Frame01.stl
553 Ko · 7 200 downloads
-

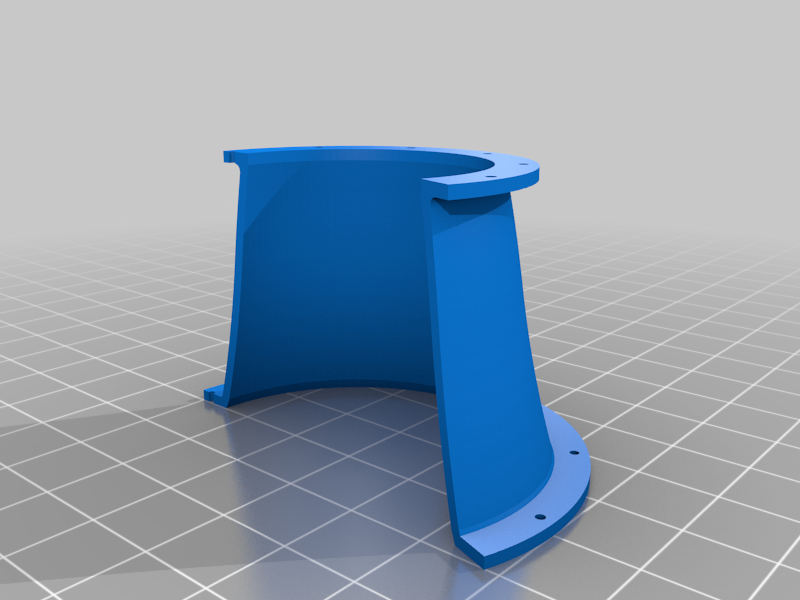

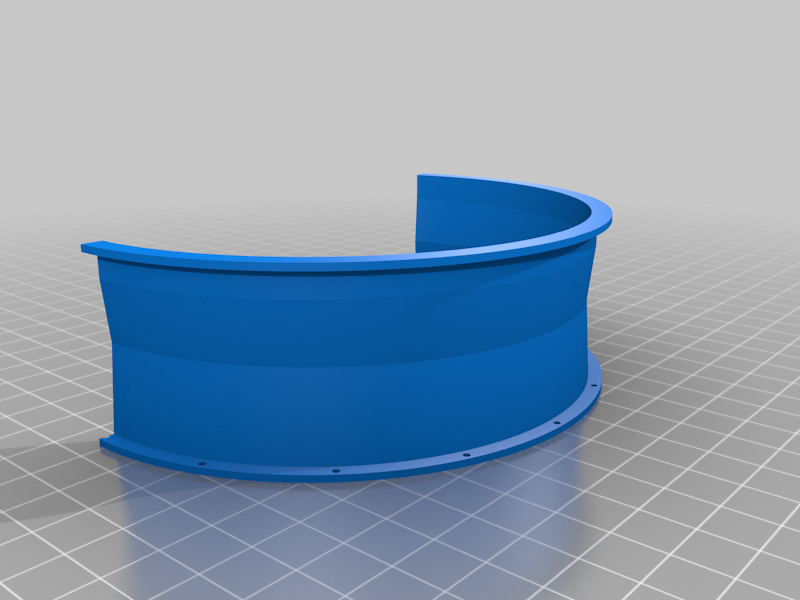

stlFan-Duct01.stl
198 Ko · 7 203 downloads
-

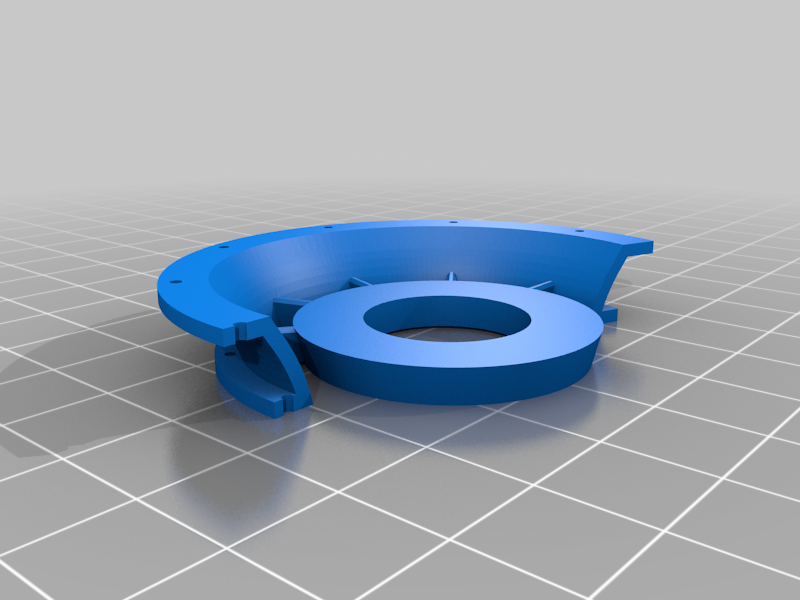

stlLPT-Inlet-Case01.stl
631 Ko · 7 196 downloads
-

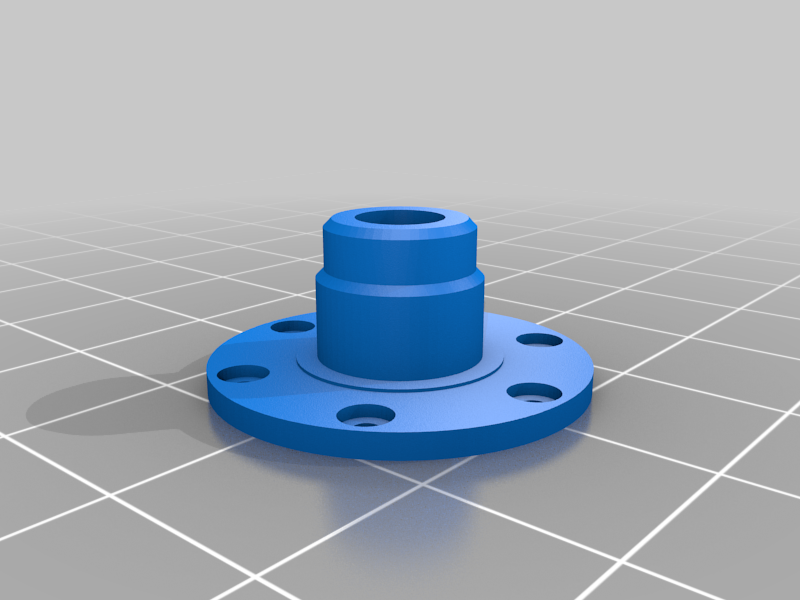

stlFan-Shaft01.stl
141 Ko · 7 187 downloads
-

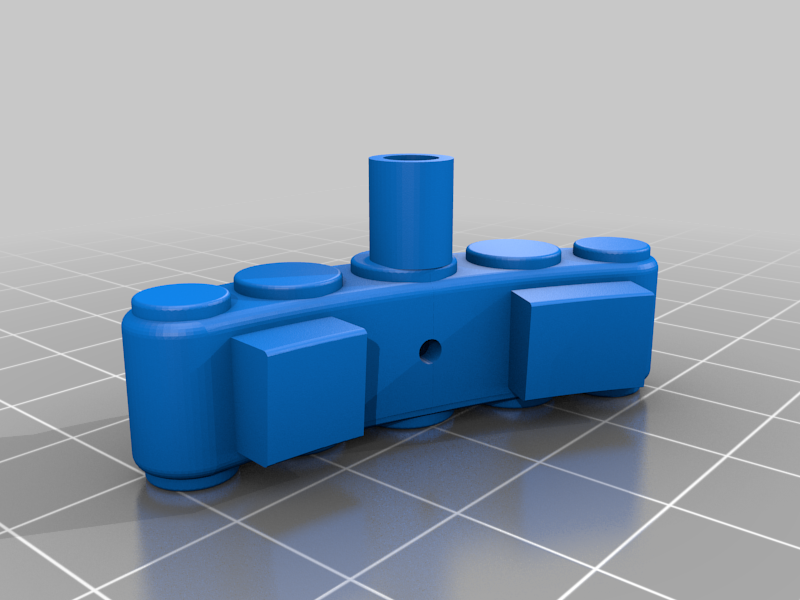

stlGB-Main-Box01.stl
618 Ko · 7 179 downloads
-
stlGB-Upper-Box01.stl
231 Ko · 7 173 downloads
-
stlFan-Duct301ws.stl
1.9 Mo · 7 178 downloads
-

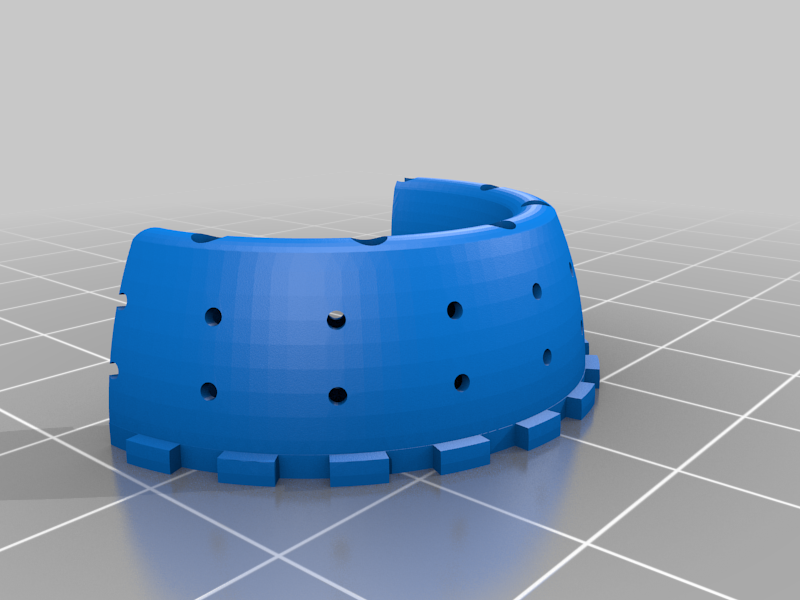

stlC-Chamber01.stl
793 Ko · 7 177 downloads
-
stlDummy-BRG-7mm01.stl
46 Ko · 7 168 downloads
-
stlHPT-Case01.stl
319 Ko · 7 174 downloads
-

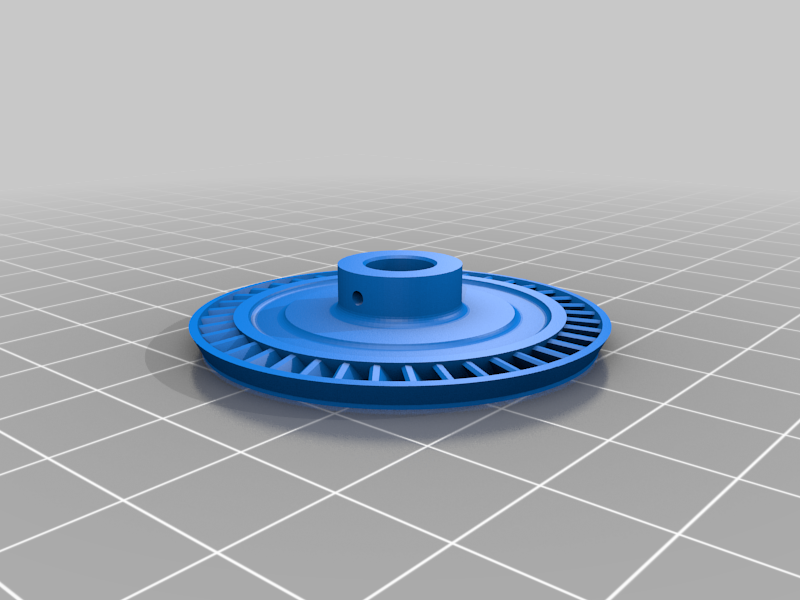

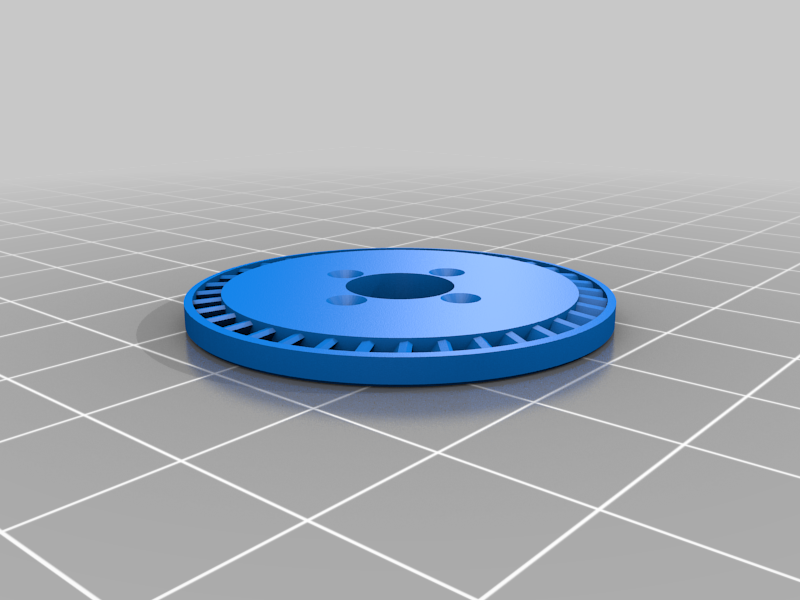

stlHPT-Rotor01.stl
192 Ko · 7 168 downloads
-
stlLP-Front-Stop101.stl
119 Ko · 7 164 downloads
-

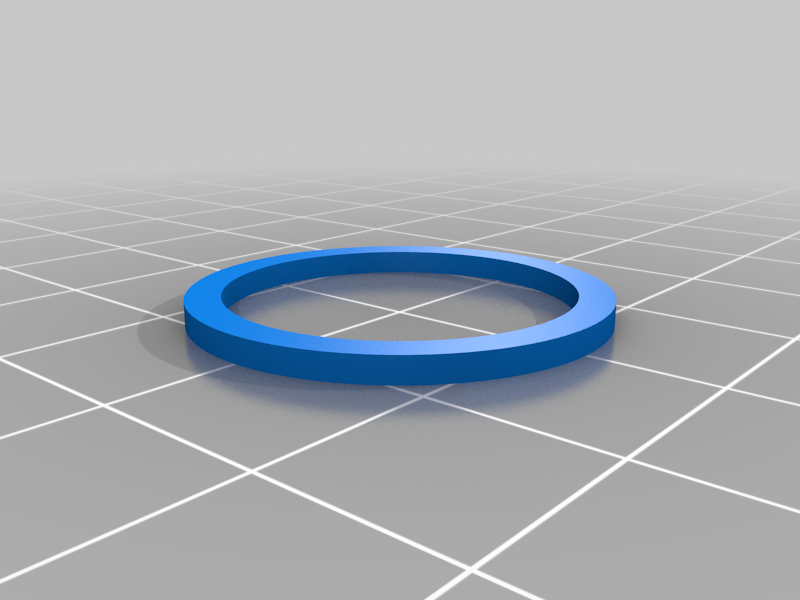

stlSpacer-7-06.stl
21 Ko · 7 160 downloads
-

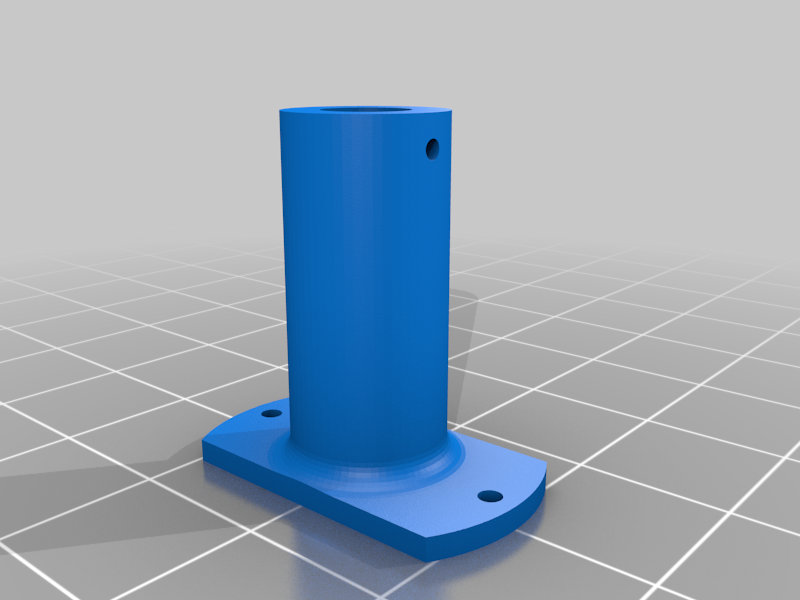

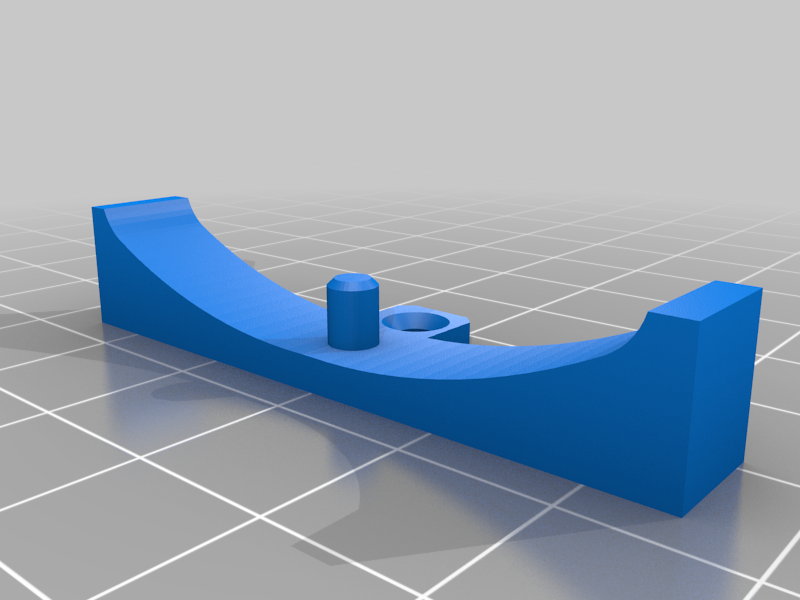

stlStand-Front101.stl
74 Ko · 7 158 downloads
-

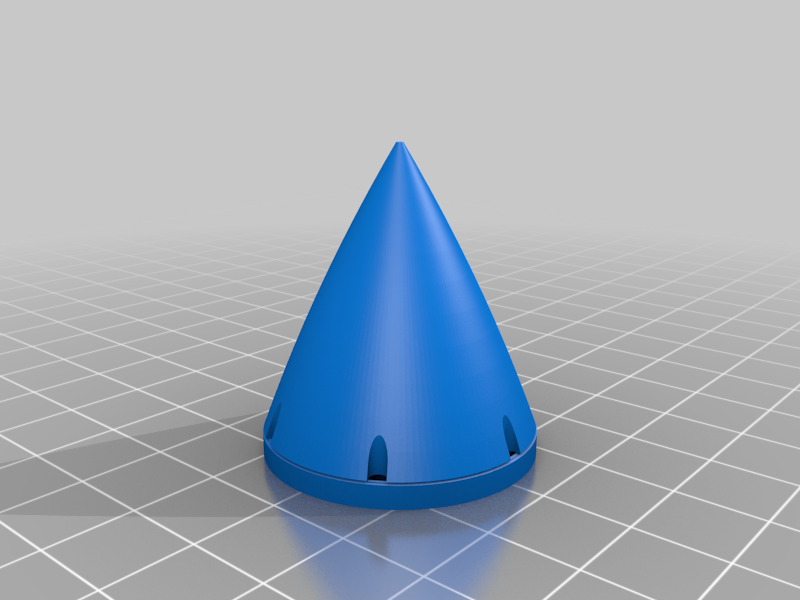

stlSpinner01ws.stl
307 Ko · 7 167 downloads
-

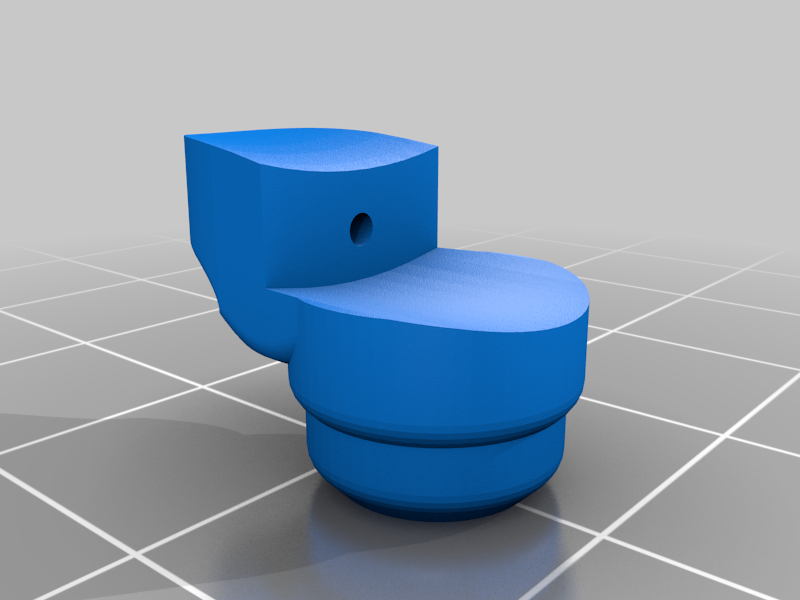

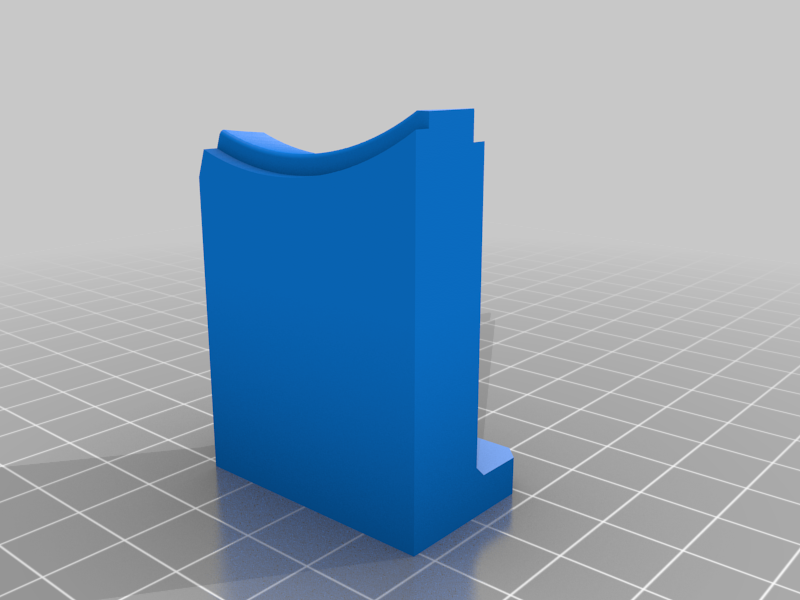

stlStand-Rear101.stl
94 Ko · 7 149 downloads
-

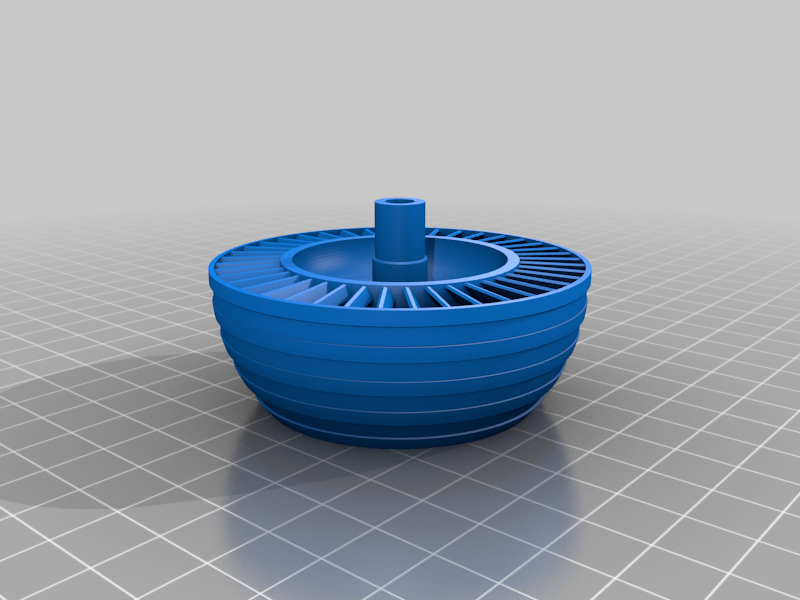

stlIPT-Rotor101.stl
563 Ko · 7 163 downloads
-

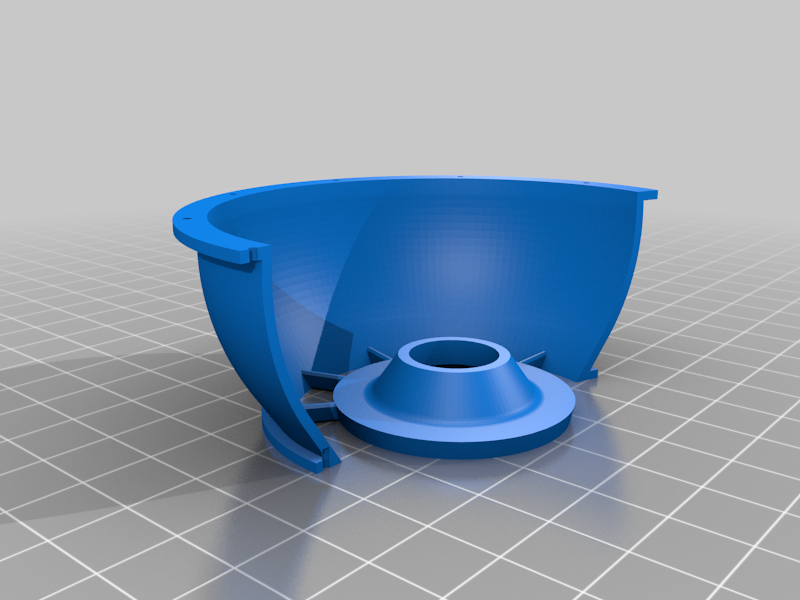

stlIPC-Inlet-Case101.stl
2.1 Mo · 7 163 downloads
-
stlIPC-Case01.stl
605 Ko · 7 137 downloads
-
stlIPC-Rotor101ws.stl
2.5 Mo · 7 151 downloads
-

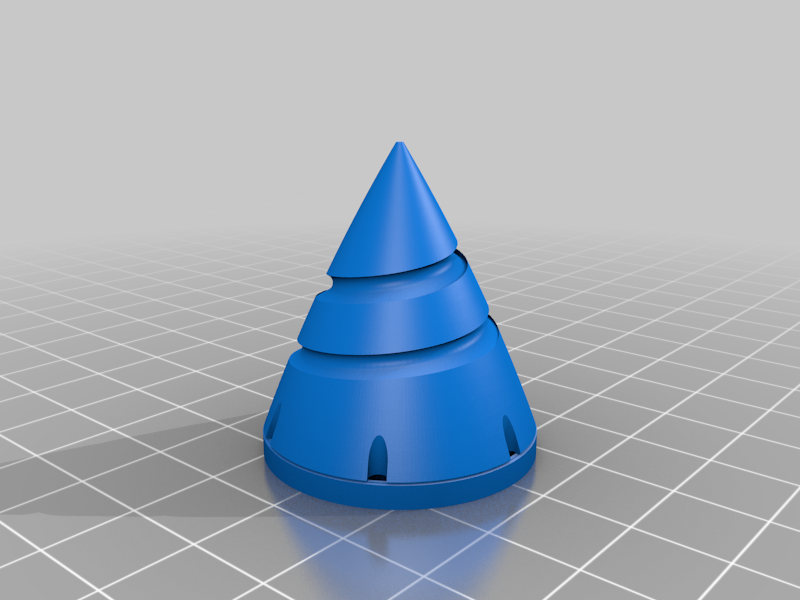

stlSpinner01ws-Test01.stl
1.1 Mo · 7 153 downloads
-

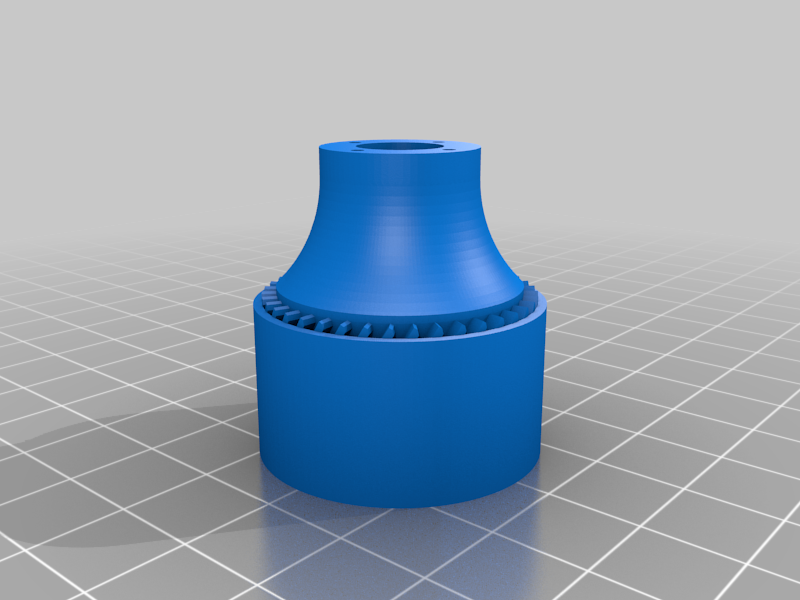

stlHPC-Rotor101ws.stl
1.3 Mo · 7 142 downloads
-
stlLPT-Rotor101ws.stl
2.5 Mo · 7 147 downloads
-

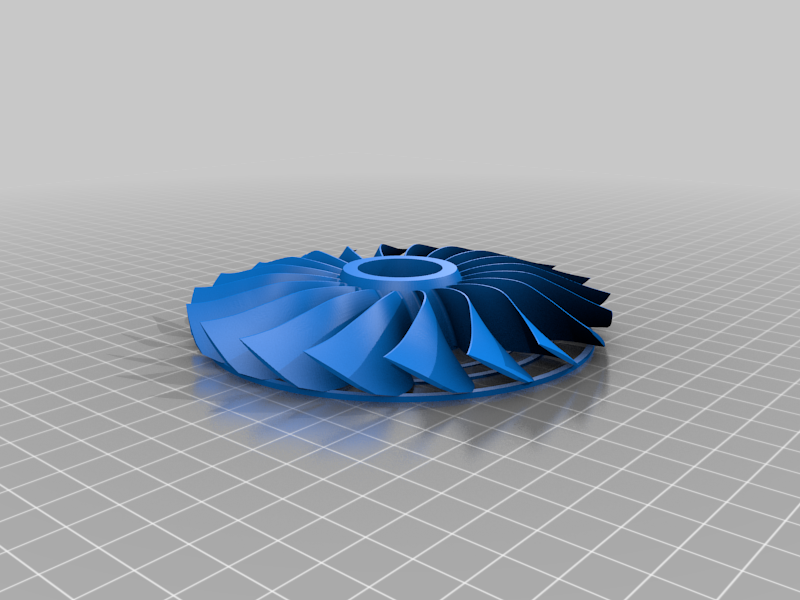

stlFan-Blade201ws.stl
5.5 Mo · 7 398 downloads
-
stlIPC-Rotor101.stl
1.3 Mo · 1 089 downloads
-

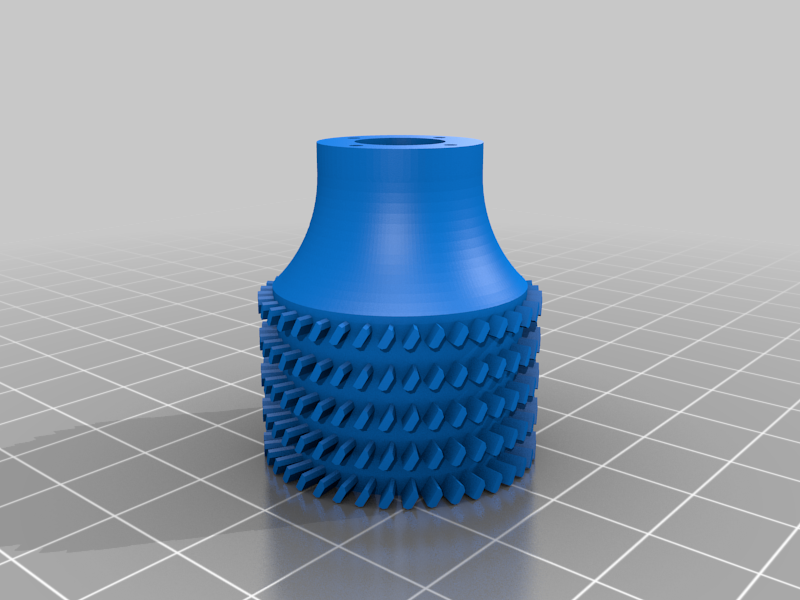

stlHPC-Rotor101.stl
1.2 Mo · 1 088 downloads
Beschrijving
For the latest jet engine for passenger planes, the Bypass Ratio is bigger and bigger to improve the engine-performance.
In order for one of them, the 3-spool system is developed. The 3D model for explaining this system was designed and made.
The points of the design are;
- For the rotation of each spool, the ball bearing method and the dummy bearing method are prepared.
All stator vanes are omitted this time, because of avoiding rub of vanes and blades. And each rotor is designed with support so that it can be printed as one-piece.
The blade angle is made to agree in the spool rotational direction (View from Rear).- HP Spool: Clockwise
- IP Spool: Counter Clockwise
- LP Spool: Counter Clockwise
- In addition, some parts that printing is considered difficult without support, are prepared STL file with support. The last of two digits of the file name is identified as "ws". In order to ease understanding about the contents of each part and the assembly order, parts breakdown and list are prepared.
Download files includes;
-files: STL Files
-images: Parts Breakdown for assembly Aid
-Excel File: Parts List
Purchase Parts Information;
-Bearings (Can be used Dummy BRGs instead of the followings, See Parts List)
DDL-1370ZZ (7 x 13 x 4) 2ea - For IP-Spool
689ZZ (9 x 17 x 5) 2ea - For HP-Spool
6900ZZ (10 x 22 x 6) 2ea - For LP-Spool
-Aluminum Tubes
See Parts List
-Screws
Micro screws M1.4x3L - Appox. 50 ea - Direct screw-in to 1 mm dia hole (No nut),
Screws M2 x 6L - 6 ea, See Parts List
Assembly Points
- Standard Skill (such as Drilling, Tapping, Filing, Tightening, Painting and Gluing etc) is needed and perseverance too.
Total Net Print Time: Approx. 42HR
- (Estimated as case of PLA, 0.4mm Nozzle, 0.2mm Layer Height, 40% infill and No raft and support)
Note: When at actual print, each parameter may be adjusted.
[Update]
Optional Fan; https://www.thingiverse.com/thing:2794855 - 2018.2.15
Modified Rotor; https://www.thingiverse.com/thing:2833968 - 2018.3.21
Parts-List011.csv was uploaded - 2020.5.19

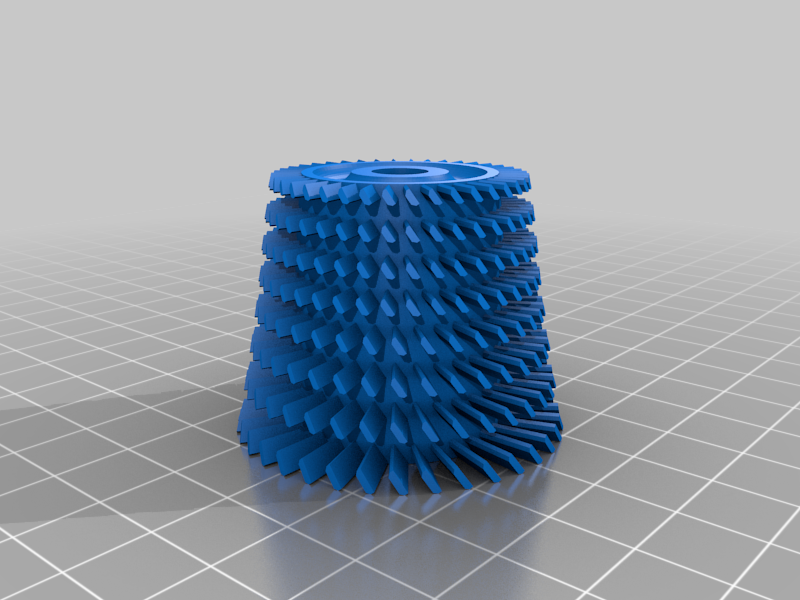

No support rotors "IPC-Rotor101" & "HPC-Rotor101" are added as reference. - 2020.6.24
LPT Rotor illust changed - 2021.7.14
