Multiwii Pro Flight Controller Case
par poboy
Fichiers imprimables (4)
-

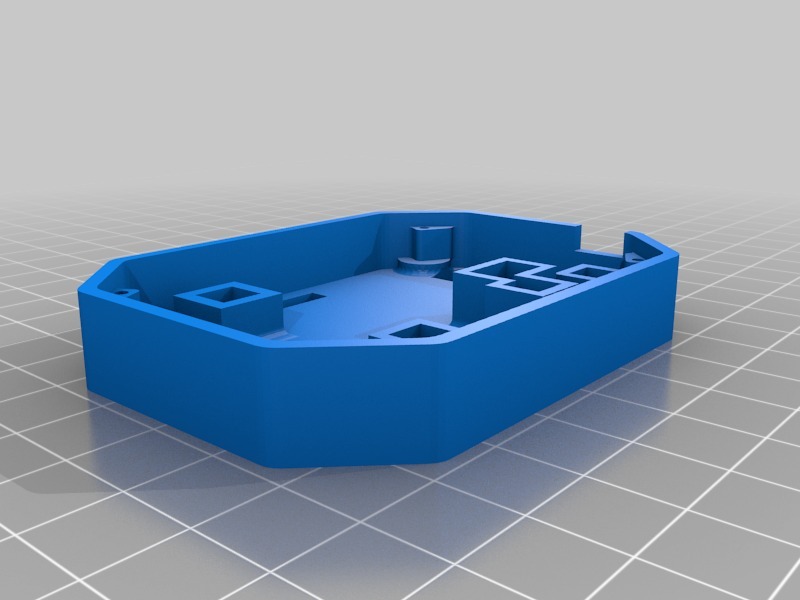

stlMultiwii_case_top.stl
146 Ko · 711 téléchargements
-

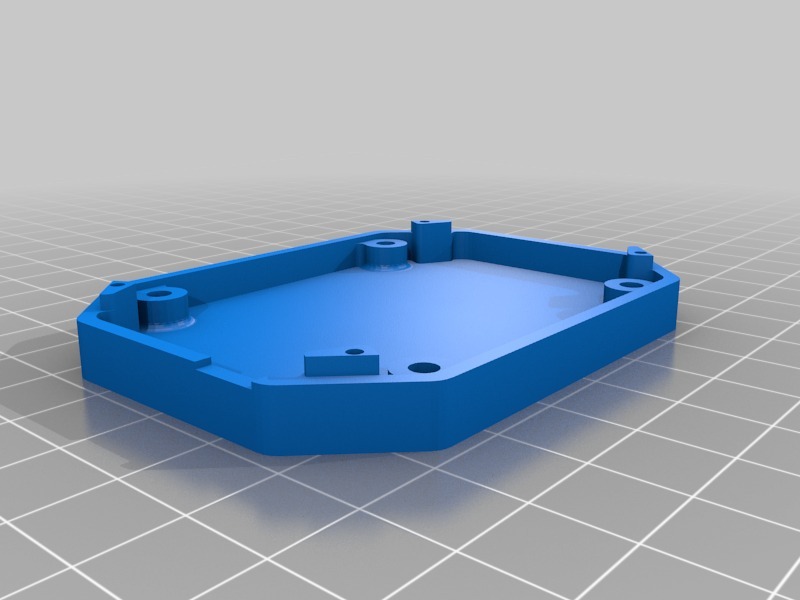

stlMultiwii_case_bottom.stl
153 Ko · 772 téléchargements
-
stlMultiwii_case_top_w_s1s3_ports.stl
149 Ko · 677 téléchargements
-
stlMultiwii_case_top_w_allportcutouts.stl
151 Ko · 484 téléchargements
Description
Protective case for the Hobby King Multiwii Pro flight controller (with ATmega 2560 chip).

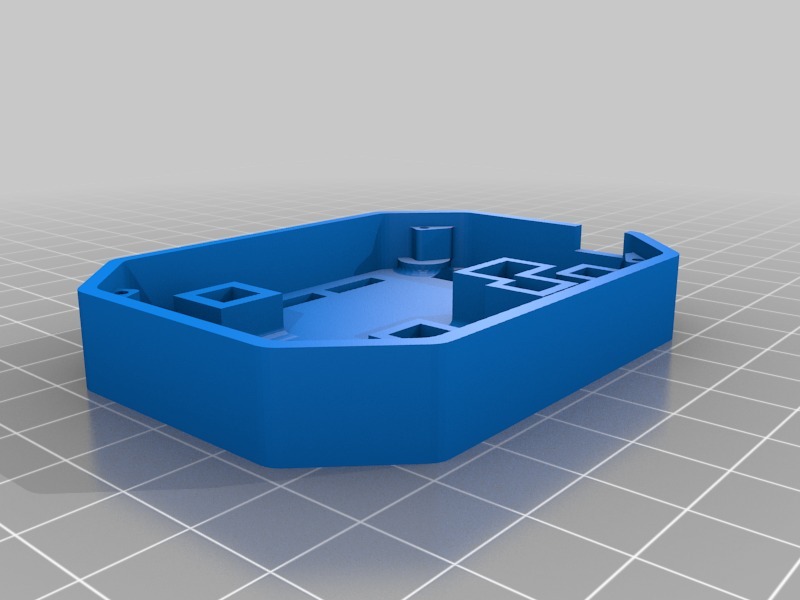

Update 1/14/14: I added a case top stl file with cutouts for the S1 and S3 ports.
Update 4/2/15: I finally uploaded my case design for the MTK 3329 GPS module that comes with this. http://www.thingiverse.com/thing:752568

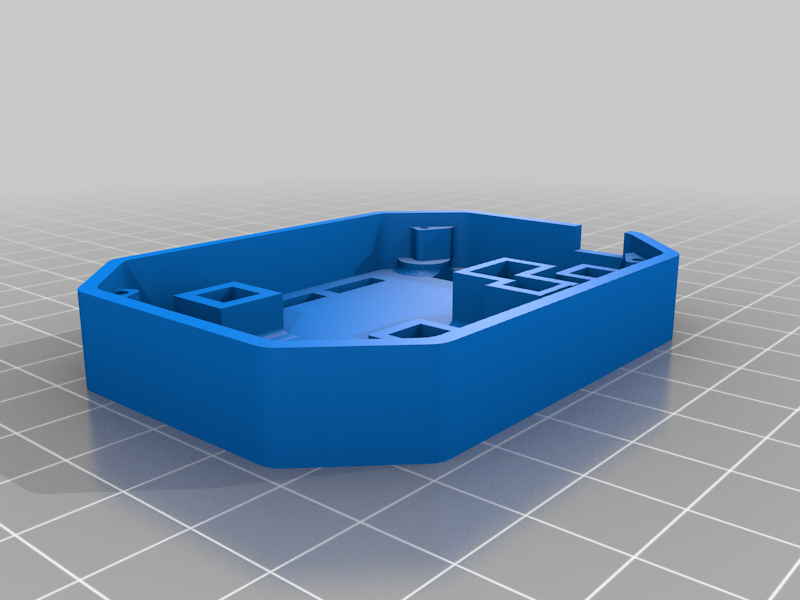

Update 5/30/15: Added a case top stl file with cutouts for all ports (S1, S2, S3, and the two I2C ports). You will have to solder headers to the multiwii board for the S1, S3 and I2C if you want to use them. I also added a 4"x6" pdf file of the pinout names - print this at actual size and cut out/affix them to the case. I used an adhesive sheet cut to 4"x6" for printing.
