Ready RepRap
par dhartkop
Fichiers imprimables (10)
-

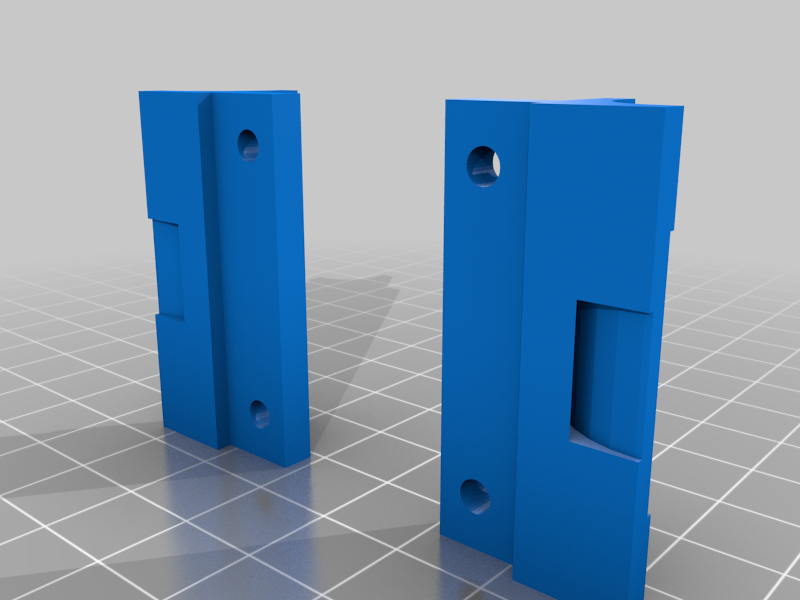

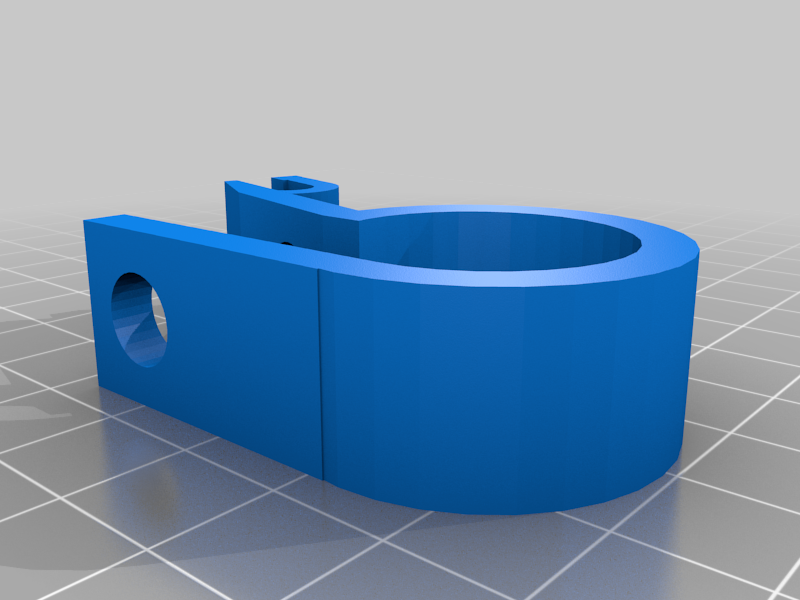

stl170116_ReadyRepRap_Endstop.stl
28 Ko · 32 308 téléchargements
-

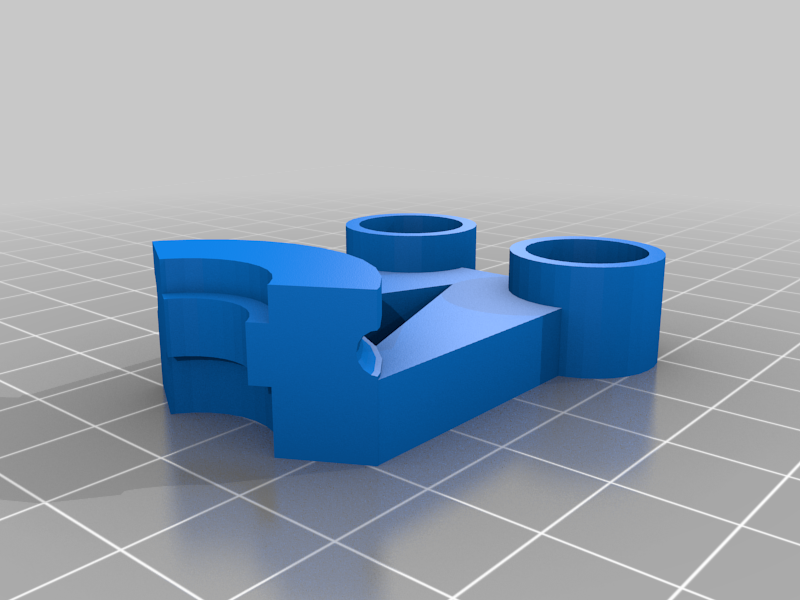

stl170116_ReadyRepRap_Idler.stl
27 Ko · 32 244 téléchargements
-

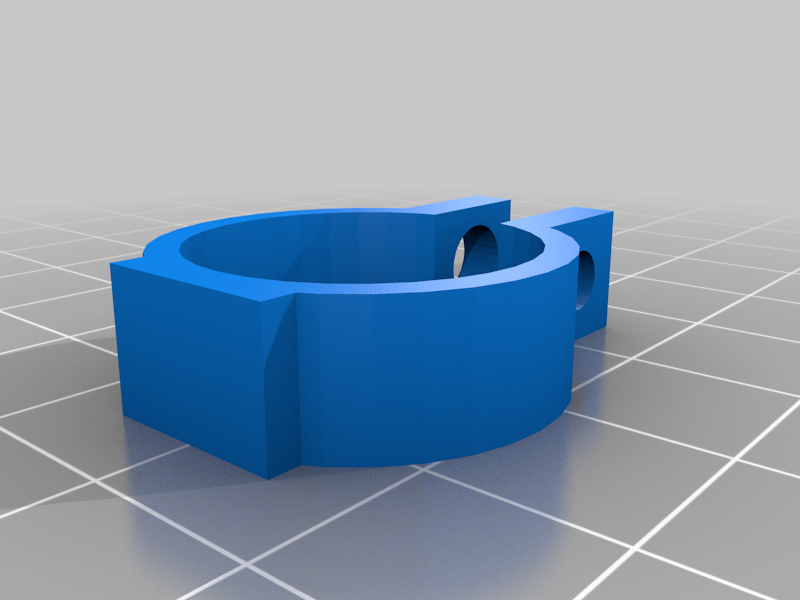

stl170116_ReadyRepRap_Hotend.stl
57 Ko · 32 226 téléchargements
-
stl170116_ReadyRepRap_SpoolHolder2.stl
72 Ko · 32 201 téléchargements
-

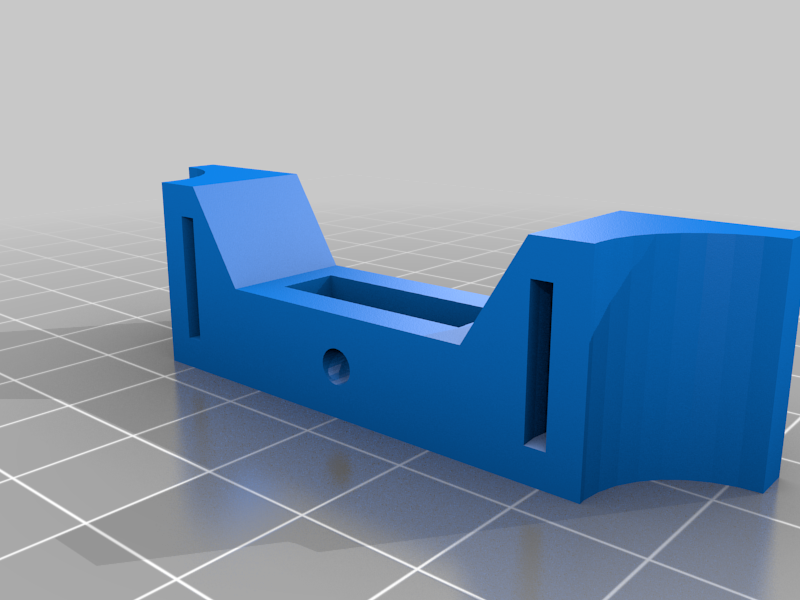

stl170116_ReadyRepRap_Motor.stl
49 Ko · 32 183 téléchargements
-

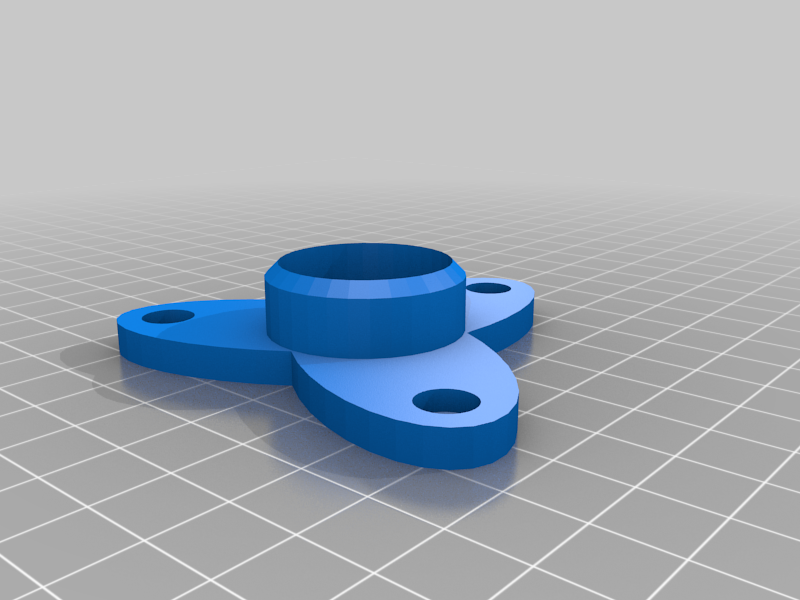

stl170116_ReadyRepRap_SpoolHolder1.stl
71 Ko · 32 155 téléchargements
-
stl170116_ReadyRepRap_BuildPlate.stl
58 Ko · 32 144 téléchargements
-

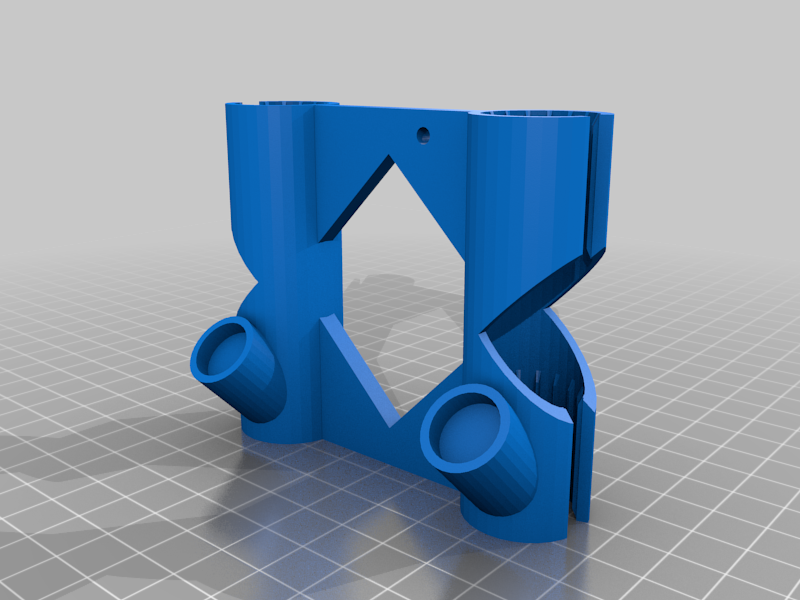

stl170116_ReadyRepRap_Carriage.stl
181 Ko · 32 160 téléchargements
-

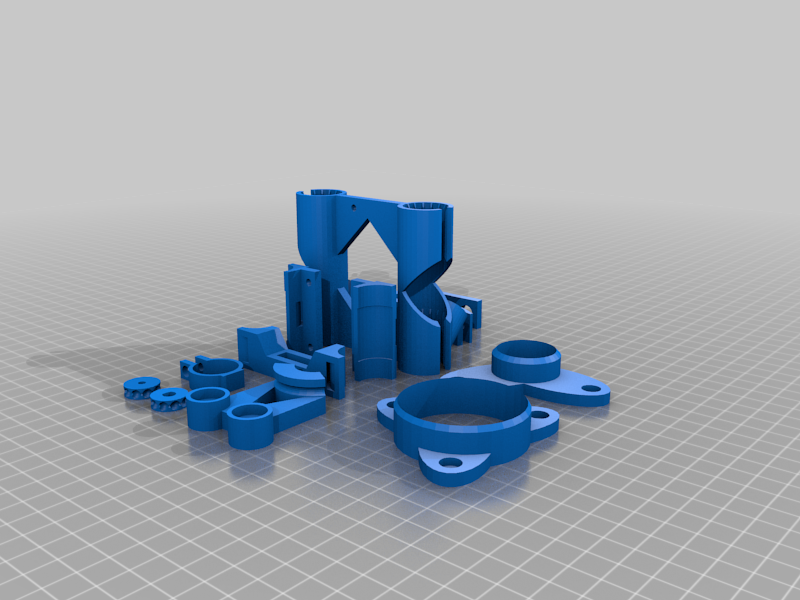

stl170116_ReadyRepRap_AllParts.stl
1.4 Mo · 32 193 téléchargements
-

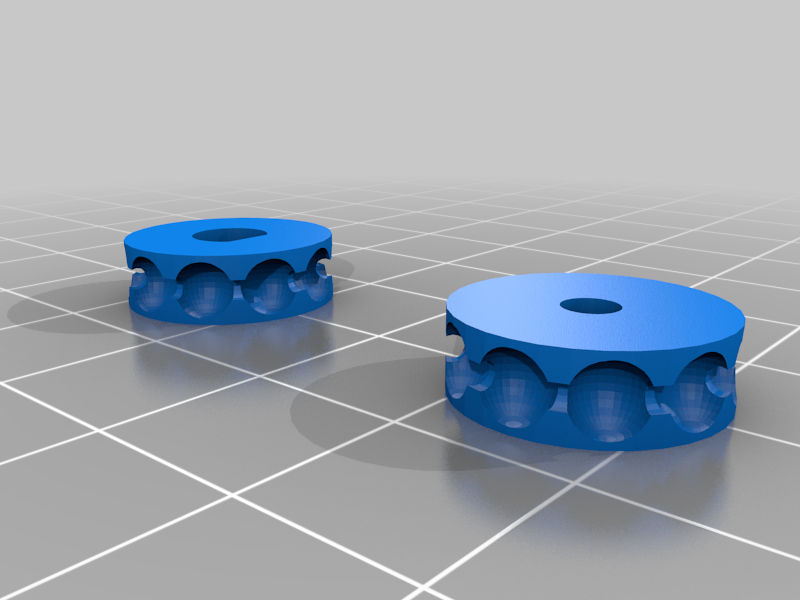

stl170116_ReadyRepRap_Pulleys.stl
953 Ko · 32 116 téléchargements
Description
The Ready RepRap is a delta type 3D printer designed to be quickly assembled in a classroom with minimal tools using mostly low cost easily available parts. The design uses a minimal 3d-printed parts count.
The printer uses electrical metal tubing (EMT) for the linear motion rails, and commonly available electrical boxes to squarely mount the tubes between a wooden top and base.
The Ready RepRap is designed around an Arduino type microcontroller such as the Mega/RAMPS running open source firmware such as Marlin. The controller parts, stepper motors, hotend, and filament extruder are parts that will need to be ordered online.
The printer can be configured to print with either ABS or PLA type filaments, and has a cylindrical build volume measuring 10 inches in diameter and up to 12 inches tall.
The hardware scheme is very easy to scale up or down for different versions of this printer if you want to experiment on your own!
