Display Case (IKEA based)

par DarioCairoli

Fichiers imprimables (6)

  • stl

    2018_Display-Case_Bracket_V1.0.stl

    54 Ko · 3 109 téléchargements

    Télécharger
  • stl

    2018_Display-Case_Bracket-Hinge_V1.0.stl

    165 Ko · 3 098 téléchargements

    Télécharger
  • stl

    2018_Display-Case_Hinge_V1.0.stl

    135 Ko · 3 091 téléchargements

    Télécharger
  • stl

    2018_Display-Case_Double-Bracket-Hinge_V1.0.stl

    168 Ko · 3 090 téléchargements

    Télécharger
  • stl

    2018_Display-Case_Stopper_V1.0.stl

    138 Ko · 3 088 téléchargements

    Télécharger
  • stl

    2018_Display-Case_Handle_V1.1.stl

    65 Ko · 3 086 téléchargements

    Télécharger

Description

A display case based on IKEA wall shelf.
The handles and stoppers have magnets inlayed. This allows for a clean closing mechanism.

What to print:

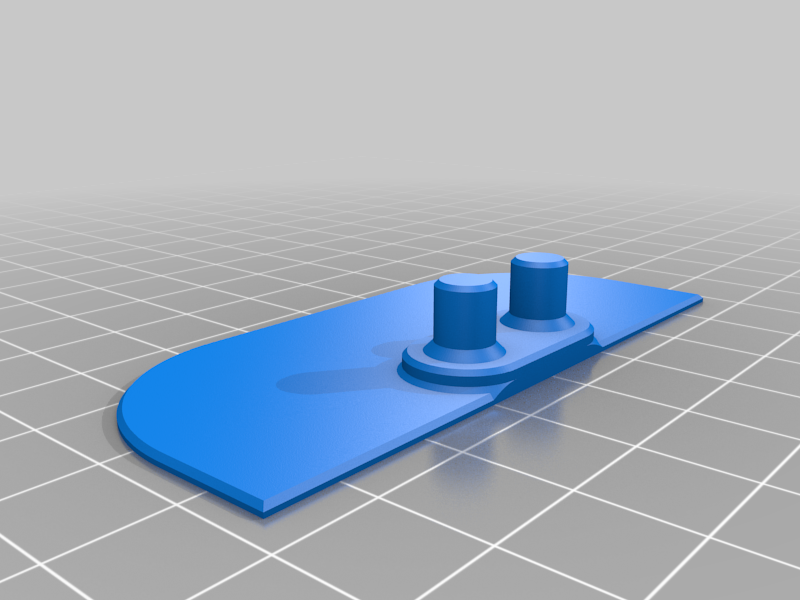

  • 4x2018_Display-Case_Bracket_V1.0
    Used to secure side glas.

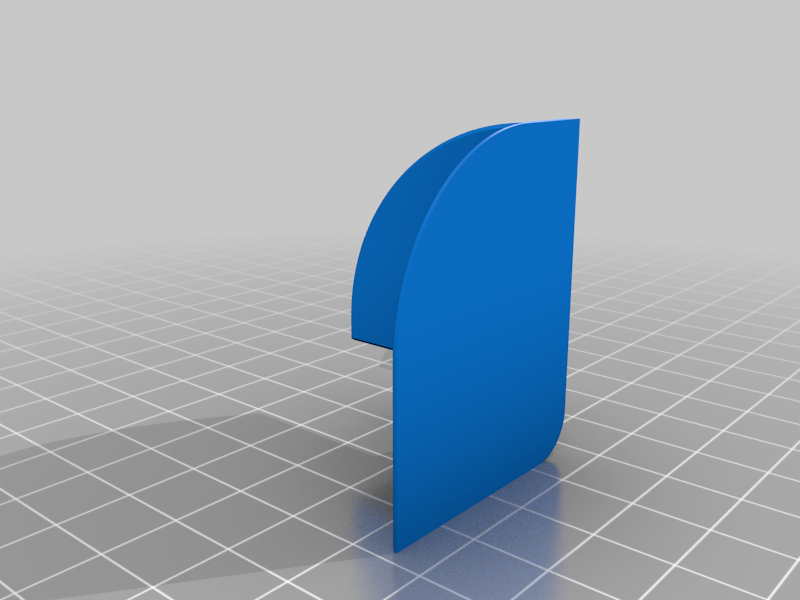

  • 4x2018_Display-Case_Bracket-Hinge_V1.0 (2x mirrored)
    Used to secure side glas and base for hinge of outer doors.

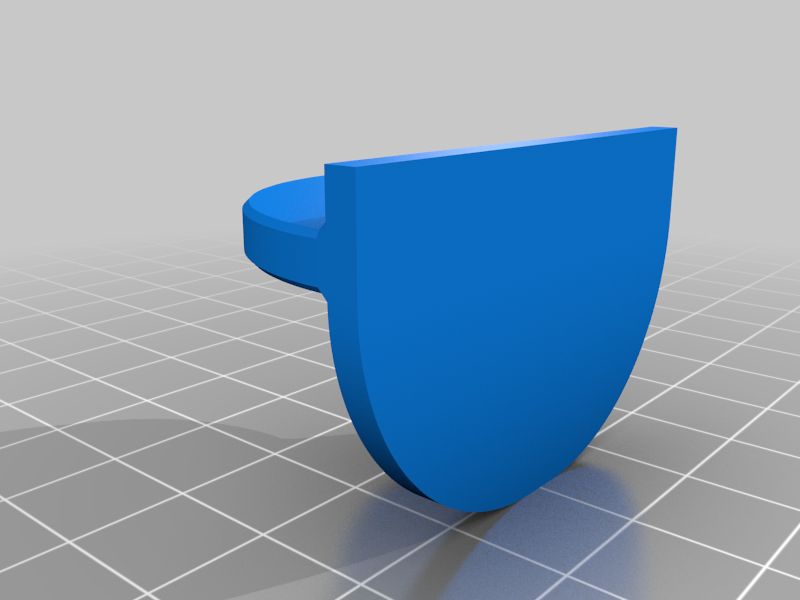

  • 8x2018_Display-Case_Hinge_V1.0
    Hinges in which the acrylic glas with the cut corner is glued in.

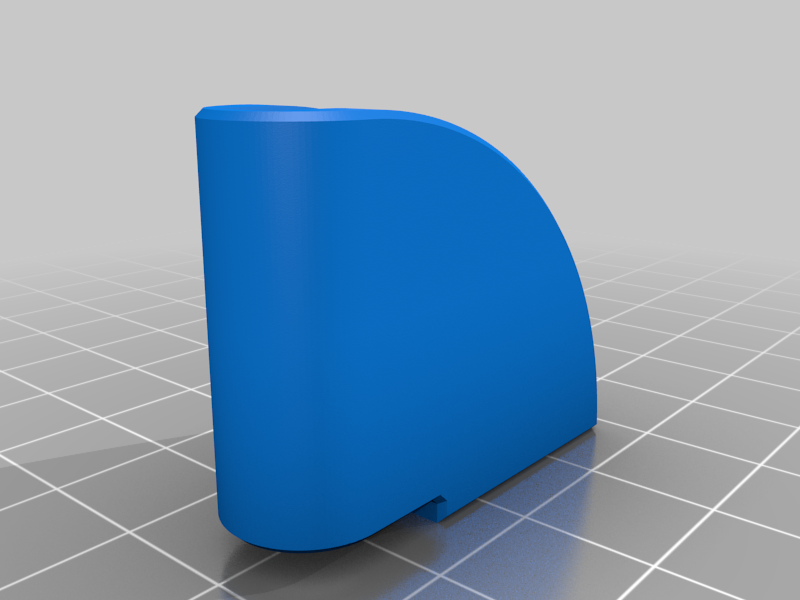

  • 2x2018_Display-Case_Double-Bracket-Hinge_V1.0
    Base of hinge in center of display case.

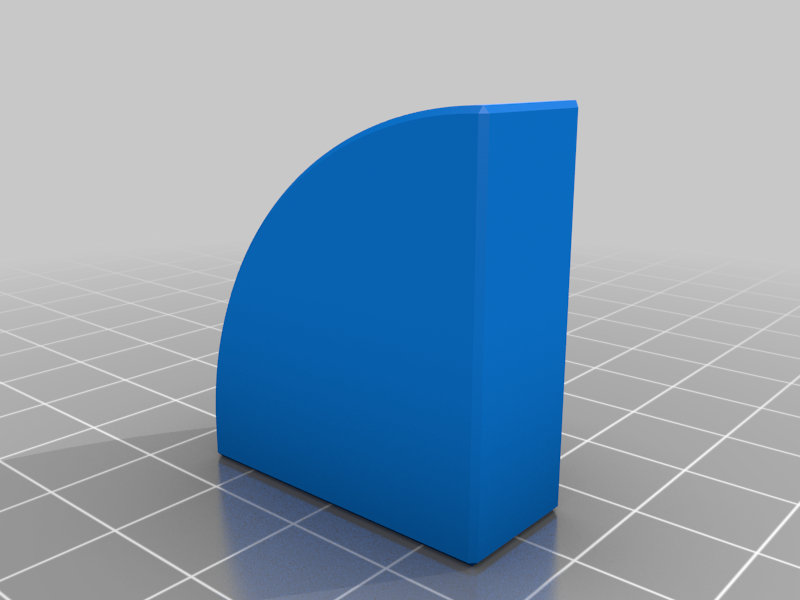

  • 4x2018_Display-Case_Stopper_V1.0
    Used to stop doors in closed position. Bottom parts have magnet inlay during print.

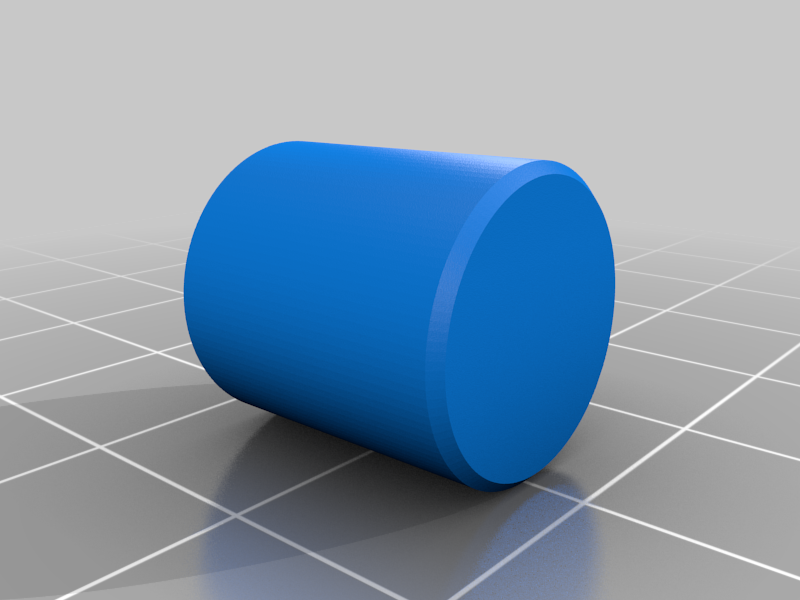

  • 4x2018_Display-Case_Handle_V1.1
    Handle with magnet inlay during print. is glued to acrylic glas with double sided tape. Can be printed with fuzzy skin (Cura setting) to get a nice grippy surface.

Installation is a bit tricky. The shelfs have to be aligned perfectly to fit nicely. All brackets are glued onto the shelfs with double sided tape. Acrylic glass is glued with a fast curing plastic adhesive.

Hardware:

Tags

#case #display #display case #display stand #ikea #IKEA Hack
