Work lamp
par fsa
Fichiers imprimables (22)
-

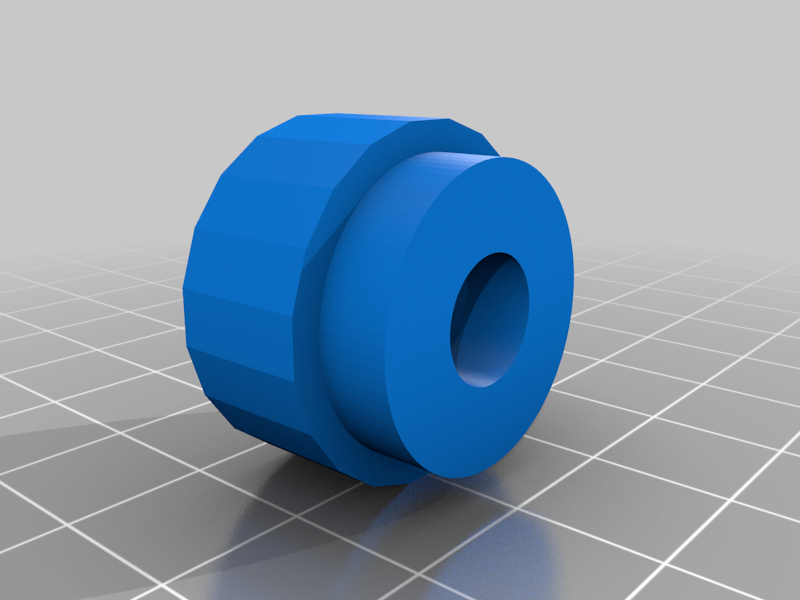

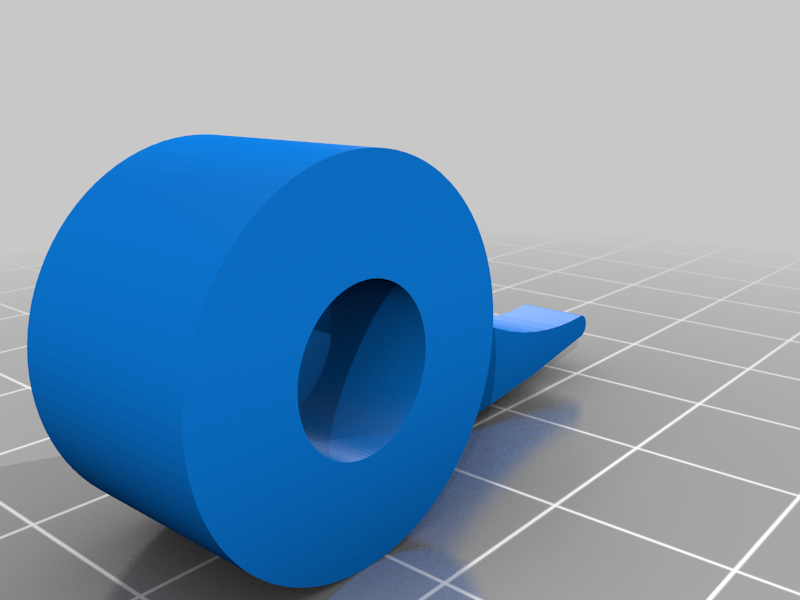

stl7_ecrou_droit.stl
41 Ko · 541 téléchargements
-

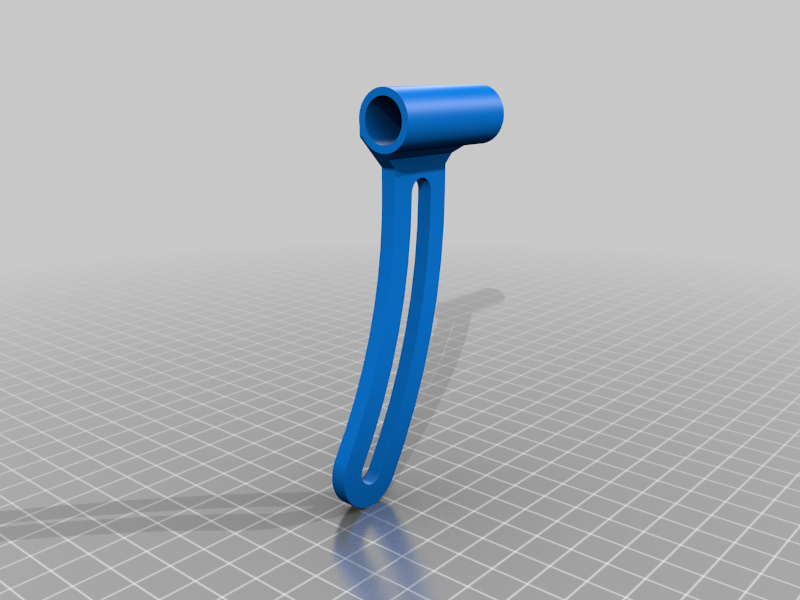

stl15_slider_right.stl
86 Ko · 550 téléchargements
-

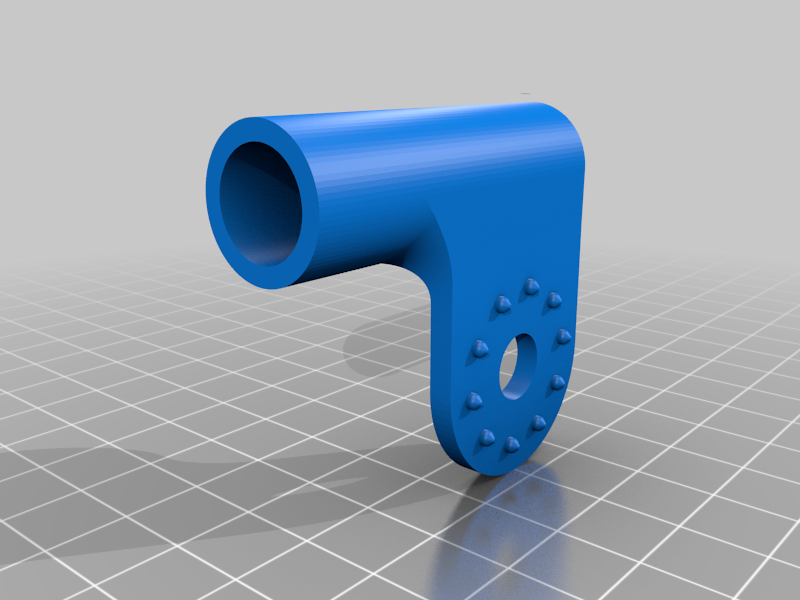

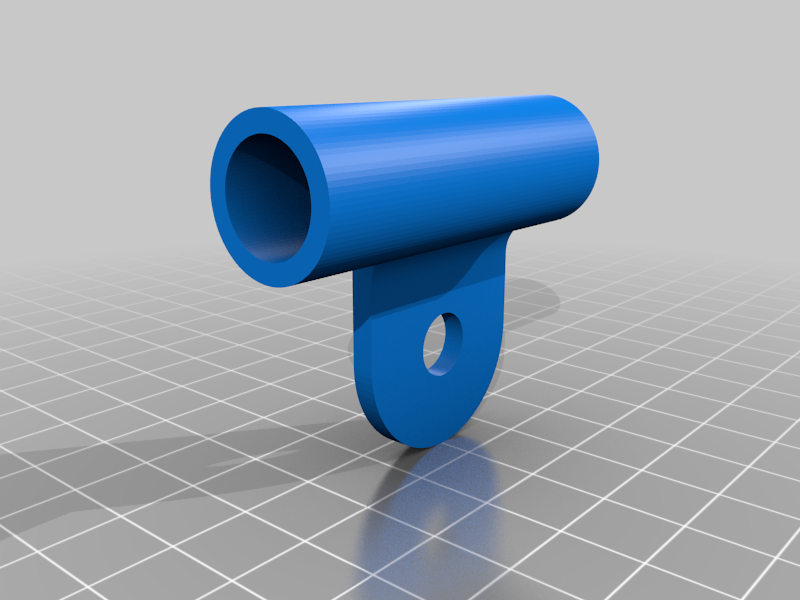

stl13_bride_basse_D.stl
67 Ko · 543 téléchargements
-

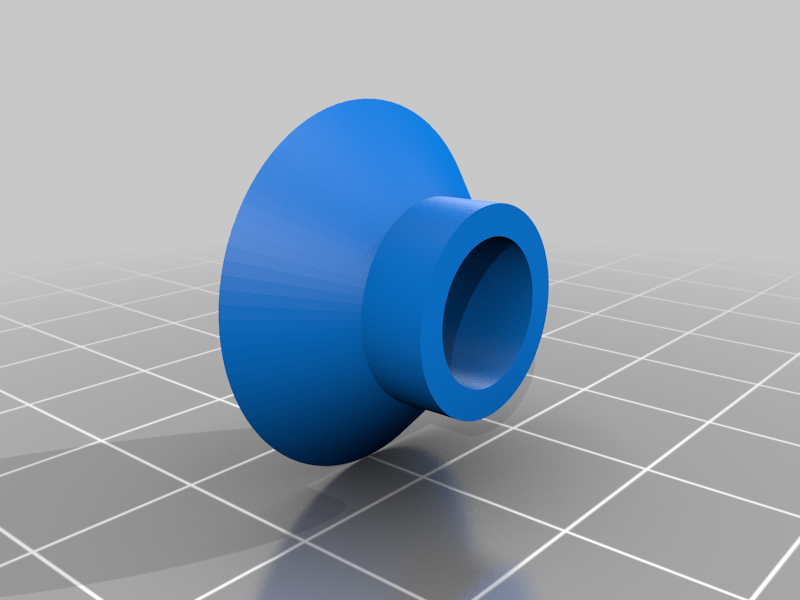

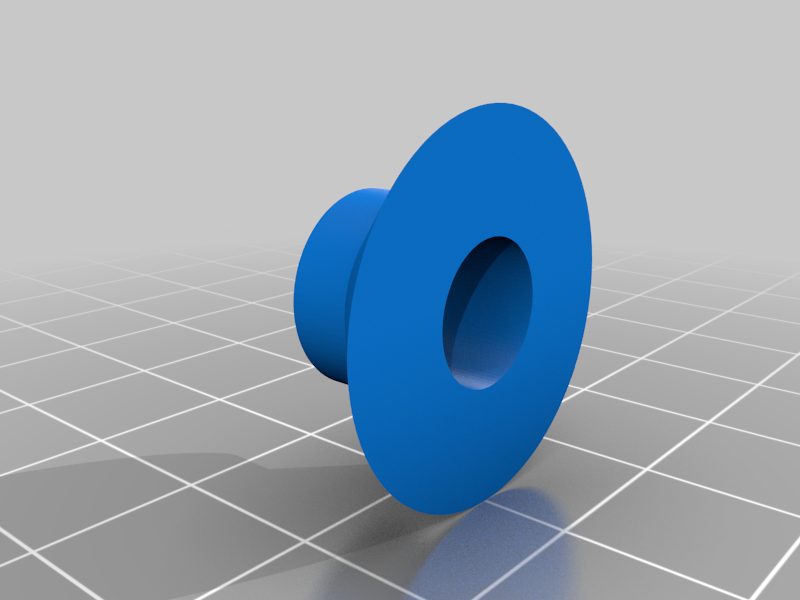

stl18_rondelle_entonnoir_G.stl
44 Ko · 543 téléchargements
-

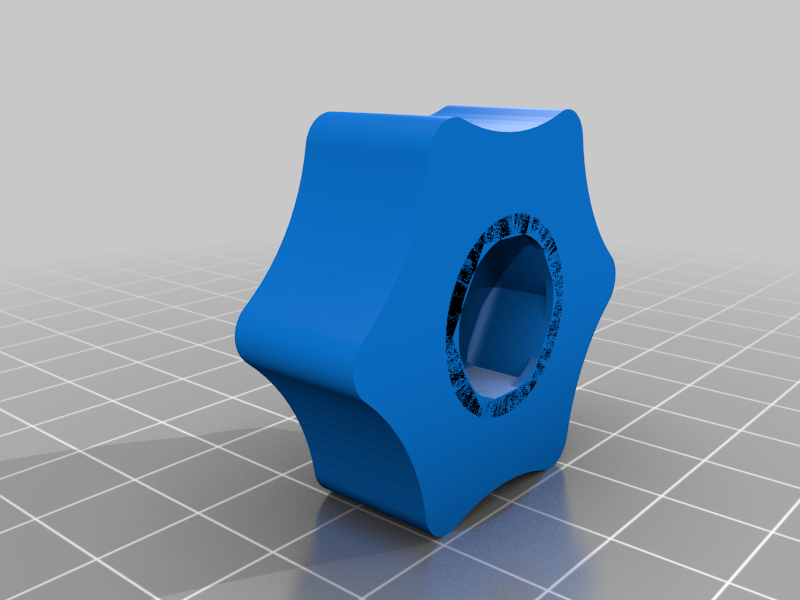

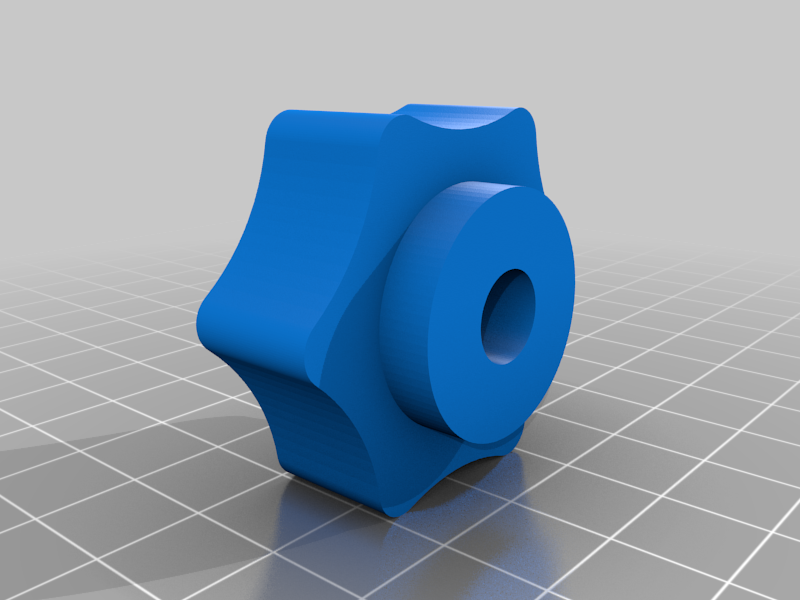

stl21_gros_ecrou_D.stl
134 Ko · 554 téléchargements
-

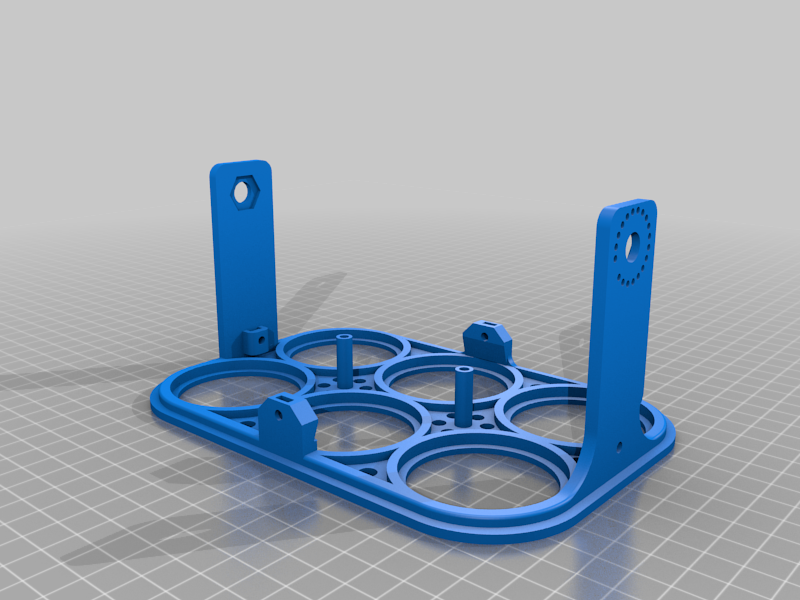

stl3_support_interne.stl
266 Ko · 549 téléchargements
-

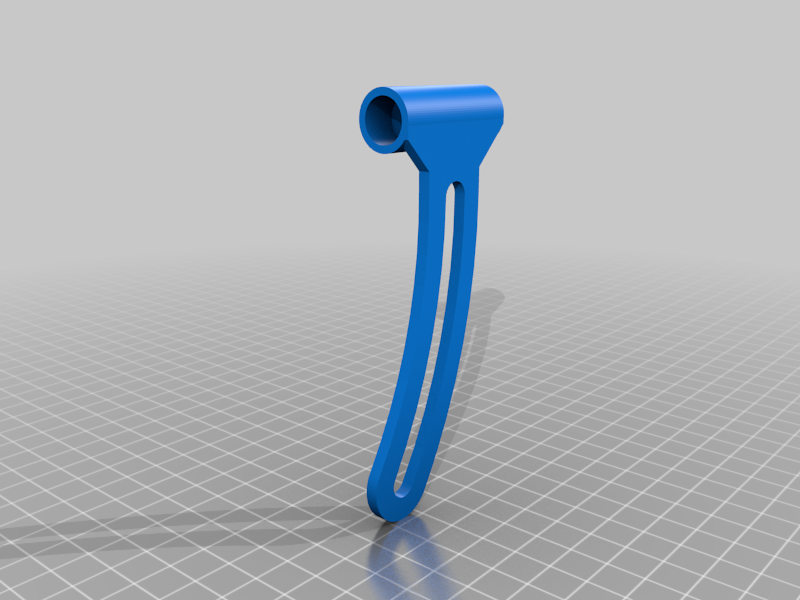

stl14_slider_left.stl
84 Ko · 546 téléchargements
-

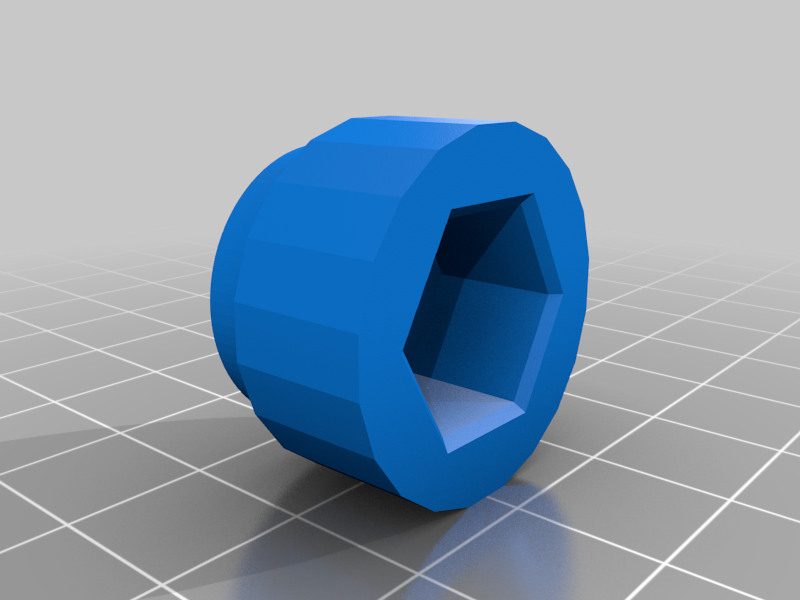

stl6_ecrou_gauche.stl
41 Ko · 547 téléchargements
-
stl19_rondelle_entonnoir_D.stl
44 Ko · 541 téléchargements
-

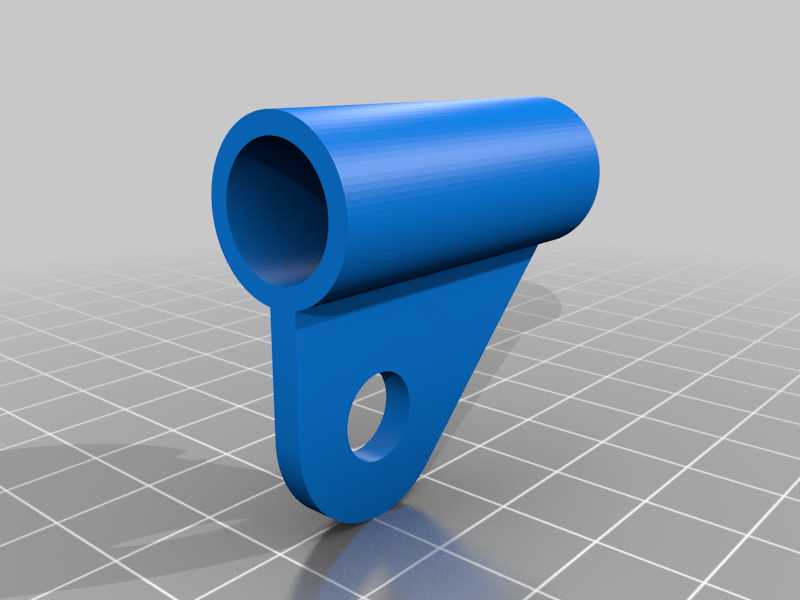

stl5_bride_droite.stl
2.5 Mo · 547 téléchargements
-

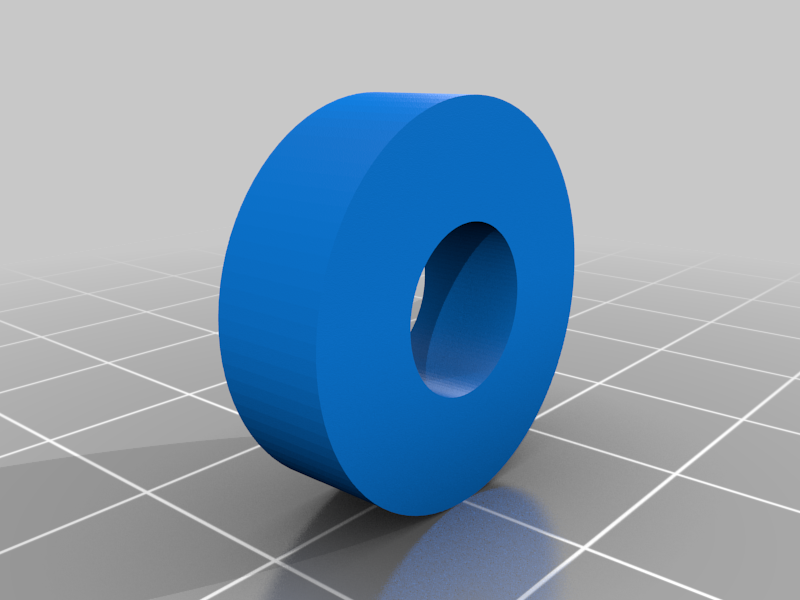

stl17_rondelle_D.stl
35 Ko · 544 téléchargements
-
stl11_pied.stl
370 Ko · 545 téléchargements
-
stl20_gros_ecrou_G.stl
134 Ko · 550 téléchargements
-
stl9_ecrou_verrou_basD.stl
62 Ko · 535 téléchargements
-
stl12_bride_basse_G.stl
62 Ko · 540 téléchargements
-

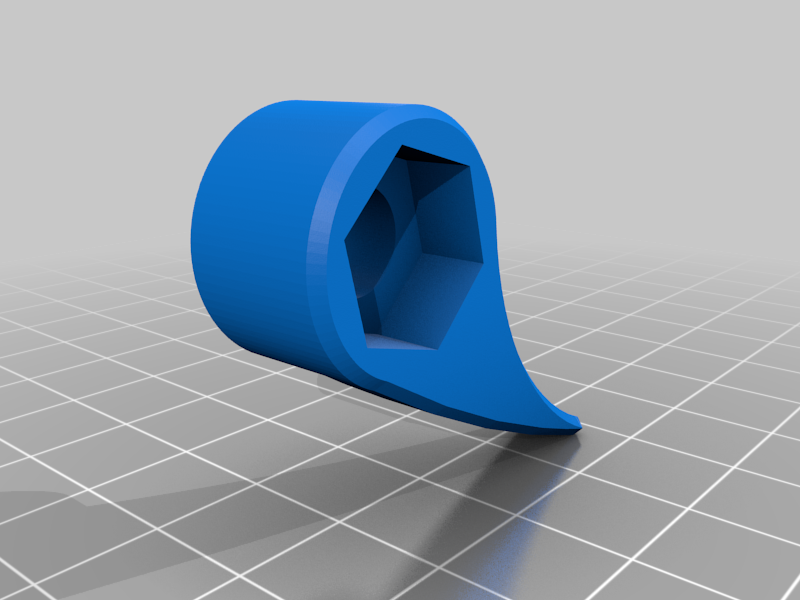

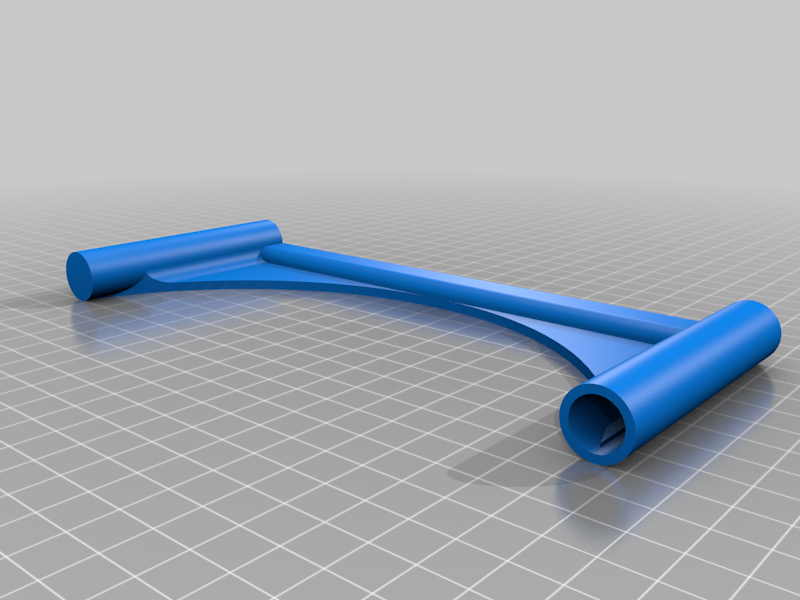

stl10_poignee.stl
128 Ko · 541 téléchargements
-
stl16_rondelle_G.stl
35 Ko · 546 téléchargements
-
stl8_ecrou_verrou_basG.stl
67 Ko · 542 téléchargements
-
stl4_bride_gauche.stl
2.6 Mo · 538 téléchargements
-
stl2_face_arriere.stl
5.2 Mo · 547 téléchargements
-

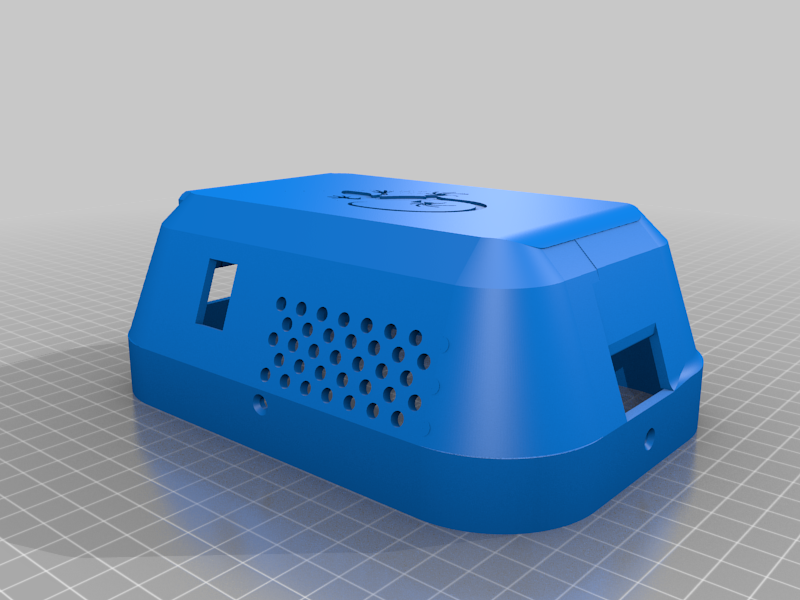

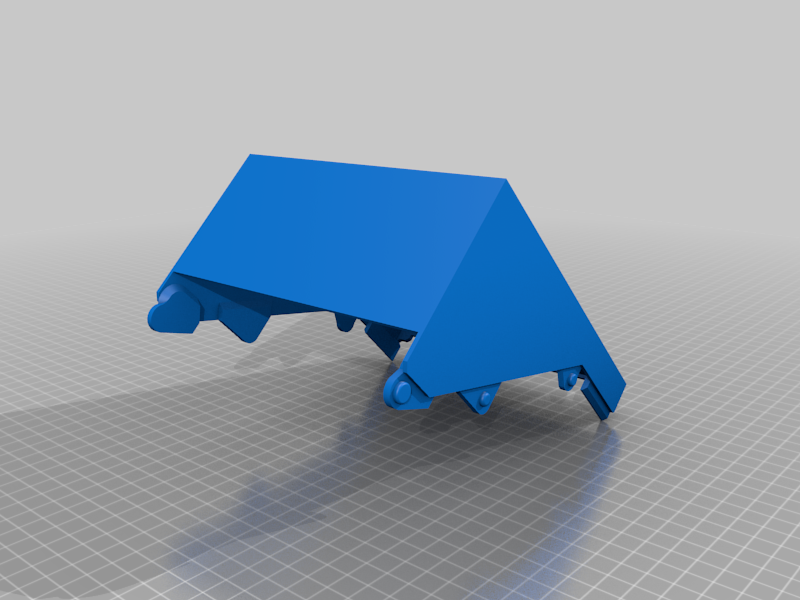

stl22_capot.stl
3.3 Mo · 546 téléchargements
-

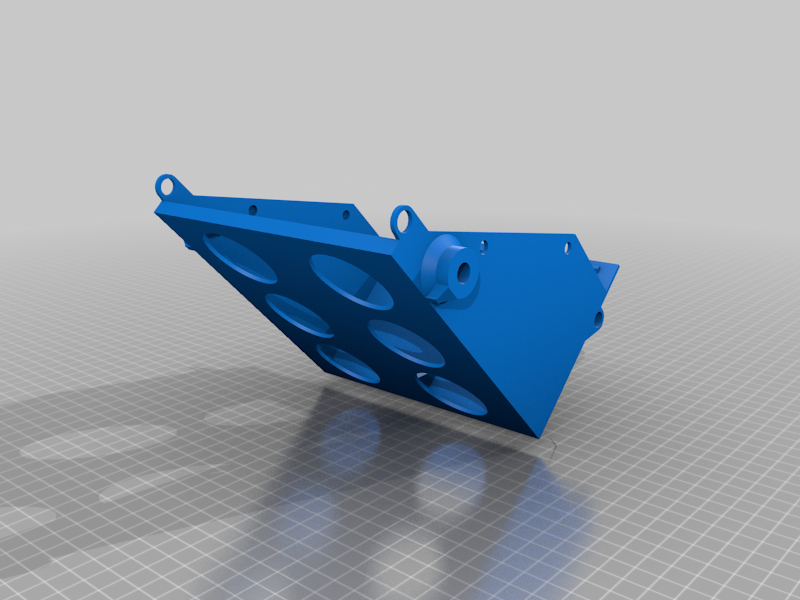

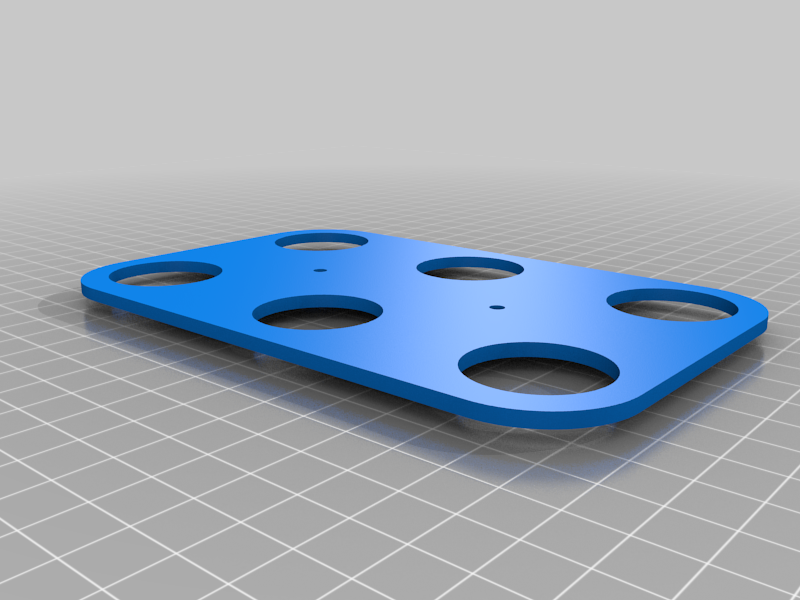

stl1_face_avant.stl
2.5 Mo · 555 téléchargements
Description
This is a lamp for my working area. Designed to be powerful, stable and standing on long arms.
In addition to the printed parts, It needs
- 6 LEDs lamps. AC powered Model GU10
- 6 GU 10 AC connectors, They have to be wired in parallel,
- A power switch, rectangular model, but this is not mandatory. I have used two levels by wiring a capacitor in serie with the lamps for reduced brightness.
- Two Aluminium tubes 12 millimeters, length is 100 cm. make a mark at 170mm to adjust the edge.
- some wires and AC plug
- two M8 x 20 mm bolts
- two M8 x 30 mm bolts
- one M8 210 mm threaded shaft
- six M8 screws, enclosed into plastic parts and enable easy adjustment,
- four m3 bolts& screws to hold the head cover
It has to be fitted EXCLUSIVELY with Leds, Using classic bulbs would quickly overheat and melt the parts,
The support stability is ensured by enclosing a dead weight inside the stand,
It is designed for 2 Used lead batteries Yuasa NP7-12Fr. old motorbike batteries should work as well.
Already printed and operational but this is a second revision and I will publish pictures when finished,
I have put holes for some ventilation. Temp is OK after a few hours, and of course using Leds,
For insertion of PLA into alu tube, It is a good idea to use a soldering iron. Pre heat the tubes by putting the iron in the tube a few moments,(around 60 deg C) then the PLA slightly melts and can be adjusted and then fit tight to the tube. Use the mark at 170mm to adjust the middle bracket.
Beware AC power, but hey, you are adults,,,
Note: The photos are from a previous version; V1
The actual STLs have been modified to improve ventilation and support brackets, which is now a stronger system.
But if you use it in a lab, you can put anything heavy inside the stand, like a power supply or a transformer.
All parts designed to print easily without hangouts. Position them correctly on the stand before printing.
