Equal Space Divider

par greatkaa

Fichiers imprimables (8)

  • stl

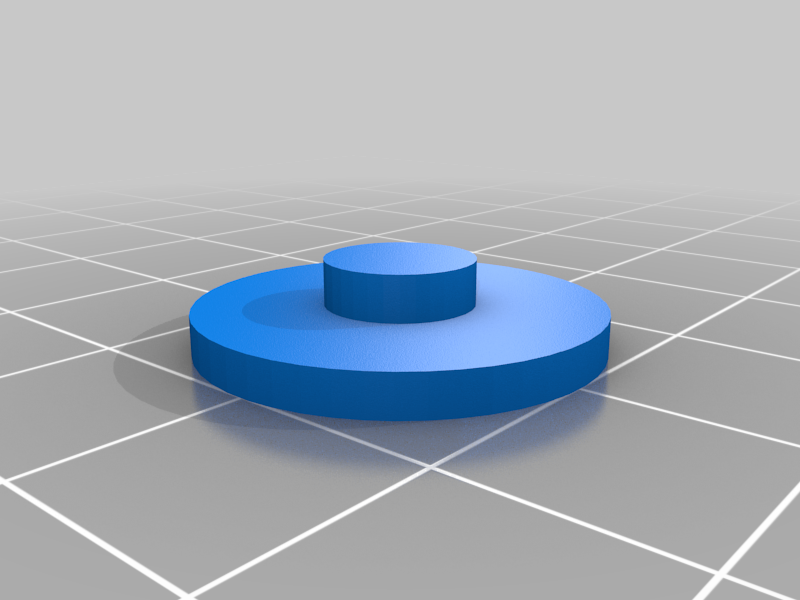

    Equal_Space_Divider_-_1_layer_pin.F.stl

    24 Ko · 1 214 téléchargements

    Télécharger
  • stl

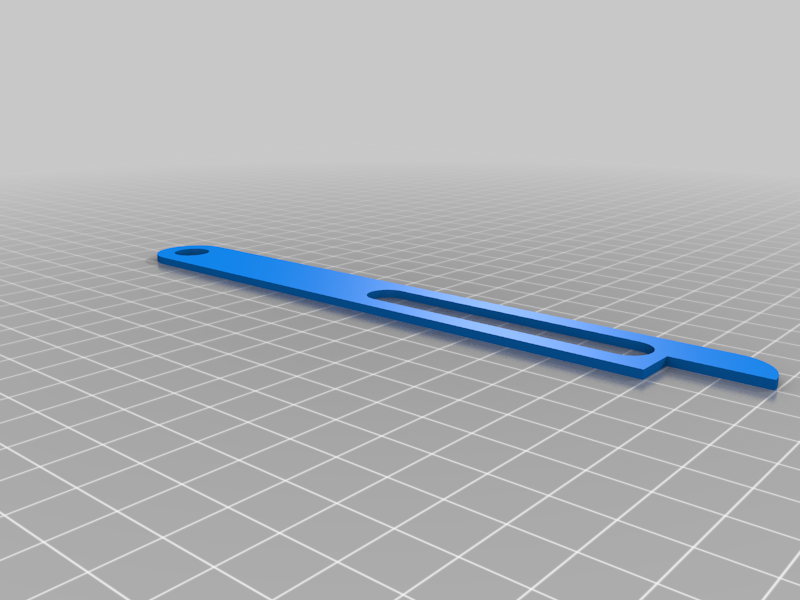

    Equal_Space_Divider_-_Center.stl

    34 Ko · 1 206 téléchargements

    Télécharger
  • stl

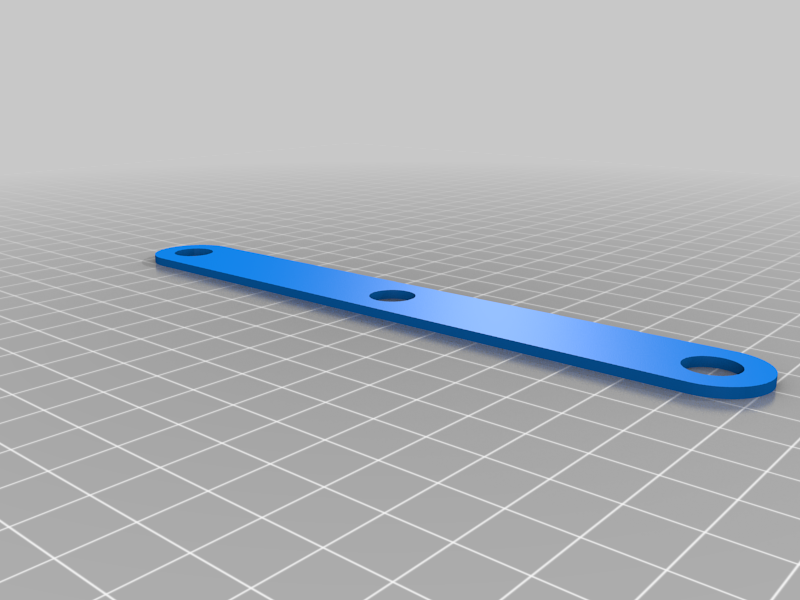

    Equal_Space_Divider_-_Long_sides.F.stl

    95 Ko · 1 202 téléchargements

    Télécharger
  • stl

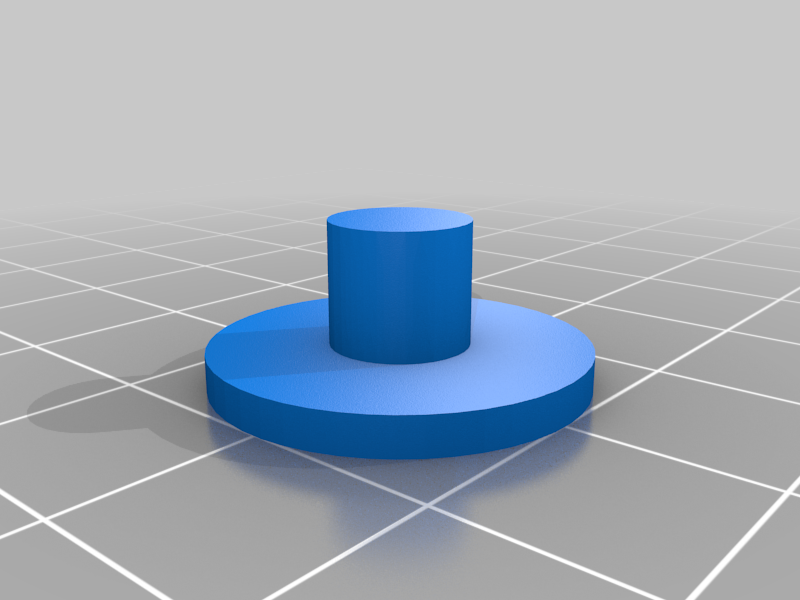

    Equal_Space_Divider_-_3_layer_pin.M.stl

    42 Ko · 1 201 téléchargements

    Télécharger
  • stl

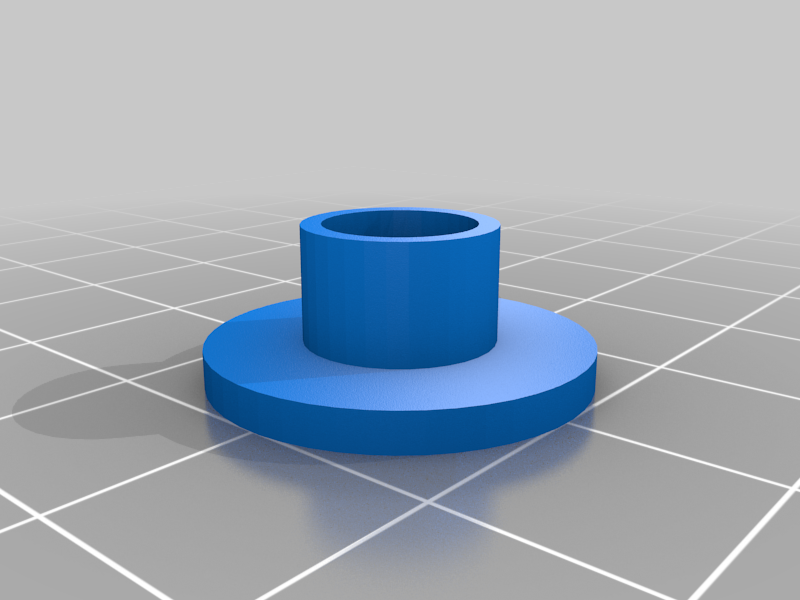

    Equal_Space_Divider_-_3_layer_pin.F.stl

    41 Ko · 1 201 téléchargements

    Télécharger
  • stl

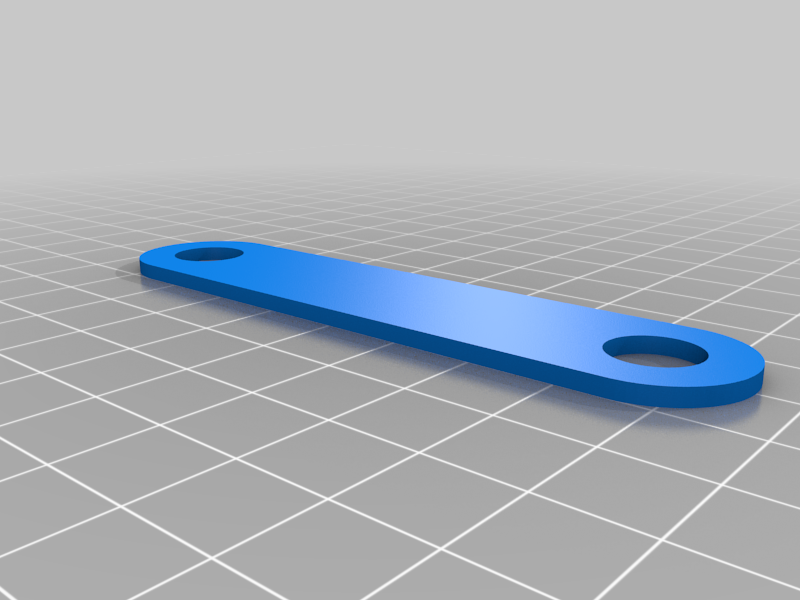

    Equal_Space_Divider_-_Short_sides.F.stl

    63 Ko · 1 201 téléchargements

    Télécharger
  • stl

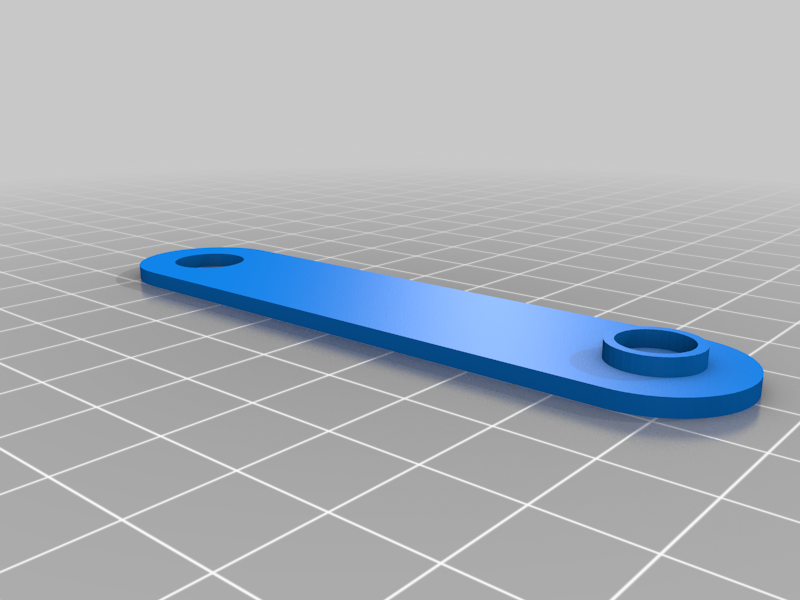

    Equal_Space_Divider_-_Short_sides.M.stl

    38 Ko · 1 170 téléchargements

    Télécharger
  • stl

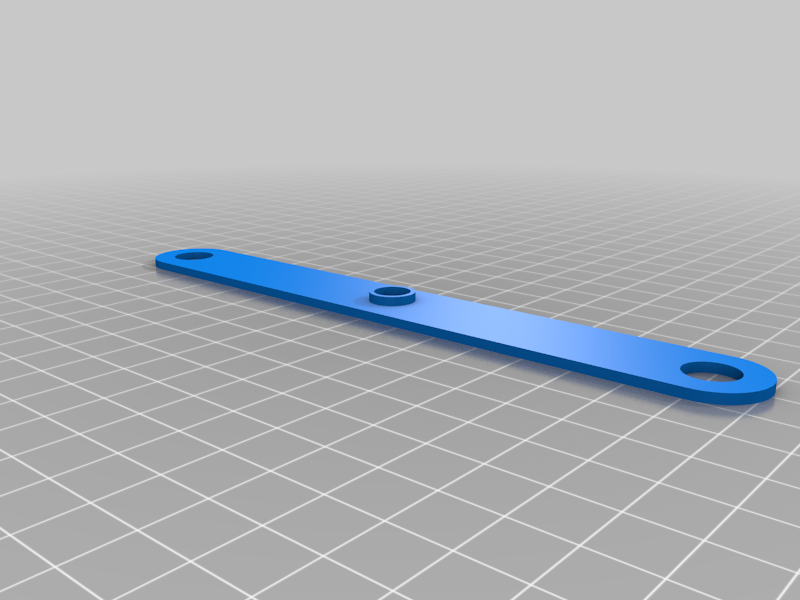

    Equal_Space_Divider_-_Long_sidesM.stl

    43 Ko · 1 174 téléchargements

    Télécharger

Description

This is the remix.
It can measure equal spaces of approximately 2cm (original 4cm) to 11cm. Simply print as many as you need (see formula below) to make it as long as you want.

To make a 5 measuring points tool, print the following:

4 x Equal_SpaceDivider-_Long_sides.(F).stl
4 x Equal_SpaceDivider-_Long_sides(M).stl
2 x Equal_SpaceDivider-_Short_sides.(F).stl
2 x Equal_SpaceDivider-_Short_sides.(M).stl
5 x Equal_SpaceDivider-_Center.stl
6 x Equal_SpaceDivider-_1_layer_pin.(F).stl
10 x Equal_SpaceDivider-_3_layer_pin.(F).stl
10 x Equal_SpaceDivider-_3_layer_pin.(M).stl

So, to make any length tool, use this formula.

To make a N measuring points tool, print the following:

[N-1] x Equal_SpaceDivider-_Long_sides.(F).stl
[N-1] x Equal_SpaceDivider-_Long_sides(M).stl
2 x Equal_SpaceDivider-_Short_sides.(F).stl
2 x Equal_SpaceDivider-_Short_sides.(M).stl
[N] x Equal_SpaceDivider-_Center.stl
[N + 1] x Equal_SpaceDivider-_1_layer_pin.(F).stl
[N2] x Equal_SpaceDivider-_3_layer_pin.(F).stl
[N2] x Equal_SpaceDivider-_3_layer_pin.(M).stl

I've printed this with PLA and added a brim to secure the parts to the print bed. The pins above are not 100% secure, so maybe drop a little glue into it to make it stick.

I hope someone finds this useful.

Check out this awesome video by tyler785 who printed this gadget: https://www.youtube.com/watch?v=amx78LxP-L0&feature=youtu.be
