Mini-ITX/Mini-DTX Case Full size GPU
par koriwi
Fichiers imprimables (26)
-

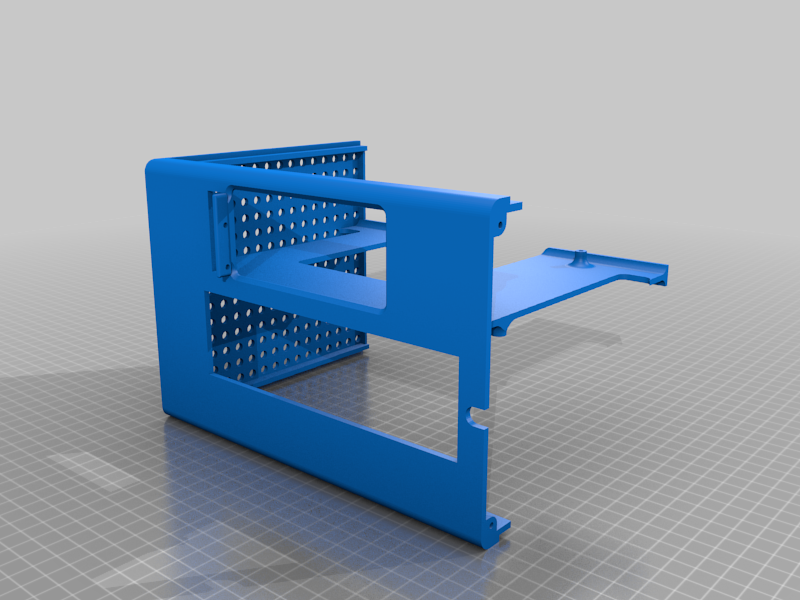

stlcase_1.stl
2.3 Mo · 3 449 téléchargements
-
stlcase_2.stl
2.1 Mo · 11 826 téléchargements
-
stl
low_air_flow_panel_1.stl
1.6 Mo · 11 659 téléchargements
-
stl
low_air_flow_panel_2.stl
1.6 Mo · 11 646 téléchargements
-
stl
high_air_flow_panel_1.stl
266 Ko · 11 664 téléchargements
-
stl
high_air_flow_panel_2.stl
262 Ko · 11 648 téléchargements
-
stl
bottom-grill_1.stl
1.8 Mo · 11 666 téléchargements
-
stl
bottom-grill_2.stl
1.7 Mo · 11 650 téléchargements
-
stl
sfx.stl
364 Ko · 11 680 téléchargements
-
stl
low_air_flow_panel_3_i3_compatible.stl
19 Ko · 4 014 téléchargements
-
stl
high_air_flow_panel_3_i3_compatible.stl
58 Ko · 4 012 téléchargements
-
stl
high_air_flow_panel_4_i3_compatible.stl
51 Ko · 3 997 téléchargements
-

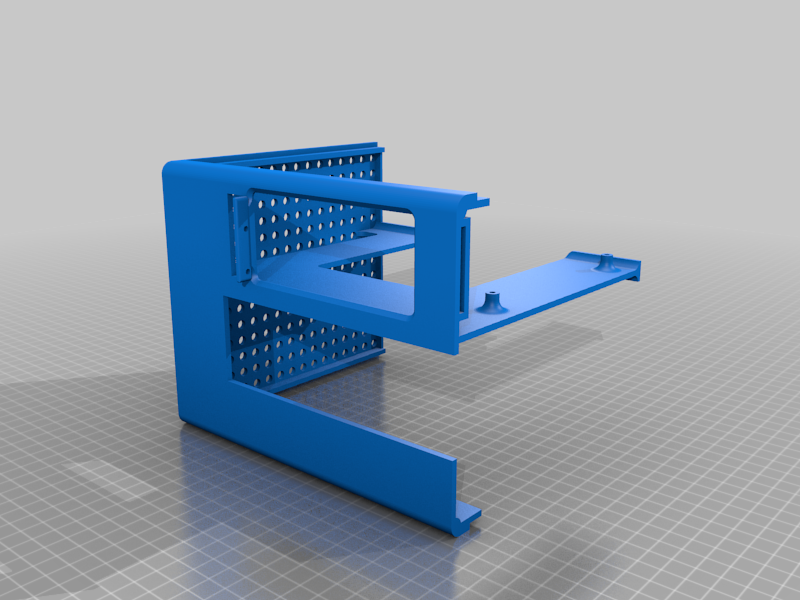

stlcase_1_i3_compatible.stl
2.2 Mo · 3 309 téléchargements
-
stl
case_2_i3_compatible.stl
2 Mo · 4 031 téléchargements
-

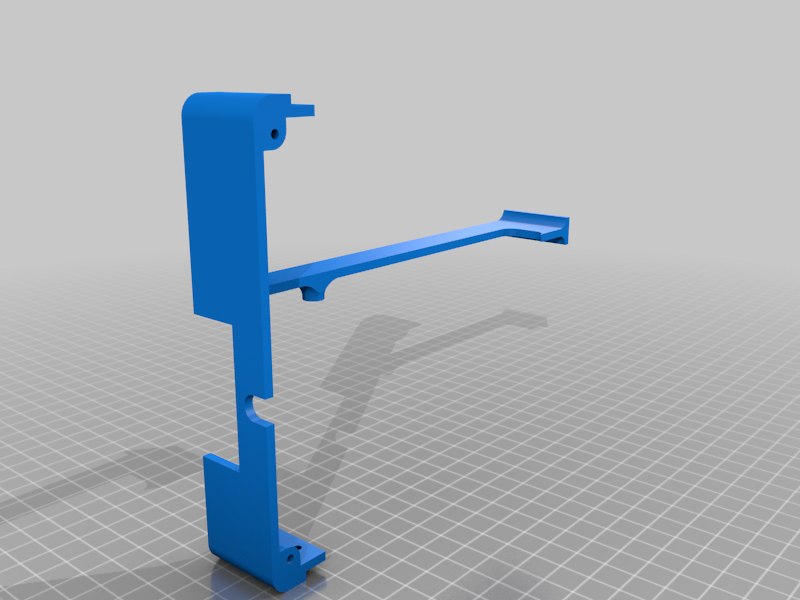

stlcase_3_i3_compatible.stl
176 Ko · 3 297 téléchargements
-
stl
case_4_i3_compatible.stl
66 Ko · 4 011 téléchargements
-
stl
case_5_i3_compatible.stl
514 Ko · 4 013 téléchargements
-
stl
high_air_flow_panel_1_i3_compatible.stl
230 Ko · 4 003 téléchargements
-
stl
high_air_flow_panel_2_i3_compatible.stl
227 Ko · 3 996 téléchargements
-
stl
low_air_flow_panel_4_i3_compatible.stl
19 Ko · 3 993 téléchargements
-
stl
low_air_flow_panel_2_i3_compatible.stl
1.6 Mo · 3 989 téléchargements
-
stl
low_air_flow_panel_1_i3_compatible.stl
1.6 Mo · 3 997 téléchargements
-

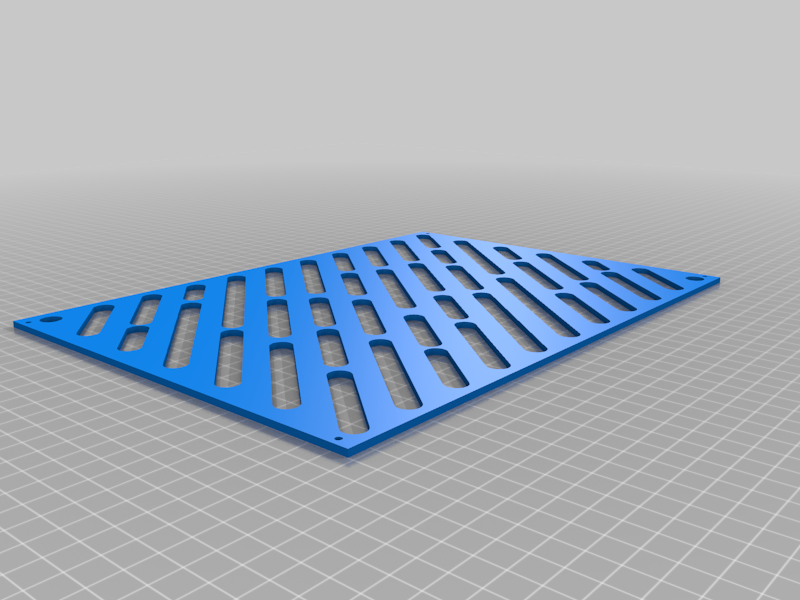

stlhigh_air_flow_panel_one_piece.stl
365 Ko · 3 312 téléchargements
-

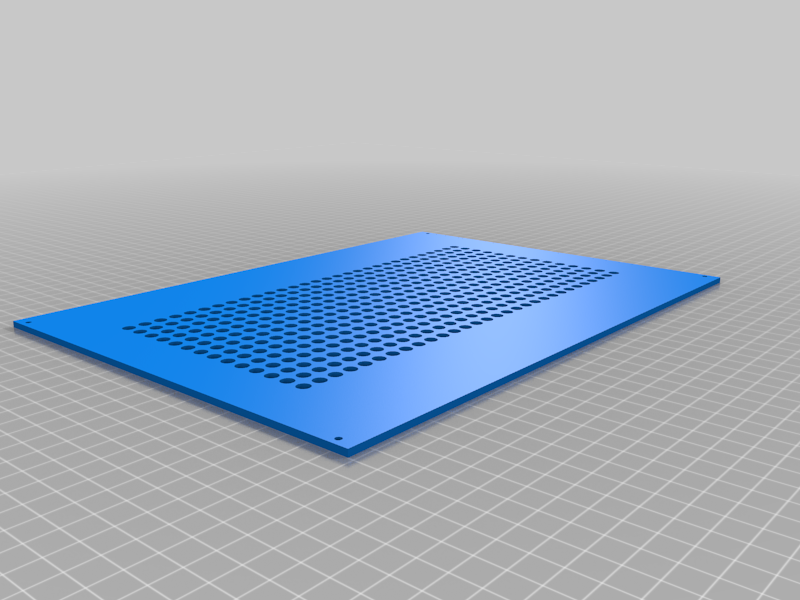

stllow_air_flow_panel_one_piece.stl
3 Mo · 3 308 téléchargements
-

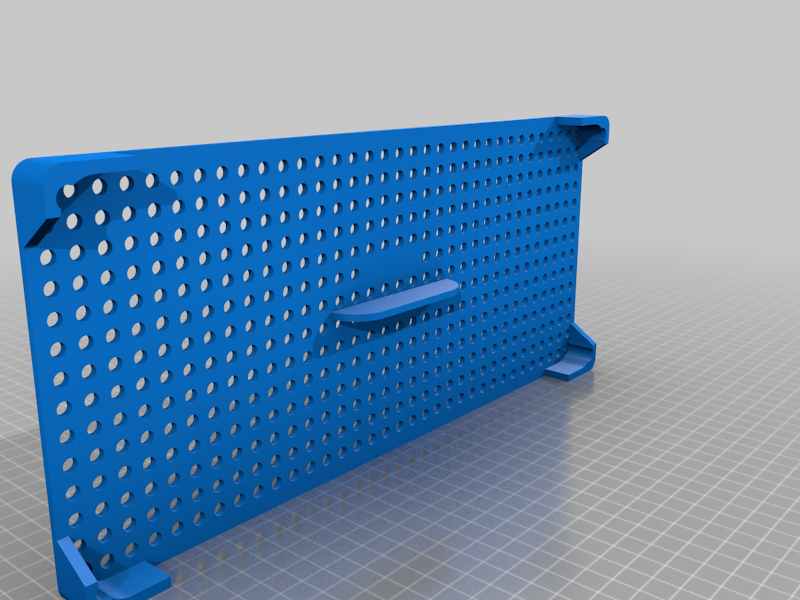

stlbottom-grill_one_piece.stl
3.4 Mo · 3 325 téléchargements
-

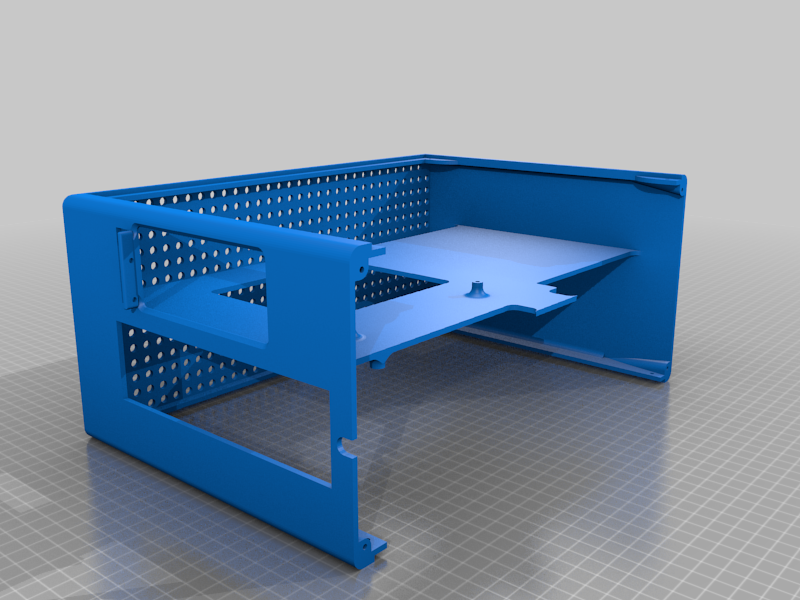

stlcase_one_piece.stl
4 Mo · 3 588 téléchargements
Description
No Special settings needed. I printed mine with 0.3mm default setup.
Now compatible with i3 sized printers (<=217mm)
Things you need for this case.
- Some computer screws
- A Button (for starting)
- Riser cable (PH-CBRS_SL30, PH-CBRS-FL30 should work, too) for the GPU
My Components:
- GTX 1070 STRIX (30cm length) (69°C while playing)
- 6700k i7 delidded with Big Shuriken 2 rev. b (43°C while playing)
- beQuiet 400W SFX psu (maybe sfx-l will fit if you have a modular one and an angled rubber plug)
I holded this case back for half a year, because it was my first big project and I'm not sure about the quality of my work yet. Just let me know what you think please :)
Why i did this:
- I wanted a mini-itx case
- I have an uncommon mini-DTX board
- I liked louqe ghost s1 and dancase a4 but my board won't fit and they are too expensive anyway
- I like 3D printing/designing :)
I cut the sidepanels from selfmade carbon fibre plates instead of printing them. But you can just print them.
Some photos are from older prototypes and dont show the newest version!
How to Assemble:
- Glue the parts together with your favorite glue.
- moun the psu bracket with vhb/double sided tape so you can adjust where it should go
Whats new?
- New, more beautiful/closer to louqe ghost/dan case a4, lower aiflow panel
- old high airflow panel split in half for you ready to print
- extended all surfaces on sides that need to be glued
