VOID9 Macropad
par V0lD
Fichiers imprimables (4)
-
stlVOID9_-_Top_-_Flat.stl
102 Ko · 1 375 téléchargements
-
stlVOID9_-_Top_-_Fillet.stl
227 Ko · 1 559 téléchargements
-
stlVOID9_-_Bottom_-_Flat.stl
283 Ko · 1 515 téléchargements
-
stlVOID9_-_Bottom_-_Angled.stl
358 Ko · 1 347 téléchargements
Description
This thing is no longer maintained. Updated models hosted on Printables/Github.
Description
The VOID9 Macropad is a handwired 3x3 pad that uses a Pro Micro as a controller.

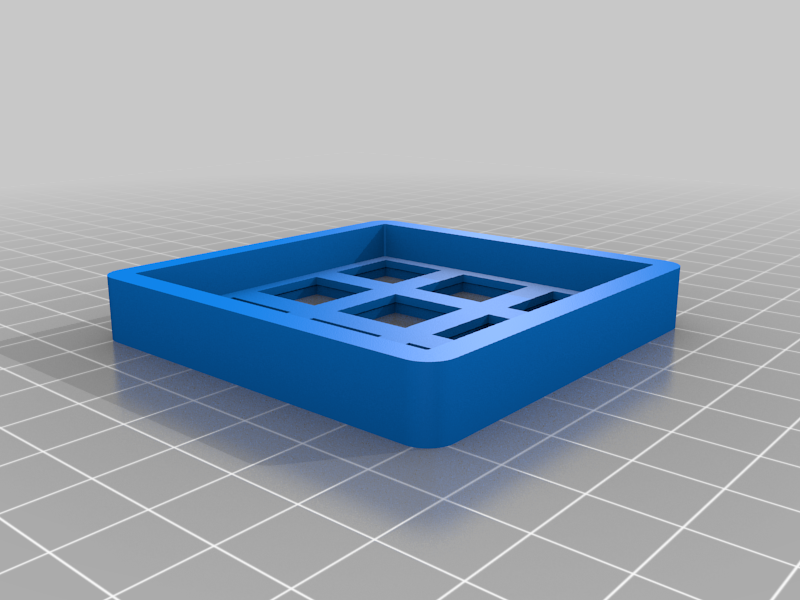

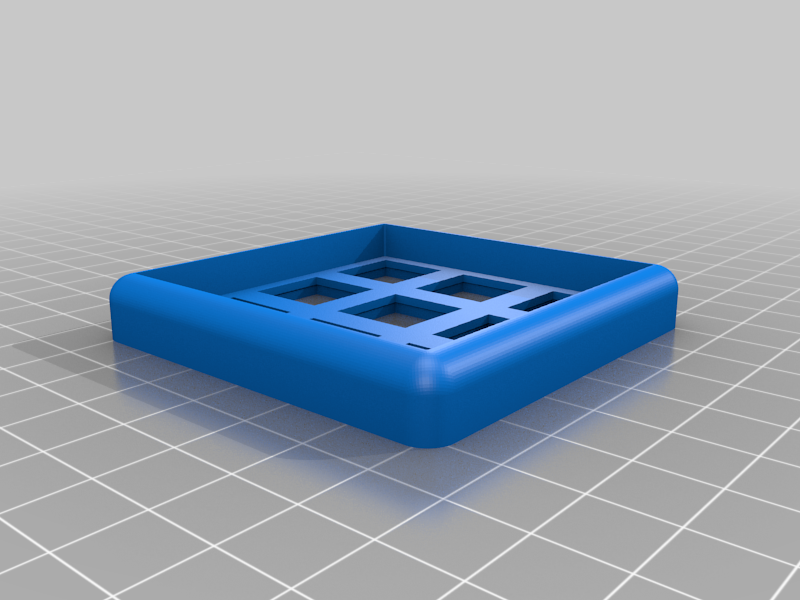

Two versions for the top case are included, one of them is flat, the other has a 4mm fillet.

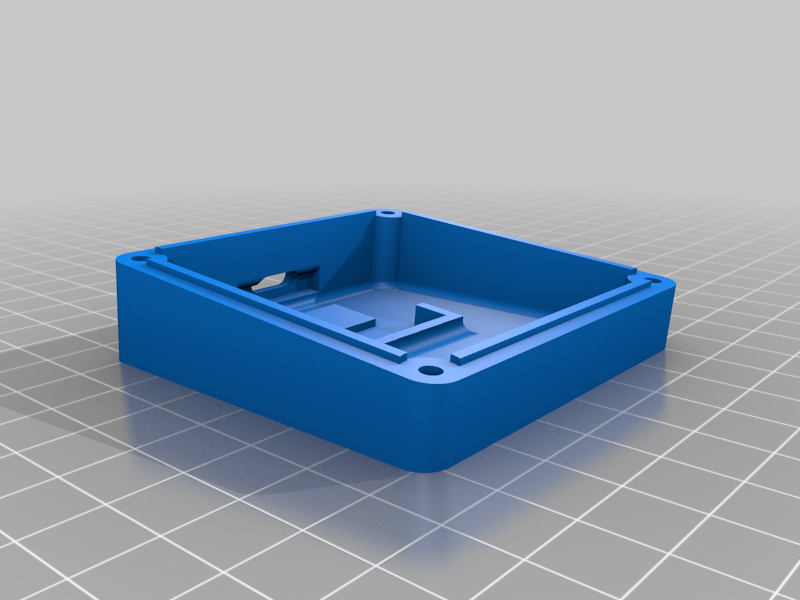

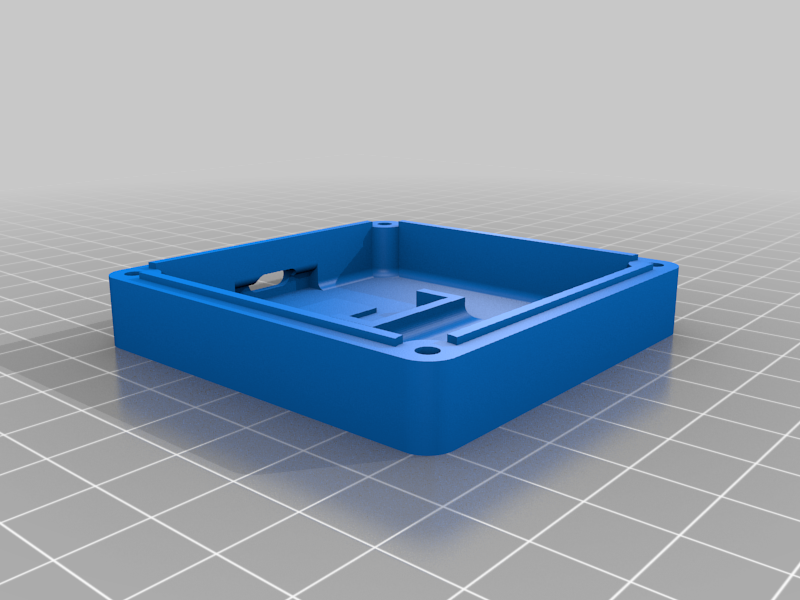

There are two versions for the bottom case as well, a flat one, and a 5 degree angled version.
Handwiring guide
I've put together a pretty visual handwiring guide for this macropad; the same principles would apply for larger projects, such as a VOID40.
Bill of materials
4 x M3x10 allen head screws for the bottom/top corners (13mm overall length, 5.5mm diameter head)
hot glue for securing the Pro Micro to the bottom case
STL mirror / QMK fork
The files are also hosted on Github, along with a QMK fork that contains a basic keymap and experimental VIA Configurator support. More info here
Updates
14.04.2020
slightly increased outer wall thickness around the screw holes
16.03.2020
added a small inner fillet
