Tensegrity Table
par seabirdhh
Fichiers imprimables (5)
-

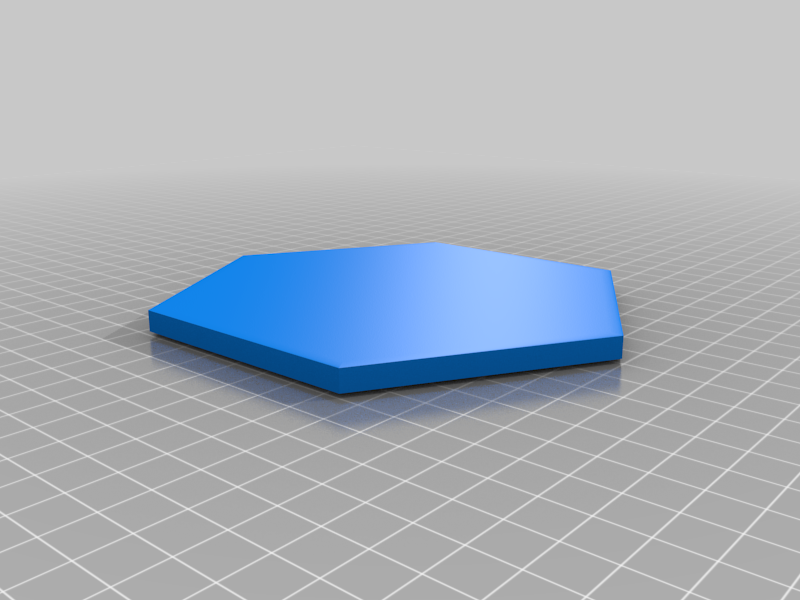

stlFloating_TableTop-II_Top.stl
46 Ko · 269 téléchargements
-

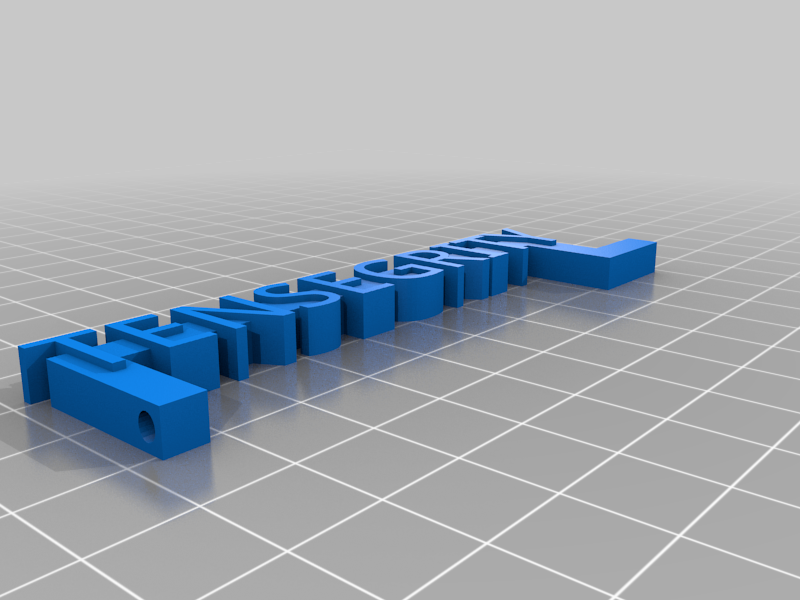

stlFloating_TableTop-II_scripture_socket.stl
106 Ko · 267 téléchargements
-

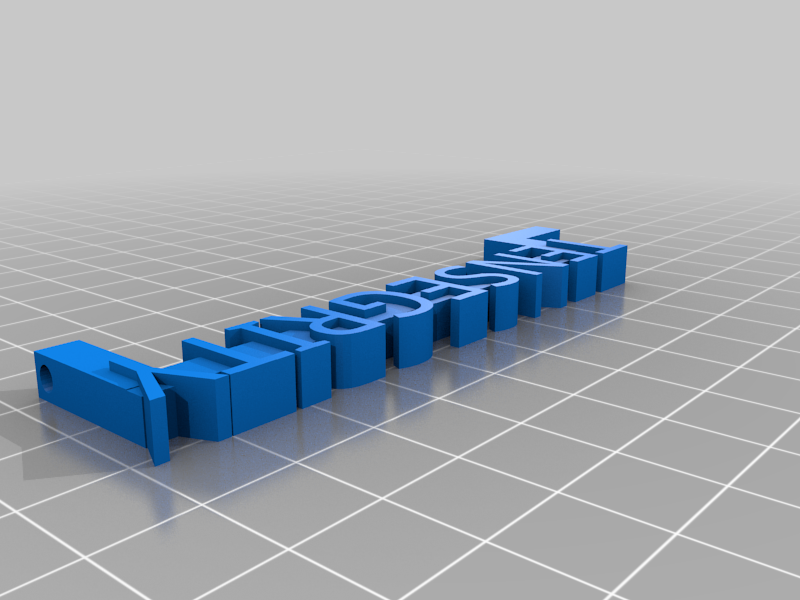

stlFloating_TableTop-II_scripture_top.stl
112 Ko · 268 téléchargements
-

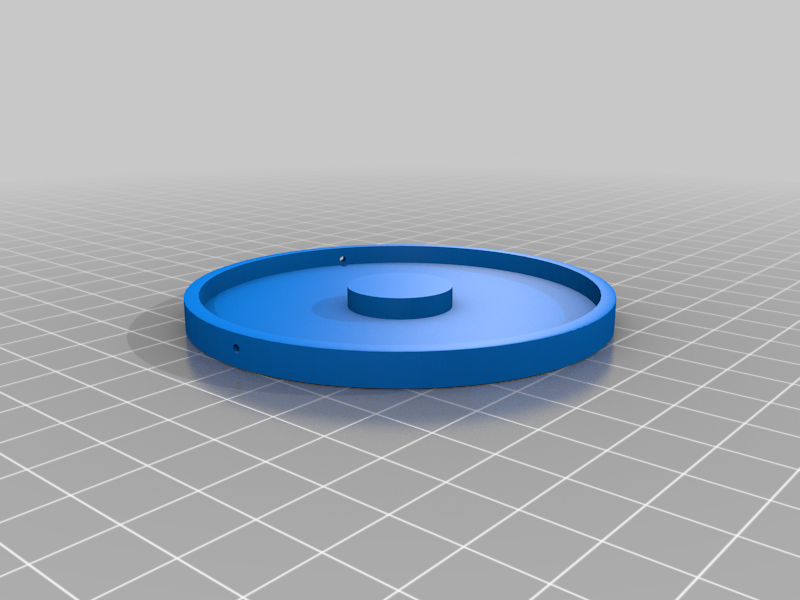

stlFloating_TableTop-II_socket.stl
255 Ko · 266 téléchargements
-

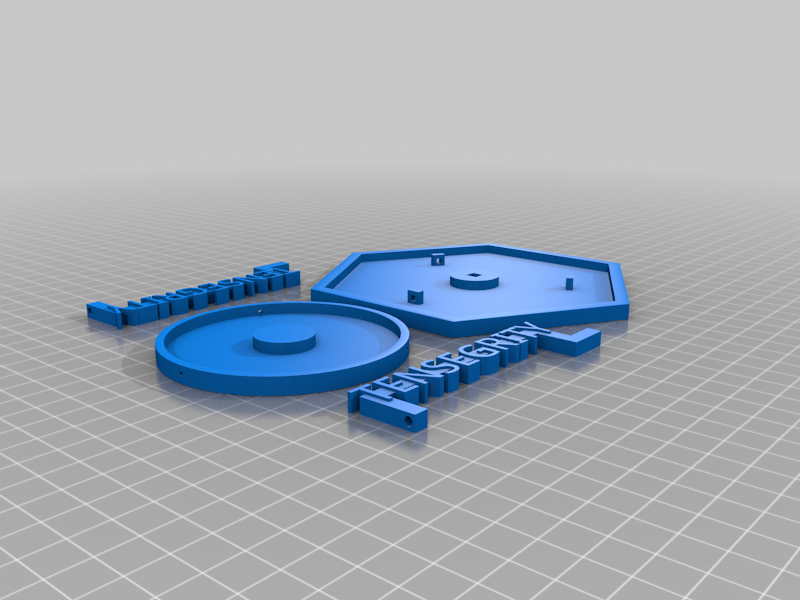

stlFloating_TableTop-II_allparts.stl
478 Ko · 277 téléchargements
Description
This "Tensegrity Table" is very similar to the "Floating Table Top". This table is slightly smaller (W135xH125mm). But the main difference is that this table consists of only 3 to 1 opposite tension points, compared to the "Floating Table Top", where the tension integrity is generated from 4 to 1 opposite tension points.
As tension thread I used nylon thread (Ø 0,35mm) again. Start by connecting the "scripture"-parts with about 55mm distance.
Then insert the "scripture"-parts into the table top and the table foot ... into the holes provided. To ensure a good fit, the fitting accuracy is very tight. It may be necessary to correct the fit with a cutter knife or sandpaper. Then apply superglue.
The next steps are quite tricky and require some endurance. I took a square timber as an auxiliary tool, on which I clamped the opposite parts with small screw clamps.
Have fun with printing and assembling! ... and keep well!
Here you can find a few more suggestions for different colour combinations.
