Split flap display 11 characters

par KingKobi

Fichiers imprimables (6)

Description

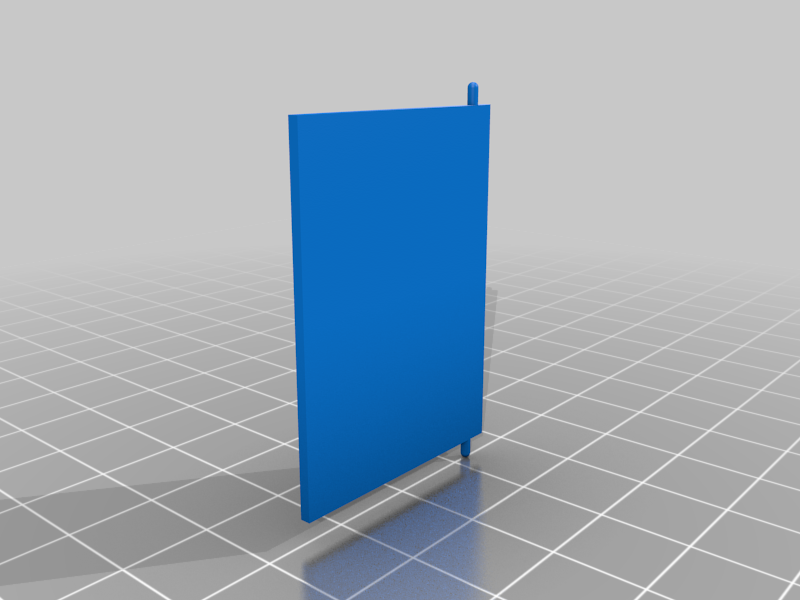

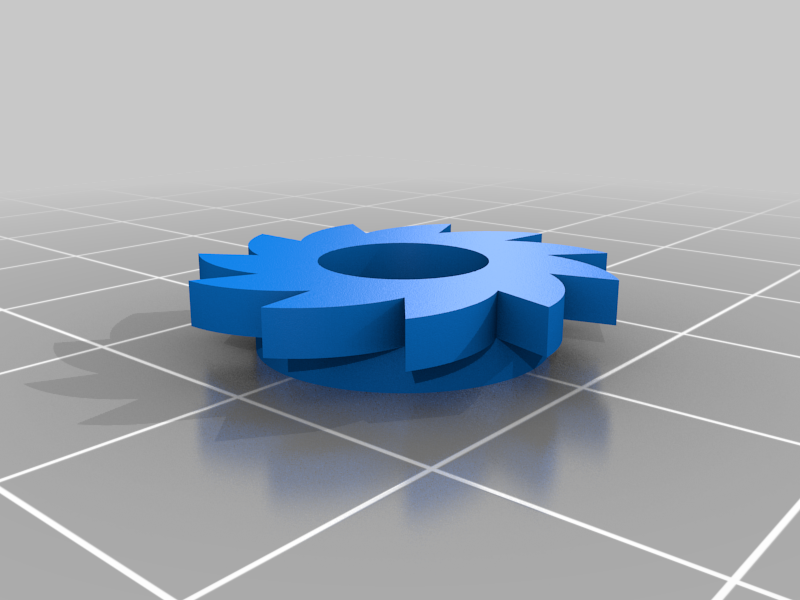

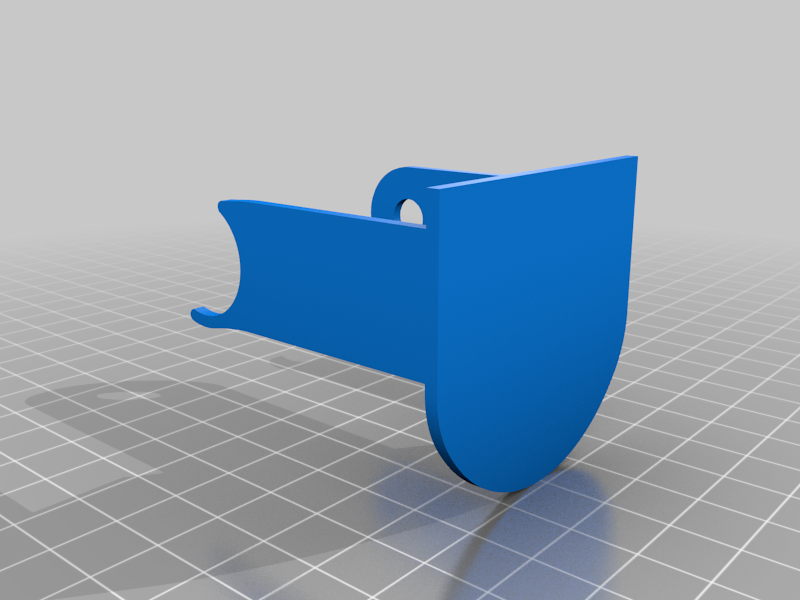

Just print everything flat (rotate in slicer), assembly is pretty straight forward. the little side hole on the stand is to put a small length of filament in to stop the gear rotating backwards, you might need to cut down the length of the inside to better fit a standard 1.75mm filament. I just used a piece of solder wire to stop extra flaps from falling, but a front face plate could also be made for that.

Tags

#clock #display #number #numbers #sign #split flap
