Knife Sharpening Guide
par DROP_DB
Fichiers imprimables (6)
-
stlslider_17_degrees.stl
24 Ko · 7 836 téléchargements
-
stlrail_foot.stl
16 Ko · 8 057 téléchargements
-
stlprop.stl
4 Ko · 7 652 téléchargements
-
stlslider_20_degrees.stl
50 Ko · 7 802 téléchargements
-
stlrail_flat.stl
16 Ko · 7 798 téléchargements
-
stlslider_15_degrees.stl
40 Ko · 5 666 téléchargements
Description
This is a knife sharpening guide for 60 x 180 mm whetstones. It was inspired by this guide but is not a direct remix.

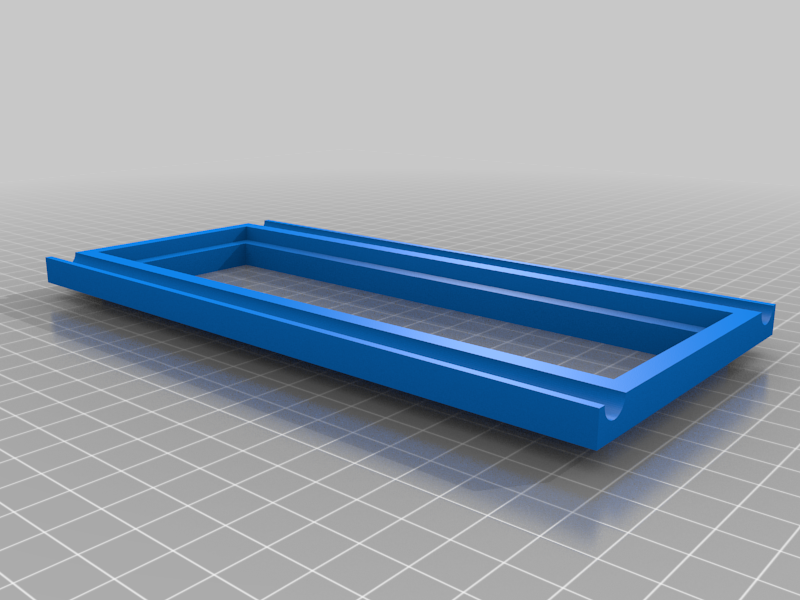

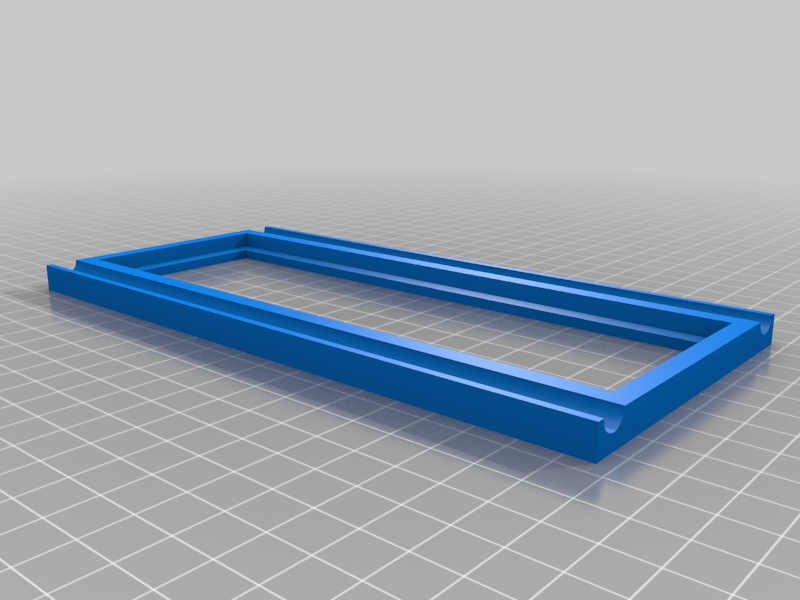

Print either the rail flat.stl or the rail foot.stl model. If your stone came with a rubber bumper, you can print rail foot.stl and the rail will slip into the bumper, which greatly helps to prevent the whole assembly from sliding around while being used. If you do not have a rubber bumper, print rail flat.stl and make due.

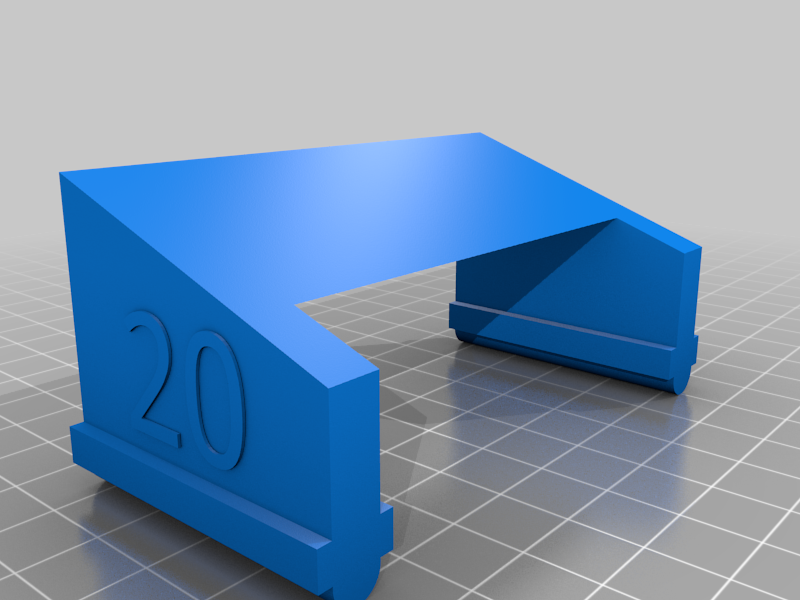

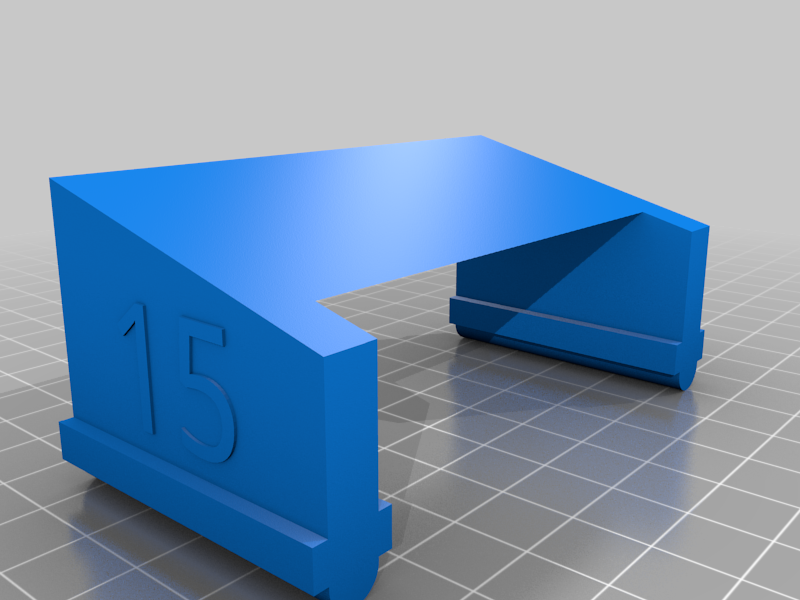

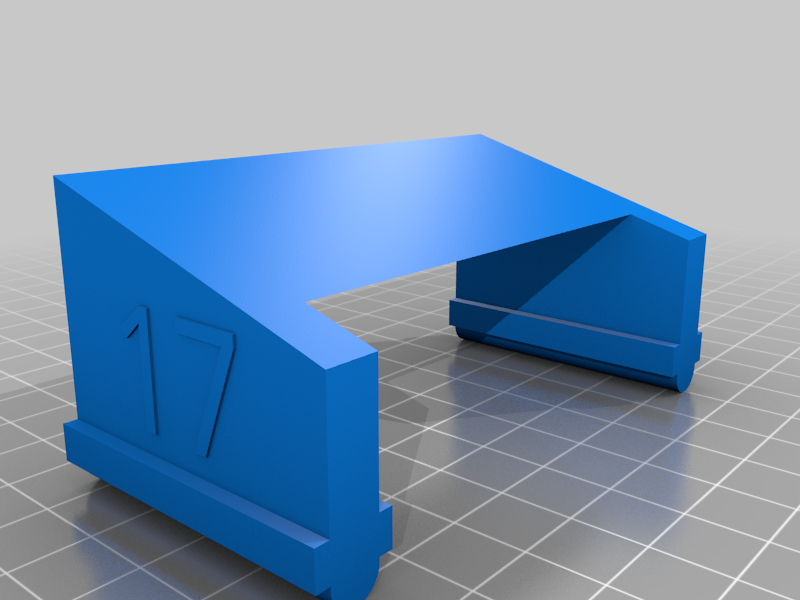

Print one or more of the sliders.

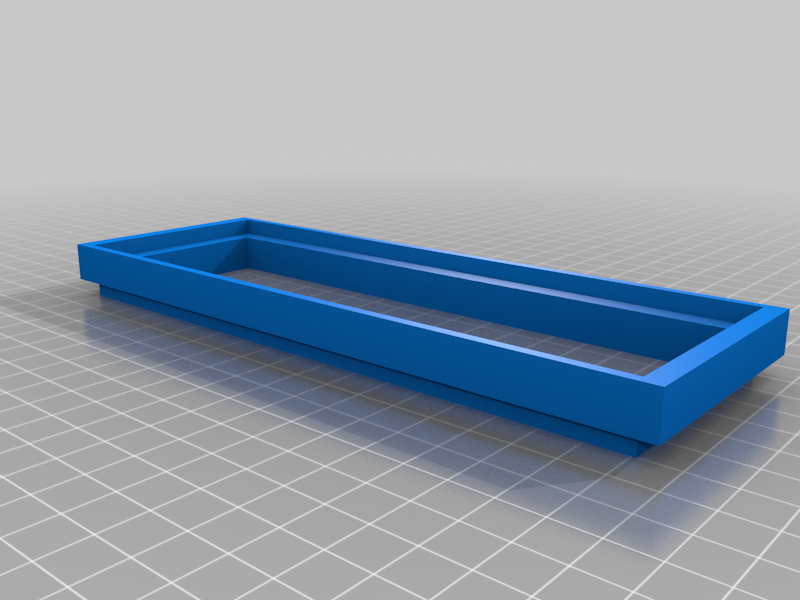

If your stone came unglued like mine did, giving you two separate half-height stones, then print prop.stl. This sits in the rail, and then the now-half-height stone sits in it, propping it back up to its original height.
