Alien: Isolation Motion Tracker
par JMirco
Fichiers imprimables (28)
-

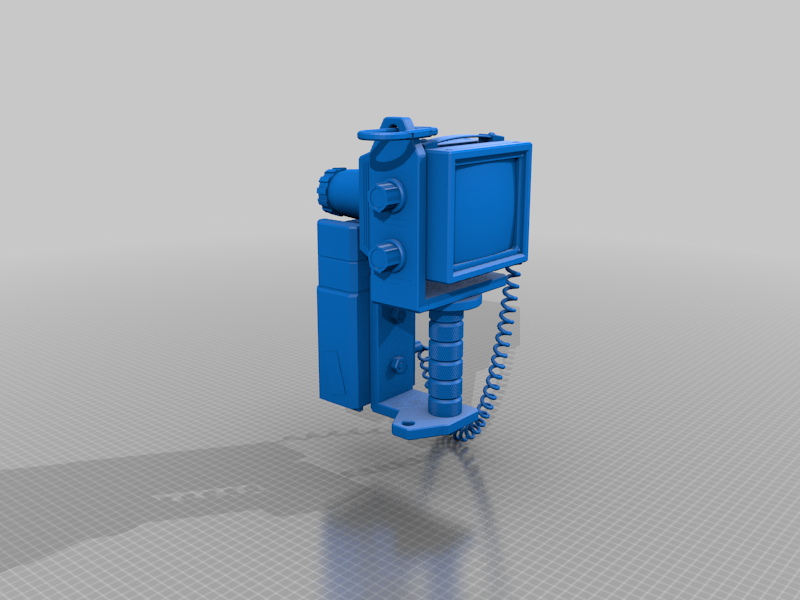

stl00_alien-mt_compile.stl
4.7 Mo · 687 téléchargements
-

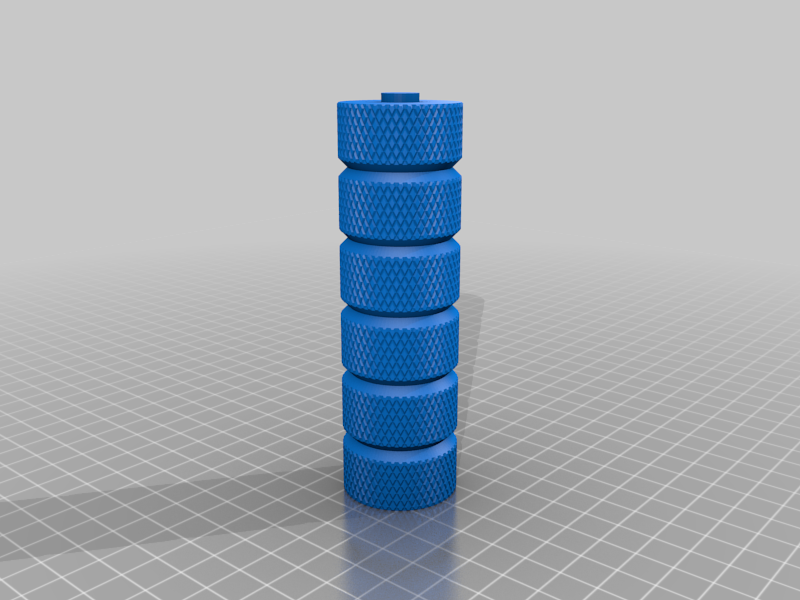

stl01_alien-mt_grip.stl
1.5 Mo · 802 téléchargements
-

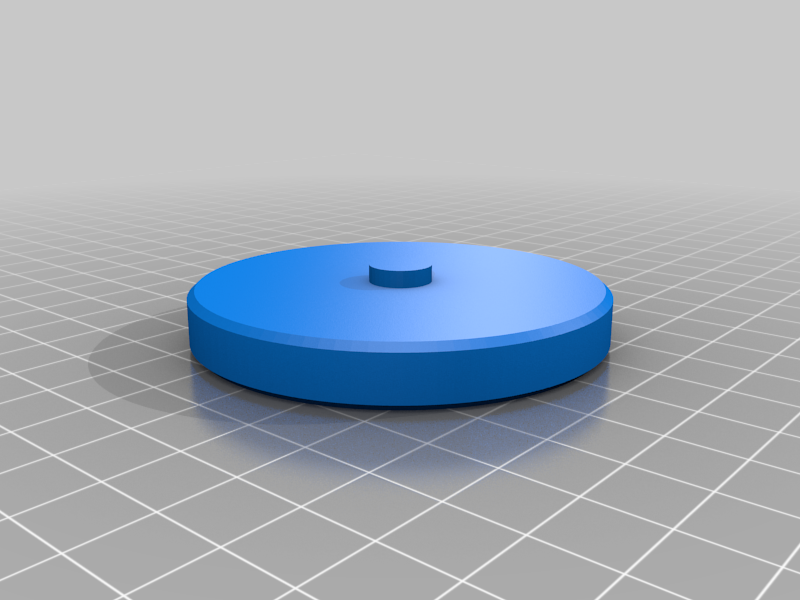

stl02_alien-mt_grip_top.stl
125 Ko · 791 téléchargements
-
stl03_alien-mt_cord_connector_screen.stl
60 Ko · 798 téléchargements
-

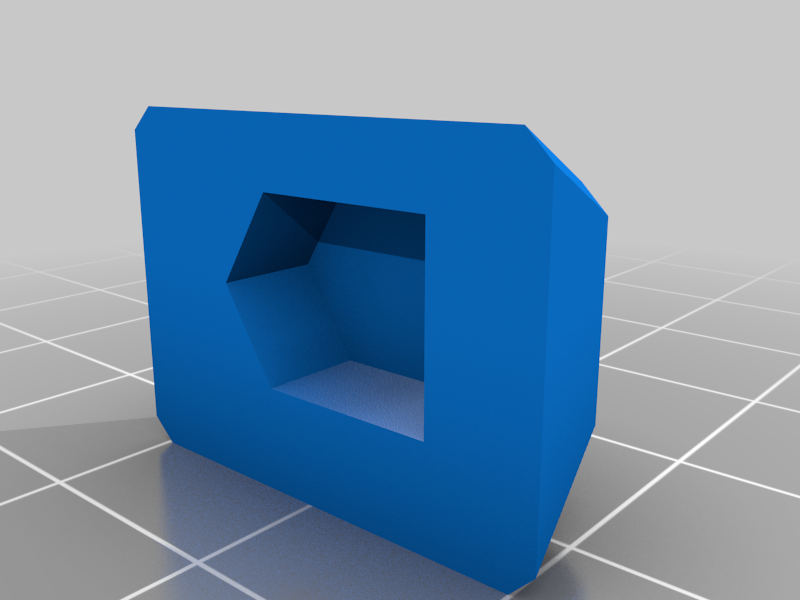

stl04_alien-mt_screen_tab5.stl
3 Ko · 798 téléchargements
-

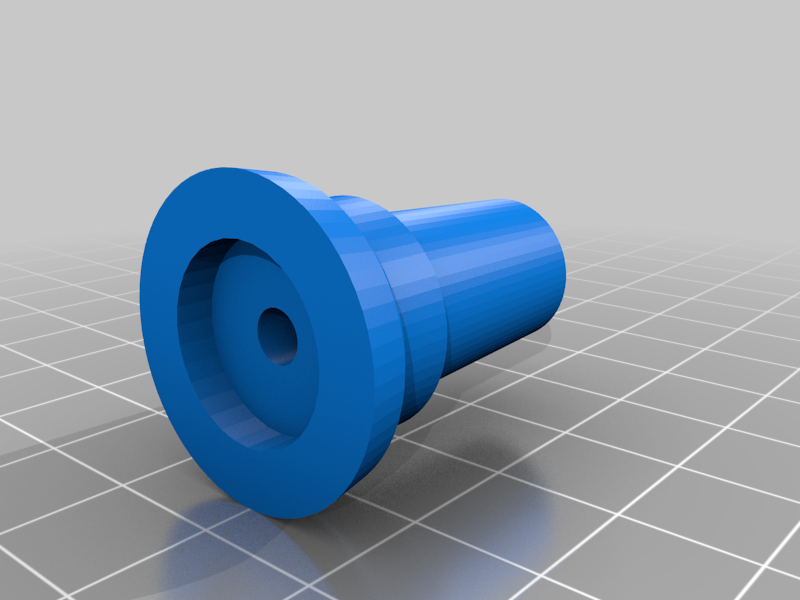

stl05_alien-mt_cord_connector_pack.stl
94 Ko · 799 téléchargements
-

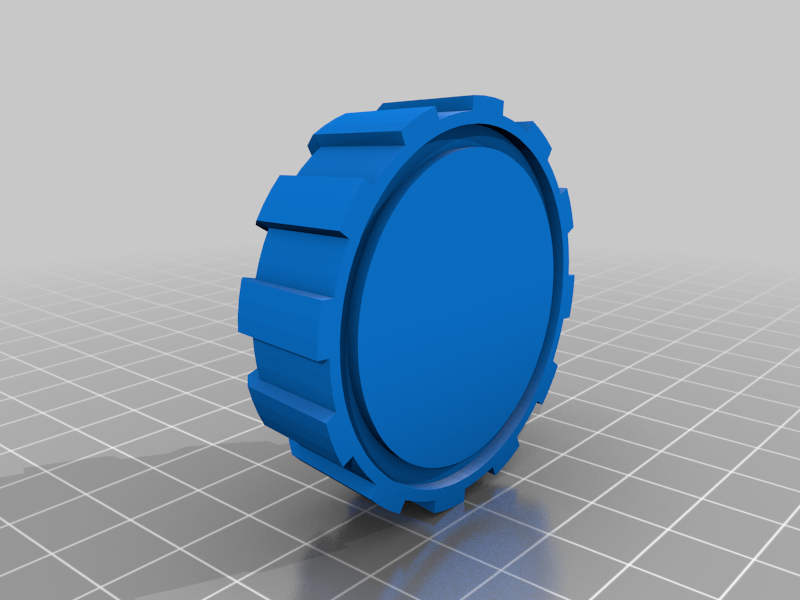

stl06_alien-mt_sensor_end.stl
176 Ko · 809 téléchargements
-

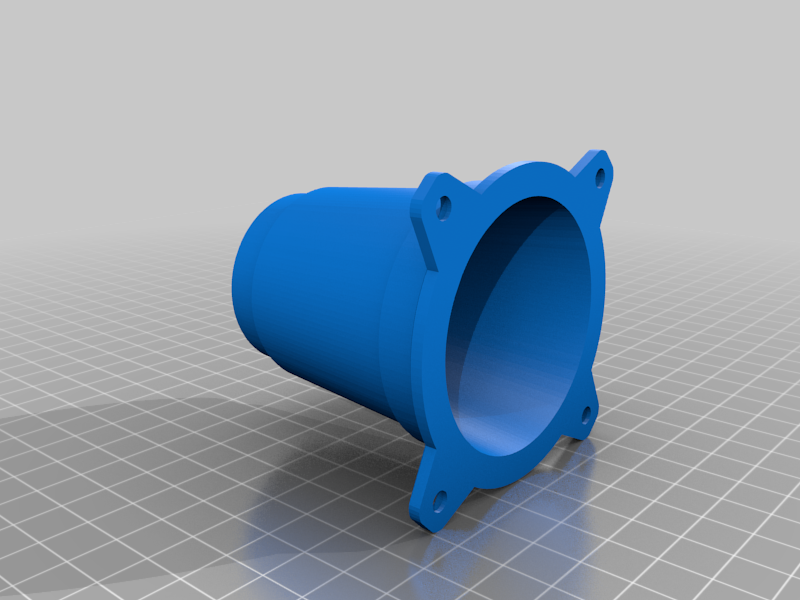

stl07_alien-mt_sensor_housing.stl
250 Ko · 805 téléchargements
-

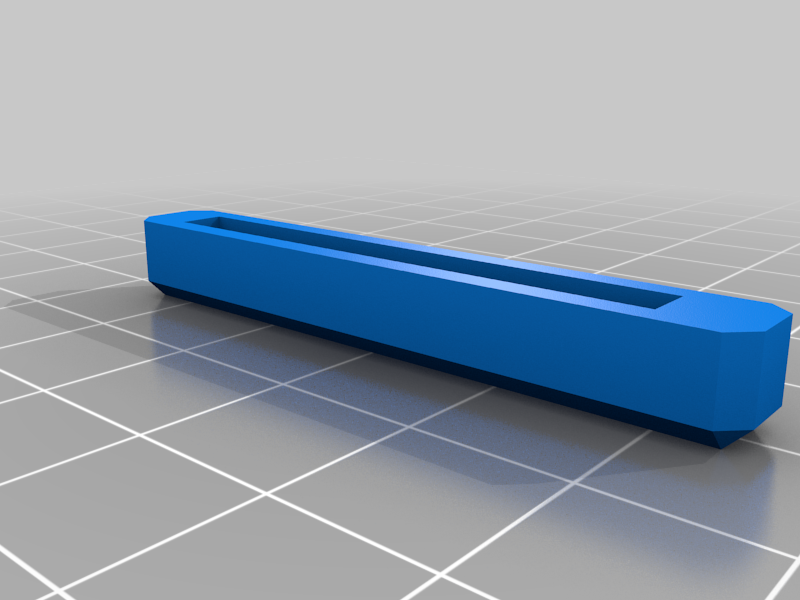

stl08_alien-mt_pack_feet3.stl
3 Ko · 795 téléchargements
-

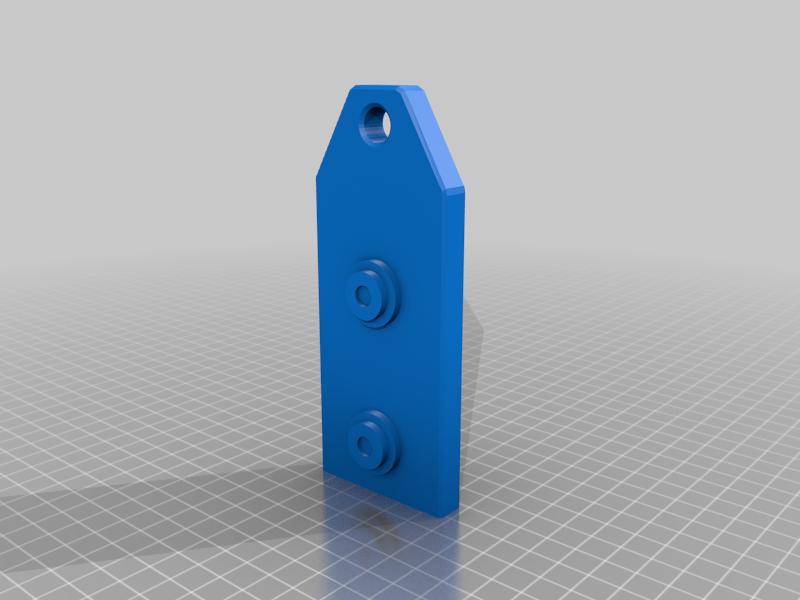

stl09_alien-mt_frame_a.stl
211 Ko · 799 téléchargements
-

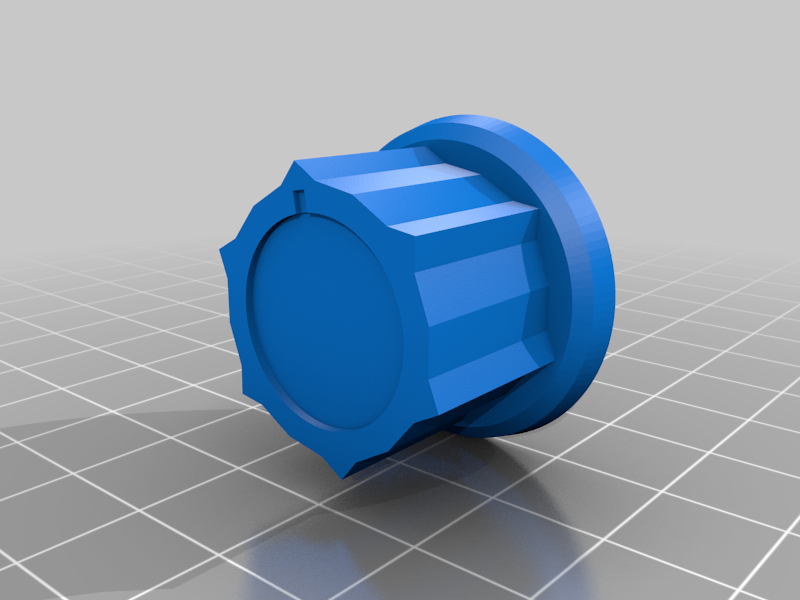

stl10_alien-mt_channel_knob2.stl
146 Ko · 800 téléchargements
-

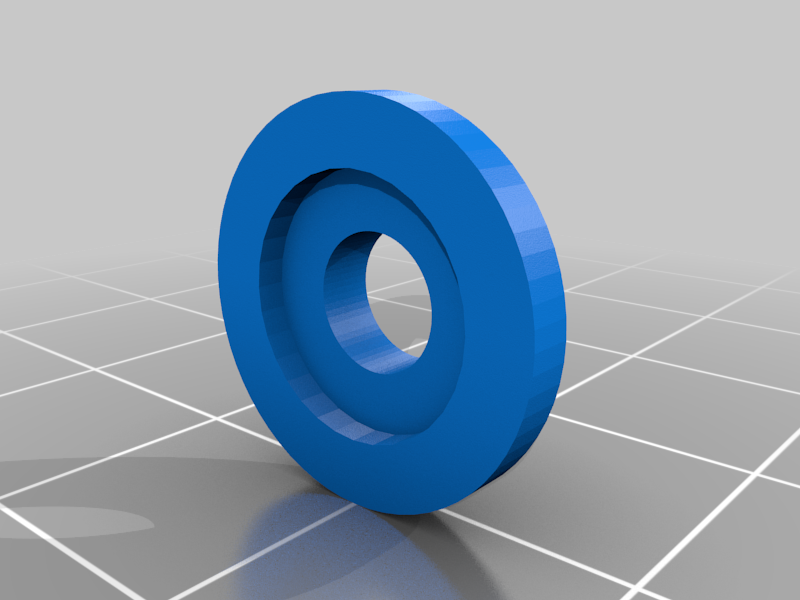

stl19_alien-mt_pack_led.stl
63 Ko · 791 téléchargements
-

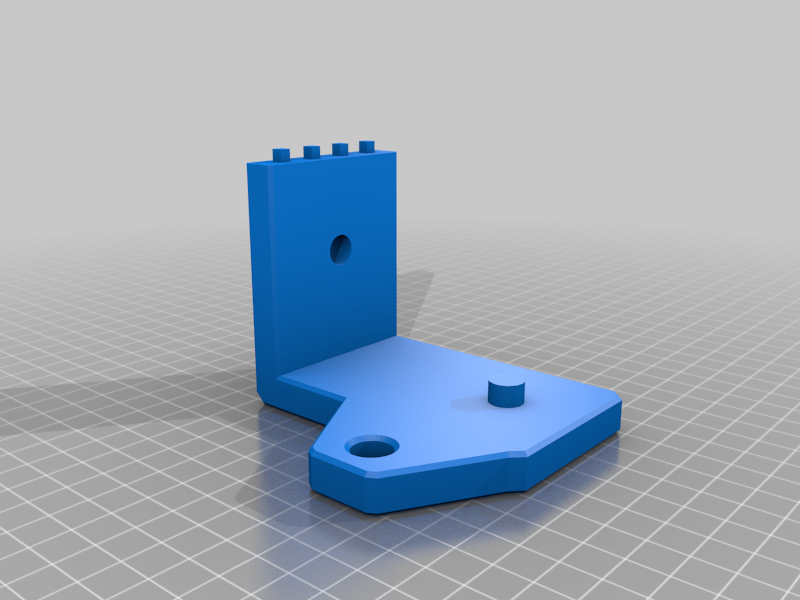

stl20_alien-mt_frame_b.stl
35 Ko · 793 téléchargements
-

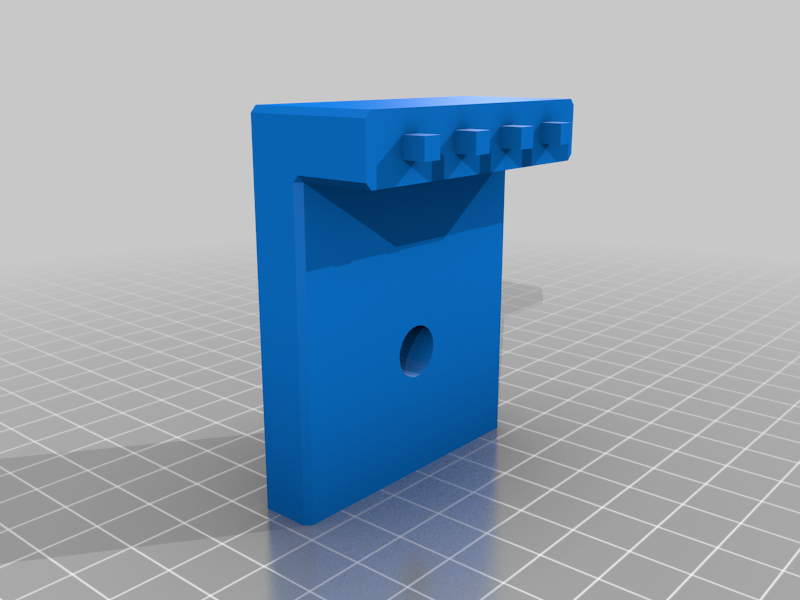

stl21_alien-mt_frame_c.stl
16 Ko · 796 téléchargements
-

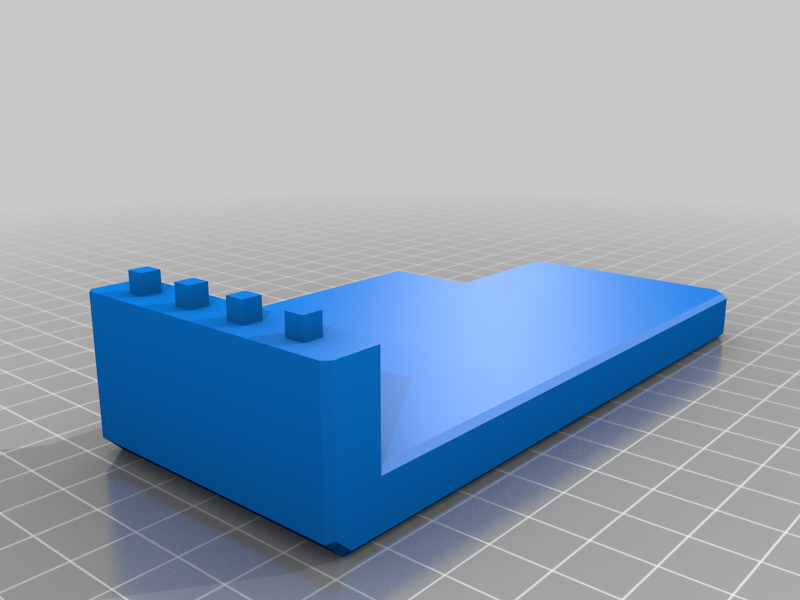

stl22_alien-mt_frame_d.stl
19 Ko · 796 téléchargements
-

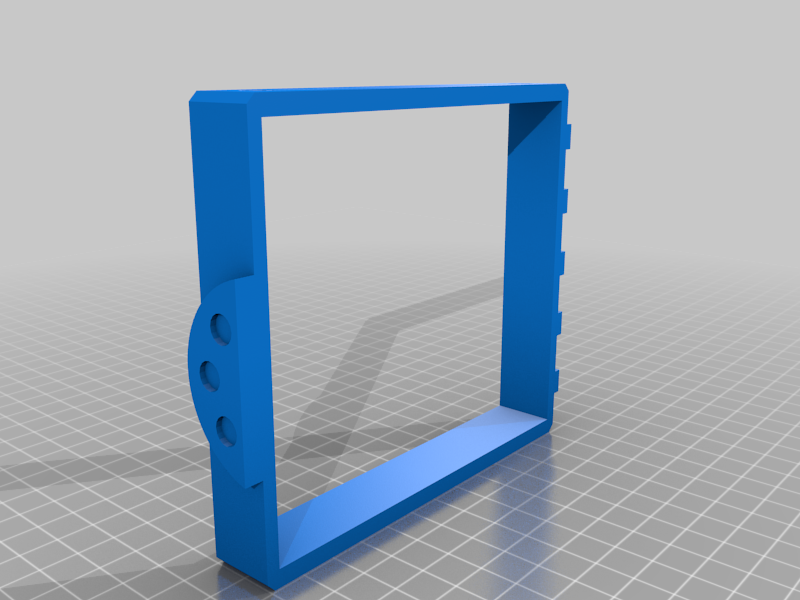

stl23_alien-mt_screen_box_a.stl
55 Ko · 796 téléchargements
-

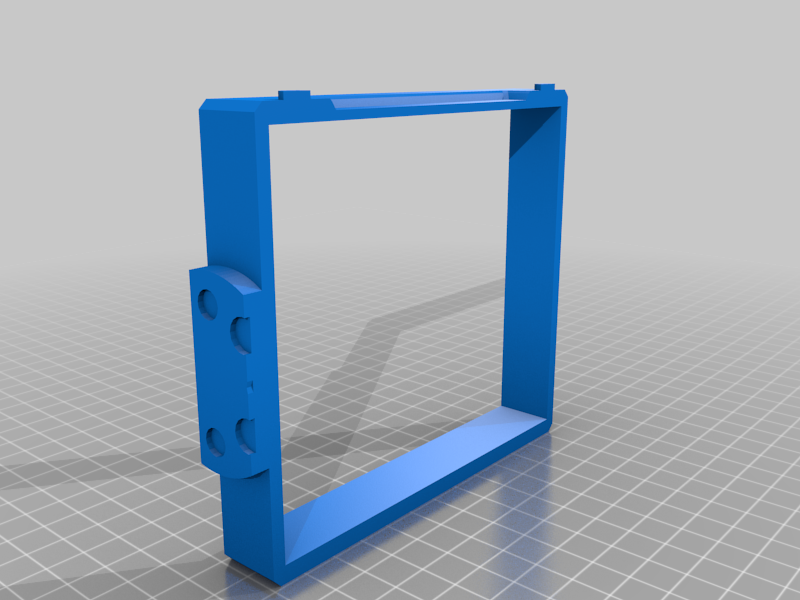

stl24_alien-mt_screen_box_b.stl
49 Ko · 798 téléchargements
-

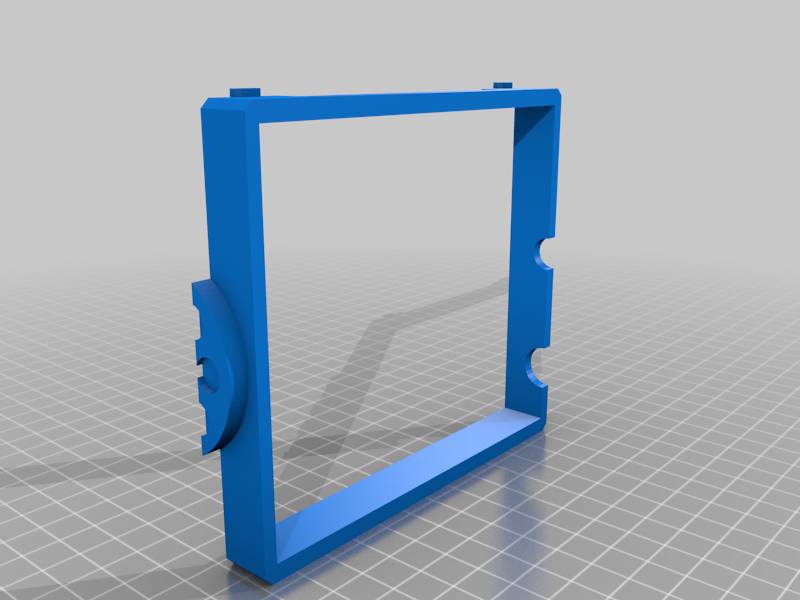

stl25_alien-mt_screen_box_c.stl
48 Ko · 798 téléchargements
-

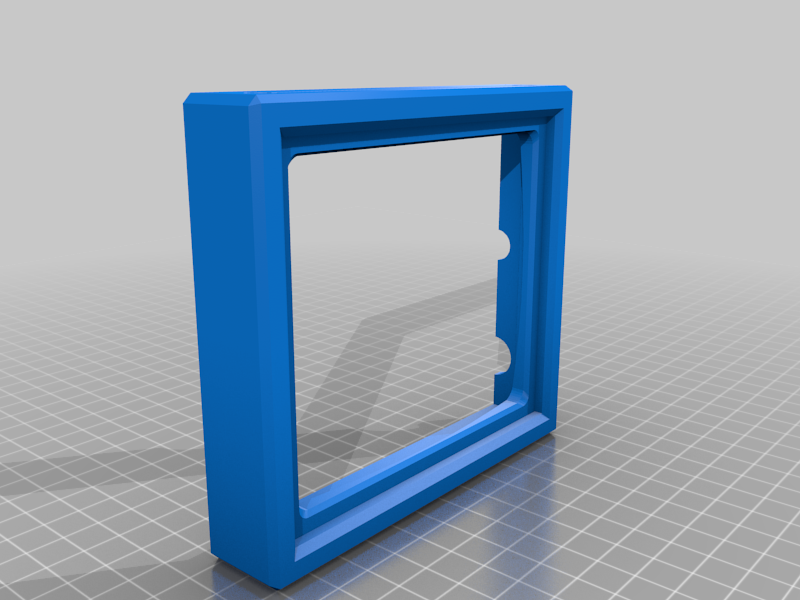

stl26_alien-mt_screen_box_d.stl
61 Ko · 803 téléchargements
-

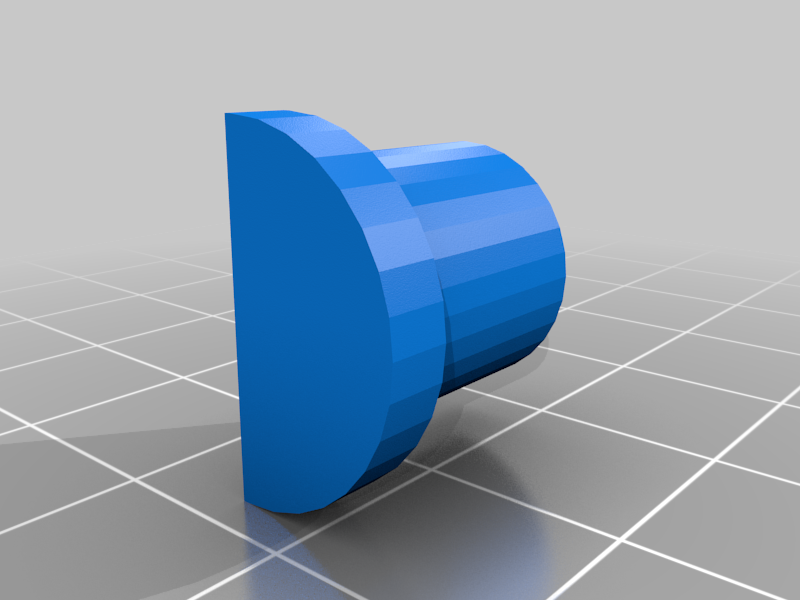

stl27_alien-mt_screen_box_key2.stl
9 Ko · 793 téléchargements
-

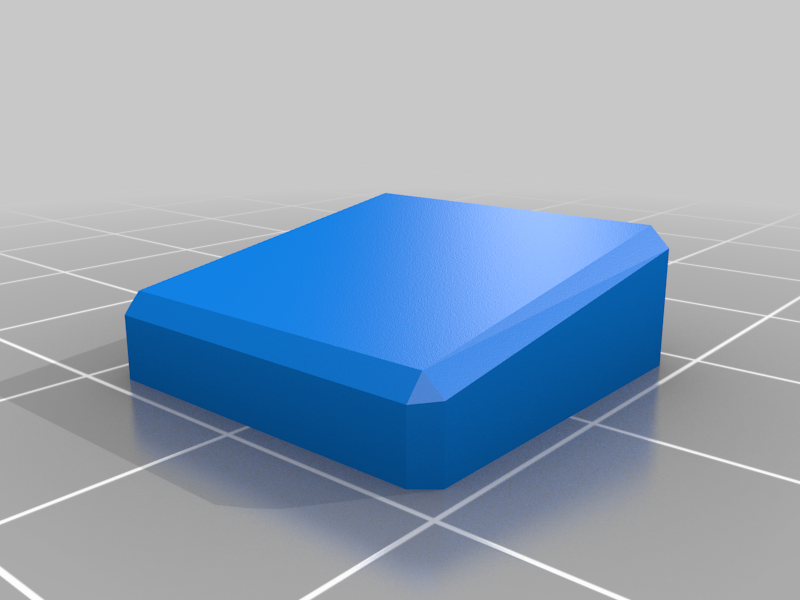

stl28_alien-mt_screen_strap_insert2.stl
10 Ko · 793 téléchargements
-

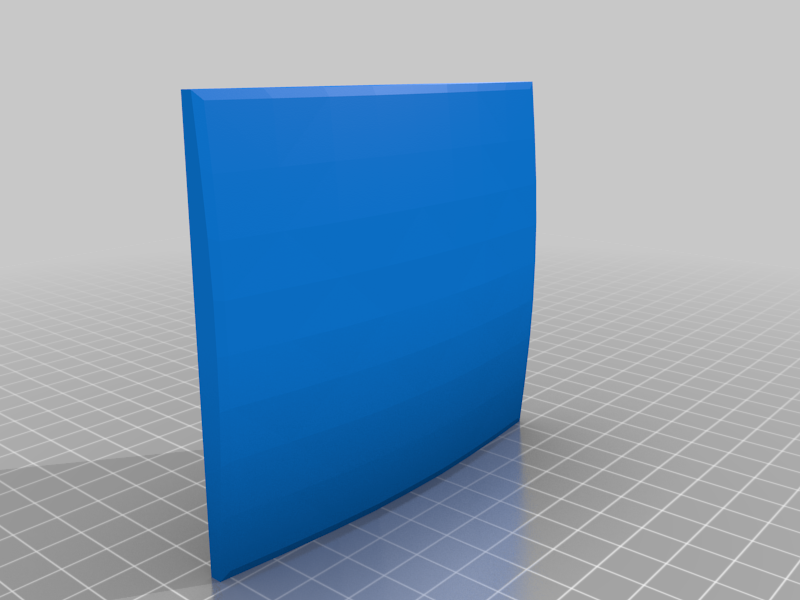

stl29_alien-mt_screen_backing.stl
14 Ko · 796 téléchargements
-

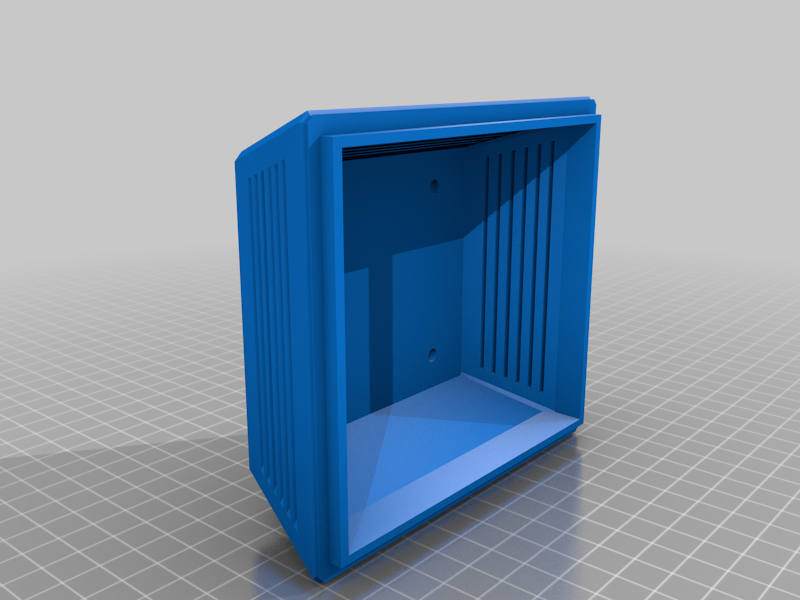

stl30_alien-mt_screen_rear_a.stl
79 Ko · 812 téléchargements
-

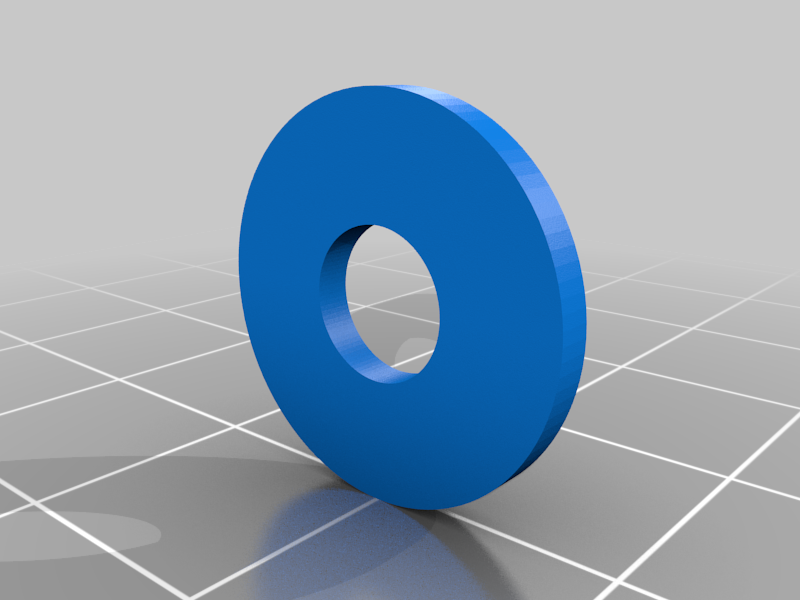

stl31_alien-mt_switch_nub.stl
56 Ko · 789 téléchargements
-

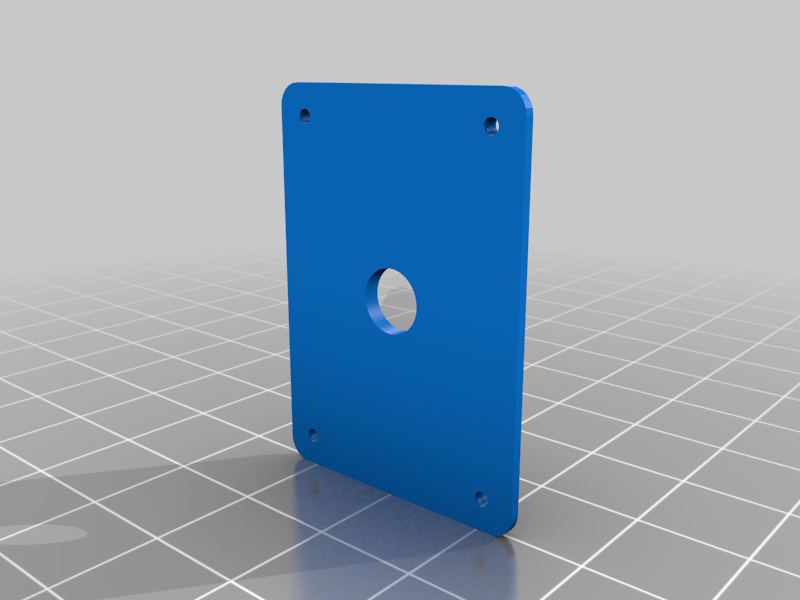

stl32_alien-mt_switch_cover.stl
105 Ko · 593 téléchargements
-

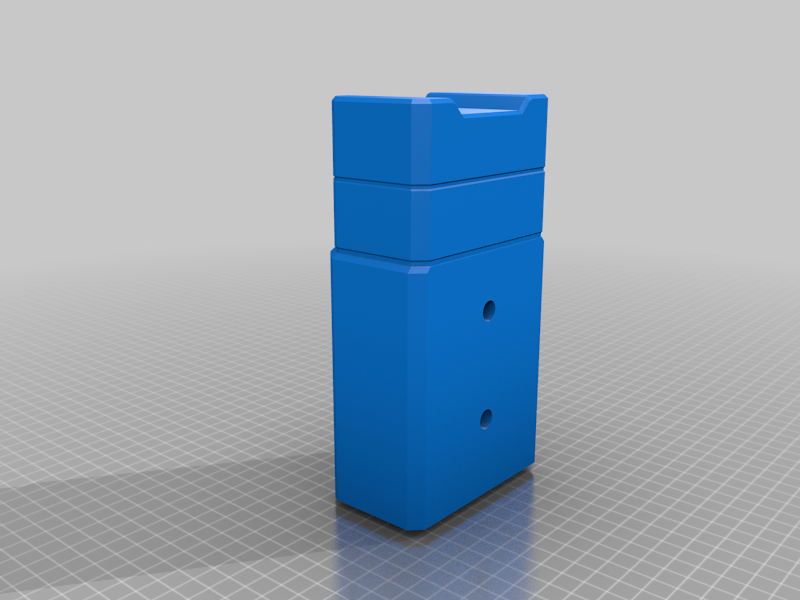

stl33_alien-mt_pack.stl
54 Ko · 805 téléchargements
-

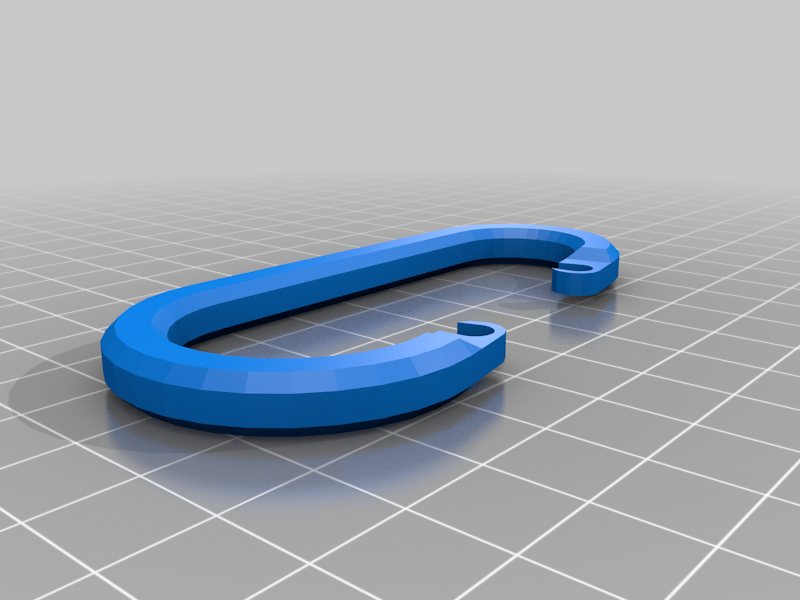

stl34_alien-mt_carabiner_a.stl
48 Ko · 788 téléchargements
-

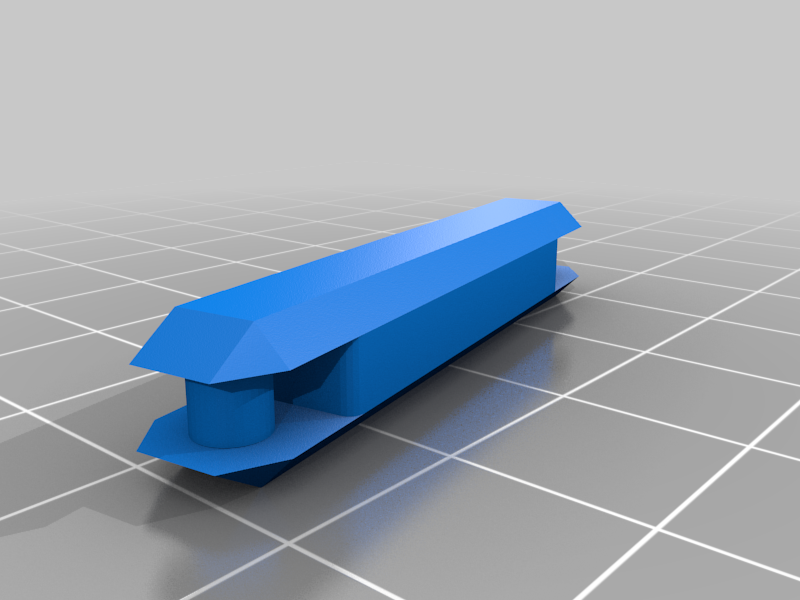

stl35_alien-mt_carabiner_b.stl
26 Ko · 787 téléchargements
Description
Presenting a rendition of the Motion Tracker from Creative Assembly's 2014 video game, Alien: Isolation.
"The Motion Tracker was manufactured by Arious in the United States of America. Originally intended to track small creatures like insects, the Motion Tracker was modified due to the chaos aboard Sevastopol by survivors, and is now capable of tracking larger entities such as humans, Working Joes, and the Alien."
The .stl files and graphics provided are based off the in-game assets and concept art. The 3D files were modelled in Blender, based off and scaled to match the relative proportions of low-poly meshes extracted from the game files. The graphics were created in Illustrator.
The "real-world" scale of the Motion Tracker was guesstimated from reference images. For reference, the overall dimensions of the provided .stl's when assembled come out to approx. 290mm high, by 175mm wide, by 200mm deep (excl. carabiner and cord). The graphics are scaled to match these dimensions.
.zip files are provided for info with collections of .stl files that represent duplicate .stl's (--), graphic placeholders (g--), and extra parts that were sourced elsewhere instead of printed (x--).
.stl files 11 to 18 were superseded, and are instead provided as a consolidation in 33.
Check out the make section for more photos of the finished product.
