HexBoxStorage Interconnect

par Michaelo

Fichiers imprimables (8)

  • stl

    hexboxstorage.stl

    494 Ko · 2 368 téléchargements

    Télécharger
  • stl

    hexboxstoragelid.stl

    265 Ko · 2 112 téléchargements

    Télécharger
  • stl

    HexBox.stl

    244 Ko · 184 téléchargements

    Télécharger
  • stl

    HexBoxLid.stl

    277 Ko · 179 téléchargements

    Télécharger
  • stl

    hexboxreclid.stl

    455 Ko · 172 téléchargements

    Télécharger
  • stl

    hexboxrec.stl

    779 Ko · 182 téléchargements

    Télécharger
  • stl

    hexboxrec_exp_mag.stl

    315 Ko · 173 téléchargements

    Télécharger
  • stl

    hexboxrec_exp_mag_lid.stl

    77 Ko · 167 téléchargements

    Télécharger

Description

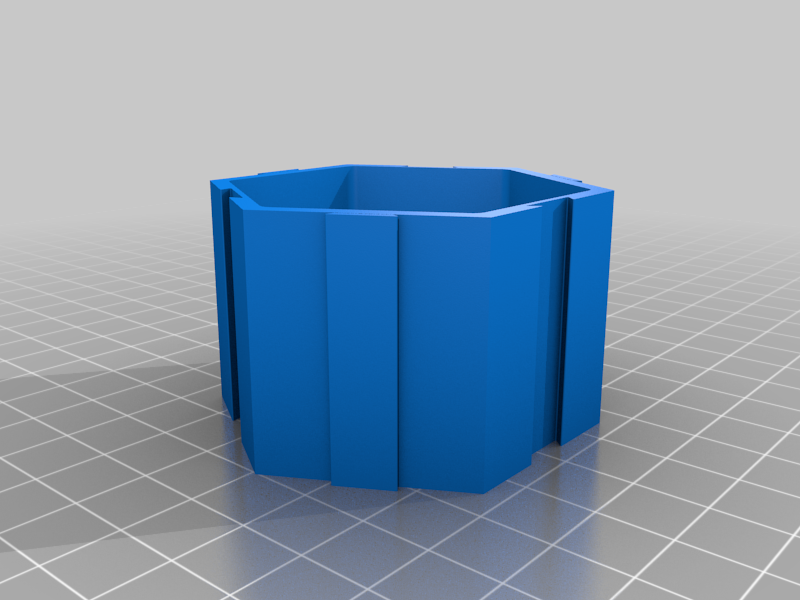

Hex Storage Box

Simple hex storage box with interconnect, includes lid option...

Height: 35mm
Width: 60mm

No test printed yet, allowed 0.2mm between fitting parts... will test later and adjust if necessary.

Print time: 1 - 2 hours depending on settings (lid ~20 minutes)...

I can't print ATM, if you print one of these can you let me know if geometry is correct, please...

By far my most popular design yet, must do more general prints, it's hearth warming to see so many likes.

Finally... fixed issue with printer settings, prints were perfect, fit like a glove. If printer is not tuned in, these boxes will not fit properly, it's kinda like a test print ;)

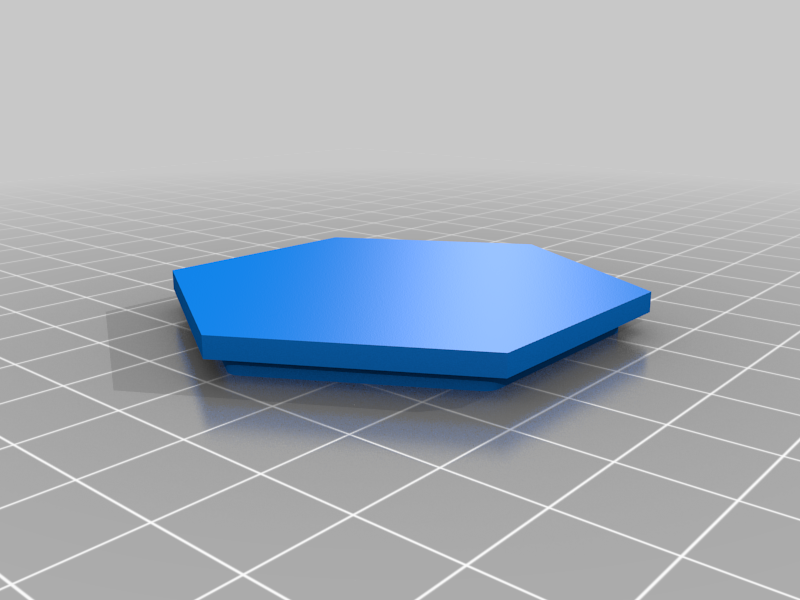

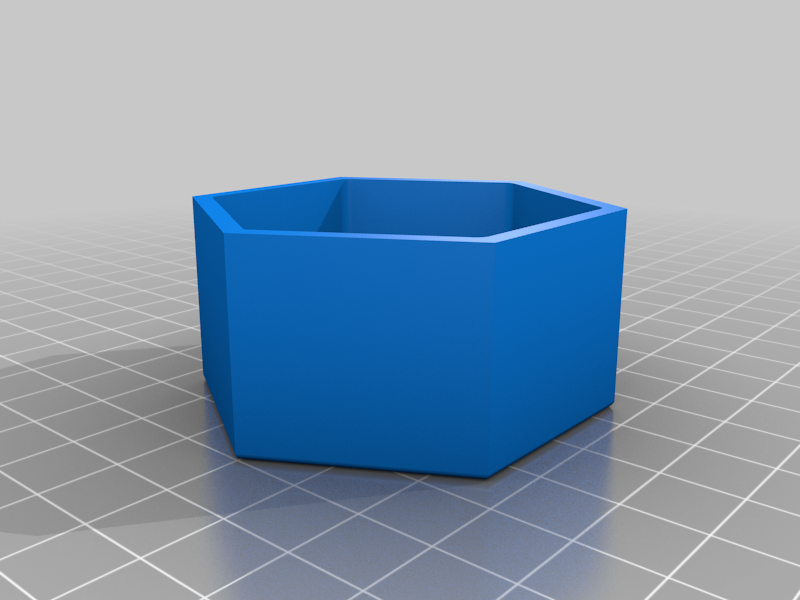

If you are having issues with the interconnected boxes because of tuning etc., I added a simple box and lid (same shape but not interconnected), these could glued them together to achieve the same results.

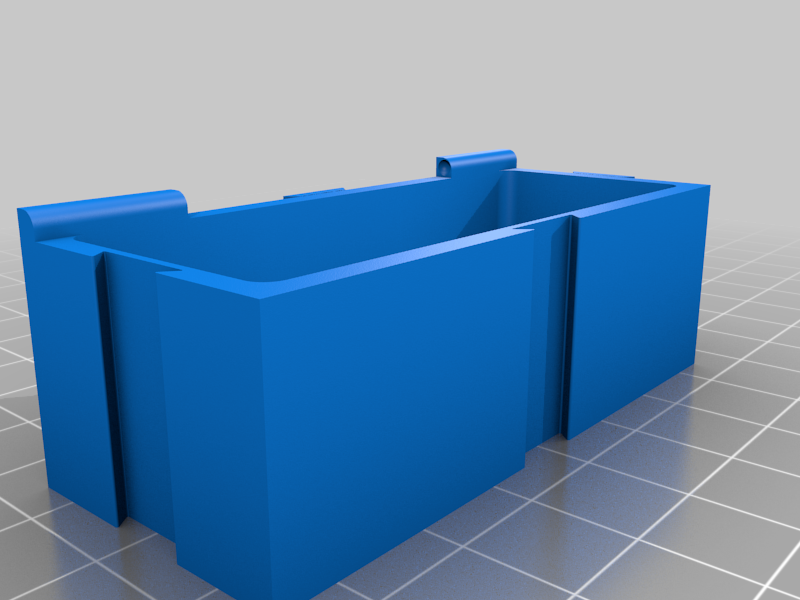

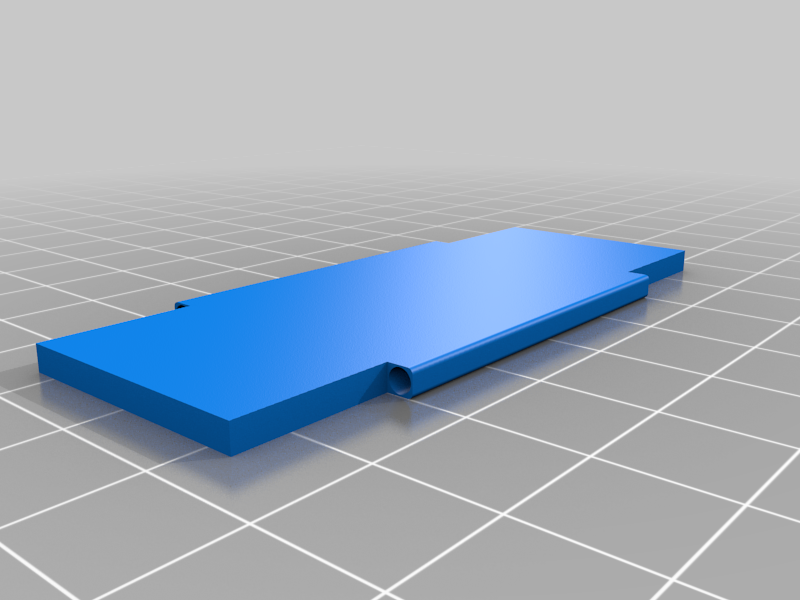

Added another storage box with interconnect and lid...

Another experimental Parts Storage Box.

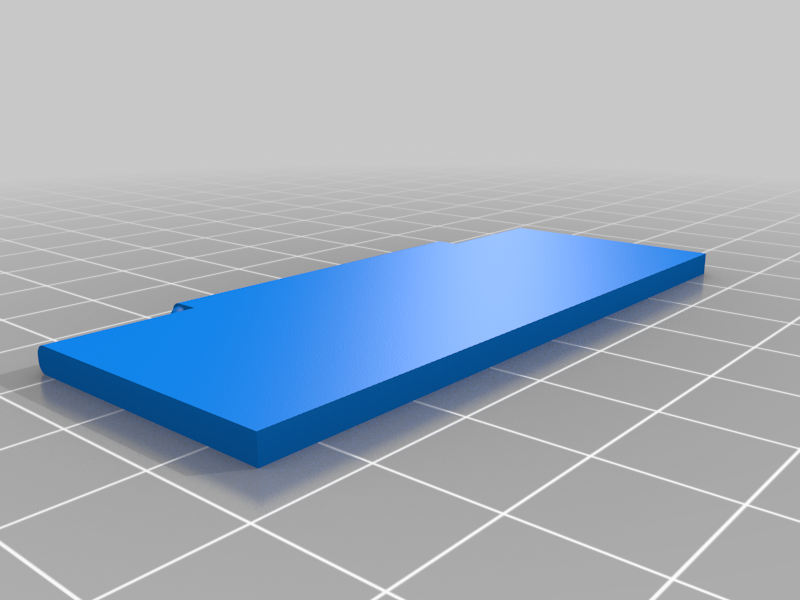

Lid connects with small, low cost, 2mm magnets. Not tested yet, so don't know how it will print. Allowed 0.1mm for magnets. Will test when magnets arrive...

Mike

Tags

#Storage Box
