Stackable Crate with additional Battery Spacers
Fichiers imprimables (19)
-
3mfCrateStandardv7.3MF
4.2 Mo · 679 téléchargements
-
3mfAA.3MF
35 Ko · 509 téléchargements
-
3mfAAA.3MF
41 Ko · 445 téléchargements
-
3mf9V.3MF
26 Ko · 431 téléchargements
-
3mfC.3MF
18 Ko · 422 téléchargements
-
stepAAA.STEP
874 Ko · 433 téléchargements
-
stlCrateStandardv7.STL
21.1 Mo · 796 téléchargements
-
stepCrateStandardv7.STEP
21.5 Mo · 449 téléchargements
-
stlAA.STL
102 Ko · 486 téléchargements
-
stepAA.STEP
519 Ko · 432 téléchargements
-
stlAAA.STL
155 Ko · 514 téléchargements
-
step9V.STEP
260 Ko · 412 téléchargements
-
stl9V.STL
57 Ko · 427 téléchargements
-
stepC.STEP
176 Ko · 411 téléchargements
-
stlC.STL
36 Ko · 444 téléchargements
-
3mfCrateStandardv7.3MF
4.2 Mo · 1 546 téléchargements
-
stlD.STL
22 Ko · 182 téléchargements
-
stepD.STEP
99 Ko · 169 téléchargements
-
3mfD.3MF
15 Ko · 176 téléchargements
Description

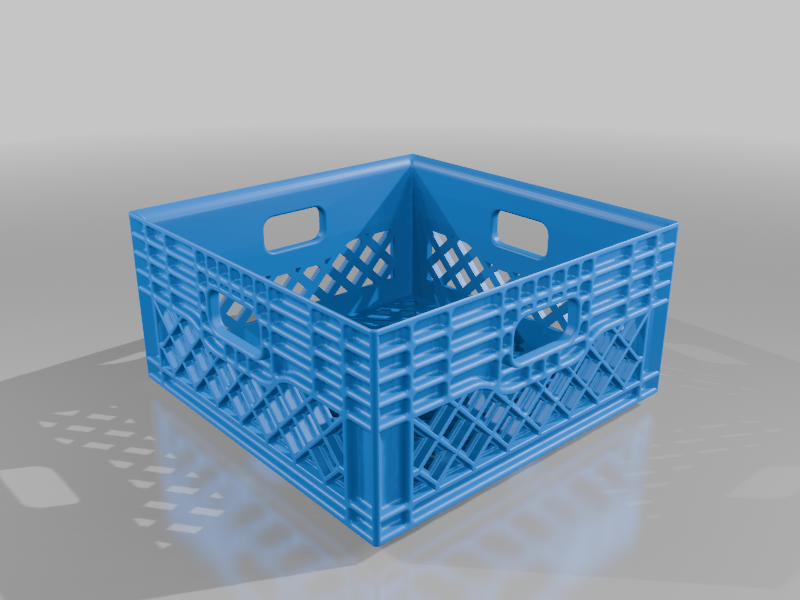

I have seen crates before, but nothing that I could fit Costco size battery packs in. Size is roughly 4 5/8" x 4 5/8" x 2 3/8" High or 117.7mm x 117.7mm x 60.9mm

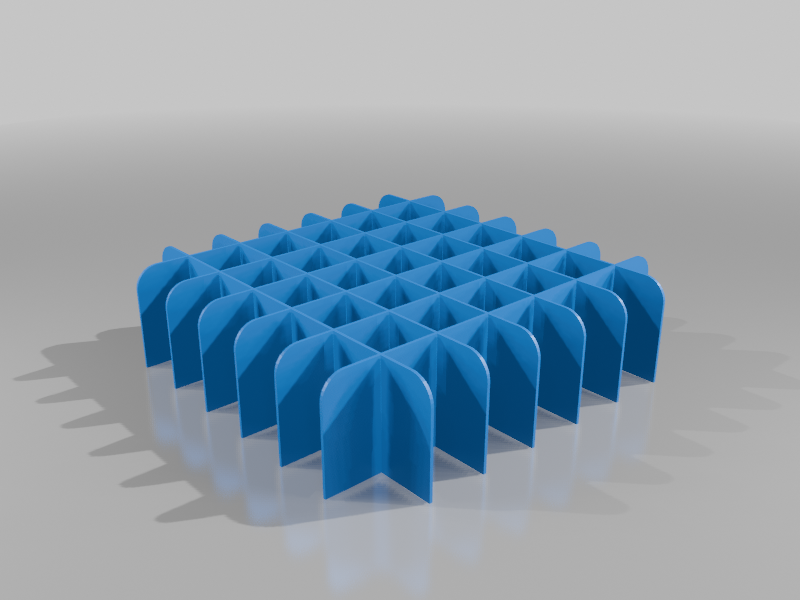

AA - 49 spaces

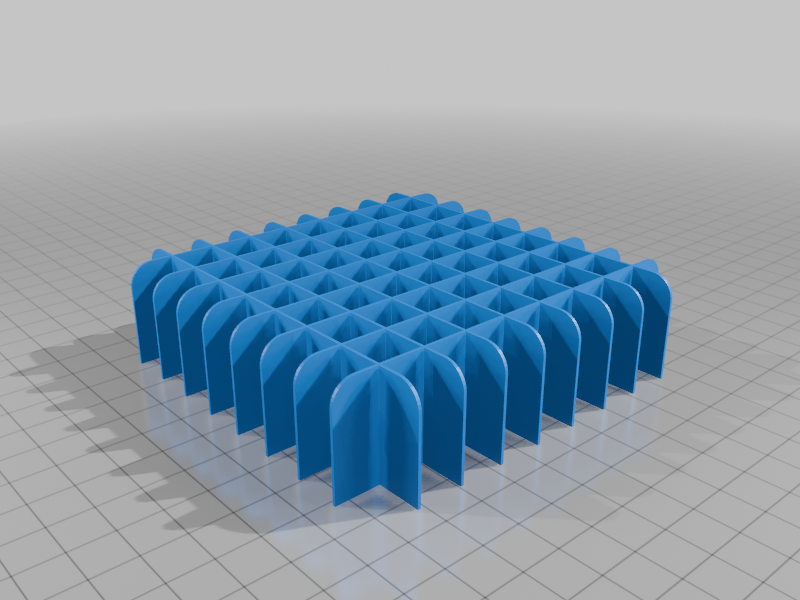

AAA - 81 spaces.

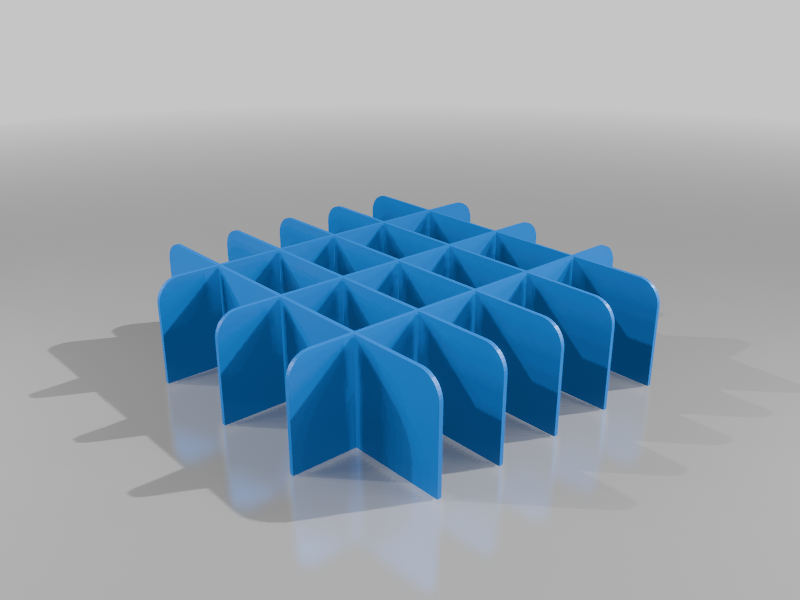

9V - 24 spaces.

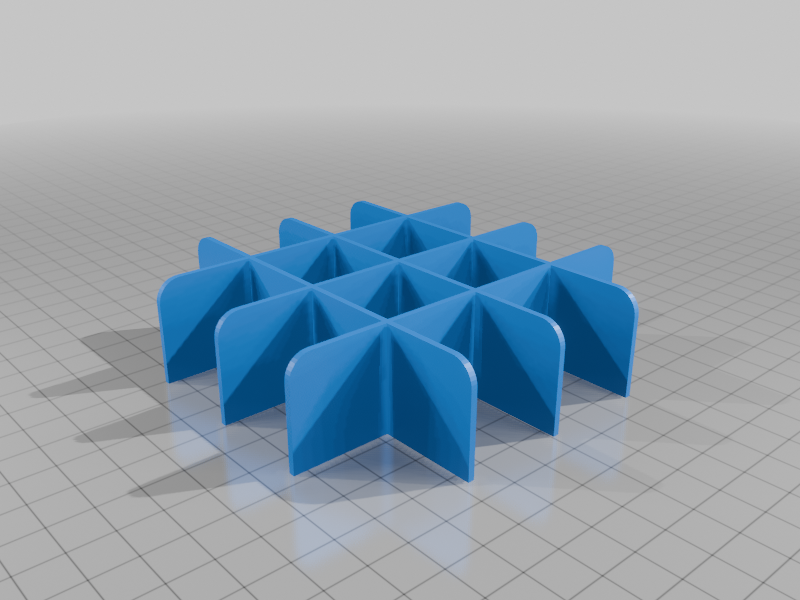

C - 16 spaces

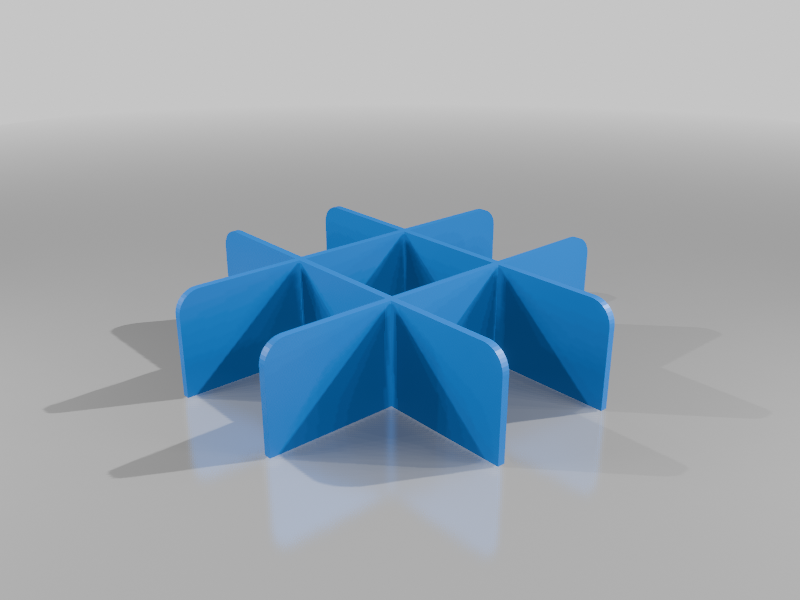

D - 9 Spaces (Scale the crate Z axis 20% to fit the height of the battery)
Update Dec 10, 2024
CrateStandardv7
Increased fillet on bottom indent to minimize unsupported overhang.
Update Dec 13, 2024
Added 9V and C battery spacers.
Update Jan 3, 2025
Added D battery spacer. Note that the current crate height is not tall enough for this size.
Scaling the crate Z axis 20% will do the trick.
