Macropad 4x4
door DiaTryma
Printbare bestanden (12)
-
stepCase.STEP
354 Ko · 374 downloads
-
step
KeyCap_Flat.STEP
114 Ko · 363 downloads
-
step
KeyCap_Indented.STEP
225 Ko · 366 downloads
-
step
MCU_Cover.STEP
140 Ko · 361 downloads
-
step
Switch_Plate.STEP
799 Ko · 360 downloads
-
step
Switch_Socket_Plate.STEP
2.4 Mo · 366 downloads
-
stlCase.STL
287 Ko · 422 downloads
-
stlKeyCap_Flat.STL
92 Ko · 421 downloads
-
stlKeyCap_Indented.STL
161 Ko · 427 downloads
-
stlMCU_Cover.STL
66 Ko · 406 downloads
-
stlSwitch_Plate.STL
295 Ko · 404 downloads
-
stlSwitch_Socket_Plate.STL
3.4 Mo · 429 downloads
Beschrijving

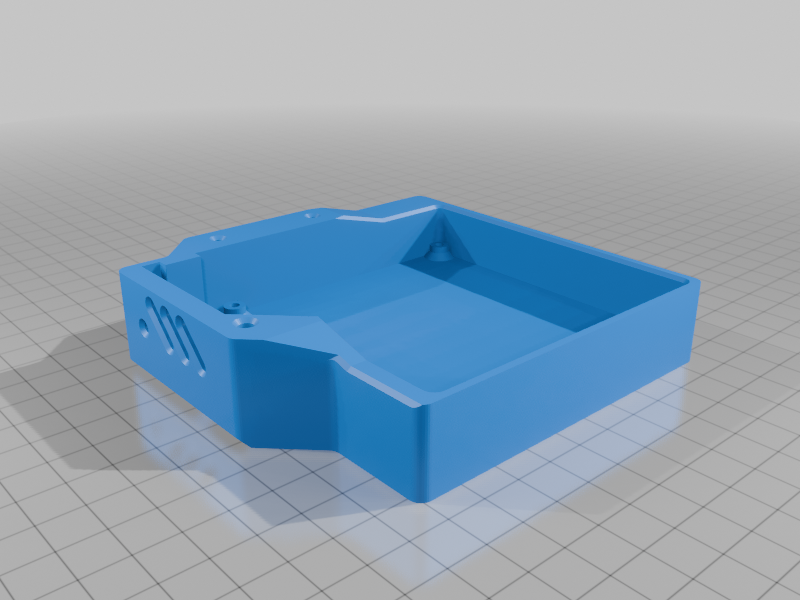

[NOTE: Certain patterning on the MCU Cover as seen in the photo have been removed from the CAD, it being a personal symbol of sorts. Feel free to edit the file to add whatever pattern desired]
16 key (4x4) macropad STEP and STL files.

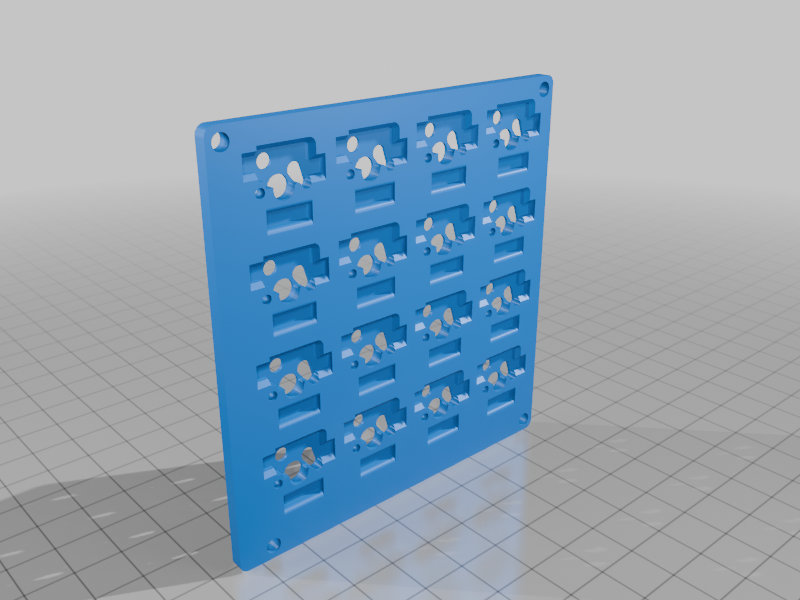

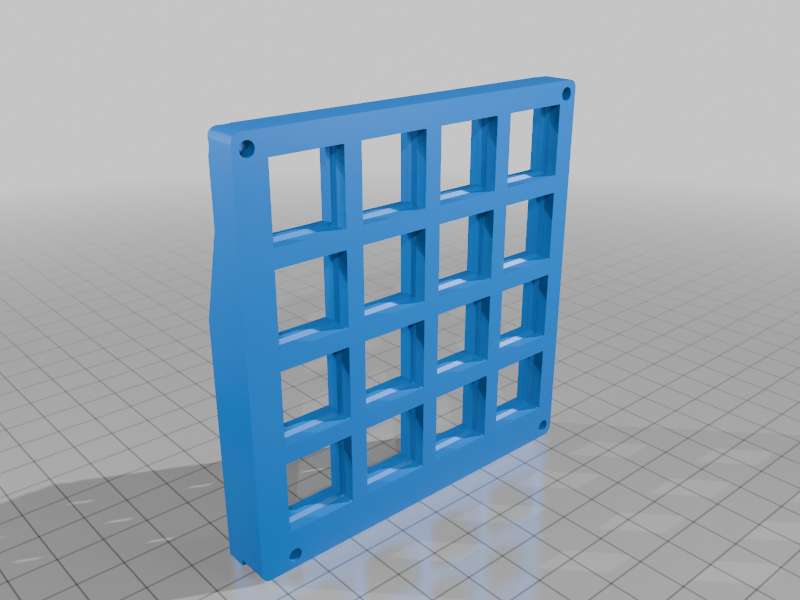

Runs on an Arduino Pro Micro (CAD made around the board with soldered header pins), with the firmware created using QMK. Takes Kailh Box Cream Pro and Kailh Box Jade switches (snaps fit on Switch Plate). This uses Kailh hot-swap sockets (snaps fit on Switch Socket Plate)

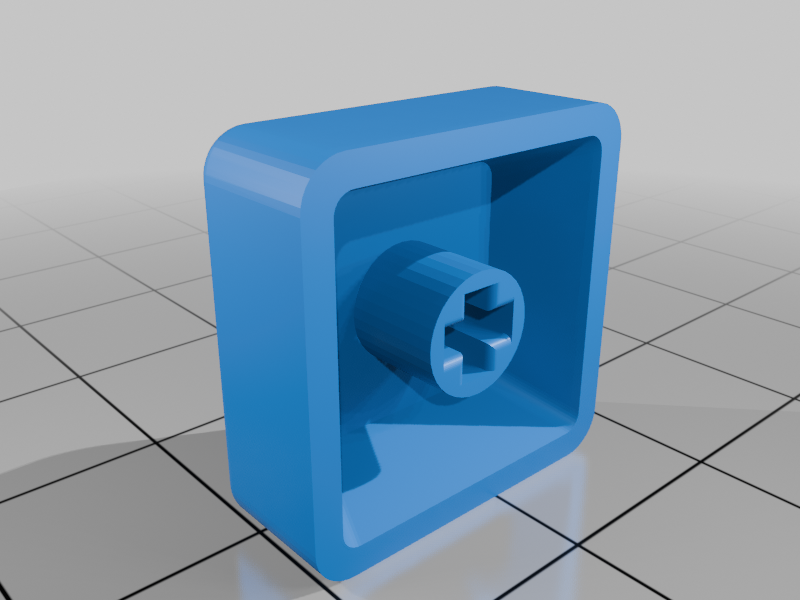

The keykaps are designed to friction fit on the switches in a way that they can be removed without taking the stitch off the plate. However, depending on printer tolerances, feel free to edit the keycap stems.
