Pegboard hook system
par reeseallen
Fichiers imprimables (102)
-
stlPegboard-H-1x_loops_10_mm_wide_base.STL
39 Ko · 18 252 téléchargements
-
stlPegboard-H-1x_loops_15_mm.STL
48 Ko · 18 160 téléchargements
-
stlPegboard-H-1x_loops_20_mm.STL
53 Ko · 18 129 téléchargements
-
stlPegboard-H-1x_loops_20_mm_wide_base.STL
51 Ko · 18 122 téléchargements
-
stlPegboard-H-3x_loops_15_mm.STL
101 Ko · 18 156 téléchargements
-
stlPegboard-H-1x_loops_25_mm_wide_base.STL
54 Ko · 18 096 téléchargements
-
stlPegboard-H-1x_loops_30_mm.STL
56 Ko · 18 092 téléchargements
-
stlPegboard-H-1x_loops_15_mm_wide_base.STL
46 Ko · 18 090 téléchargements
-
stlPegboard-H-5x_loops_20_mm.STL
153 Ko · 18 117 téléchargements
-
stlPegboard-H-1x_loops_10_mm.STL
42 Ko · 18 064 téléchargements
-
stlPegboard-H-5x_loops_10_mm.STL
123 Ko · 18 080 téléchargements
-
stlPegboard-H-Default.STL
26 Ko · 18 069 téléchargements
-
stlPegboard-H-3x_loops_20_mm.STL
112 Ko · 18 036 téléchargements
-
stlPegboard-H-5x_loops_15_mm.STL
139 Ko · 18 044 téléchargements
-
stlPegboard-H-3x_loops_25_mm.STL
119 Ko · 18 024 téléchargements
-
stlPegboard-H-7x_loops_25_mm.STL
206 Ko · 18 017 téléchargements
-
stlPegboard-H-Double_brace_2in.STL
36 Ko · 18 021 téléchargements
-
stlPegboard-H-7x_loops_10_mm.STL
164 Ko · 17 999 téléchargements
-
stlPegboard-H-7x_loops_20_mm.STL
193 Ko · 17 988 téléchargements
-
stlPegboard-H-7x_loops_15_mm.STL
176 Ko · 17 986 téléchargements
-
stlPegboard-H-Double_brace_2in_with_pegs.STL
187 Ko · 17 982 téléchargements
-
stlPegboard-H-Double_brace_6in.STL
35 Ko · 17 963 téléchargements
-
stlPegboard-H-3x_loops_10_mm.STL
86 Ko · 17 953 téléchargements
-
stlPegboard-H-1x_loops_25_mm.STL
56 Ko · 17 934 téléchargements
-
stlPegboard-H-Lateral_brace.STL
26 Ko · 17 955 téléchargements
-
stlPegboard-H-Double_brace_3in.STL
35 Ko · 17 943 téléchargements
-
stlPegboard-H-Double_brace_3in_with_pegs.STL
217 Ko · 17 927 téléchargements
-

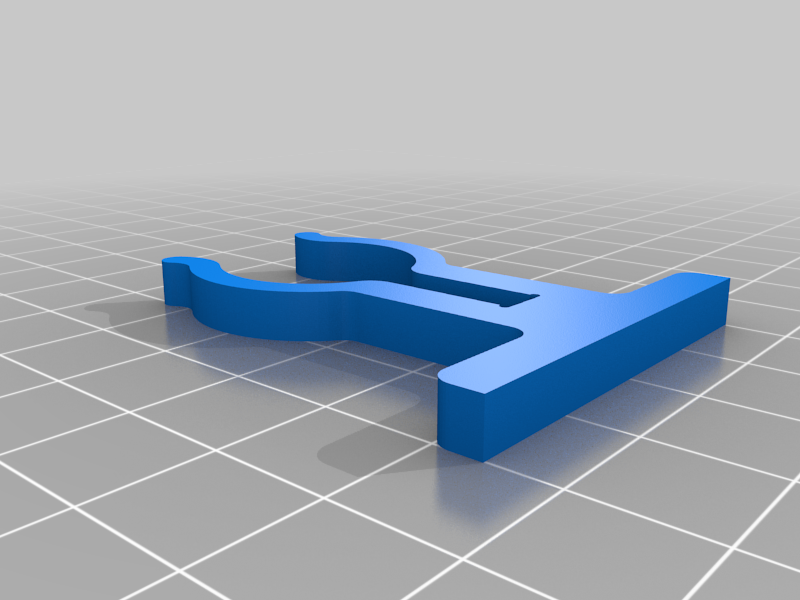

stlPegboard-H-Open_loop_12x6_mm_wide_base.STL
51 Ko · 17 905 téléchargements
-
stlPegboard-H-Double_brace_6in_with_pegs.STL
302 Ko · 17 912 téléchargements
-
stlPegboard-H-Open_loop_12x6_mm.STL
53 Ko · 17 912 téléchargements
-
stlPegboard-H-Double_brace_5in.STL
35 Ko · 17 906 téléchargements
-
stlPegboard-H-Open_loop_12x8_mm.STL
50 Ko · 17 883 téléchargements
-
stlPegboard-H-Double_brace_7in.STL
35 Ko · 17 860 téléchargements
-
stlPegboard-H-5x_loops_25_mm.STL
164 Ko · 17 864 téléchargements
-
stlPegboard-H-Double_brace_7in_with_pegs.STL
323 Ko · 17 854 téléchargements
-
stlPegboard-H-Double_brace_4in.STL
35 Ko · 17 855 téléchargements
-
stlPegboard-H-Open_loop_15x12_mm_wide_base.STL
49 Ko · 17 843 téléchargements
-
stlPegboard-H-Open_loop_12x9_mm_wide_base.STL
47 Ko · 17 811 téléchargements
-
stlPegboard-H-Open_loop_15x8_mm.STL
57 Ko · 17 819 téléchargements
-
stlPegboard-H-Open_loop_12x9_mm.STL
50 Ko · 17 807 téléchargements
-
stlPegboard-H-Double_brace_4in_with_pegs.STL
249 Ko · 17 811 téléchargements
-
stlPegboard-H-Open_loop_15x10_mm_wide_base.STL
52 Ko · 17 798 téléchargements
-
stlPegboard-H-Lateral_brace_wide_base.STL
23 Ko · 17 796 téléchargements
-
stlPegboard-H-Open_loop_15x10_mm.STL
54 Ko · 17 774 téléchargements
-
stlPegboard-H-Open_loop_20x10_mm_wide_base.STL
59 Ko · 17 764 téléchargements
-
stlPegboard-H-Open_loop_15x12_mm.STL
52 Ko · 17 755 téléchargements
-
stlPegboard-H-Double_brace_5in_with_pegs.STL
273 Ko · 17 784 téléchargements
-
stlPegboard-H-Open_loop_20x10_mm.STL
62 Ko · 17 752 téléchargements
-
stlPegboard-H-Open_loop_15x8_mm_wide_base.STL
55 Ko · 17 747 téléchargements
-
stlPegboard-H-Open_loop_25x12_mm.STL
65 Ko · 17 730 téléchargements
-
stlPegboard-H-Open_loop_25x16_mm_wide_base.STL
60 Ko · 17 729 téléchargements
-
stlPegboard-H-Open_loop_20x14_mm.STL
58 Ko · 17 709 téléchargements
-
stlPegboard-H-Open_loop_20x14_mm_wide_base.STL
56 Ko · 17 705 téléchargements
-
stlPegboard-H-Open_loop_25x14_mm_wide_base.STL
62 Ko · 17 688 téléchargements
-
stlPegboard-H-Open_loop_20x12_mm_wide_base.STL
58 Ko · 17 676 téléchargements
-
stlPegboard-H-Open_loop_25x16_mm.STL
63 Ko · 17 691 téléchargements
-
stlPegboard-V-Curved_20x4x2.5.STL
99 Ko · 17 808 téléchargements
-
stlPegboard-H-Open_loop_20x12_mm.STL
60 Ko · 17 672 téléchargements
-
stlPegboard-V-Curved_25x5x2.5.STL
98 Ko · 17 821 téléchargements
-
stlPegboard-H-Open_loop_25x14_mm.STL
64 Ko · 17 652 téléchargements
-
stlPegboard-V-Curved_20x4x4.5.STL
99 Ko · 17 790 téléchargements
-
stlPegboard-V-Curved_20x4x3.5.STL
99 Ko · 17 757 téléchargements
-
stlPegboard-V-Curved_30x7.5x3.5.STL
97 Ko · 17 766 téléchargements
-
stlPegboard-H-Open_loop_25x12_mm_wide_base.STL
64 Ko · 17 642 téléchargements
-
stlPegboard-V-Curved_30x7.5x2.5.STL
97 Ko · 17 732 téléchargements
-
stlPegboard-V-Curved_25x5x4.5.STL
98 Ko · 17 723 téléchargements
-
stlPegboard-V-Curved_35x10x3.5.STL
91 Ko · 17 677 téléchargements
-
stlPegboard-V-Curved_40x12x3.5.STL
90 Ko · 17 690 téléchargements
-
stlPegboard-H-Open_loop_12x8_mm_wide_base.STL
48 Ko · 17 597 téléchargements
-
stlPegboard-V-Curved_40x12x4.5.STL
90 Ko · 17 678 téléchargements
-
stlPegboard-V-Hooked_20x3.5.STL
102 Ko · 17 694 téléchargements
-
stlPegboard-V-Curved_35x10x4.5.STL
91 Ko · 17 639 téléchargements
-
stlPegboard-V-Hooked_20x4.5.STL
103 Ko · 17 648 téléchargements
-
stlPegboard-V-Curved_30x7.5x4.5.STL
97 Ko · 17 598 téléchargements
-
stlPegboard-V-Hooked_20x2.5.STL
102 Ko · 17 617 téléchargements
-
stlPegboard-V-Hooked_25x3.5.STL
100 Ko · 17 619 téléchargements
-
stlPegboard-V-Drill_holder_rear.STL
84 Ko · 17 652 téléchargements
-
stlPegboard-V-Drill_holder_front.STL
88 Ko · 17 626 téléchargements
-
stlPegboard-V-Hooked_30x3.5.STL
98 Ko · 17 571 téléchargements
-
stlPegboard-V-Hooked_30x4.5.STL
98 Ko · 17 568 téléchargements
-
stlPegboard-V-Curved_25x5x3.5.STL
98 Ko · 17 589 téléchargements
-
stlPegboard-V-Hooked_40x3.5.STL
89 Ko · 17 603 téléchargements
-
stlPegboard-V-Long_hook_100.STL
92 Ko · 17 558 téléchargements
-
stlPegboard-V-Long_hook_75.STL
98 Ko · 17 565 téléchargements
-
stlPegboard-V-Hooked_25x4.5.STL
100 Ko · 17 554 téléchargements
-
stlPegboard-V-Hooked_40x4.5.STL
89 Ko · 17 573 téléchargements
-
stlPegboard-V-Long_hook_125.STL
88 Ko · 17 537 téléchargements
-
stlPegboard-V-Hooked_30x2.5.STL
97 Ko · 17 518 téléchargements
-
stlPegboard-V-Default.STL
280 Ko · 17 503 téléchargements
-
stlPegboard-V-Hooked_25x2.5.STL
99 Ko · 17 518 téléchargements
-
stlPegboard-V-Long_hook_150.STL
90 Ko · 17 506 téléchargements
-
stlPegboard-V-Hooked_35x4.5.STL
96 Ko · 17 527 téléchargements
-
stlPegboard-V-Hooked_35x3.5.STL
96 Ko · 17 510 téléchargements
-
stlPegboard-V-Rack_support_70.STL
149 Ko · 17 423 téléchargements
-
stlPegboard-V-Rack_support_90.STL
188 Ko · 17 411 téléchargements
-
stlPegboard-V-Rack_support_40.STL
107 Ko · 17 436 téléchargements
-
stlPegboard-V-Rack_support_single.STL
119 Ko · 17 447 téléchargements
-
stlPegboard-V-Rack_support_30.STL
118 Ko · 17 524 téléchargements
-
stlPegboard-V-Rack_support_50.STL
102 Ko · 17 398 téléchargements
-
stlPegboard-V-Rack_support_60.STL
148 Ko · 17 381 téléchargements
-
stlPegboard-V-Rack_support_80.STL
195 Ko · 17 369 téléchargements
-
stlPegboard-V-Rack_support_100.STL
183 Ko · 17 382 téléchargements
Description
This system is designed to work with pegboard made from wood or pressboard about 1/8" thick, with 1/4" holes on 1" spacing. When your print settings are tuned, the hooks should snap into the pegboard snugly with very little slop. If you are using a thin metal pegboard panel, or a thicker wooden pegboard, the fit may not be as good.
My favorite material to print with is PLA, and my favorite brand is eSun. For over 10 years, going back to 2015, I have almost exclusively used eSun when printing with PLA, and I still happily recommend it: https://amzn.to/3PuSGM7
This collection includes:

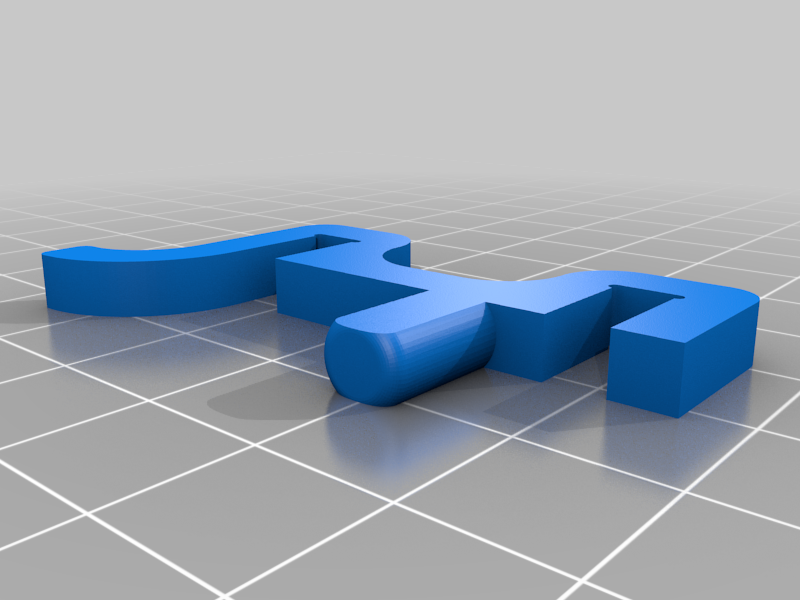

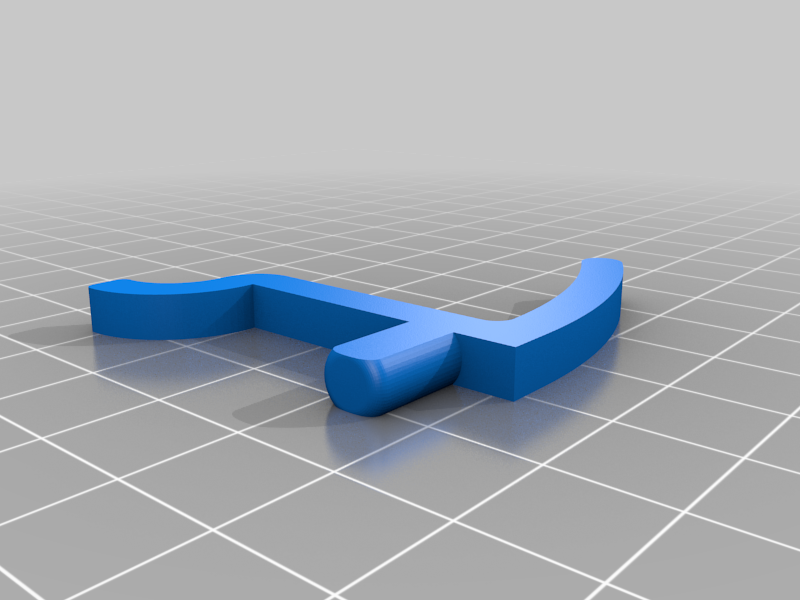

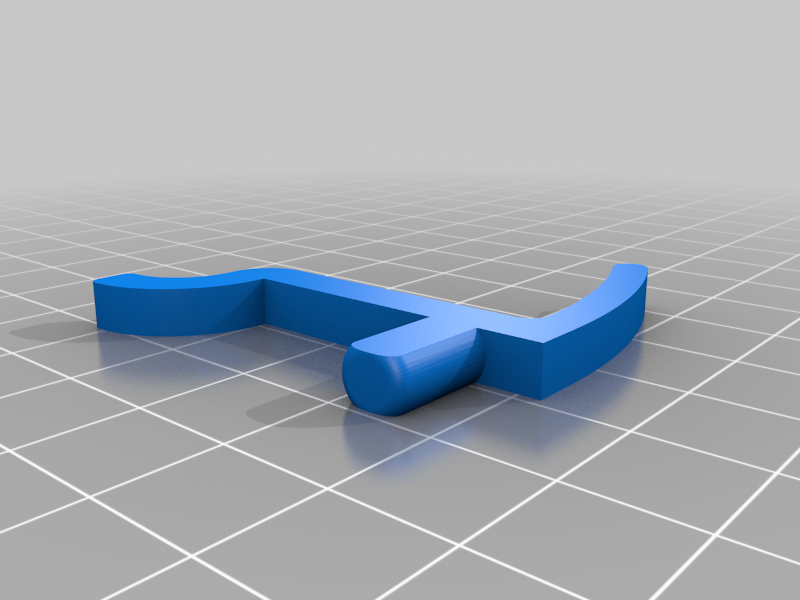

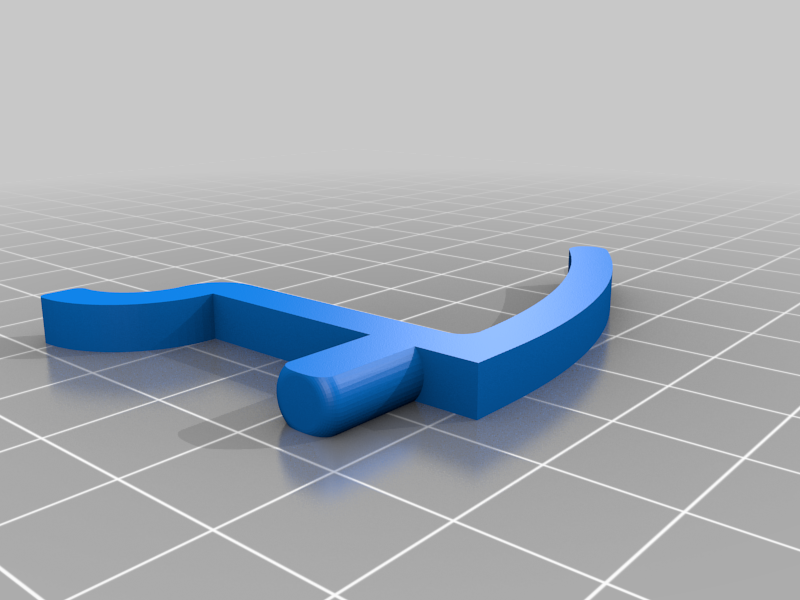

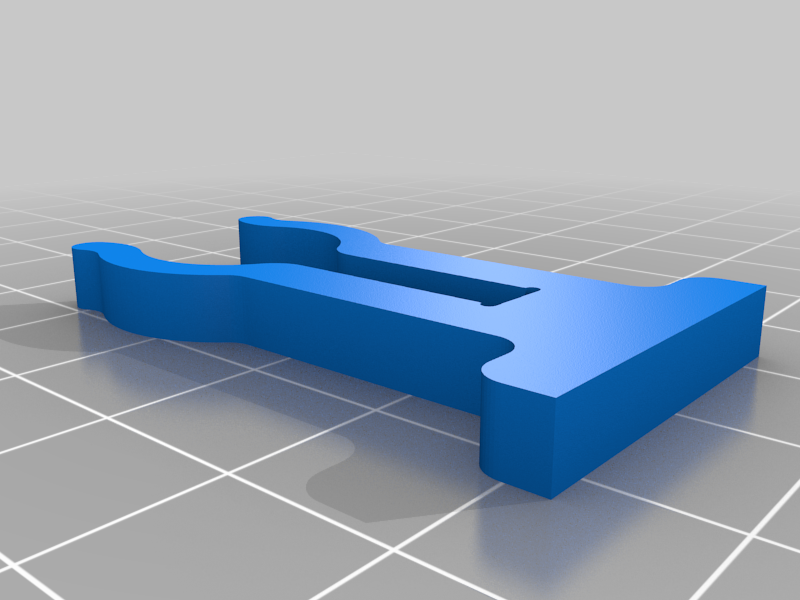

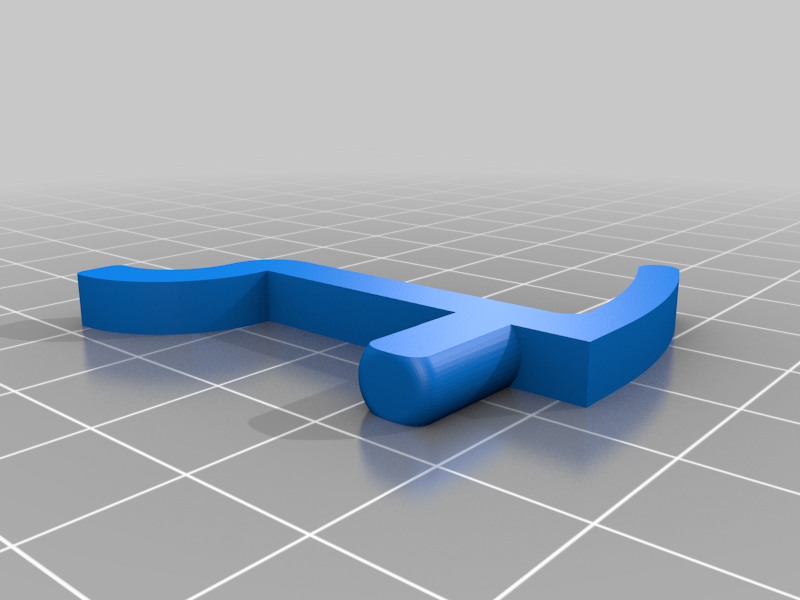

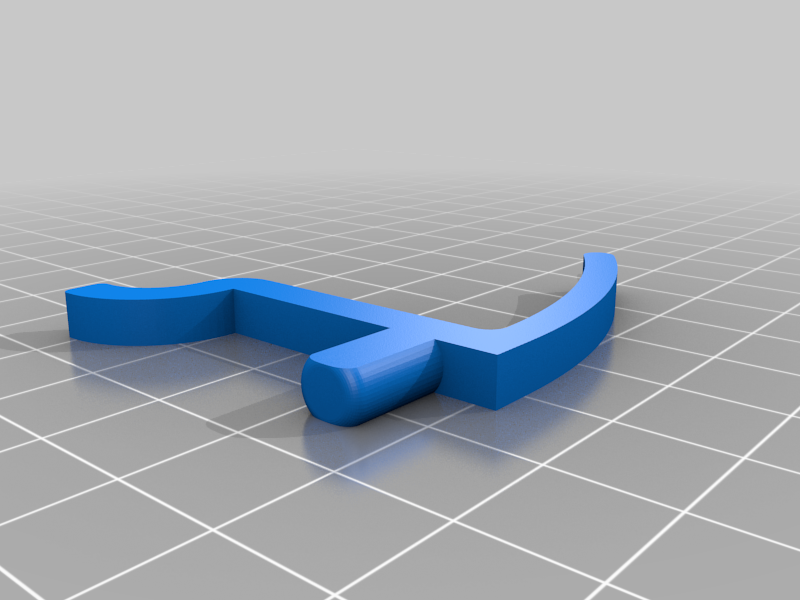

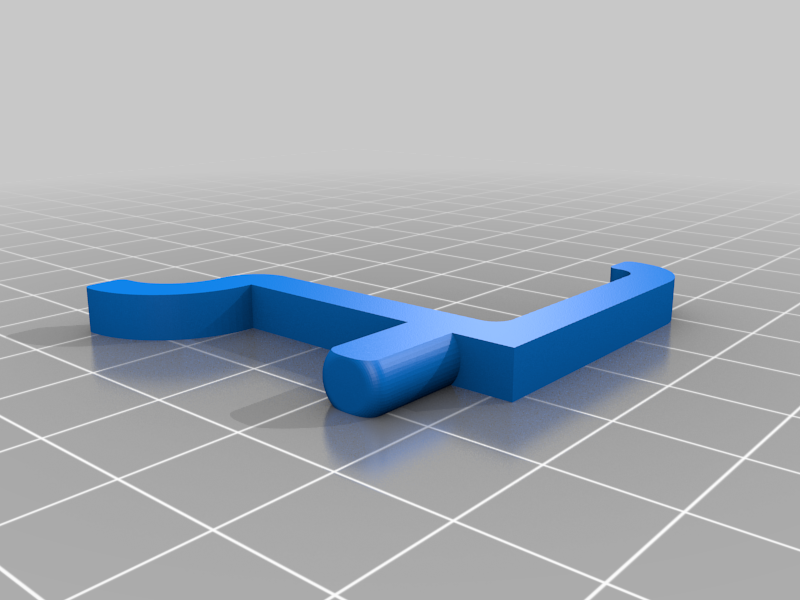

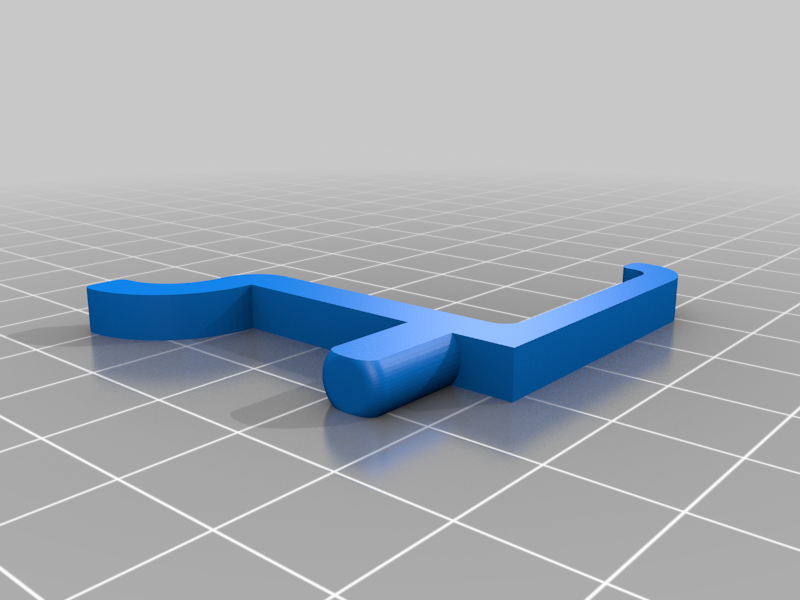

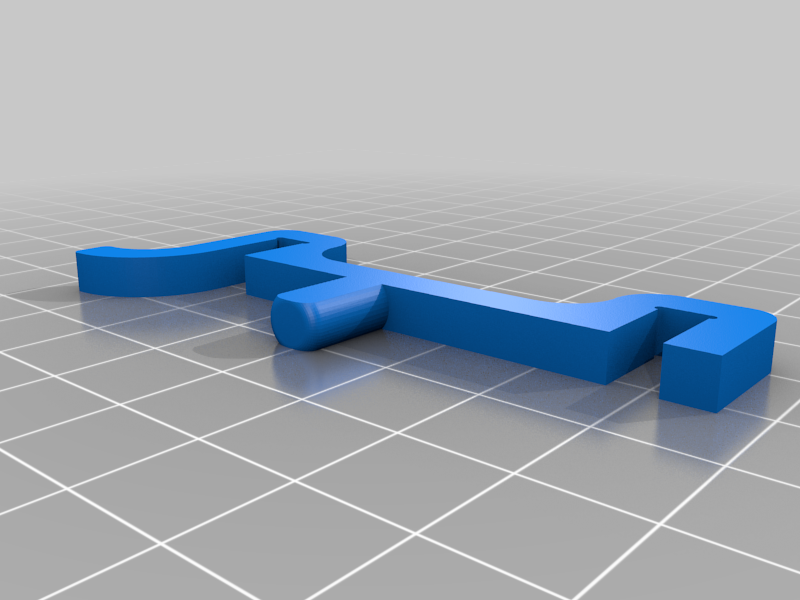

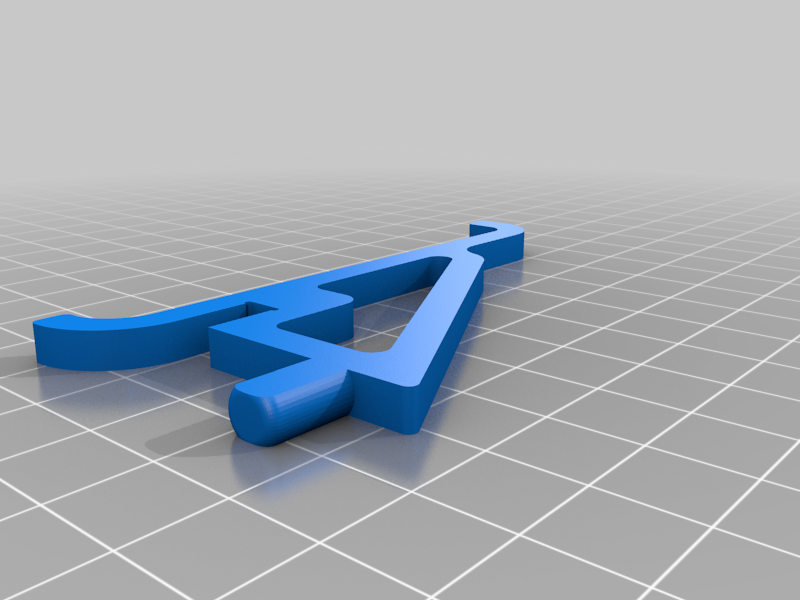

- One-piece curved hooks, based on an arc segment, in various lengths and thicknesses

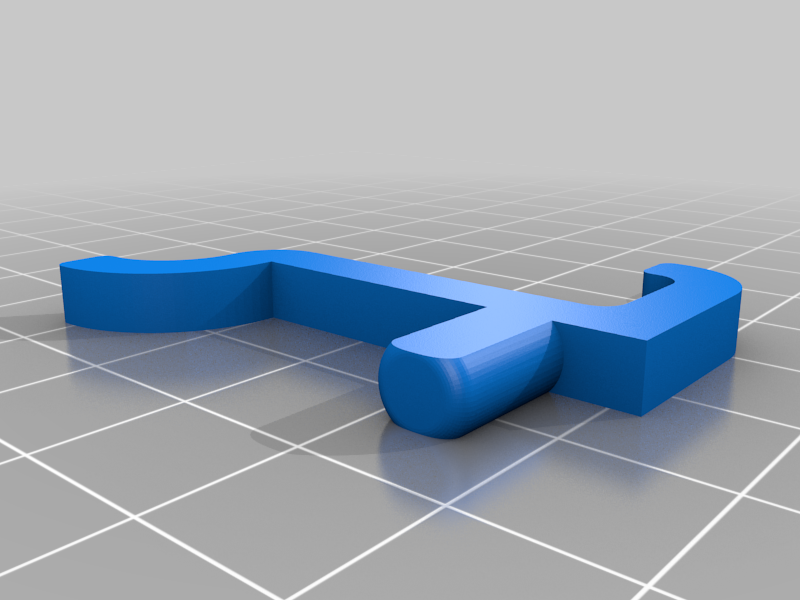

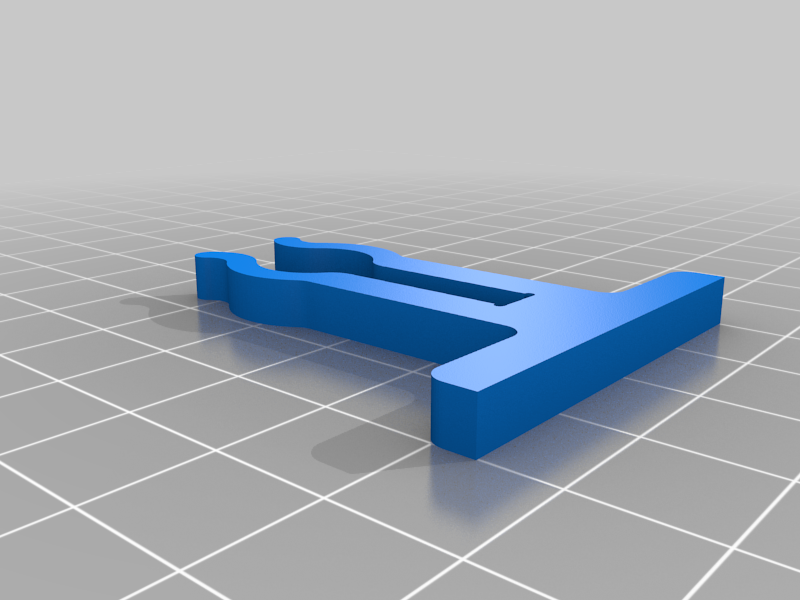

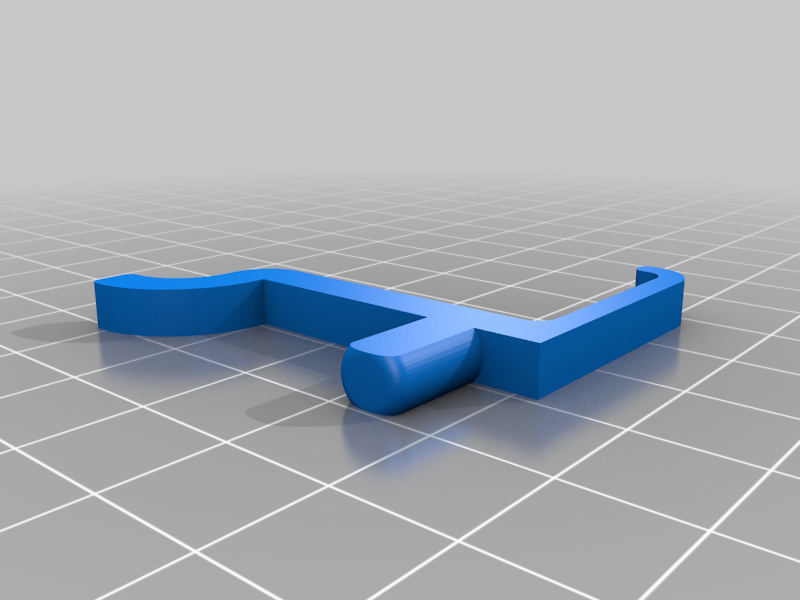

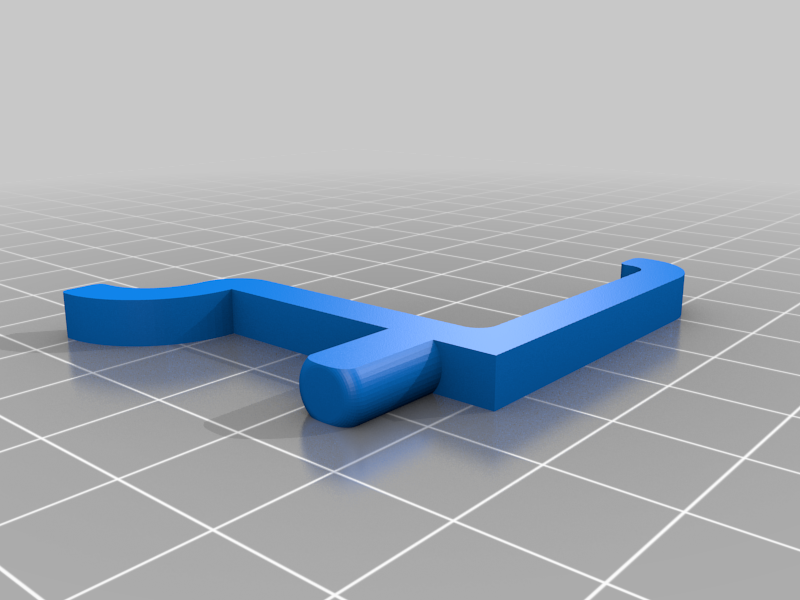

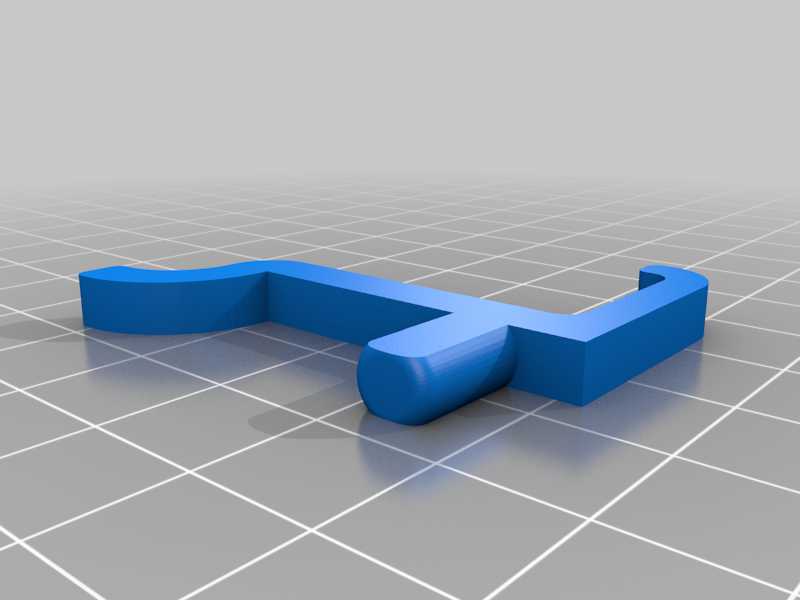

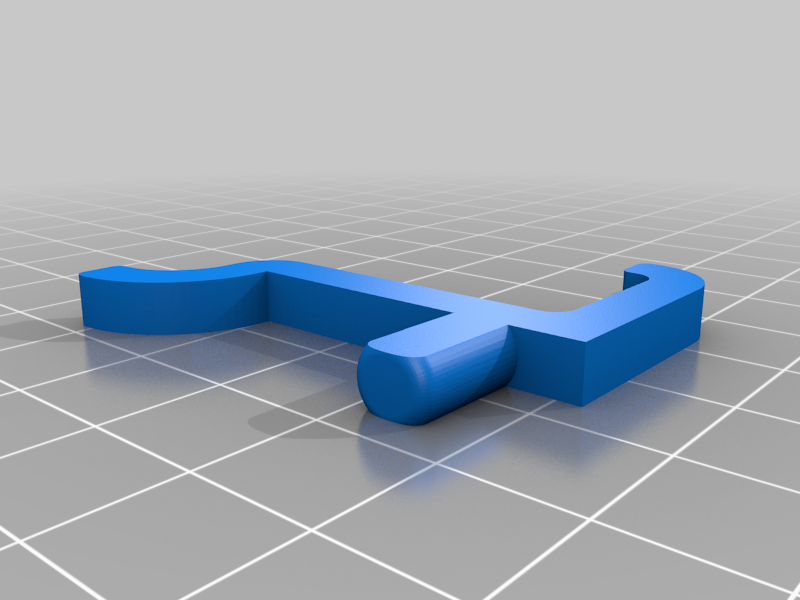

- One-piece hooked hooks that are flat with a little retaining barb on the end, in various lengths and thicknesses

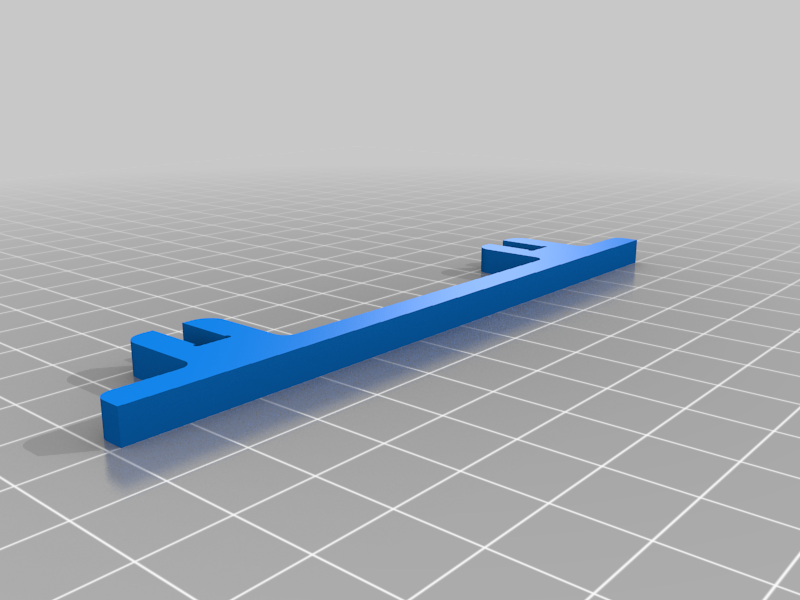

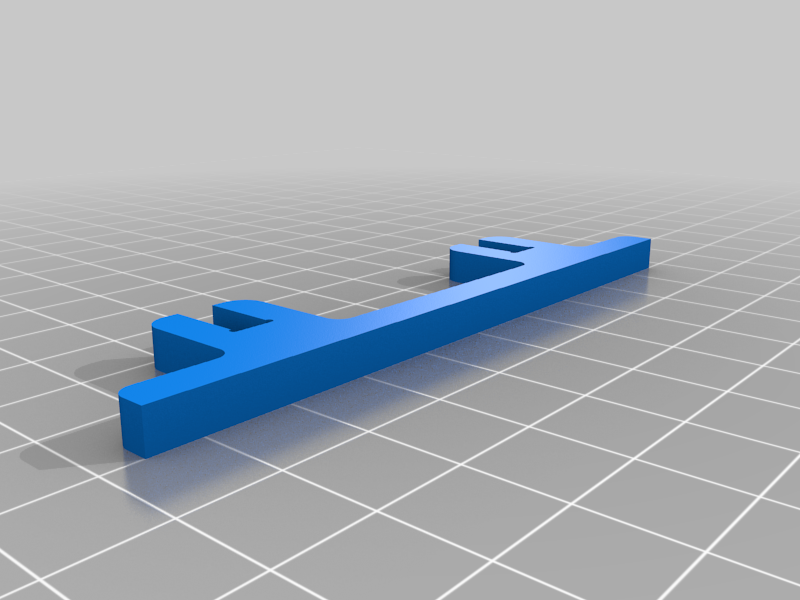

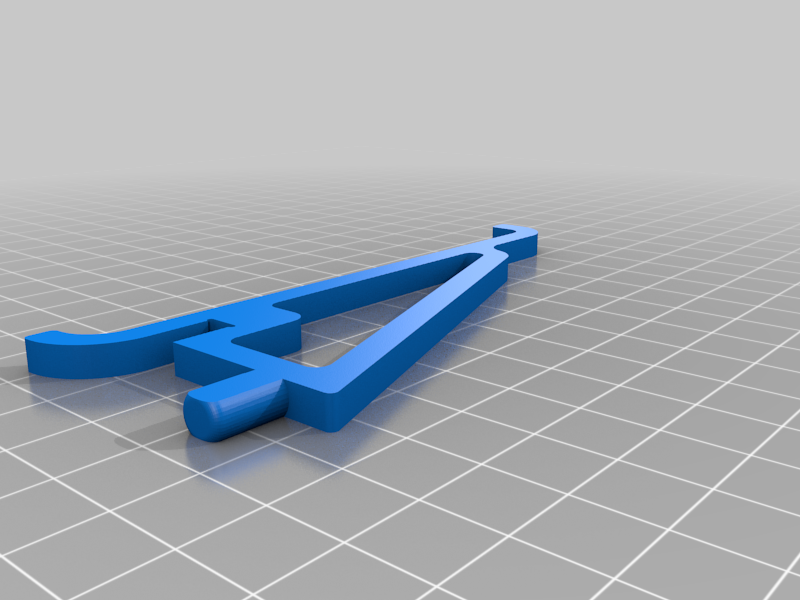

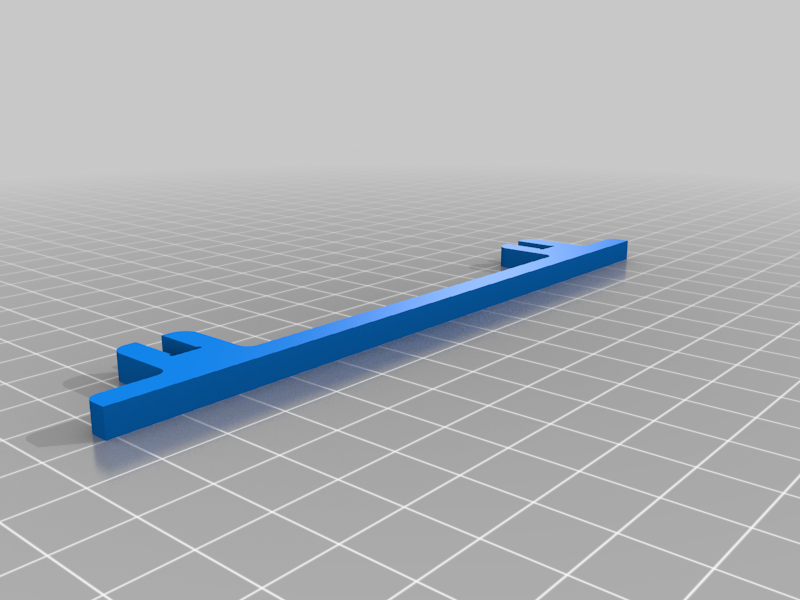

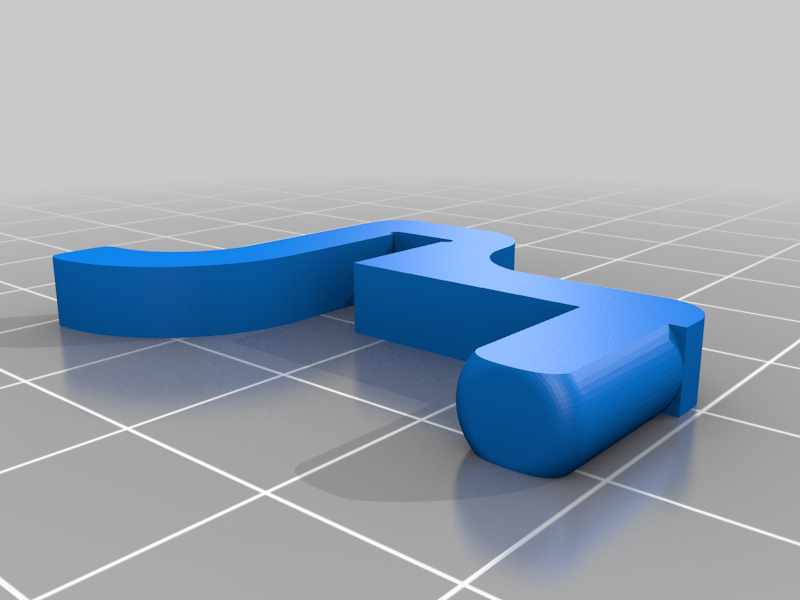

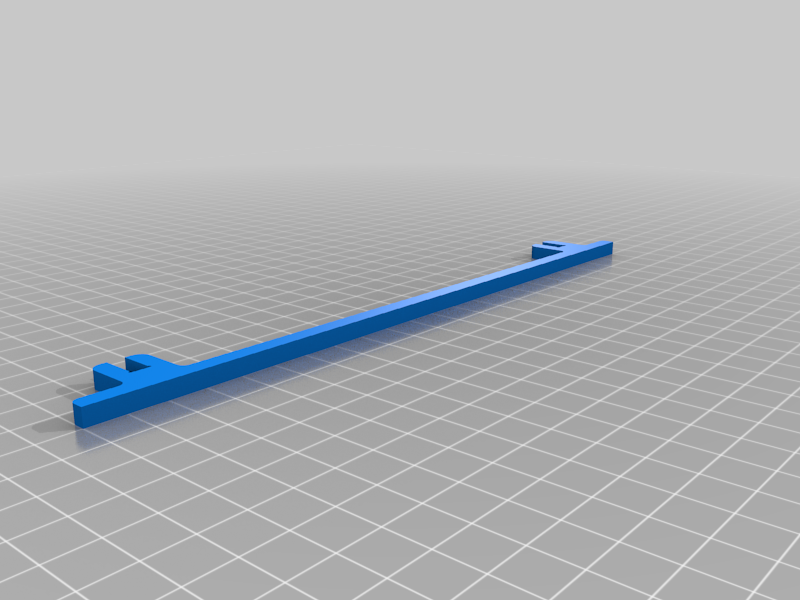

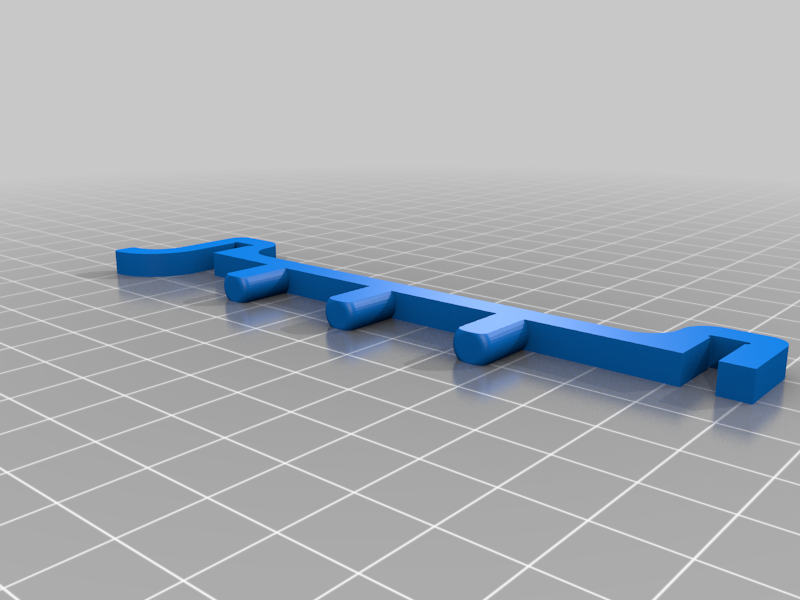

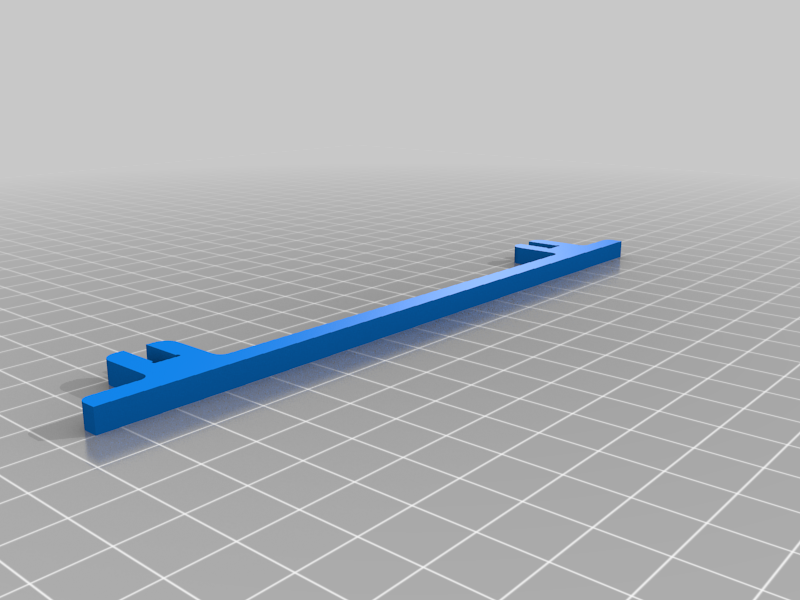

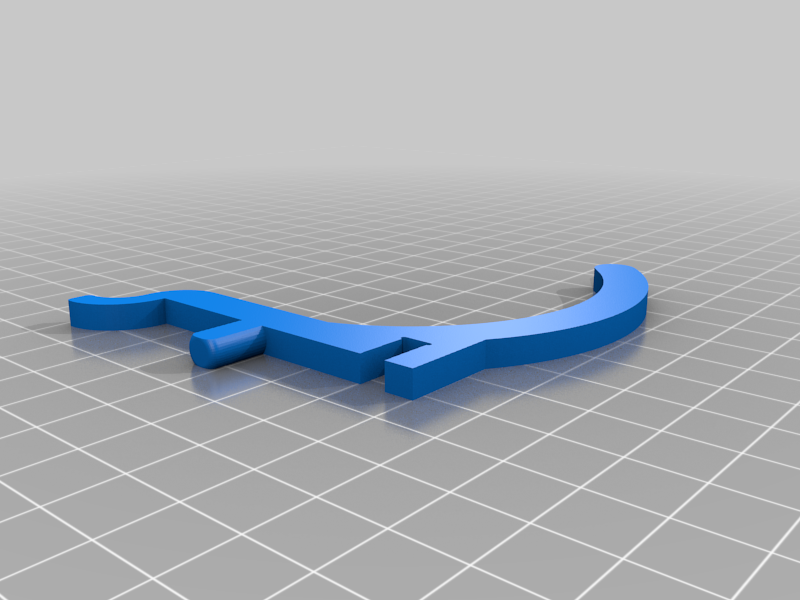

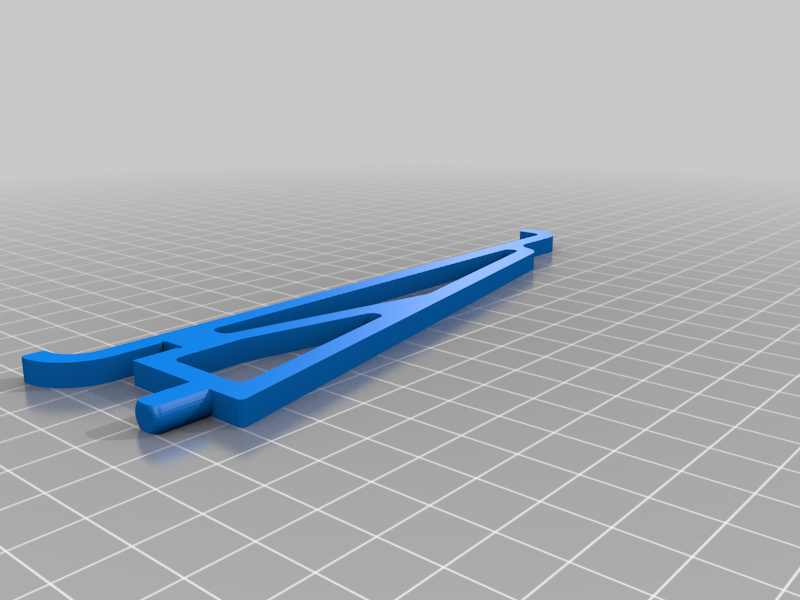

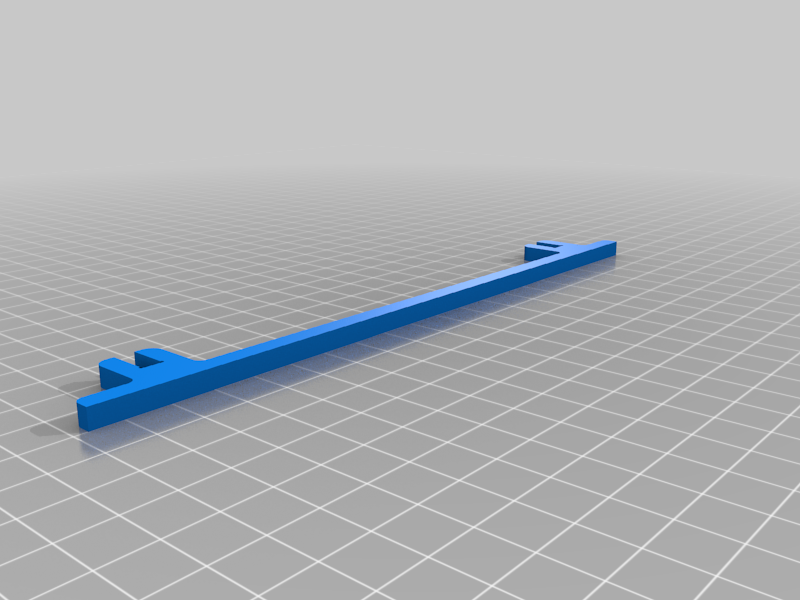

- Two-piece long hooks that are stabilized well with a lateral brace piece, in several lengths

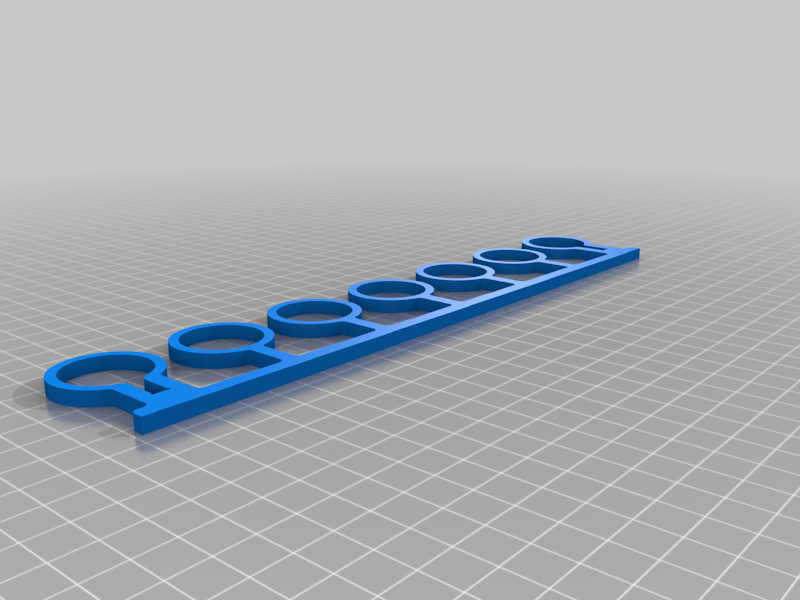

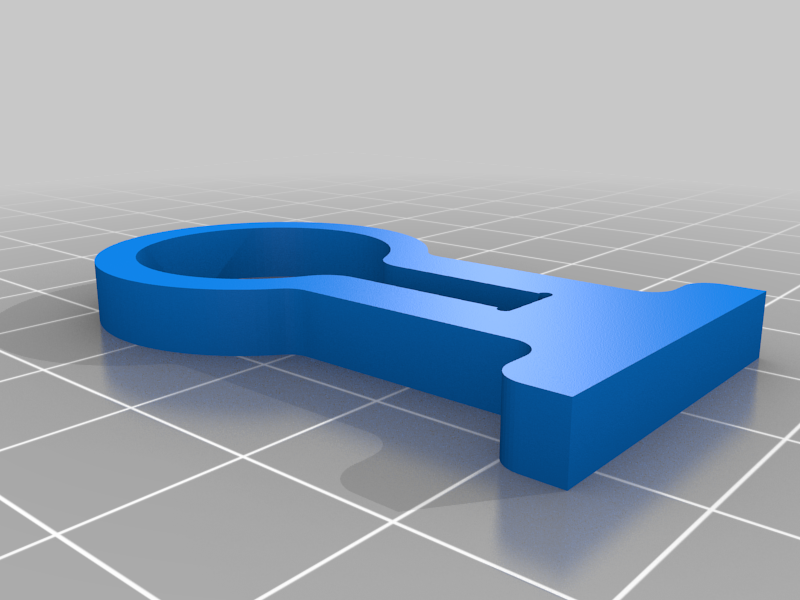

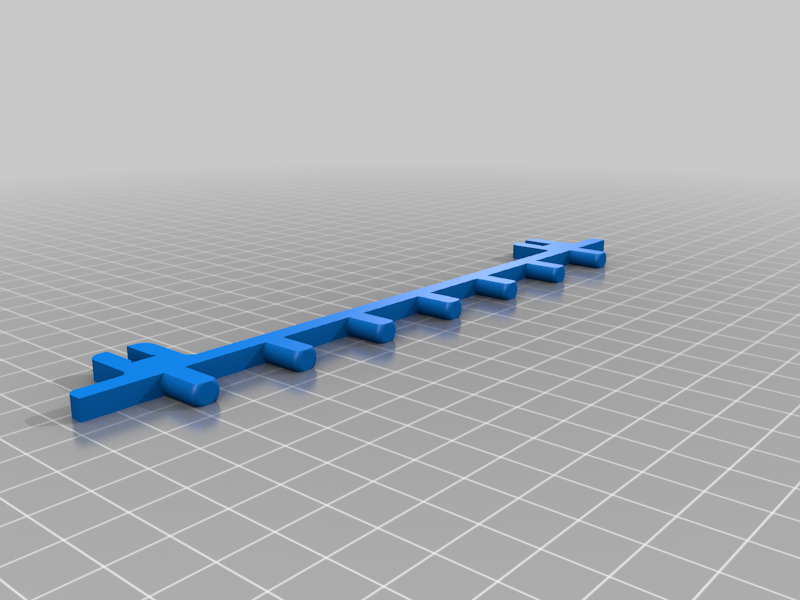

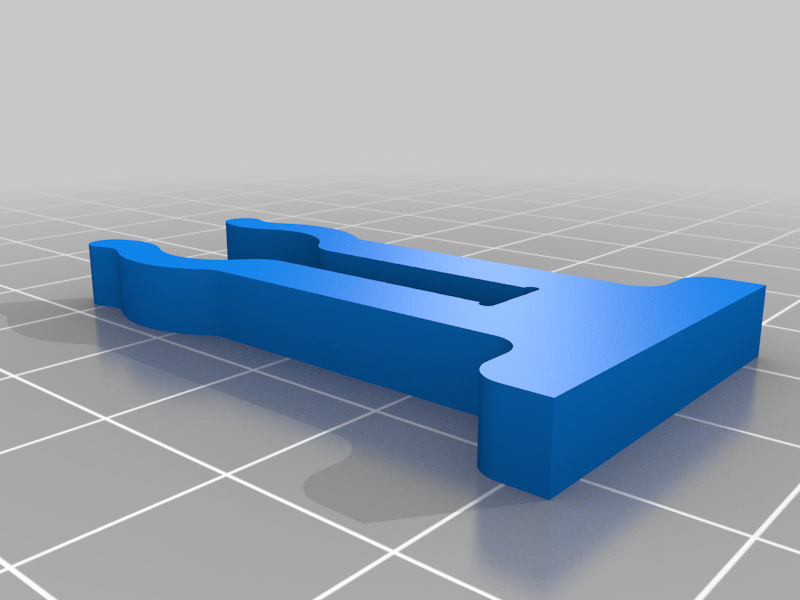

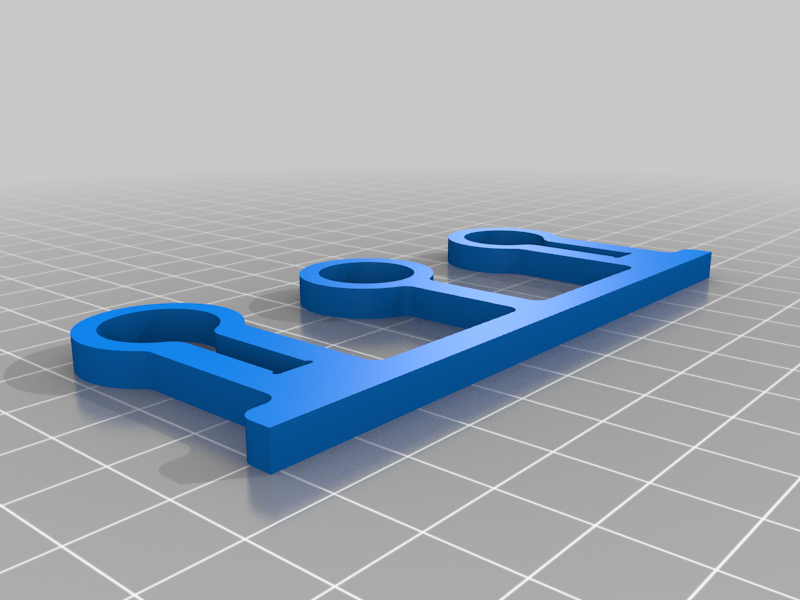

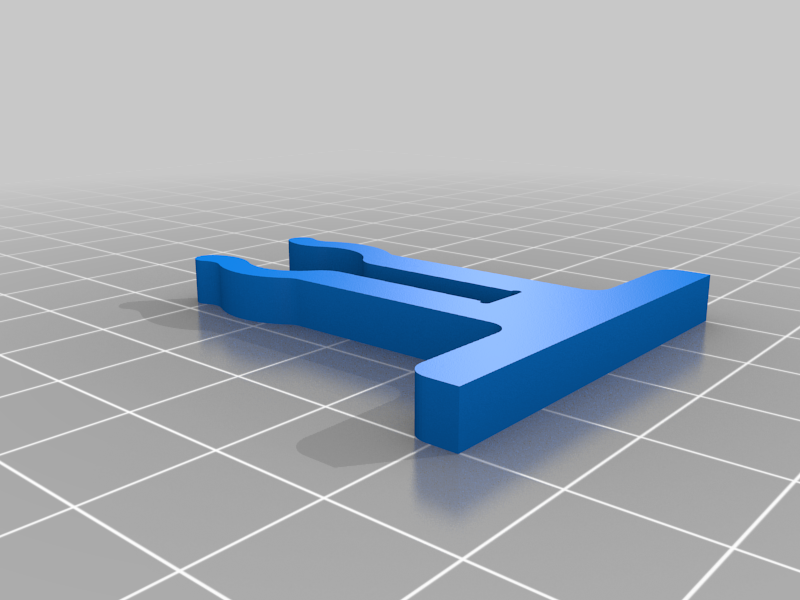

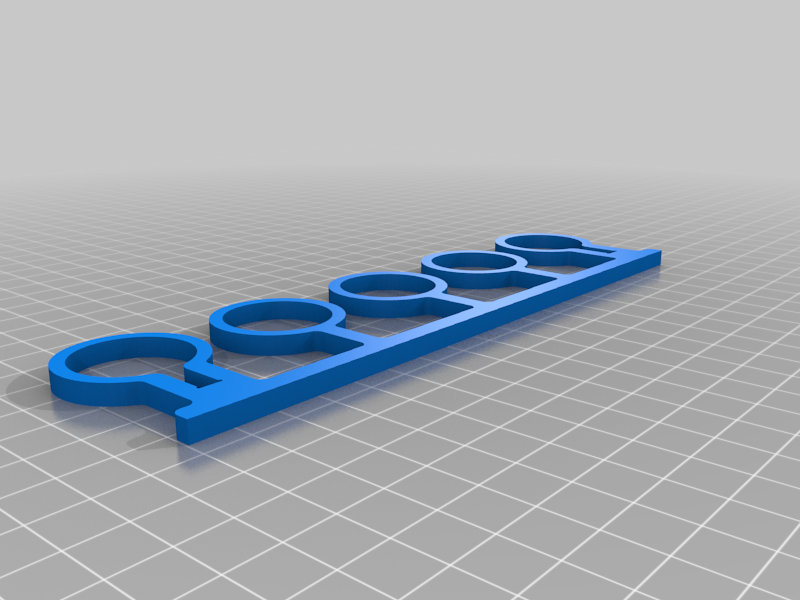

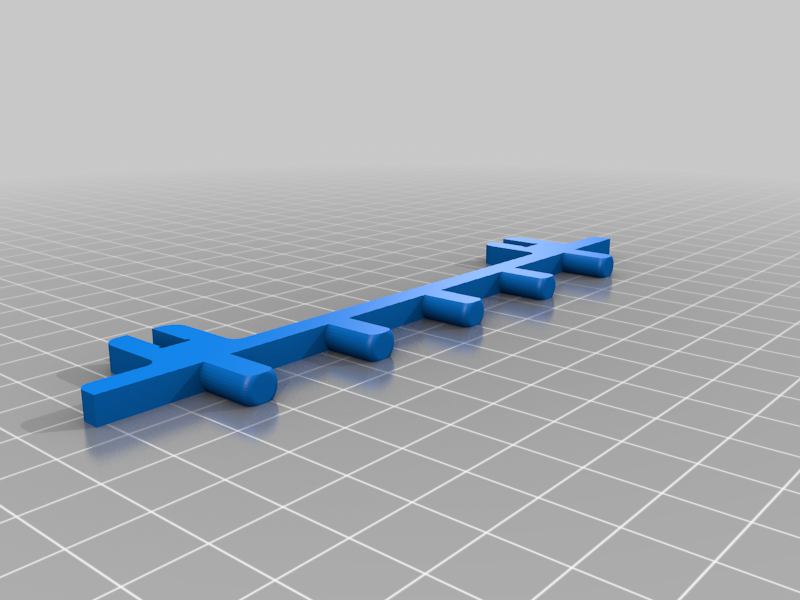

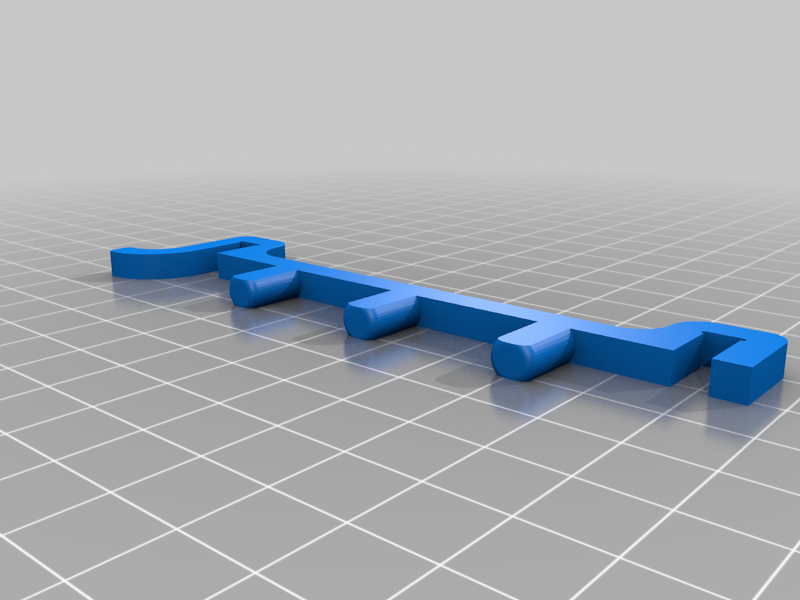

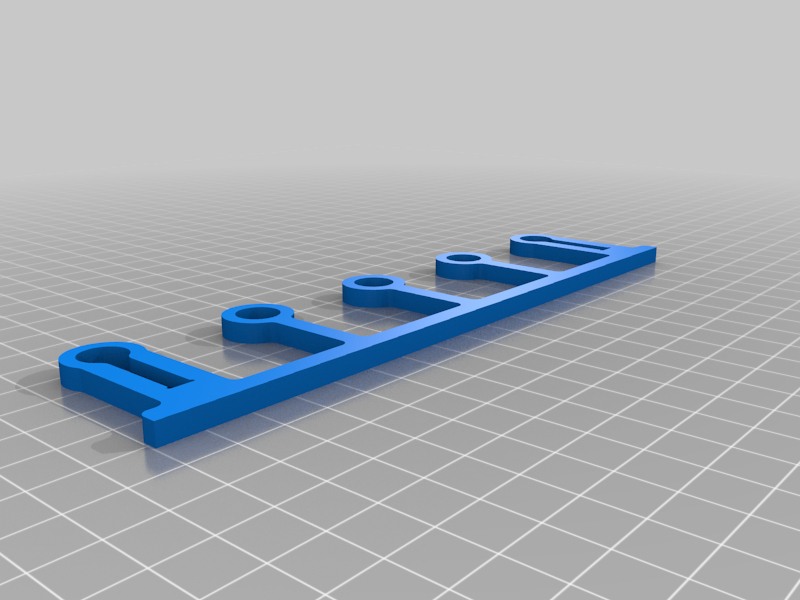

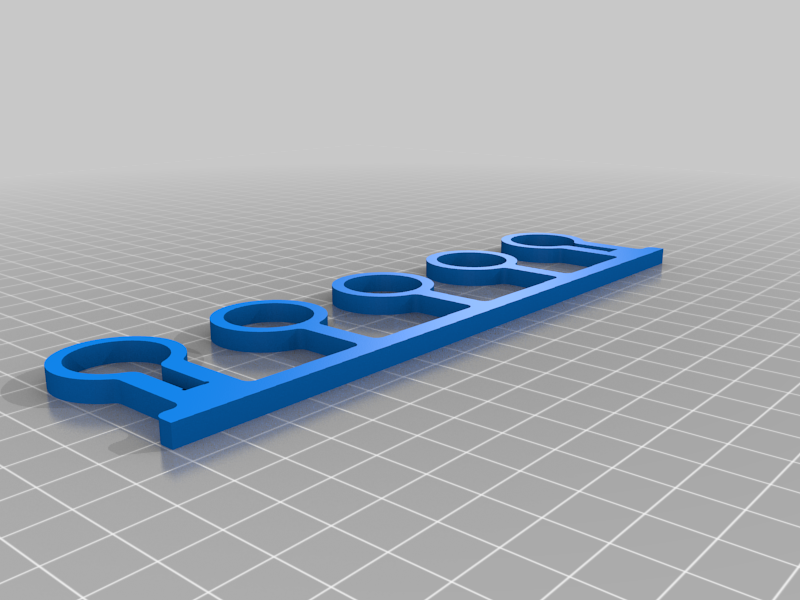

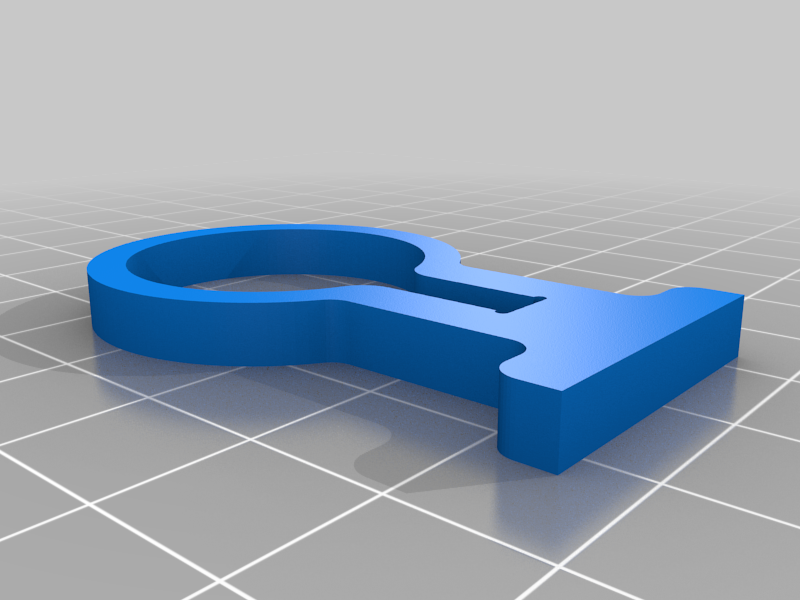

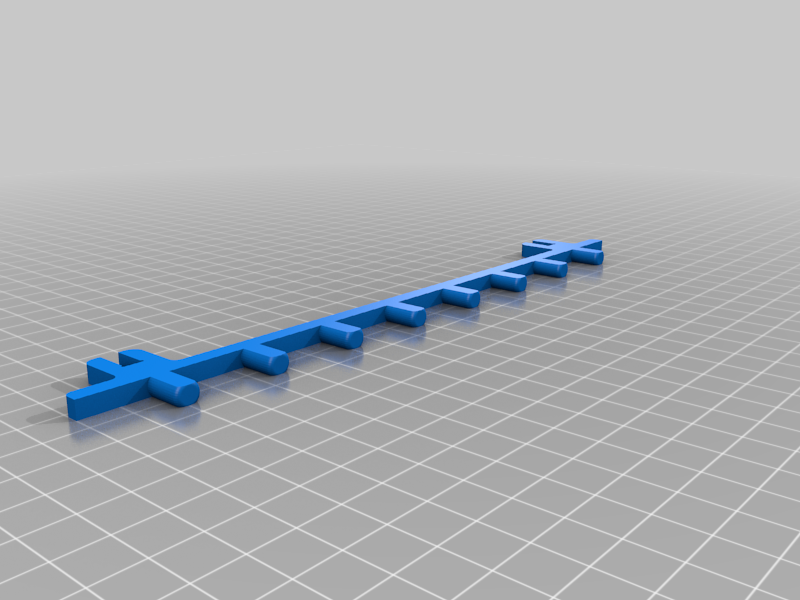

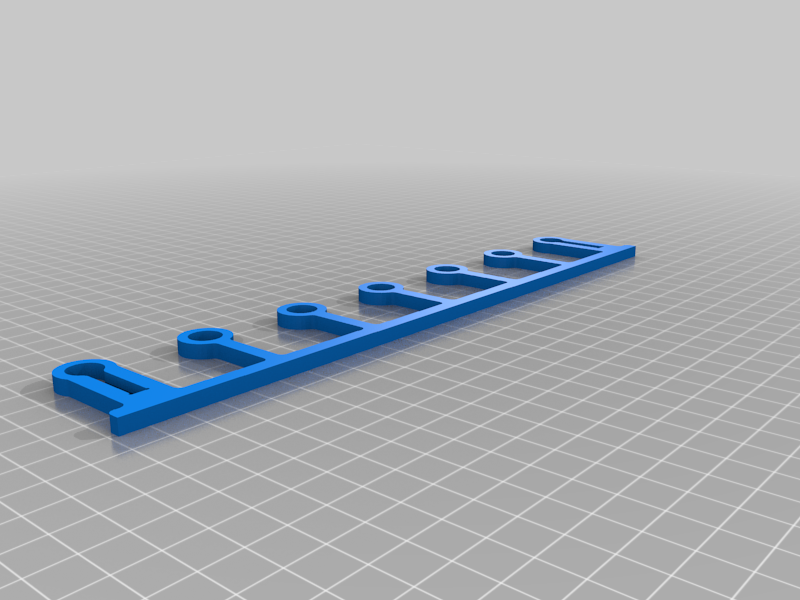

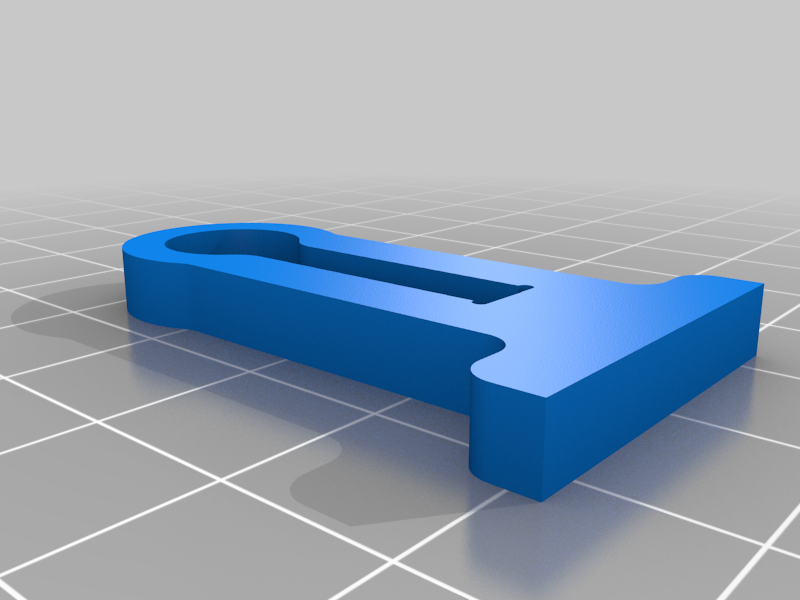

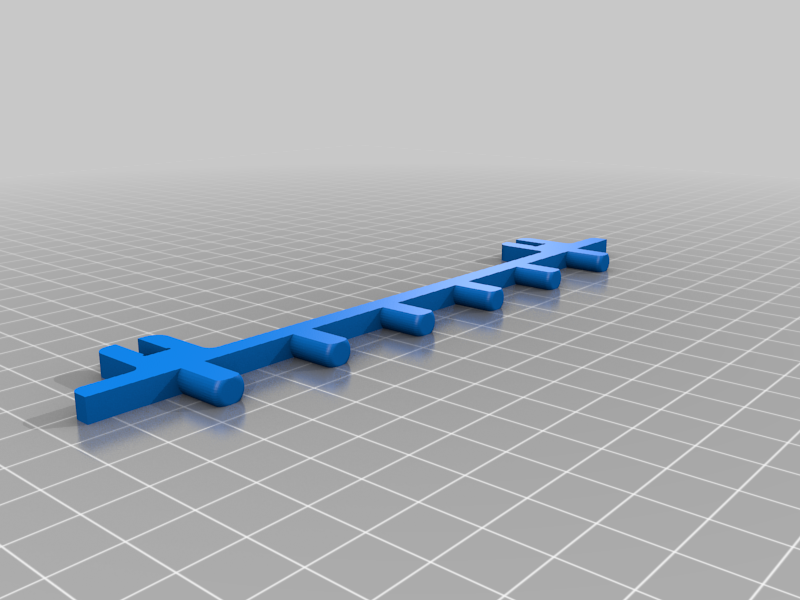

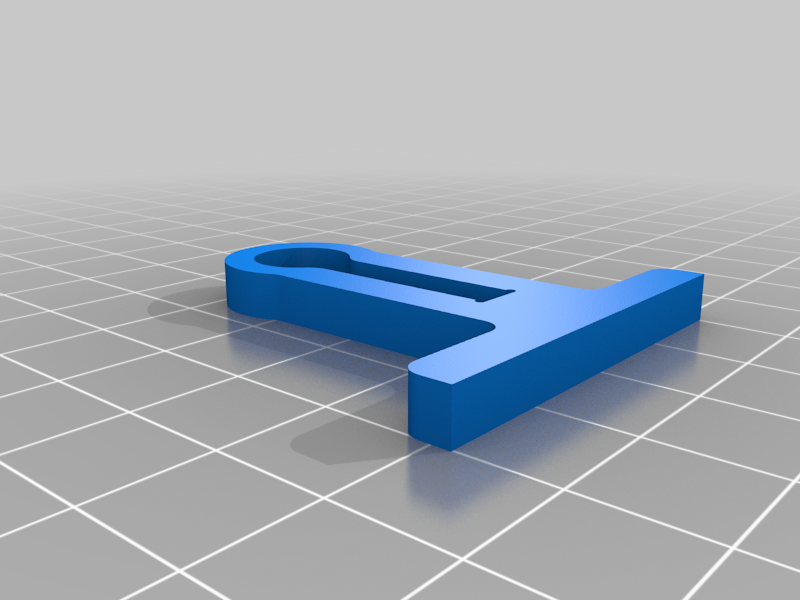

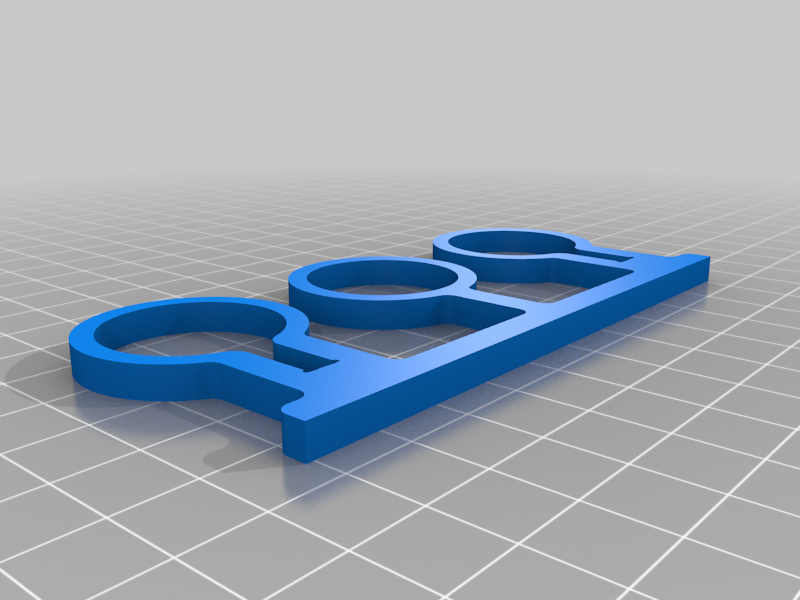

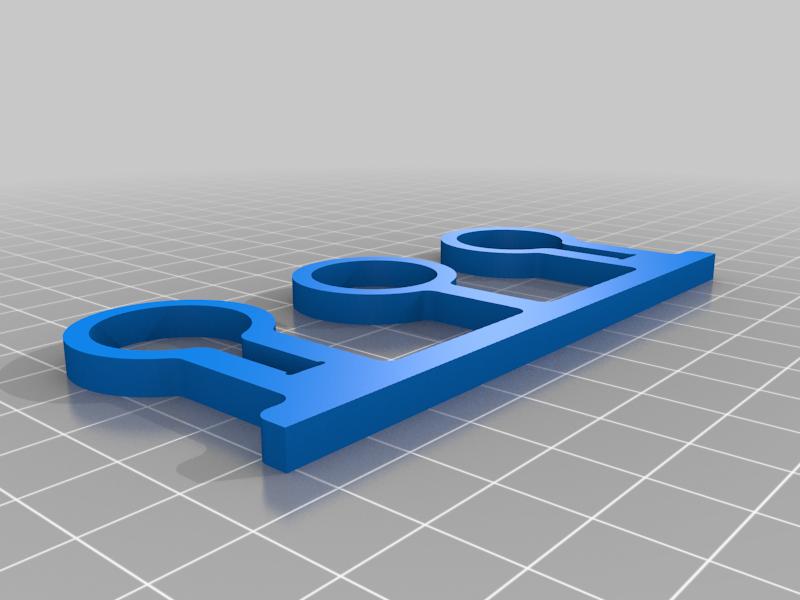

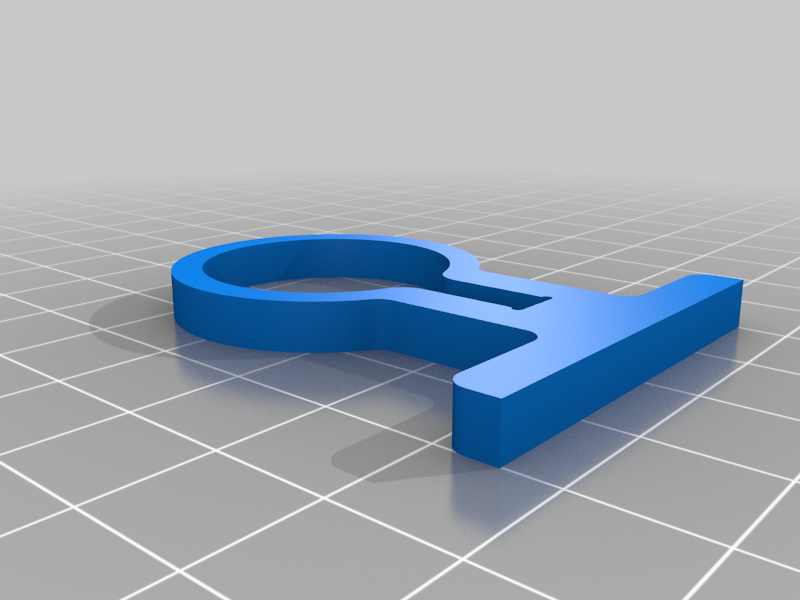

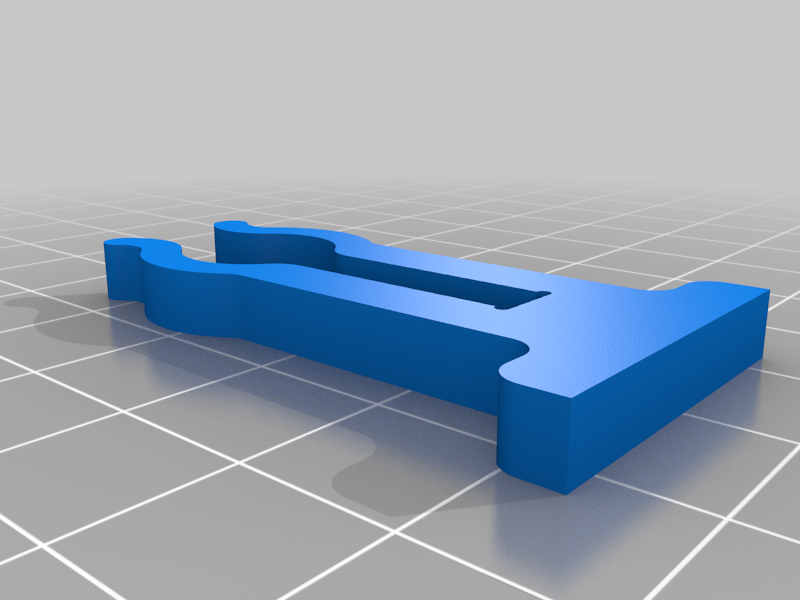

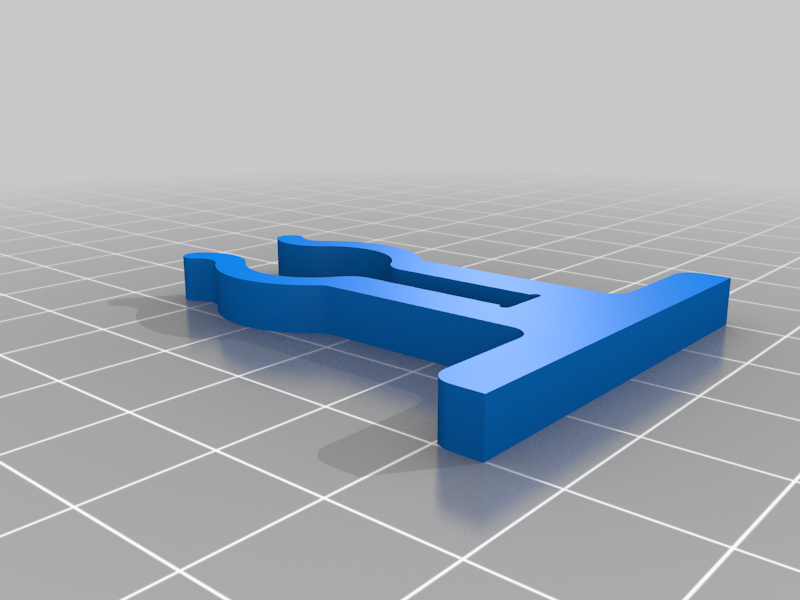

- Arrays of 1, 3, 5, and 7 loops in four diameters. Choose a loop count and upper and lower diameter, print two loop arrays, then attach a pair of rack supports to them to create a rack of screwdriver holders. A single rack support is also provided, in case you just want one loop without a second one below it.

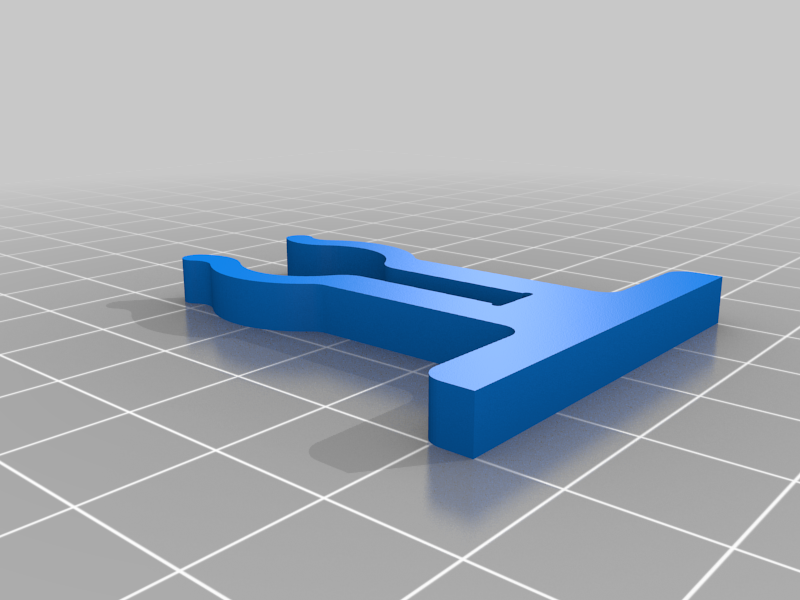

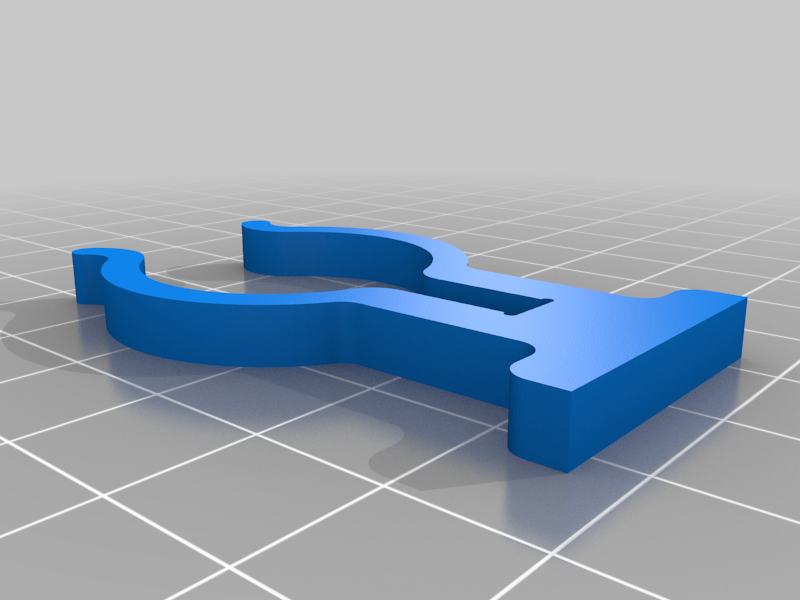

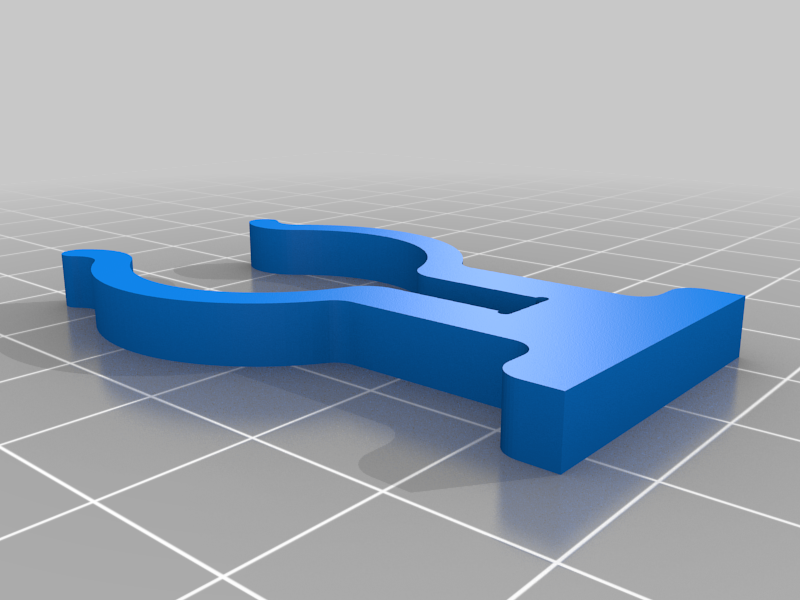

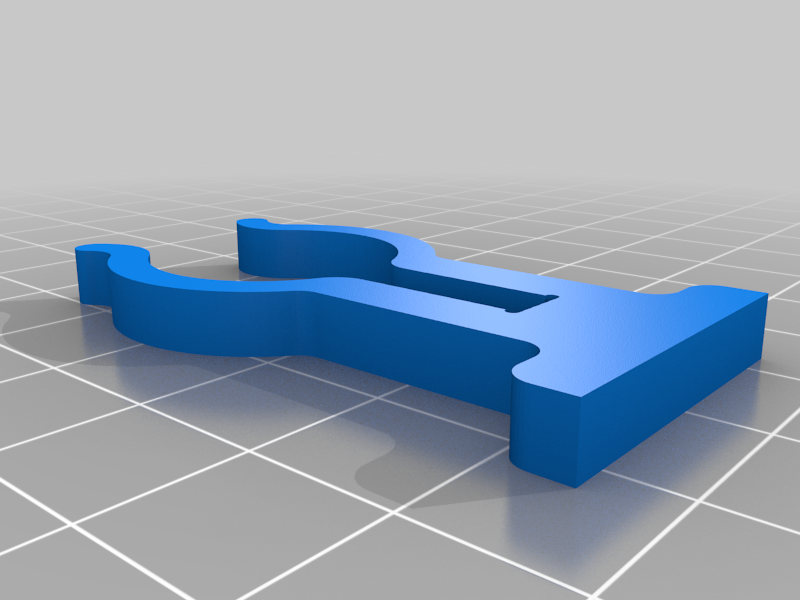

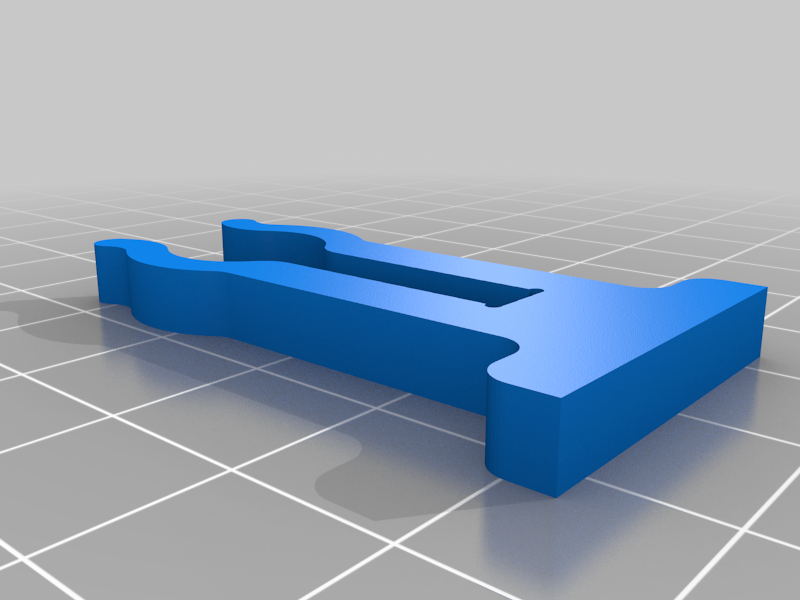

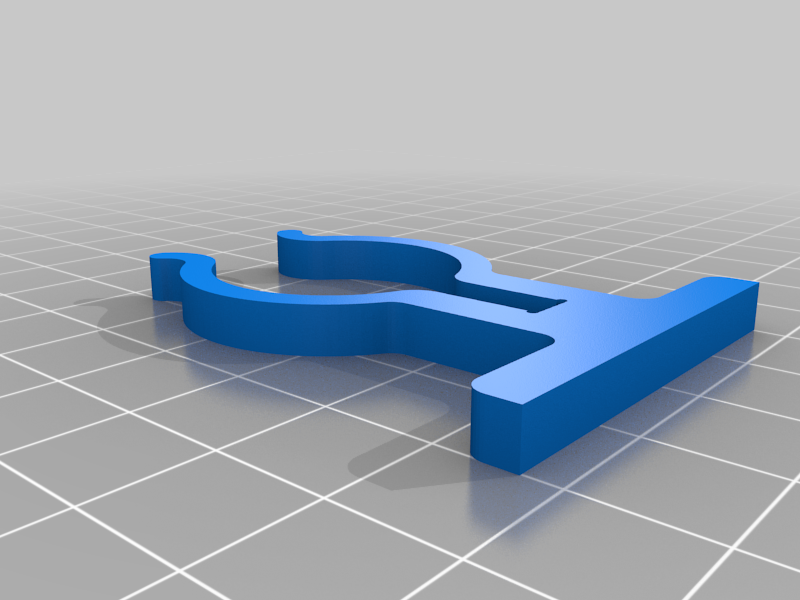

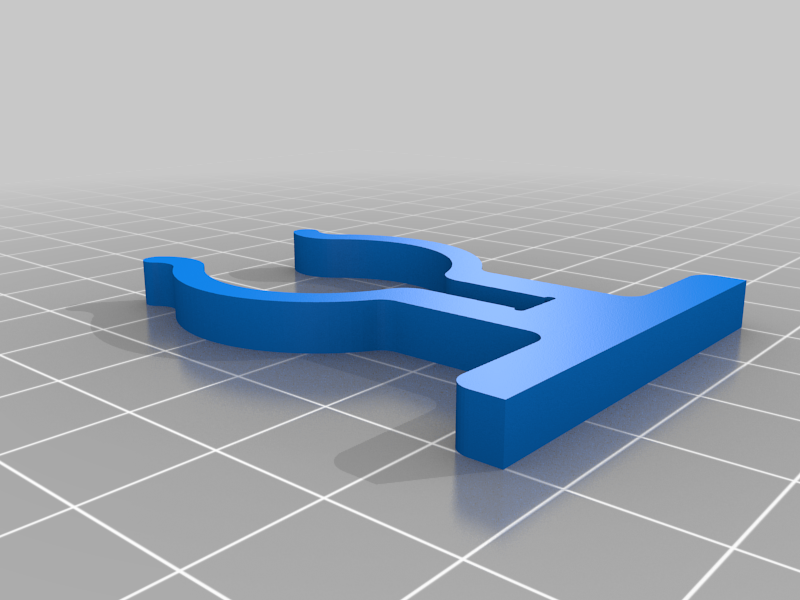

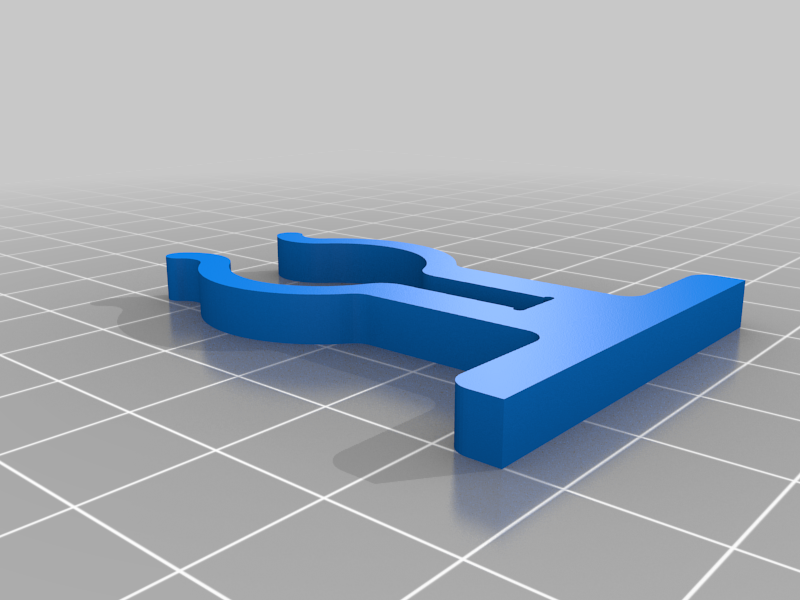

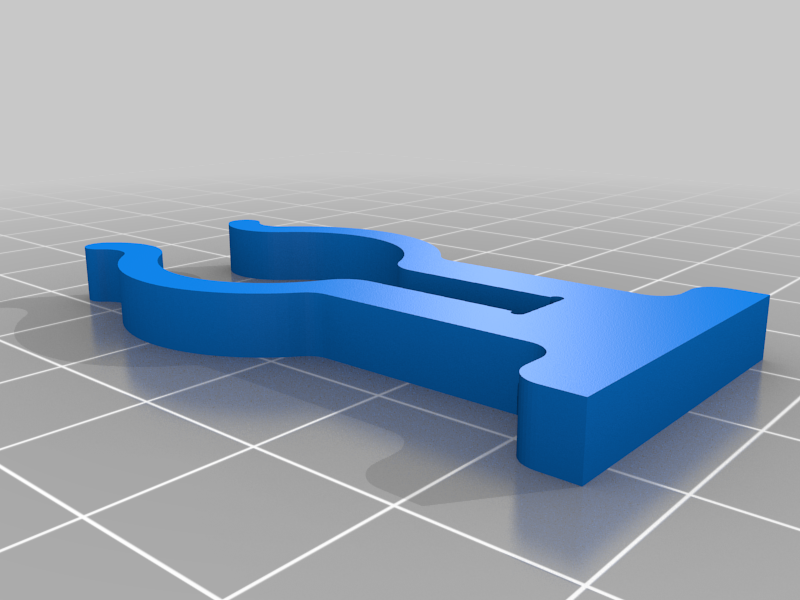

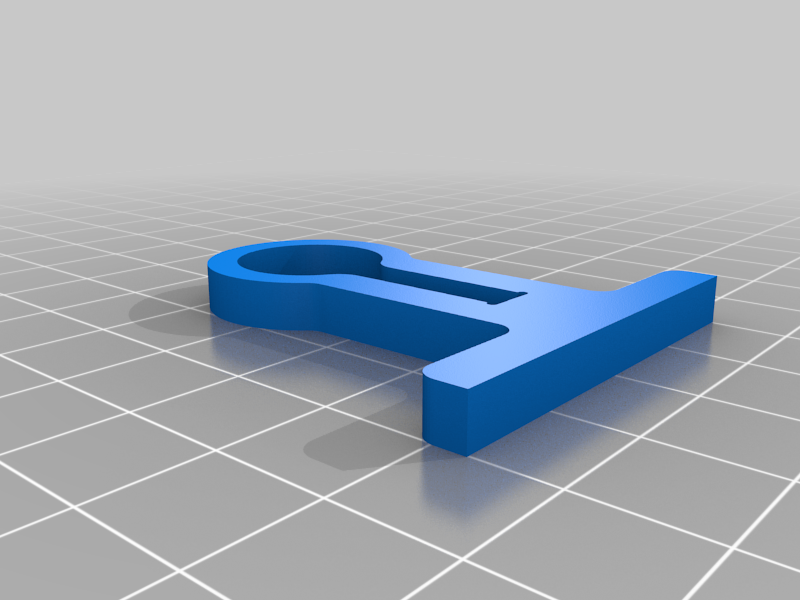

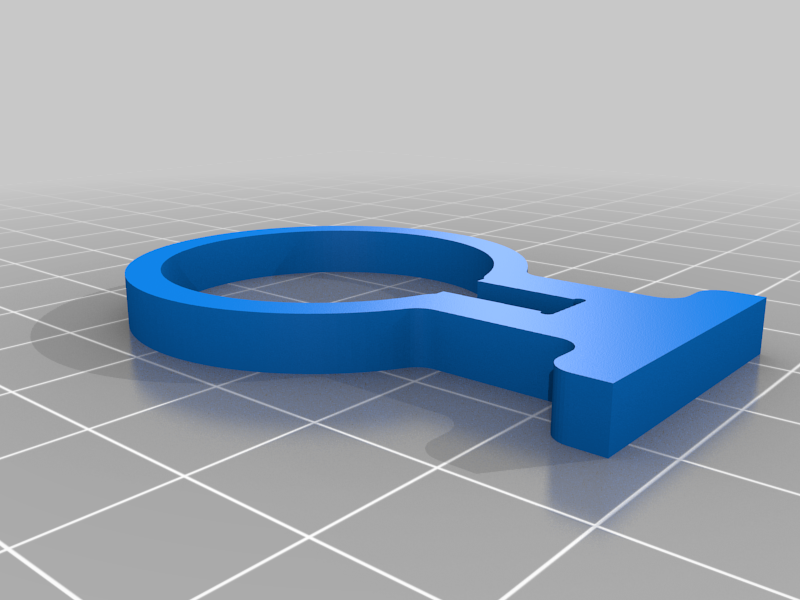

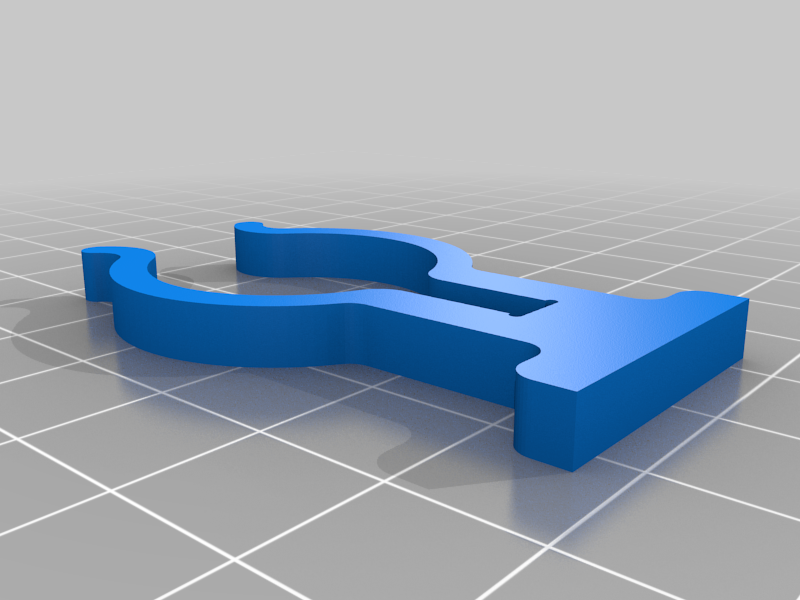

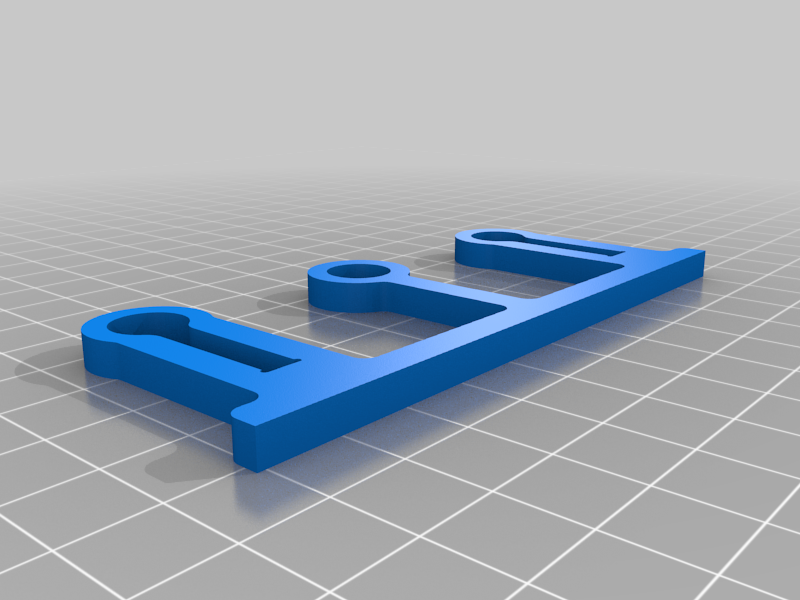

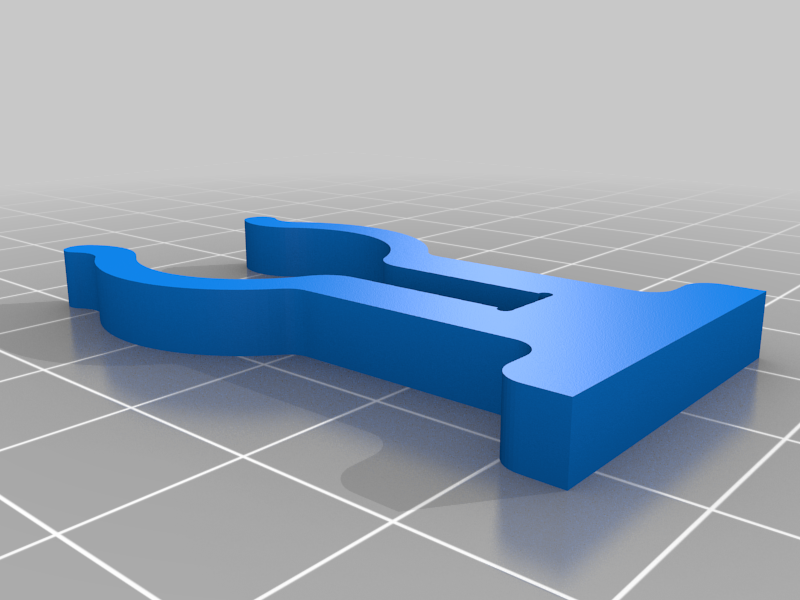

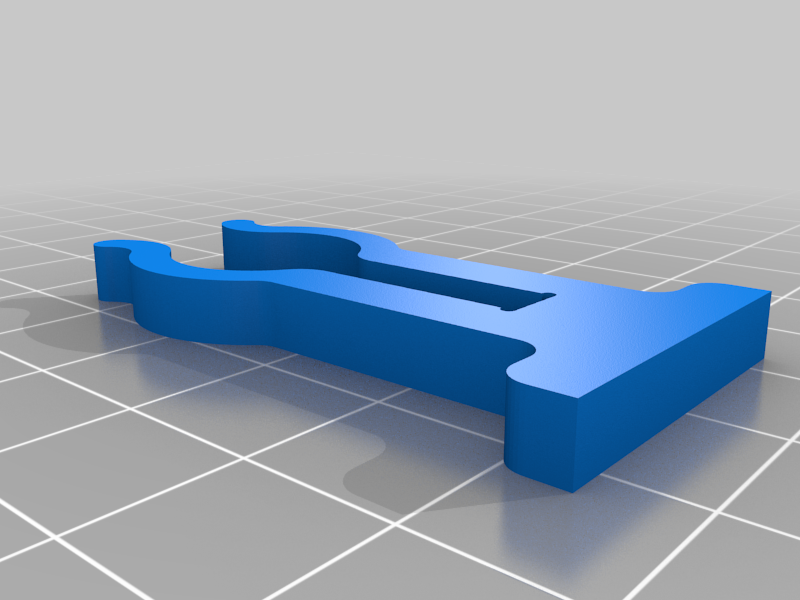

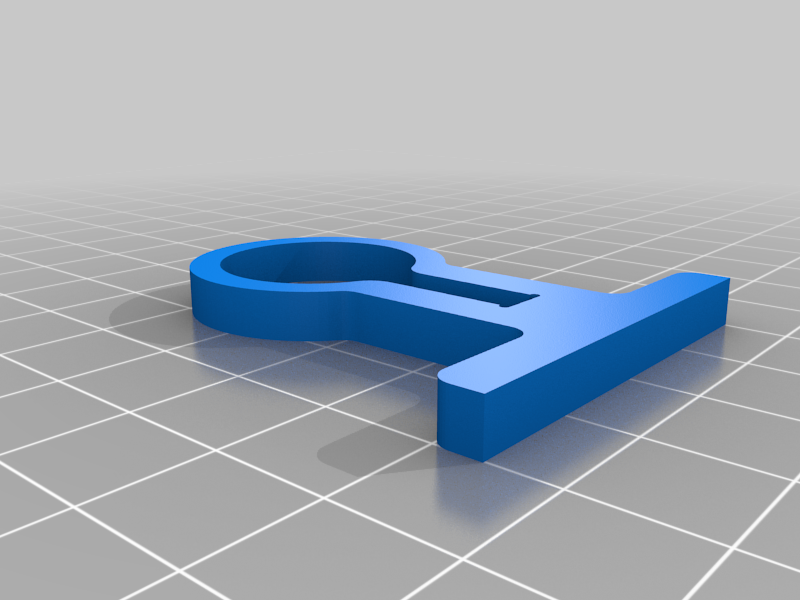

- Open loops for round-handled tools such as ratchet wrenches and hammers, which let you snap the tool into place.

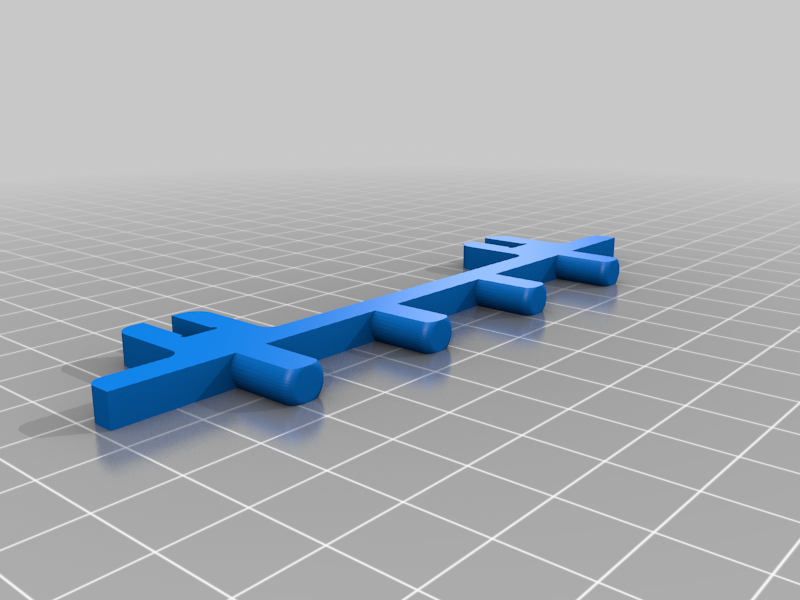

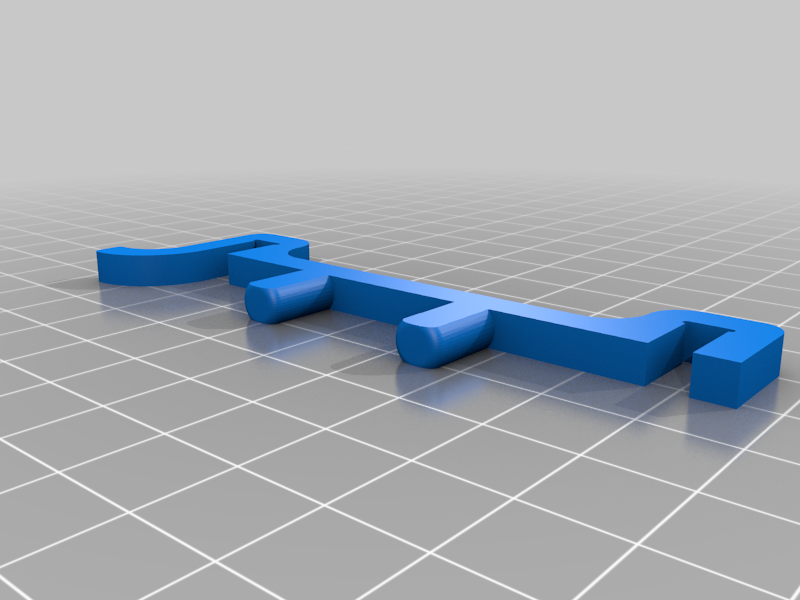

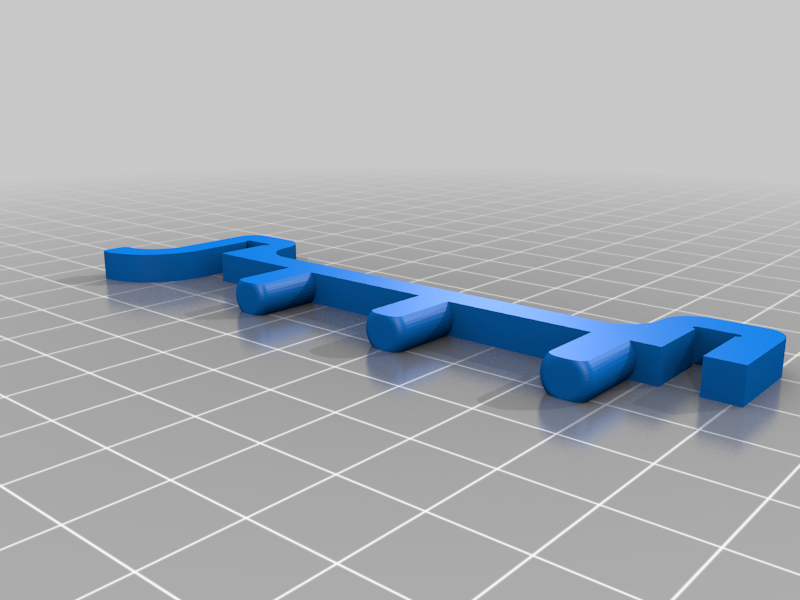

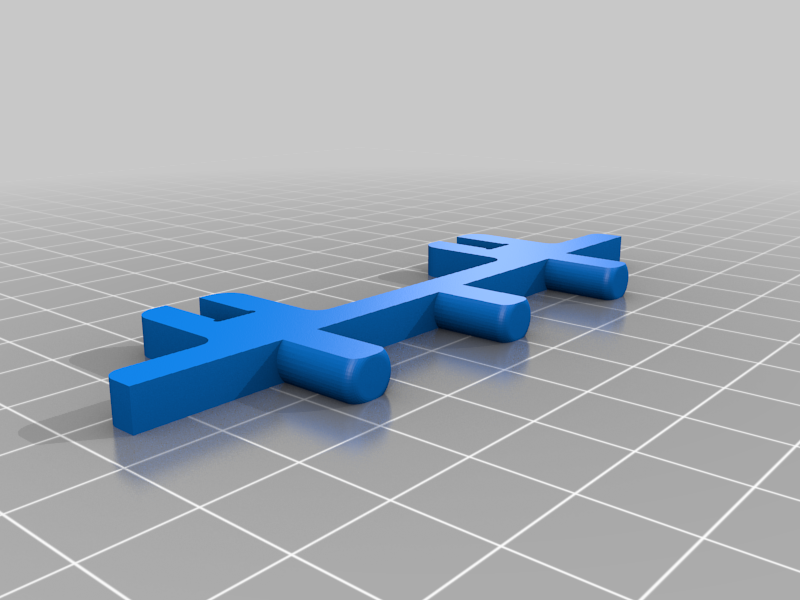

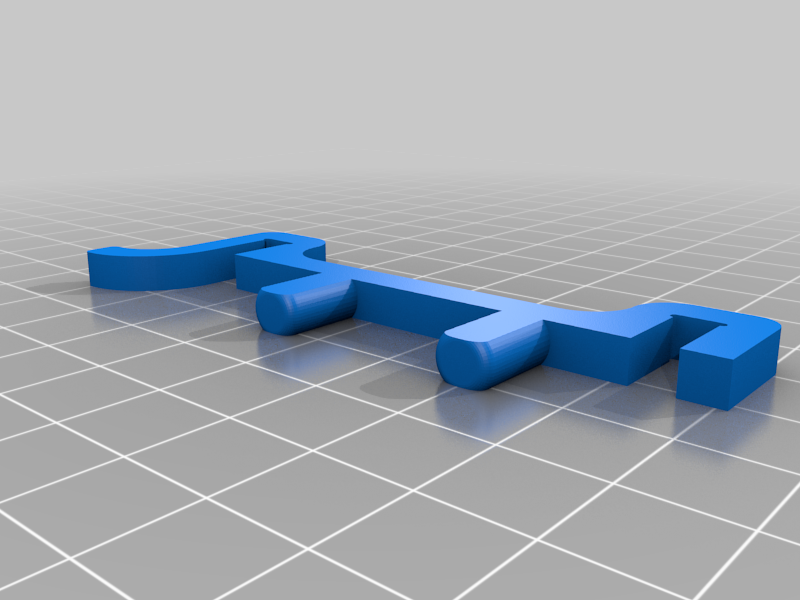

- A drill holder system designed to hold a cordless drill. Print one drill holder front, one drill holder rear, and one double brace 5in with pegs. You can also brace it with two lateral braces, but you may have trouble with stability, as the drill is pretty heavy.

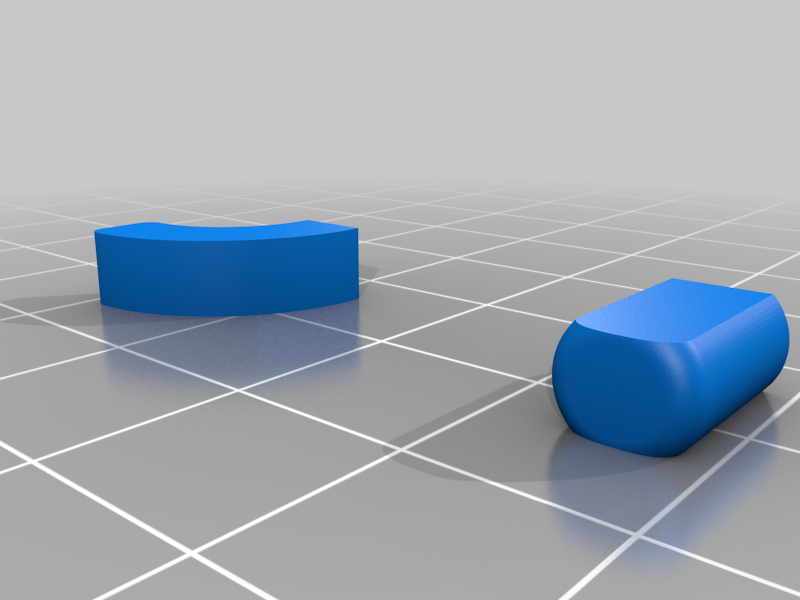

- A model showing only the hook and peg that fit into the pegboard so that you can design whatever hook shape you want using your CAD software of choice, Pegboard-V-Default.STL

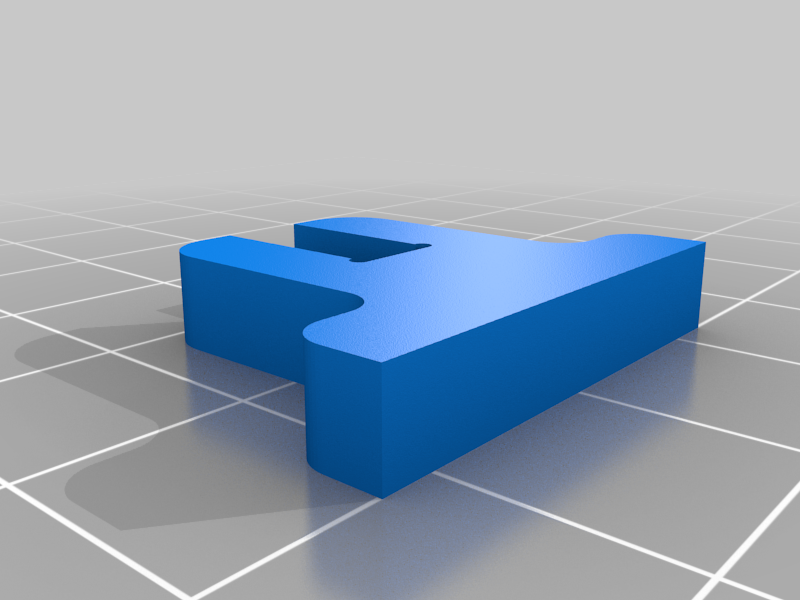

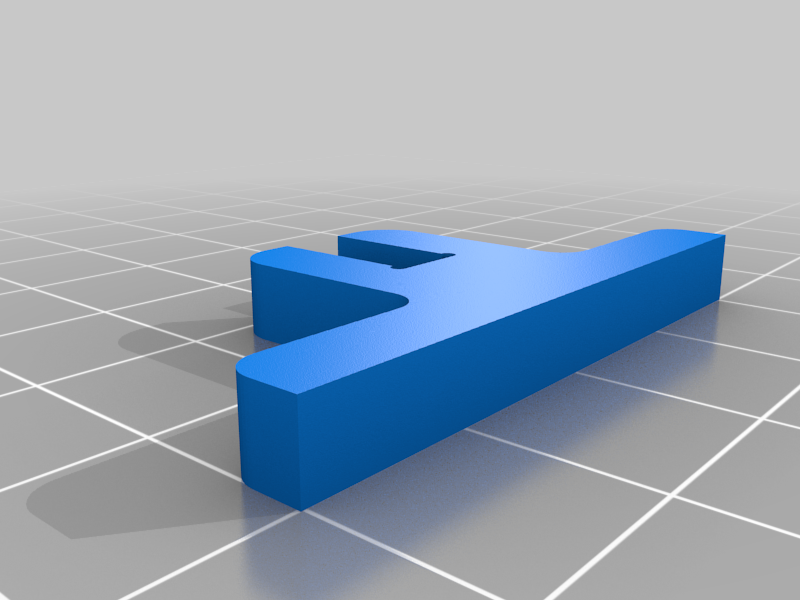

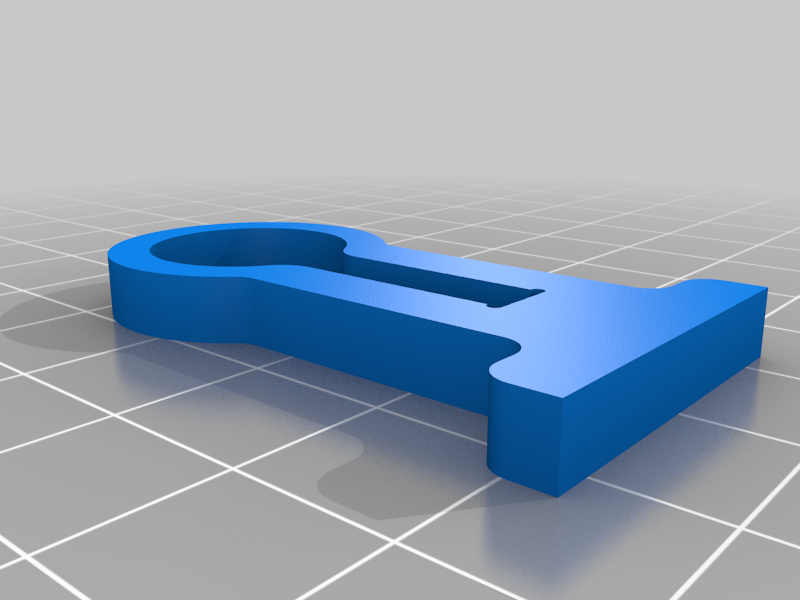

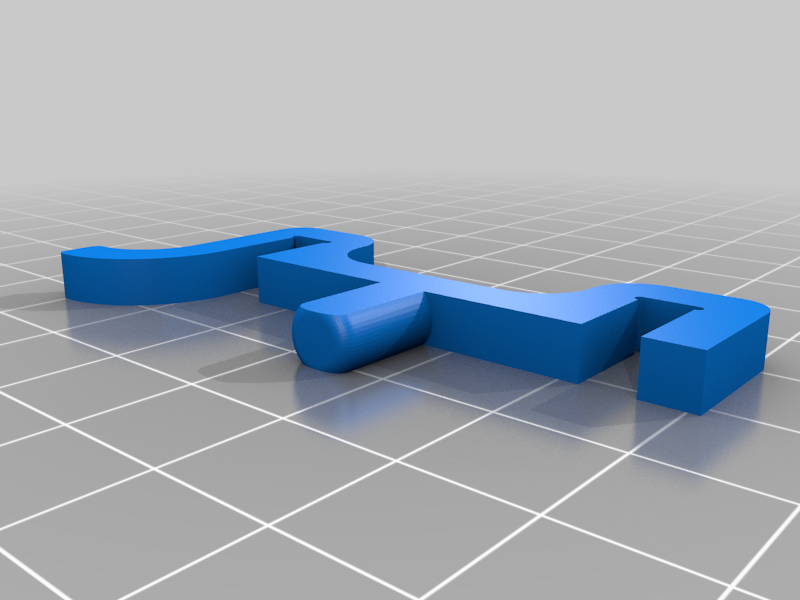

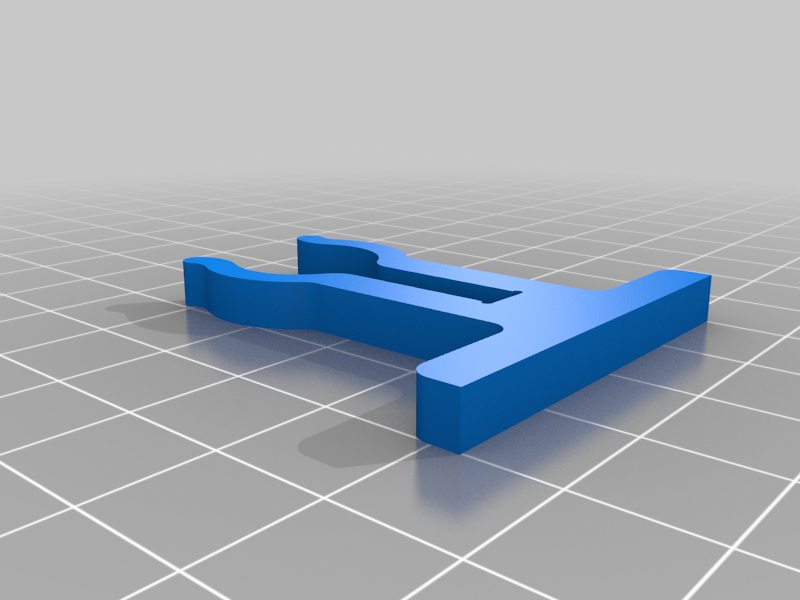

There are V and H models included in this collection, which stand for Vertical and Horizontal. The hooks themselves are all V parts. Some are equipped with a rectangular notch, which accepts a mating H part. The loops are H parts that require a V-rack support in order to attach them to the pegboard.
Note: The double brace with pegs parts are only designed to work with the drill holder hooks as of this writing. If you try to assemble two long hooks with a double brace with pegs part, you will find that the double brace's pegs don't line up with any holes. However, two long hooks plus a pegless double brace works great.
Printing tips:
- Adjust your print settings until the pegs fit snugly and the hooks feel firm, not loose and wobbly, after being installed. Get this dialed in before you go printing 20 hooks at once.
- Do not change the scaling.
- Increasing your extrusion multiplier (try 1.05 or 1.1) is one way to make the part "swell" and give it a tighter fit.
Note: links posted here may be Amazon Affiliate links, which earn me a very small commission when someone uses them, at no cost to the buyer.
